Electric Range With Air Fryer And Basket - 5.3 Cu. Ft. - MER7700LZ

This product has been discontinued by the manufacture and is no longer available.

Electric Range With Air Fryer And Basket - 5.3 Cu. Ft.

Model: MER7700LZ

Electric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZElectric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZ
Electric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZ
Electric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZ
Electric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZ
Electric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZ
Electric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZ
+12more

360 View

360 icon

Color : Fingerprint Resistant Stainless Steel

Electric Range With Air Fryer And Basket - 5.3 Cu. Ft. MER7700LZ
Fingerprint Resistant Stainless Steel

Type : Electric

Key Features

  • Air Fry

  • 5.3 Cu. Ft. Capacity

  • Proudly assembled in Tulsa, Oklahoma, U.S.A.

  • An American company for over 100 years

  • 10-Year Limited Parts Warranty

  • Dishwasher-safe Air Fry basket

  • Fan convection cooking

  • High Temp Self Clean

Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Air Fry

Air Fry allows you to make your favorite fried foods with a crispy-on-the-outside, juicy-on-the-inside taste using little to no additional oil.

5.3 Cu. Ft. Capacity

Cook the whole meal with plenty of space in this 5.3 cu. ft. capacity electric range.

Proudly assembled in Tulsa, Oklahoma, U.S.A.

We take pride in building strong, reliable appliances for your home. These ranges are proudly assembled by hard-working employees in Tulsa, Oklahoma.

An American company for over 100 years

Whirlpool Corporation started in 1911 in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.

10-Year Limited Parts Warranty

With a 10-year limited parts warranty on the glass cooktop, elements and cavity, we built these ranges tough enough to keep cooking for years.

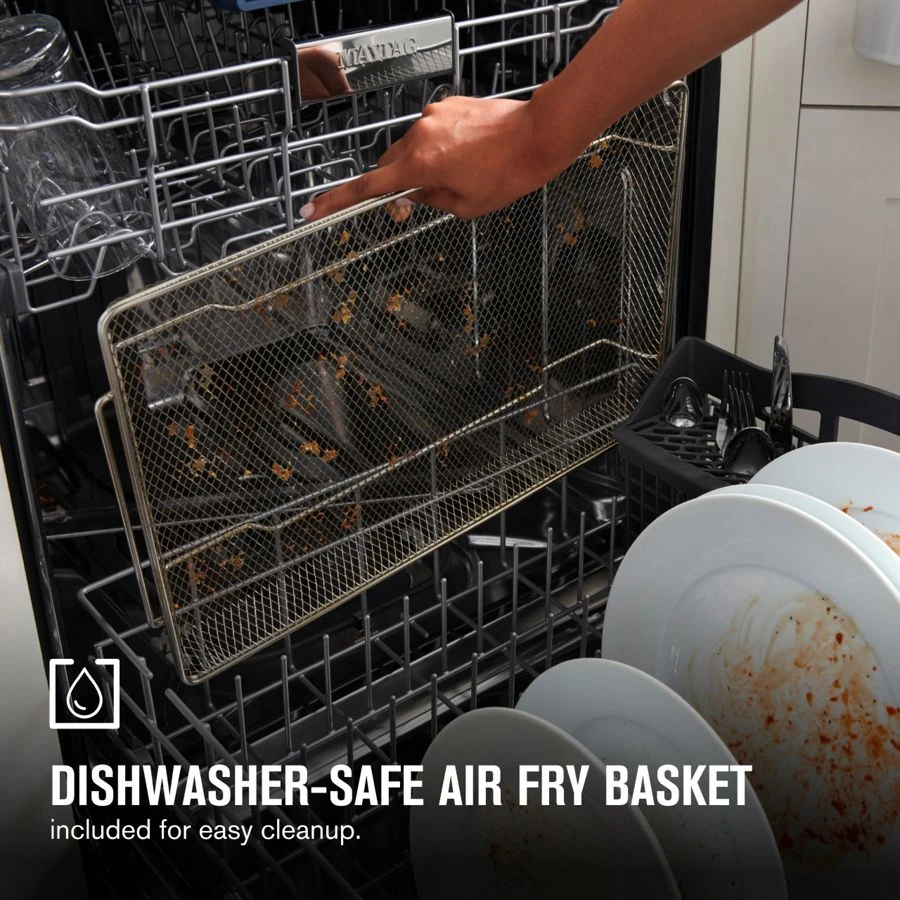

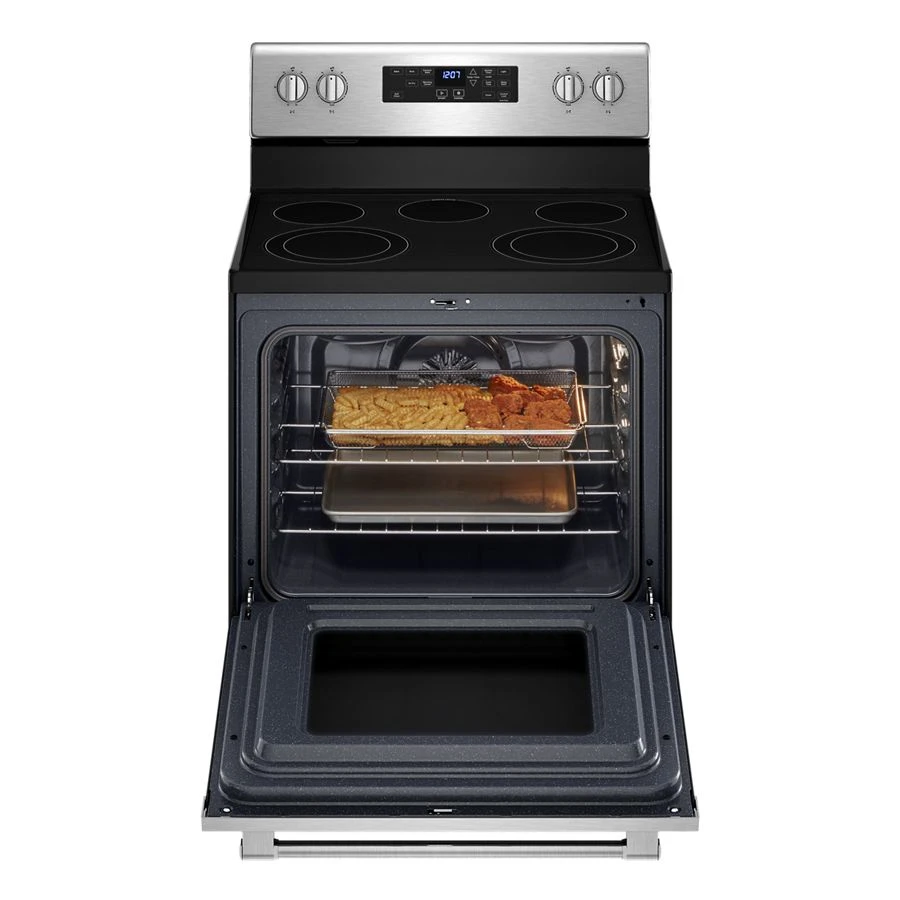

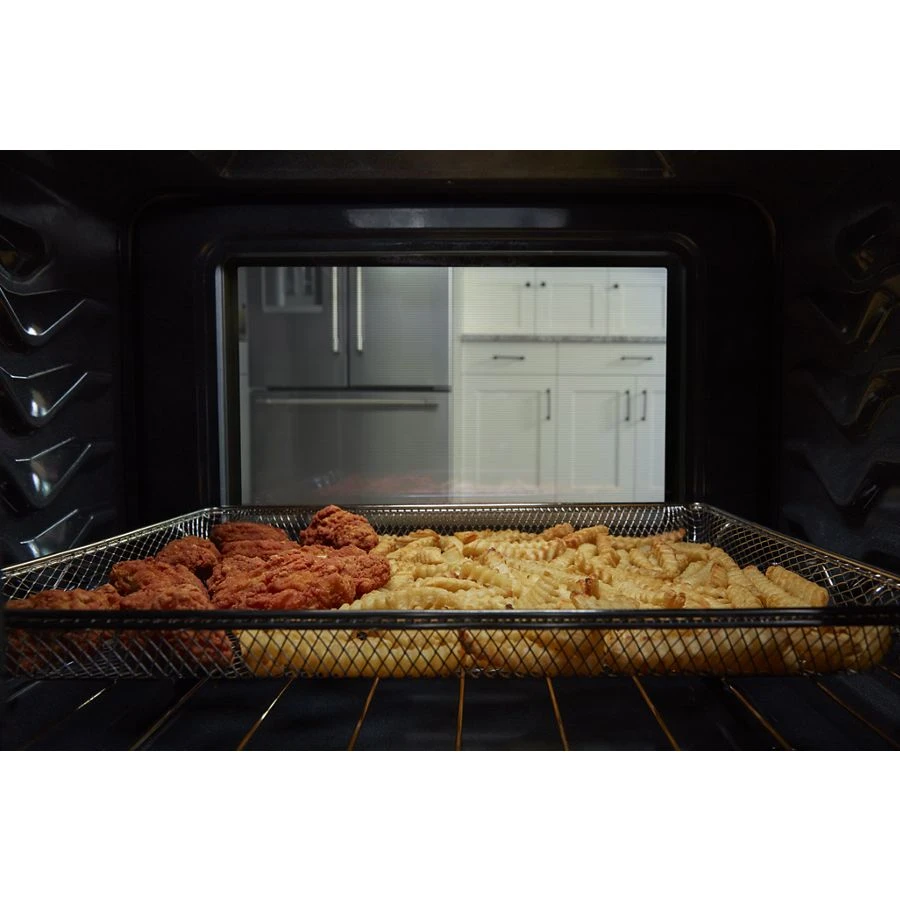

Dishwasher-safe Air Fry basket

Just toss your favorite foods into the 13" x 18" stainless steel basket included in your range for crisp results, and after eating, toss the basket into the dishwasher for easy cleanup.

Fan convection cooking

With two heating elements, fan convection circulates hot air around the oven so you can cook the whole meal at once without having to rotate your dishes for all around baking.

High Temp Self Clean

Fight the toughest baked-in foods in your oven with this high-heat, self-cleaning technology.

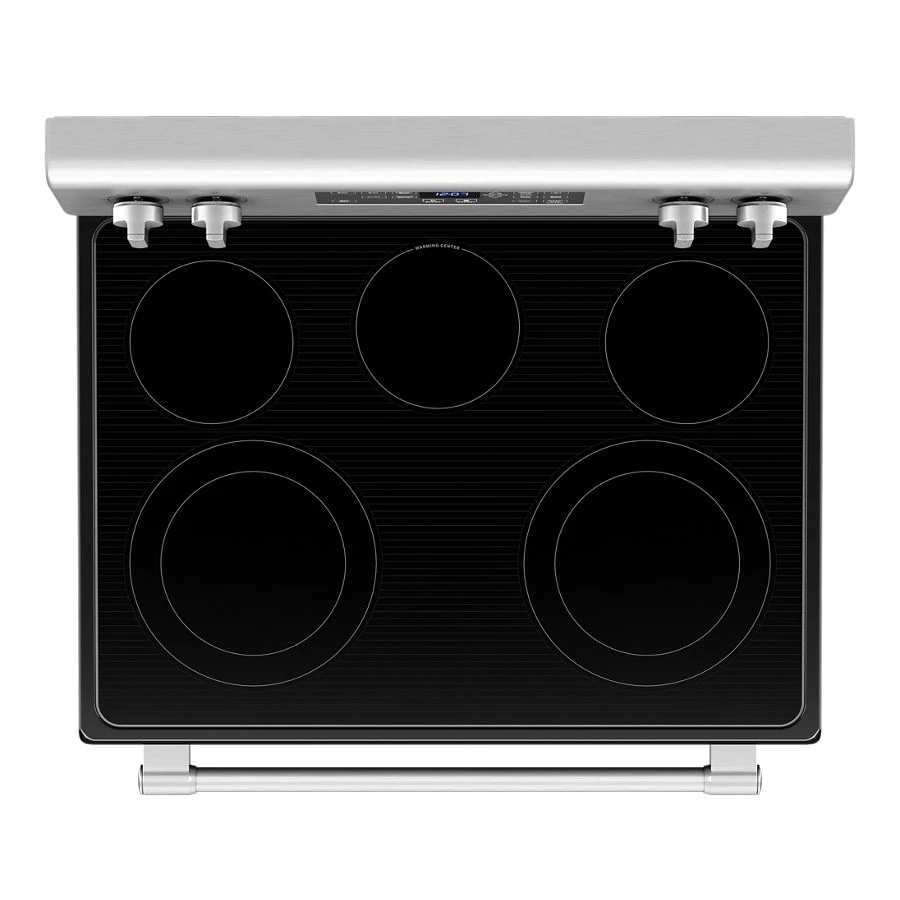

5 Elements

With an extra element, you have the flexibility to prepare your meal without juggling pots and pans, getting you to dinner fast.

Delay Bake setting

With the Delay Bake setting, just place your dishes in the oven and program when you want the baking to begin so your food is ready when you are.

Hidden Bake Element

The hidden bake element is sealed under the oven floor to protect it from spills and drips.

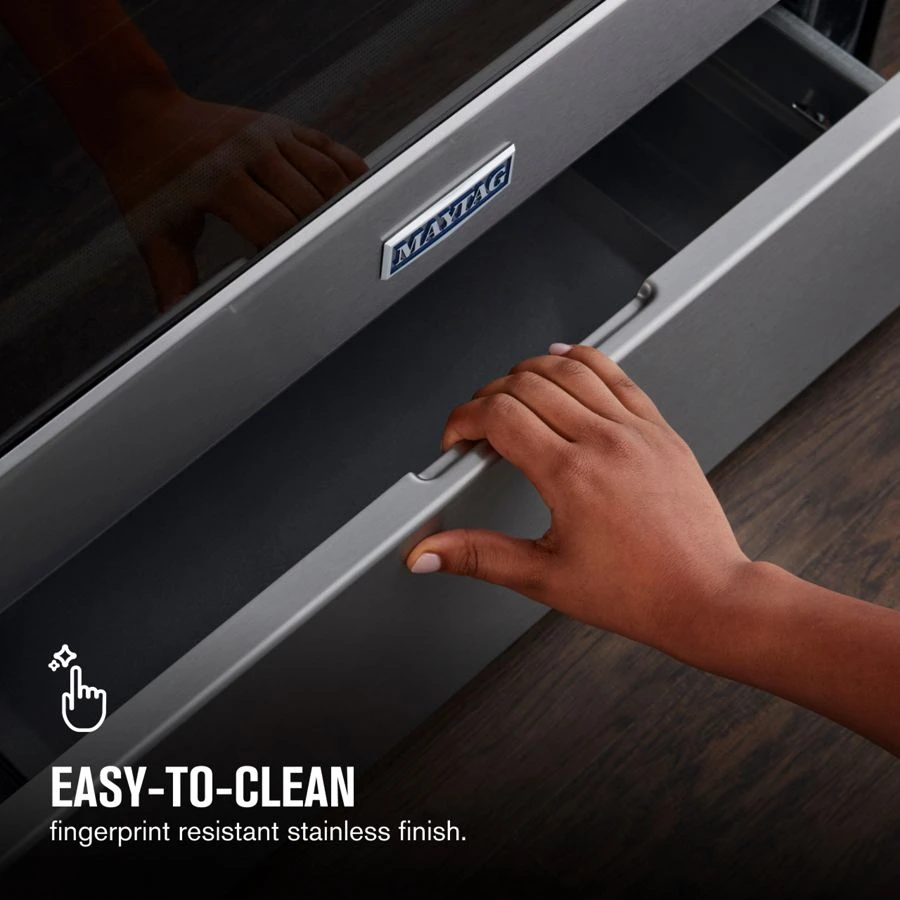

Fingerprint resistant stainless finish

The easy-to-clean fingerprint resistant stainless finish keeps your oven looking as good on the outside as it works on the inside.

Warming center

A warming center adds a dedicated cooktop zone to keep your finished food warm while you use the other elements to get the rest of your meal cooked.

9"/6" Dual-Choice™ Element

The 9"/6" Dual-Choice™ element matches the heat to the pan you’re using so you can cook your meal the way you want.

Ceramic Glass cooktop

The smooth ceramic glass cooktop lets you easily wipe spills from all the delicious meals you‘ll prepare.

Designed to last

The ceramic glass cooktop and sturdy door hinges on this Maytag® air fry electric range are built for dependability, while fingerprint resistant stainless finish helps make cleaning easier.

Specifications

Warranty

Parts1 Year
Labor1 Year

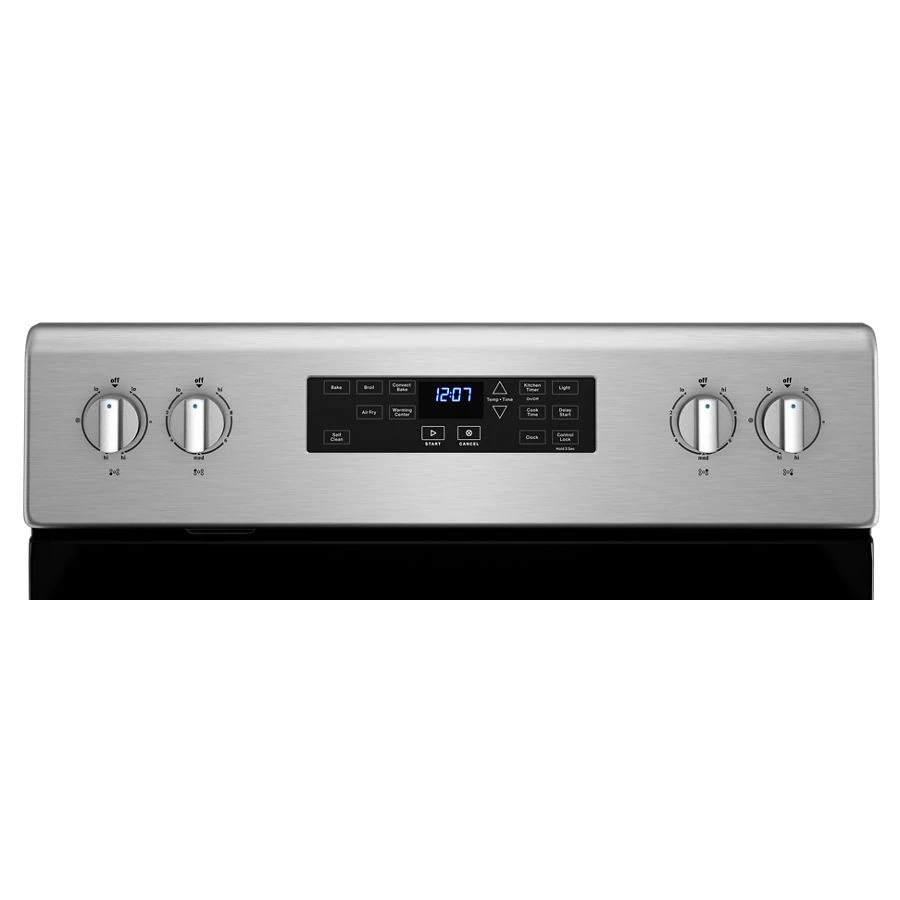

Controls

Display ColorBlue
Electronic Display TypeLED

Details

Oven Automatic Shut-OffNo
Cooktop ConfigurationAll Burners
Fuel TypeElectric
Oven SelectionsAir Fry, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Keep Warm/Warm Hold, Sabbath Mode, Start Time, Timer
Power On Indicator LightYes
Power Outage CompatibleNo
Range TypeFreestanding

Cooktop Details

Cooktop Control Knob ColorStainless Steel
Cooktop Control Knob TypePlastic
Cooktop Control LocationBackguard
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Surface MaterialGlass
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes

Certifications

ADA CompliantNo
CULYes
ULYes

Electrical

Amps40
Hz60
Power Cord IncludedNo
Volts120

Other

Capacity (Cu Ft)5.30

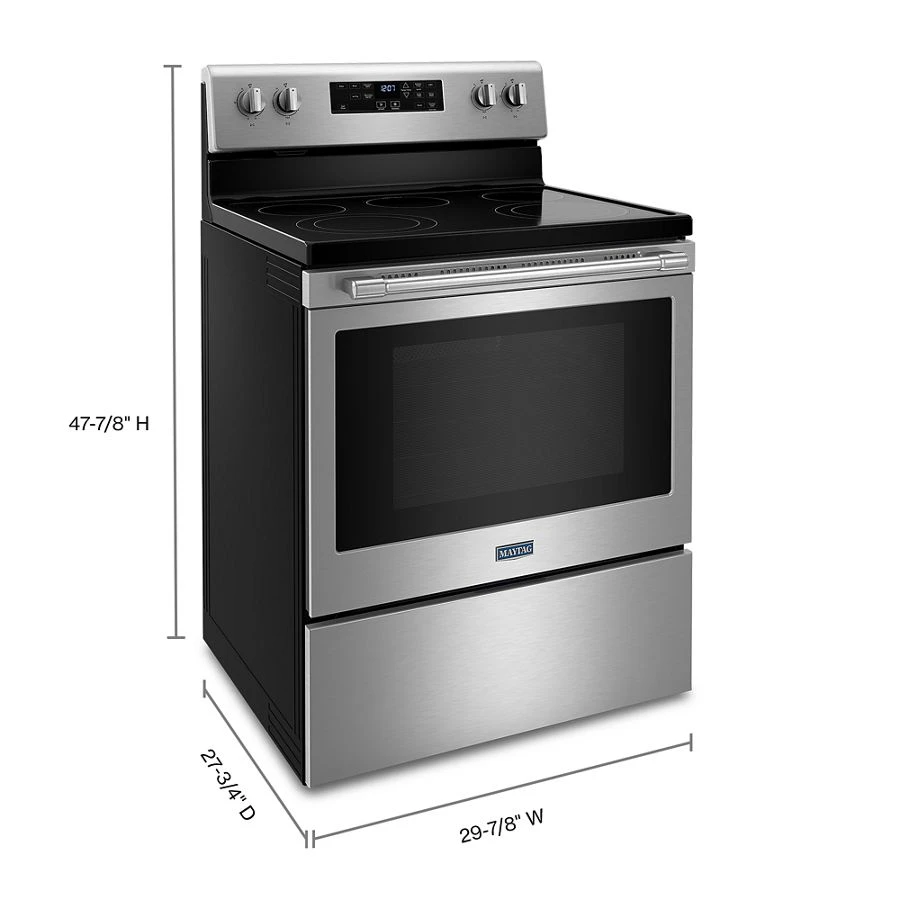

Dimensions & Weight

Width29.88 in.
Height47.88 in.
Length27.75 in.
Weight160 lbs.
Carton Depth29
Carton Height48 3/4
Carton Width32
Cutout Depth (in)24
Cutout Height (in)36
Cutout Width (in)30
Depth Closed Excluding Handles25 5/16
Depth Closed Including Handles28
Depth With Door Open 90 Degree46.688
Gross Weight160
Maximum Height47 7/8
Minimum Height46 7/8
Net Weight141.0
Cutout Depth(IN,inches)24.0000
Cutout Height(IN,inches)36.0000
Cutout Width(IN,inches)30.0000
Depth Closed Excluding Handles(IN,inches)25.3125
Depth Closed Including Handles(IN,inches)28.0000
Depth With Door Open 90 Degree(IN,inches)46.6880
Depth(IN,inches)27.7500
Maximum Height(IN,inches)47.8750
Minimum Height(IN,inches)46.8750
Carton Depth(IN,inches)29.0000
Carton Height(IN,inches)49.0000
Carton Width(IN,inches)31.0000

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height52.88 in.
Shipping Length32.75 in.
Shipping Weight200 lbs.
Total of Shipping Weight200 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.97 ft³
Dimensional Weight285.54 lbs.
Total of Cubes22.97 ft³
Total of Dimensional Weight285.54 lbs.

Exterior Details

Door TypeMetal & Glass
Handle ColorStainless Steel
Handle MaterialMetal
Handle TypeReach Through Handle
Oven Control Knob ColorStainless Steel
Oven Control Knob TypePlastic
Oven Control LocationBackguard
Oven Control TypeElectronic Touch
Oven Window SizeLarge

Oven Cavity Details

Automatic Convection Conversion Temperature AdjustNo
Bake Element Power2,400 W
Broiler Element Power3,400 W
Broiler LocationTop Center
Convection Element TypeNone
Convection FunctionsNo
Door RemovableYes
Hidden Bake ElementYes
Interior ColorBlack
Number of Oven Lights1
Number of Oven Racks2
Number of Rack Guides5
Oven Cleaning TypeAdjustable Self Cleaning
Oven Cooking SystemConvection
Oven Light Switch LocationTop of Console
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)

Dimensions

Common Size30 in
Cutout Depth24 in
Cutout Height36 in
Cutout Width30 in
Depth27-3/4 in
Depth Closed Excluding Handles25-313/1000 in
Depth Closed Including Handles28 in
Depth With Door Open 90 Degree46-86/125 in
Gross Weight160 lbs
Height47-7/8 in
Maximum Height47-7/8 in
Minimum Height46-7/8 in
Net Weight141 lbs
Oven Interior Depth18-1/2 in
Oven Interior Height18-1/8 in
Oven Interior Width24-1/2 in
Width29-7/8 in

Smart Compatibility

ConnectivityNo
Works WithNo

Element/Burner Details

Center Front Element-Burner Power100W
Center Front Element-Burner Size6in.
Center Front Element-Burner TypeWarming
Cooktop Element StyleRadiant
Left Front Element-Burner Power3,000W
Left Front Element-Burner Size9in./6in.
Left Front Element-Burner TypeDual
Left Rear Element-Burner Power1,200W
Left Rear Element-Burner Size6in.
Left Rear Element-Burner TypeStandard
Right Front Element-Burner Power3,000W
Right Front Element-Burner Size9in./6in.
Right Front Element-Burner TypeDual
Right Rear Element-Burner Power1,200W
Right Rear Element-Burner Size6in.
Right Rear Element-Burner TypeStandard

Refinements

FeaturesAir Fry

Features

Range FeaturesAir Fry
