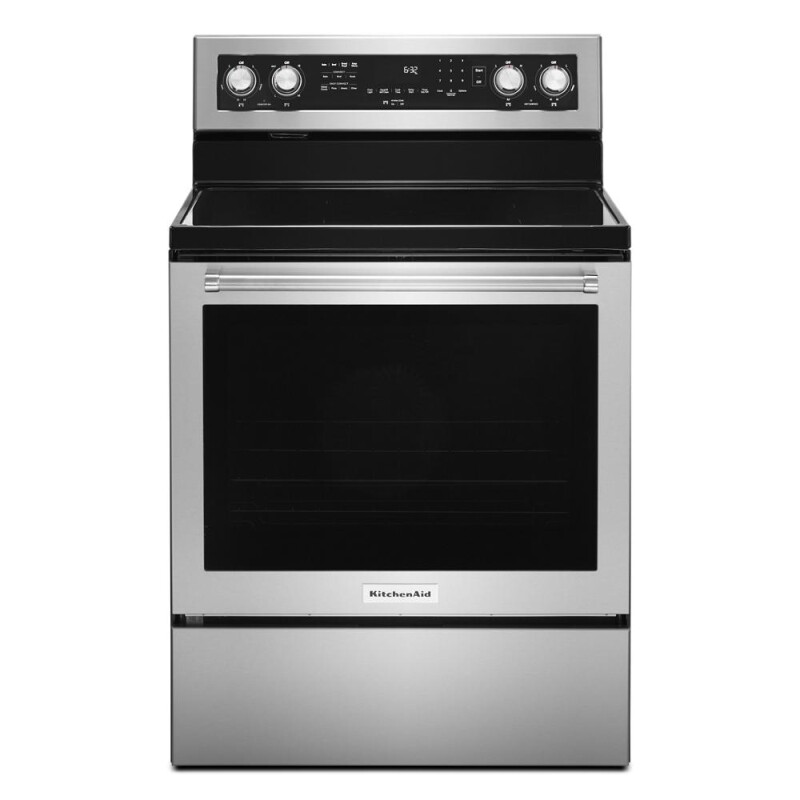

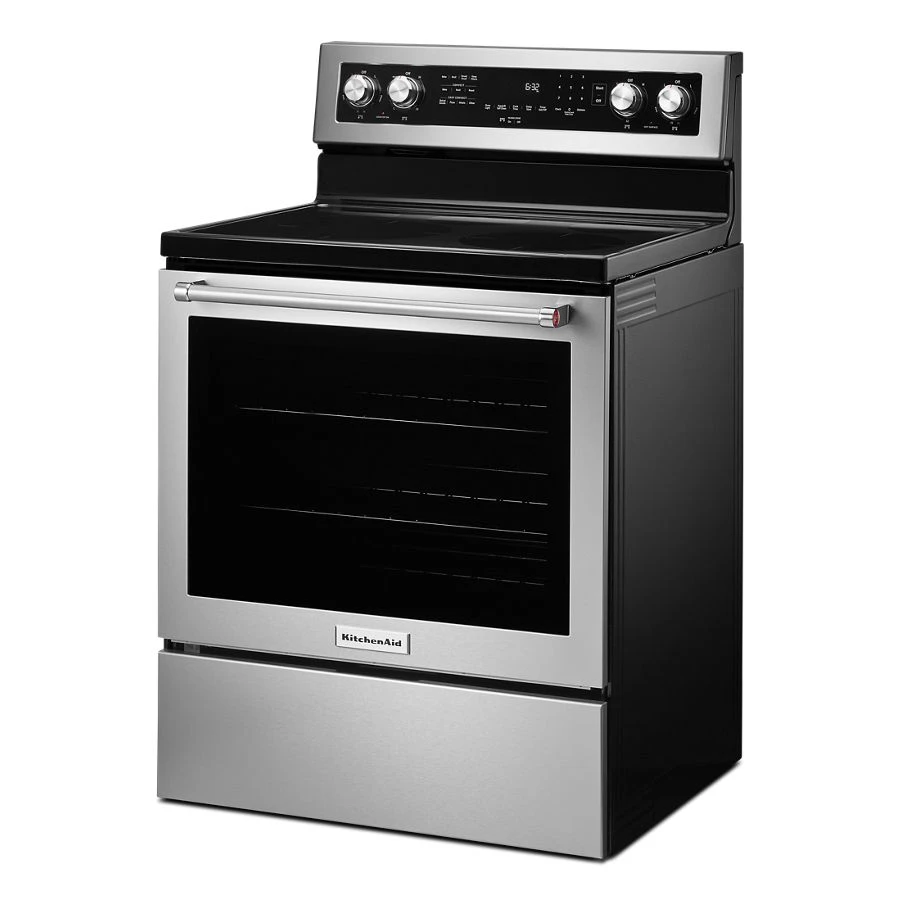

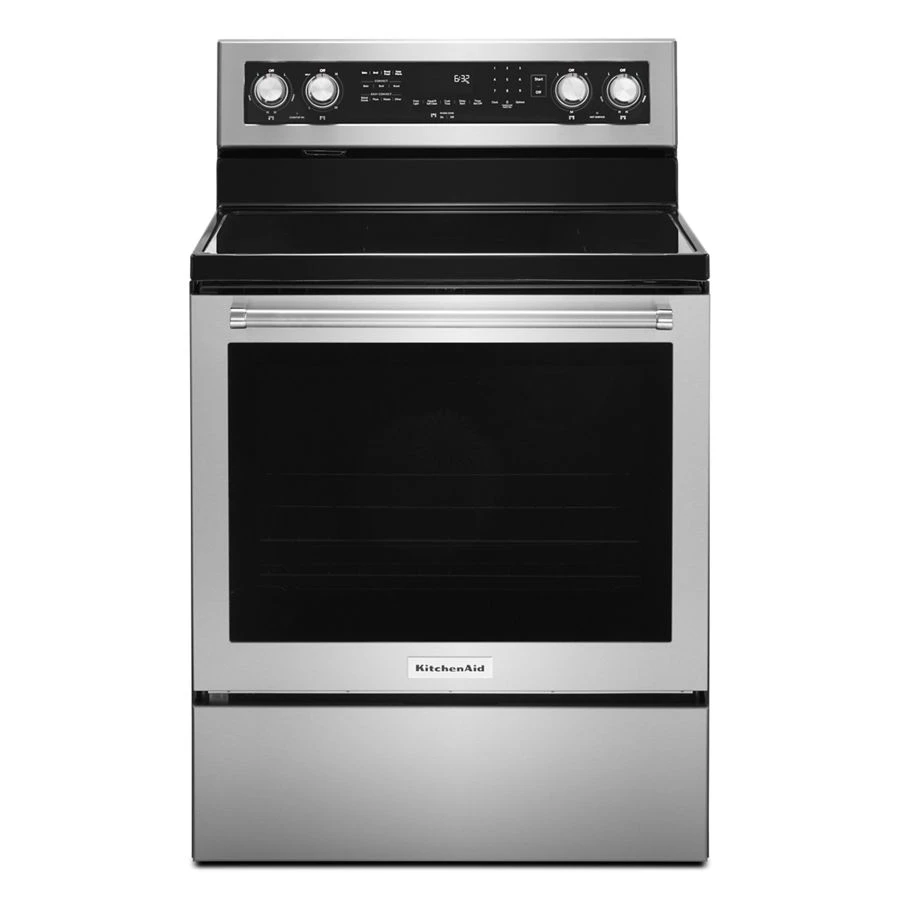

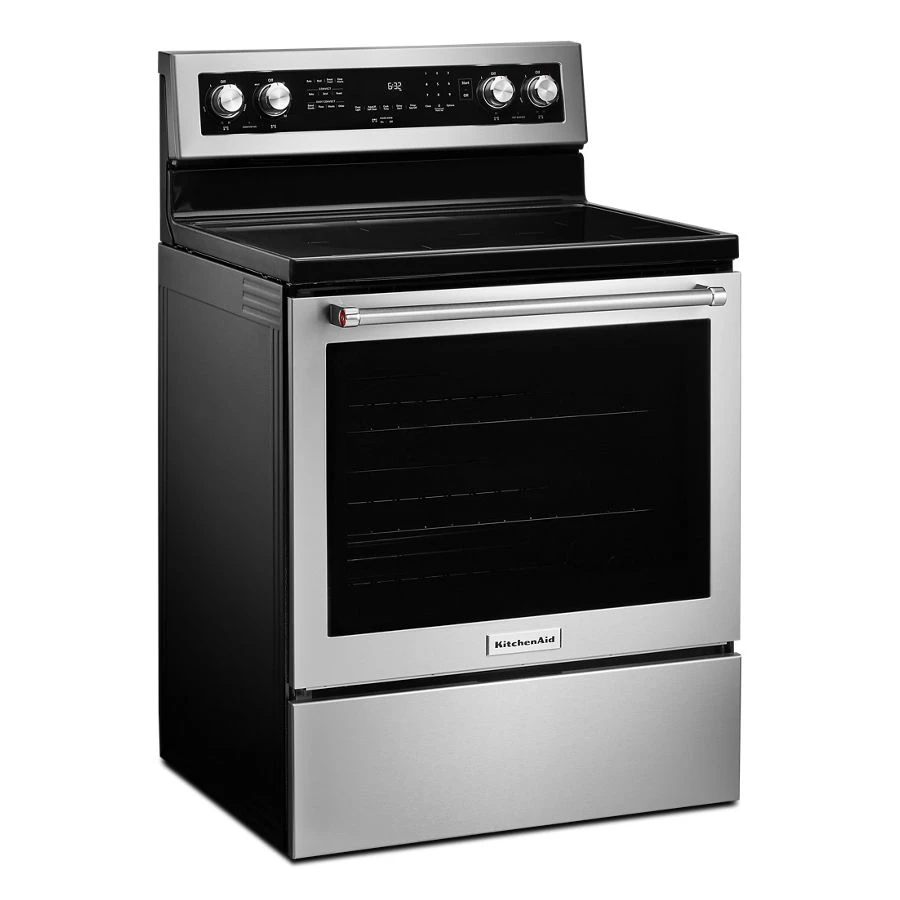

30-inch 5 Element Electric Convection Range With Printshield™ Finish - KFEG504KPS
30-inch 5 Element Electric Convection Range With Printshield™ Finish
Model: KFEG504KPS
360 View
30-inch 5 Element Electric Convection Range With Printshield™ Finish
Model: KFEG504KPS
Color : Stainless Steel with PrintShield™ Finish
Key Features
6.4 Cu Ft. Oven Capacity
5 Cooking Elements Including a Warm Zone
Storage Drawer
Hidden Bake Element
Even-Heat™ True Convection
EasyConvect™ Conversion System
Description
Documents
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
6.4 Cu Ft. Oven Capacity
provides an extra-large cooking capacity that easily handles multiple dishes at once.

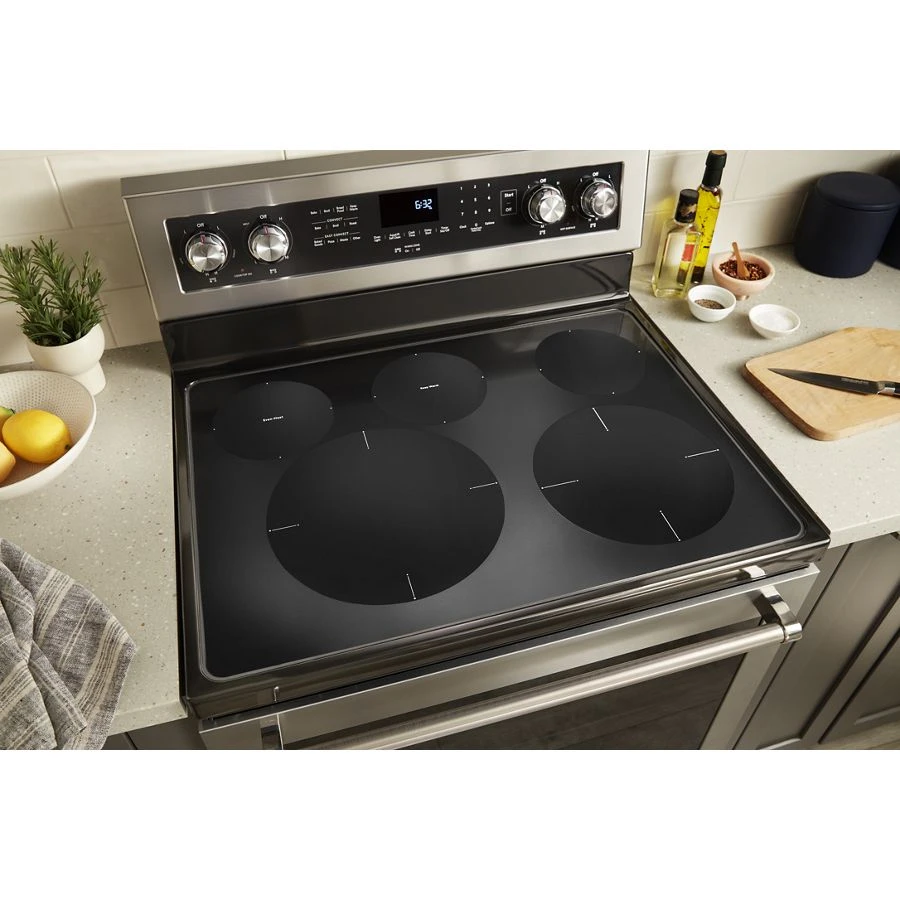

5 Cooking Elements Including a Warm Zone
provides five independent cooking surfaces that allow you to do more on your range. It features two dual elements 12/9", 9/6", two 6 inch cooking zones, plus a dedicated warming zone.
Storage Drawer
adds additional storage space that’s perfect for pots, pans and baking sheets.
Hidden Bake Element
covers up the baking element, making it easy to wipe away spills

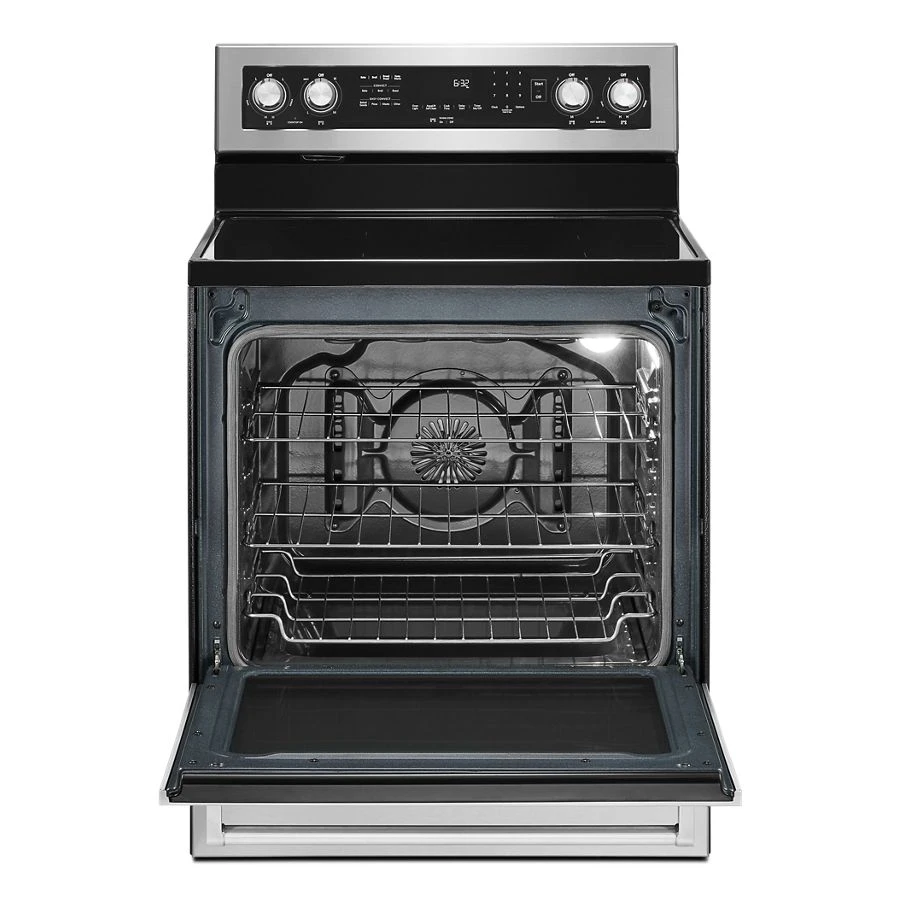

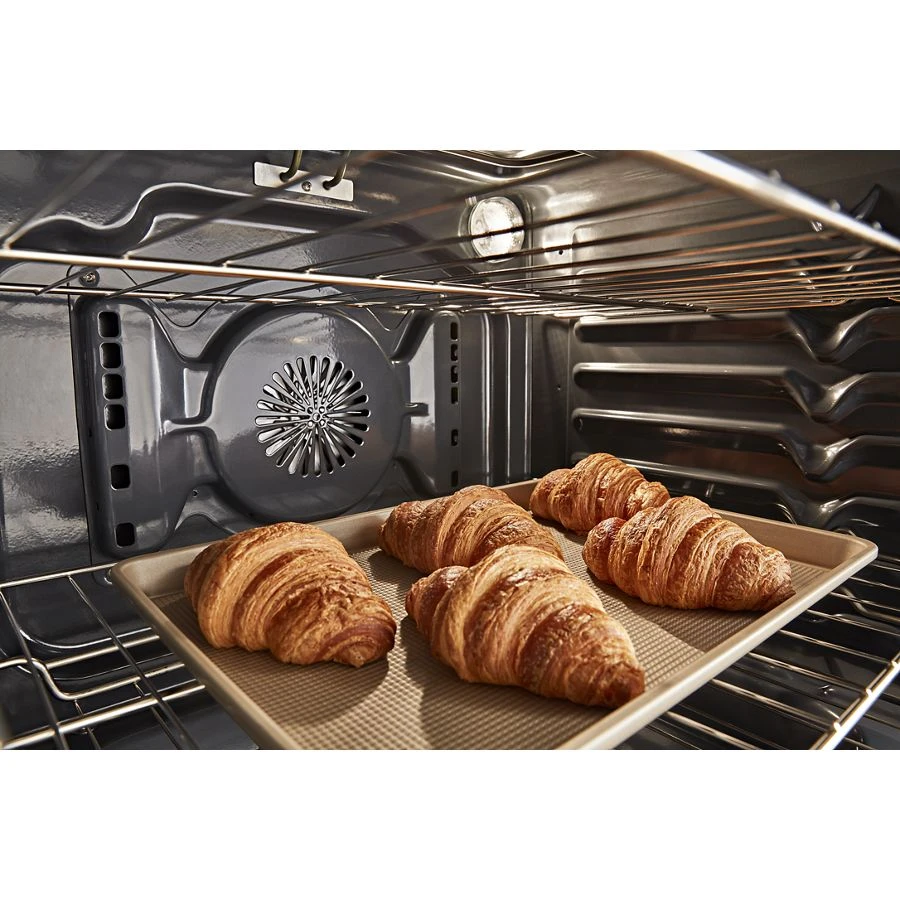

Even-Heat™ True Convection
features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
EasyConvect™ Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
Specifications

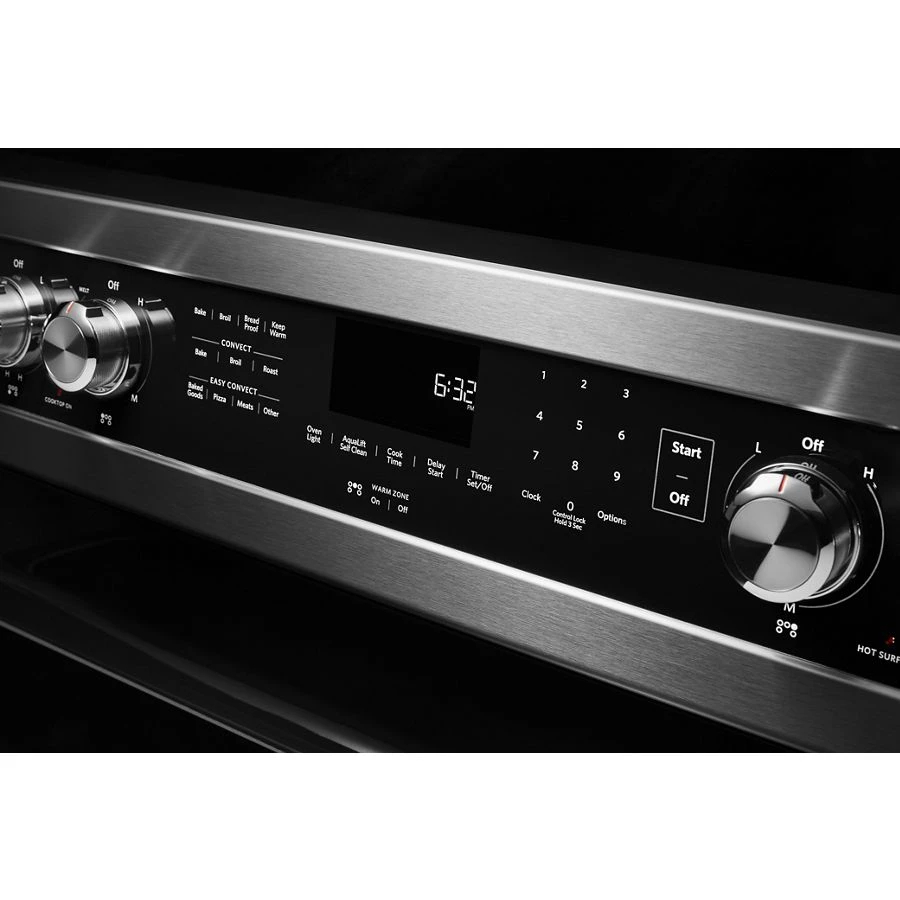

Controls
| Display Color | Blue |
Details
| Oven Automatic Shut-Off | Yes |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric |
| LP Convertible | No |
| Natural Gas Convertible | No |
| Oven Configuration | Single Oven |
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Easy Convect Baked Goods, Easy Convect Meats, Easy Convect Pizza, Energy Save Mo |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Freestanding |
| Range Type | Freestanding |
Cooktop Details
| Auto Re-ignition | No |
| Cooktop Control Knob Color | Stainless Steel |
| Cooktop Control Knob Type | Metal |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Ignition Type | Electronic |
| Cooktop Surface Material | Porcelain Coated Steel |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
Certifications
| ADA Compliant | No |
| CUL | No |
| UL | Yes |
Electrical
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 36 in. |
| Length | 27.75 in. |
| Weight | 189 lbs. |
| Carton Depth | 29 |
| Carton Height | 48 3/4 |
| Carton Width | 32 |
| Depth Closed Excluding Handles | 25 5/16 |
| Depth Closed Including Handles | 27 3/4 |
| Gross Weight | 189 |
| Net Weight | 172.0 |
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
| Depth Closed Including Handles(IN,inches) | 27.7500 |
| Net Weight(LB,pounds) | 172 |
| Carton Depth(IN,inches) | 29.0000 |
| Carton Height(IN,inches) | 50.0000 |
| Carton Width(IN,inches) | 32.0000 |
| Gross Weight(LB,pounds) | 189 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 41 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 229 lbs. |
| Total of Shipping Weight | 229 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 17.27 ft³ |
| Dimensional Weight | 214.71 lbs. |
| Total of Cubes | 17.27 ft³ |
| Total of Dimensional Weight | 214.71 lbs. |
Exterior Details
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Oven Control Knob Color | Stainless Steel |
| Oven Control Knob Type | Plastic |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |

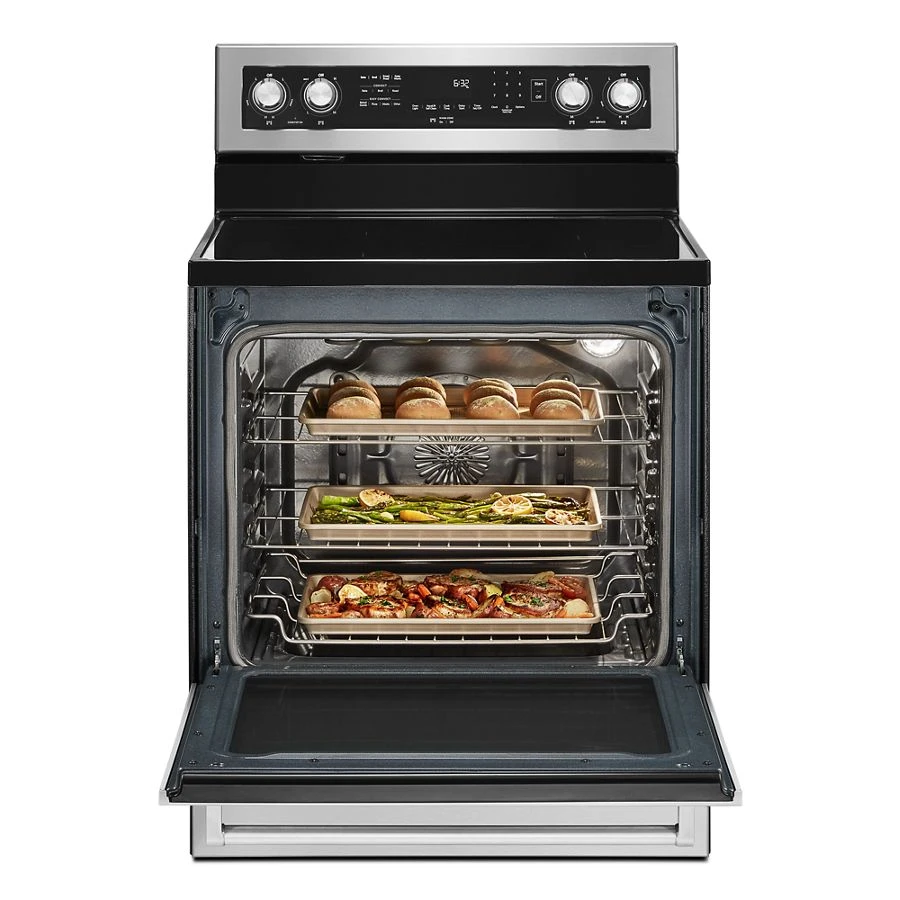

Oven Cavity Details
| Automatic Convection Conversion Temperature Adjust | Yes |
| Broiler Location | Top of Oven |
| Convection Element Type | True Bow Tie |
| Convection Functions | Bake, Broil, Roast |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Natural Gas Convertible | No |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 7 |
| Oven Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Max Capacity, 2 Standard |

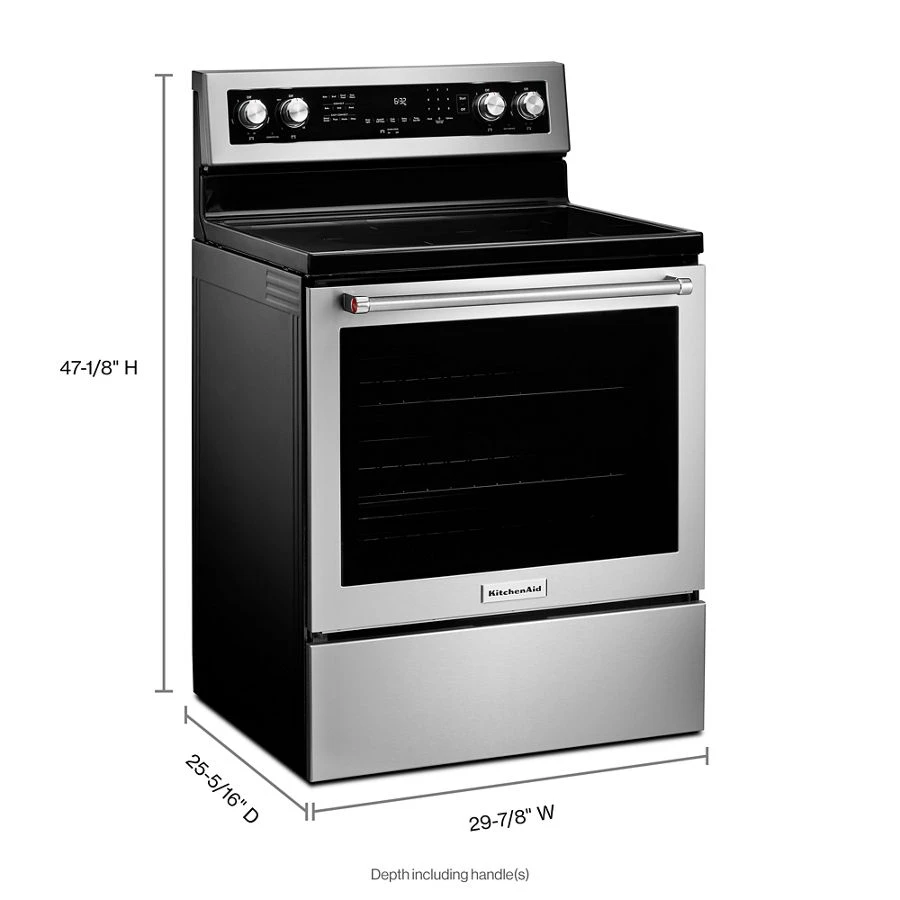

Dimensions
| Capacity | 6.4 cu. ft. |
| Common Size | 30 in |
| Depth | 27-333/1000 in |
| Depth Closed Excluding Handles | 25-313/1000 in |
| Depth Closed Including Handles | 27-3/4 in |
| Gross Weight | 189 lbs |
| Height | 47-1/8 in |
| Net Weight | 172 lbs |
| Oven Interior Depth | 20-5/8 in |
| Oven Interior Height | 22-1/8 in |
| Oven Interior Width | 24-1/8 in |
| Width | 29-7/8 in |
Element/Burner Details
| Center Rear Element-Burner Power | 100W |
| Center Rear Element-Burner Size | 6in. |
| Center Rear Element-Burner Type | Warming |
| Cooktop Element Style | Sealed Burners |
| Left Front Element-Burner Power | 3000W/1900W |
| Left Front Element-Burner Size | 12in./9in. |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Power | 1,300W |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Hyper |
| Right Front Element-Burner Power | 3000W/1400W |
| Right Front Element-Burner Size | 9in./6in. |
| Right Front Element-Burner Type | Dual |
| Right Rear Element-Burner Power | 1,200W |
| Right Rear Element-Burner Size | 6in. |
| Right Rear Element-Burner Type | Single |
