$2,094.00

Was$2,599.00Save $505.00 (19%)

30-Inch 5 Burner Electric Double Oven Convection Range - KFED500EBS

30-Inch 5 Burner Electric Double Oven Convection Range

Model: KFED500EBS

30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS
30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS
30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS
30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS
30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS
30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS
+2more

$2,094.00

Was$2,599.00Save $505.00 (19%)

rebate iconRebate Available

Color : Black Stainless Steel with PrintShield™ Finish

30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS

$2,094.00

Black Stainless Steel with PrintShield™ Finish
30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS

$1,794.00

Stainless Steel
30-Inch 5 Burner Electric Double Oven Convection Range KFED500EBS

$2,248.00

White

Type : Electric

Current Rebates

KitchenAid + NMG: Up to $4,000 Exclusive Rebate
Expires: July 08, 2026

Key Features

  • Professionally-Inspired Design

  • 6.7 Cu. Ft. Total Capacity

  • 5 Cooking Elements Including a Warm Zone

  • Hidden Bake

  • Triple-Ring Element

  • 10" Even-Heat™ Ultra Element

  • EasyConvect™ Conversion System

  • Even-Heat™ True Convection

Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Professionally-Inspired Design

Combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.

6.7 Cu. Ft. Total Capacity

Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.

5 Cooking Elements Including a Warm Zone

Provides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.

Hidden Bake

Covers up the baking element, making it easier to wipe away spills.

Triple-Ring Element

With three element sizes at one location, you get the versatility to match cooking surface to cookware size.

10" Even-Heat™ Ultra Element

Delivers consistent heat across the cooktop, including fast boils, precise simmering and exceptional melting.

EasyConvect™ Conversion System

Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.

Even-Heat™ True Convection

features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

SatinGlide® Rack

Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.

Specifications

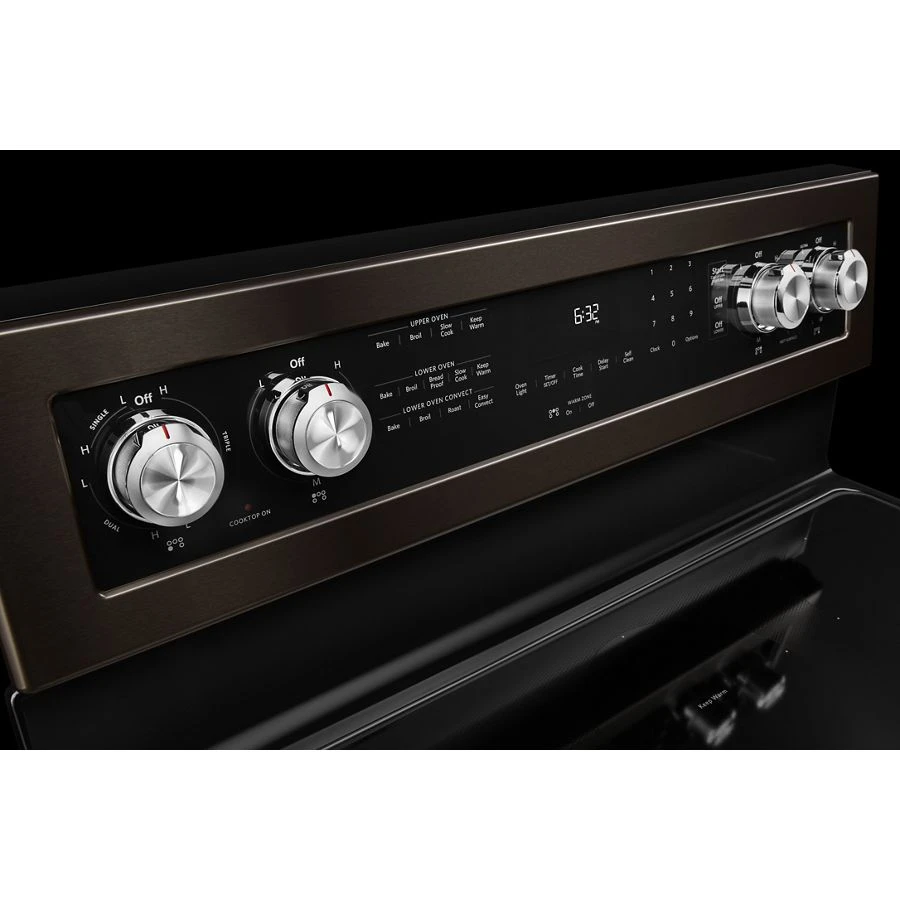

Controls

Display ColorRed, White
Electronic Display TypeDigital

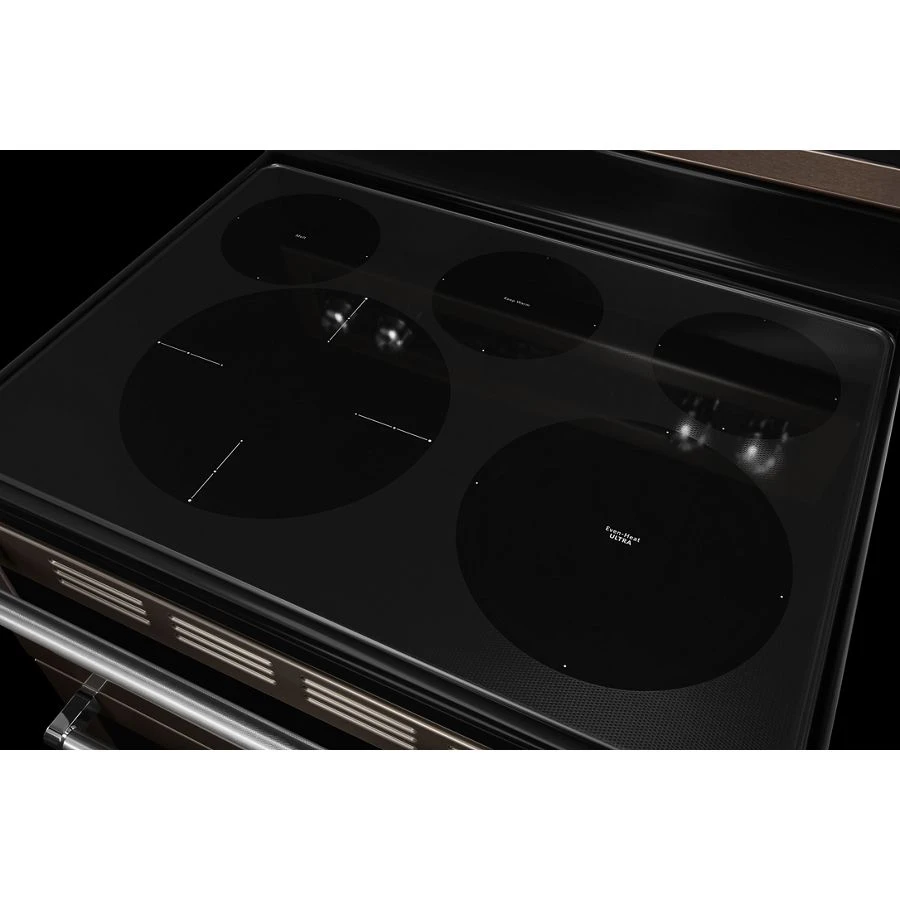

Cooktop Details

Cooktop Surface ColorBlack
Cooktop Surface MaterialCeramic Glass
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes

Certifications

Prop 65Standard
ULYes

Electrical

Amps40
Hz60
Power Cord IncludedNo
Volts240

Dimensions & Weight

Width29.94 in.
Height47.38 in.
Length28.5 in.
Weight224 lbs.
Carton Depth30 1/4
Carton Height49 1/2
Carton Width30 3/4
Depth Closed Including Handles28 1/2
Gross Weight224
Net Weight203.6
Depth Closed Including Handles(IN,inches)28.5000
Net Weight(LB,pounds)204
Carton Depth(IN,inches)30.2500
Carton Height(IN,inches)49.5000
Carton Width(IN,inches)30.7500
Gross Weight(LB,pounds)224

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.94 in.
Shipping Height52.38 in.
Shipping Length33.5 in.
Shipping Weight264 lbs.
Total of Shipping Weight264 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.39 ft³
Dimensional Weight290.8 lbs.
Total of Cubes23.39 ft³
Total of Dimensional Weight290.8 lbs.

Details

Fuel TypeElectric
Oven ConfigurationDouble Oven
Power On Indicator LightYes
Power Outage CompatibleNo
Range ConfigurationDouble Oven
Range TypeFreestanding Double Oven
Oven SelectionsControl Lock, Cook Time Indicator, Delay Start, Easy Convect Conversion, Keep Warm Setting, Proofing, Sabbath Mode, Slow Cook

Element/Burner Details

Center Rear Element-Burner Power100W
Center Rear Element-Burner Size6in.
Center Rear Element-Burner TypeWarming
Cooktop Element StyleRadiant
Left Front Element-Burner Power2700W/1950W/1050W
Left Front Element-Burner Size12in./9in./6in.
Left Front Element-Burner TypeTriple
Left Rear Element-Burner Power700W
Left Rear Element-Burner Size6in.
Left Rear Element-Burner TypeSingle
Number of Cooking Element-Burners5
Right Front Element-Burner Size10in.
Right Front Element-Burner TypeRadiant Hyper
Right Rear Element-Burner Size6in.
Right Rear Element-Burner TypeSingle
Right Front Element-Burner Power3,200W
Right Rear Element-Burner Power1,200W

Exterior Details

Door TypeMetal & Glass
Oven Control TypeElectronic Touch
Oven Window SizeLarge
Handle ColorStainless Steel
Handle MaterialMetal
Knob ColorStainless Steel
Knob TypeMetal

Oven Cavity Details

Automatic Convection Conversion Temperature AdjustYes
Bake Element Power2,000 W Both
Broiler Element Power3,600 W Both
Broiler LocationTop of Oven
Convection Element TypeFan
Convection FunctionsBake, Broil, Roast
Hidden Bake ElementYes
Interior ColorGrey
Number of Oven Lights1
Number of Oven Racks1 Upper-2 Lower
Number of Rack Guides2 Upper-5 Lower
Oven Cleaning TypeSelf-Cleaning
Oven Cooking SystemThermal Upper-Convection Lower
Oven Light TypeIncandescent
Oven Rack Type1 Gliding Roll-Out, 2 Heavy Duty
Convection Element Power1,600 w
Lower Oven Capacity4.2 cu. ft.
Upper Oven Capacity2.5 cu. ft.

Dimensions

Capacity6.7 cu. ft.
Common Size30 in
Depth28-1/2 in
Depth Closed Including Handles28-1/2 in
Depth With Door Open 90 Degree45 in
Gross Weight242 lbs
Height47-3/8 in
Lower Oven Interior Depth18-3/4 in
Lower Oven Interior Height16 in
Lower Oven Interior Width25 in
Net Weight203-3/5 lbs
Upper Oven Interior Depth19-1/4 in
Upper Oven Interior Height8-1/2 in
Upper Oven Interior Width25 in
Width29-15/16 in
