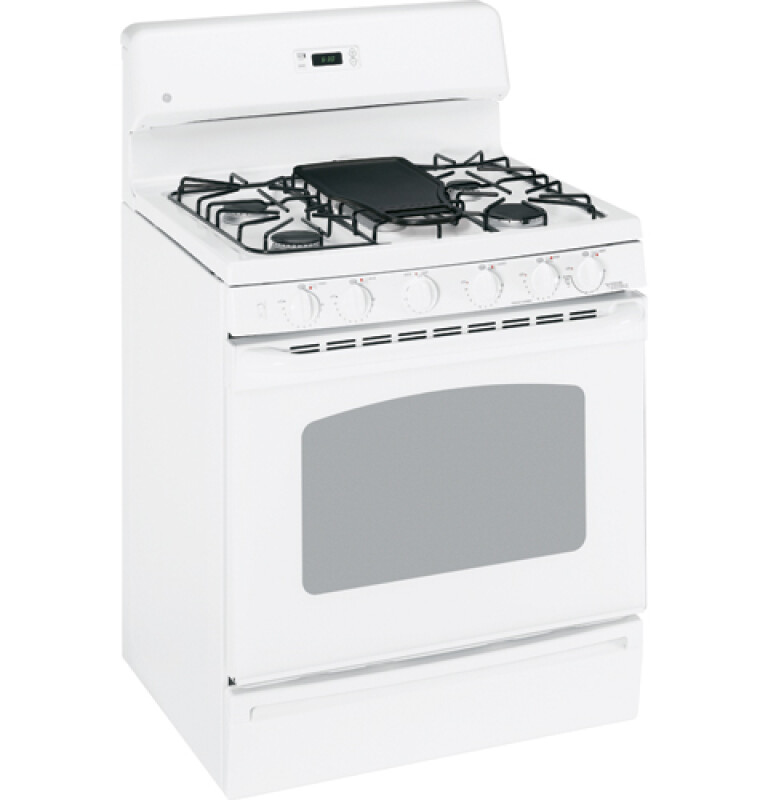

30" Free-Standing Gas Range - JGBS80WELWW
30" Free-Standing Gas Range
Model: JGBS80WELWW
30" Free-Standing Gas Range
Model: JGBS80WELWW
Color : White
Key Features
Extra-large oven capacity
Center oval burner
Non-stick griddle
Power Boil burner
Big hearth window
Sealed cooktop burners
Precise Simmer burner
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
Center oval burner
Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware

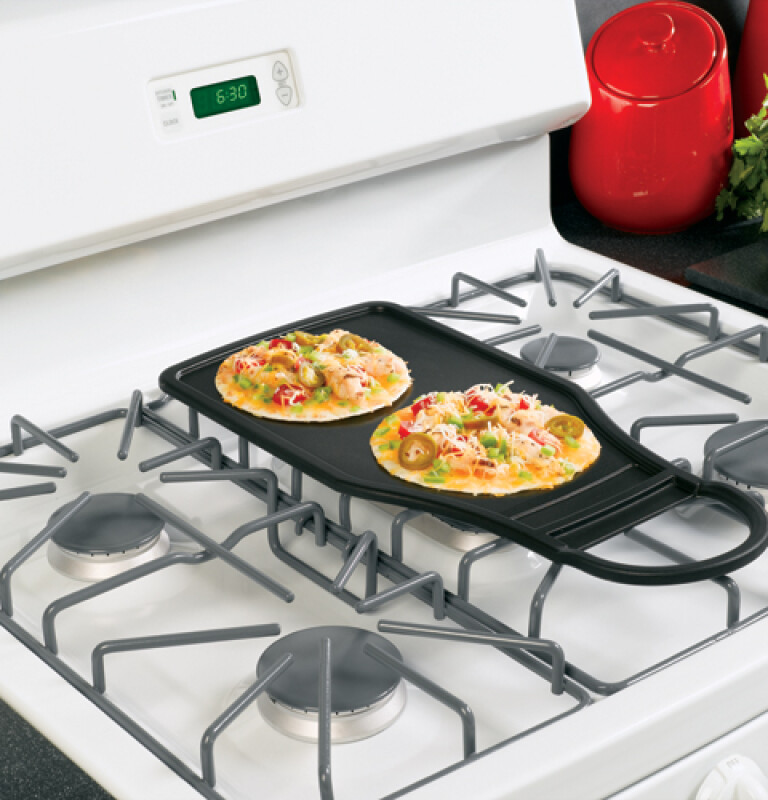

Non-stick griddle
Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once
Power Boil burner
Delivers 15,000 BTUs of forceful heat for rapid boiling
Big hearth window
Features an enhanced shape to add an elegant appearance and make viewing trouble-free

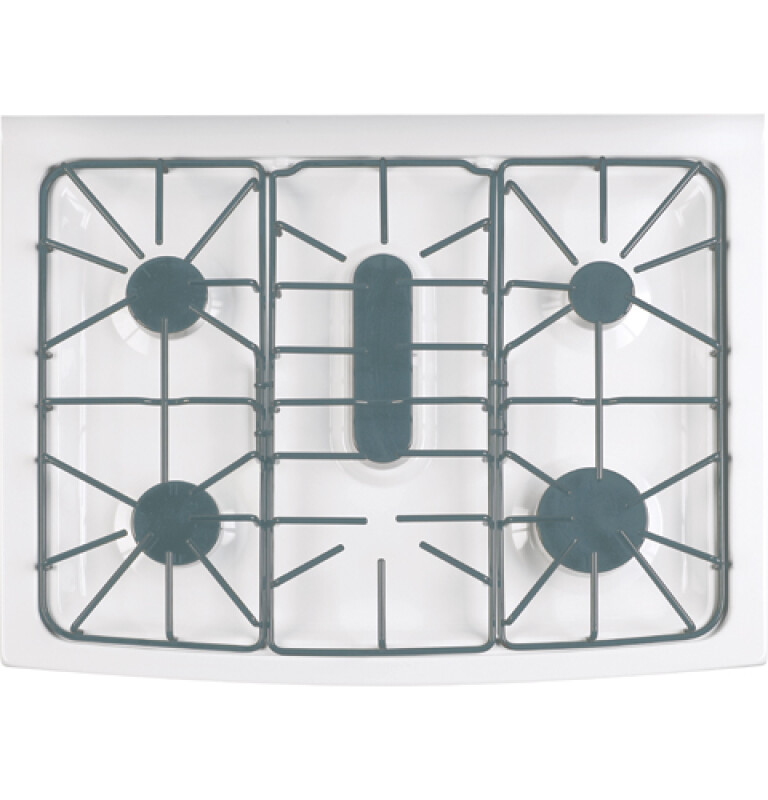

Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
Precise Simmer burner
Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
Certifications
California Prop 65
Specifications
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |

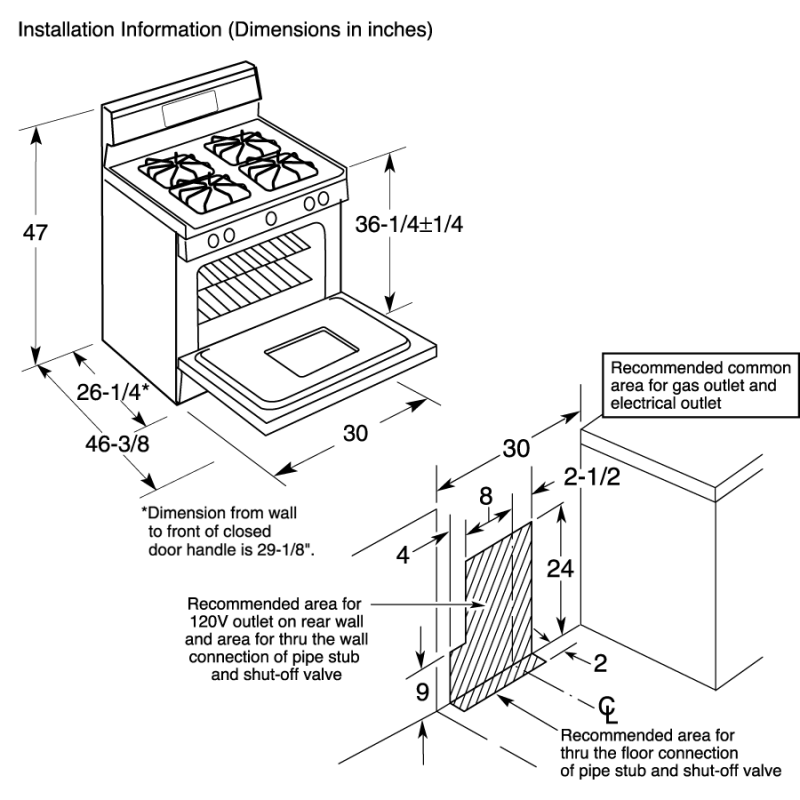

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 145 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 47 1/2 in |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.5 in. |
| Length | 26.25 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.5 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.65 ft³ |
| Dimensional Weight | 269.11 lbs. |
| Total of Cubes | 21.65 ft³ |
| Total of Dimensional Weight | 269.11 lbs. |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Ignition System | Electronic |
| Broiler Pan and Grid | Yes |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Control Features | Electronic Clock |
| Cooktop Burner Type | Sealed |
| Broiler Drawer | Drop Down Door |
| Oven Rack Features | Embossed Rack Positions |
| Power Boil Burner | (1) 15,000/1,350 BTU |
| Oven Cleaning Type | Standard Clean |
| High Output Burner | (1) 11,000/1,150 BTU |
| Griddle | Non-Stick |
| All-Purpose Burners | (1) 9,100/1,200 BTU |
| Cooktop Burner Grate Material | Wire |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Continuous Grates |
| Backguard | Scratch-Resistant |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Glass |
APPEARANCE
| Oven Door Features | Big Hearth Oven Window |
| Handle | High-Gloss Color-Matched Sculptured |
| Control Knobs | Designer-Style |
| Color Appearance | White on White |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 5.00 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 8.0; (3) 7.0; (2) 6.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 8.0; (3) 7.0; (2) 6.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
