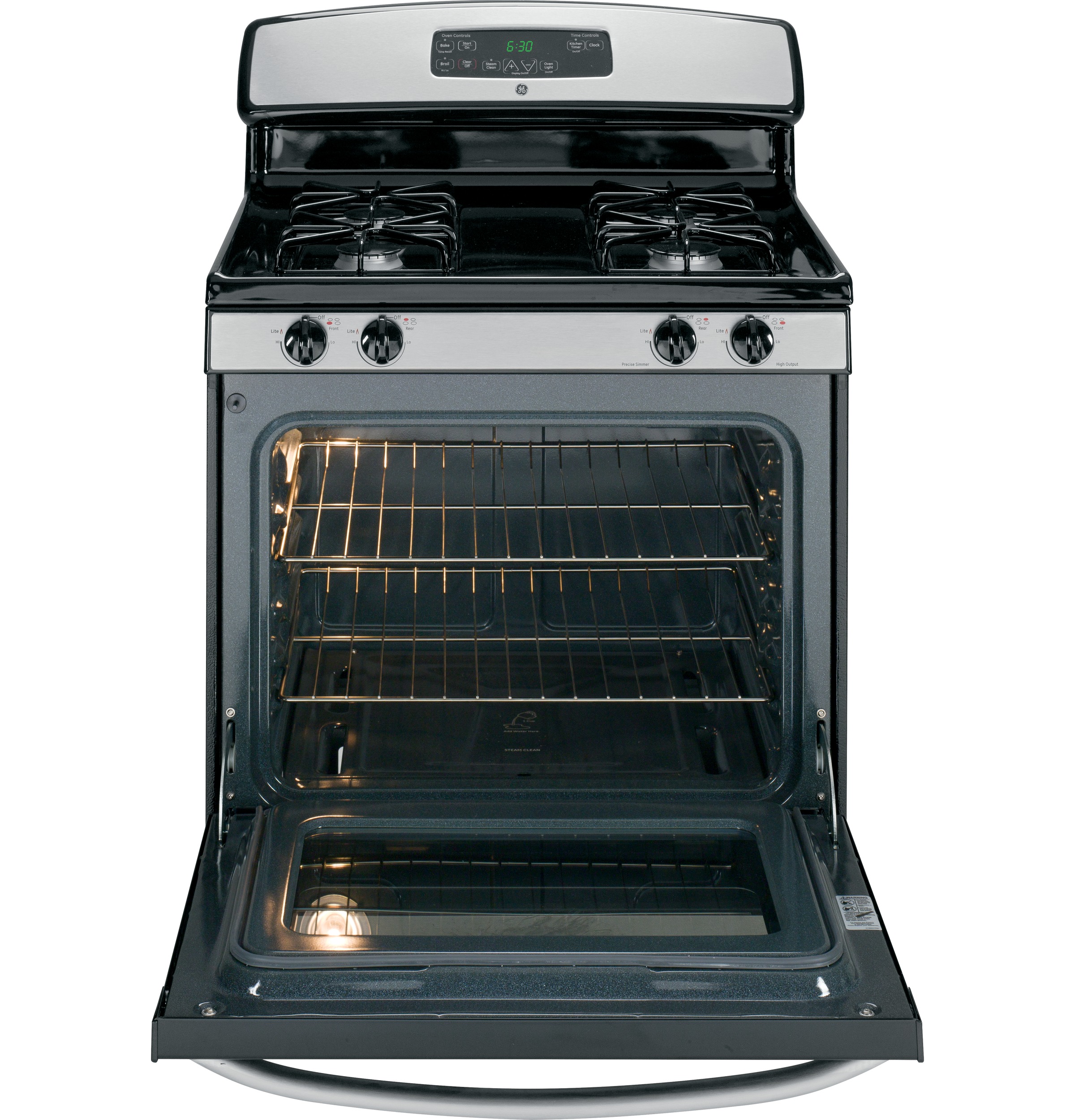

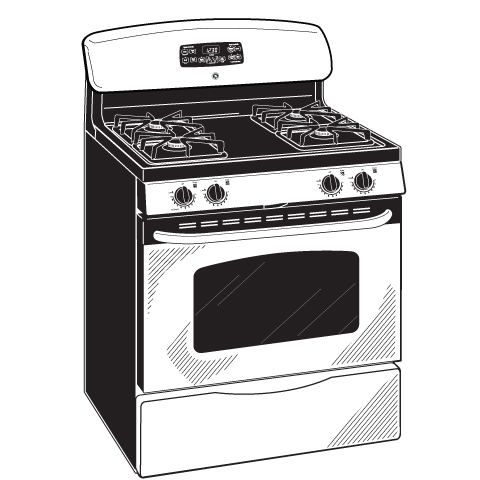

30" Free-Standing Gas Range with Steam Clean - JGBS23SETSS

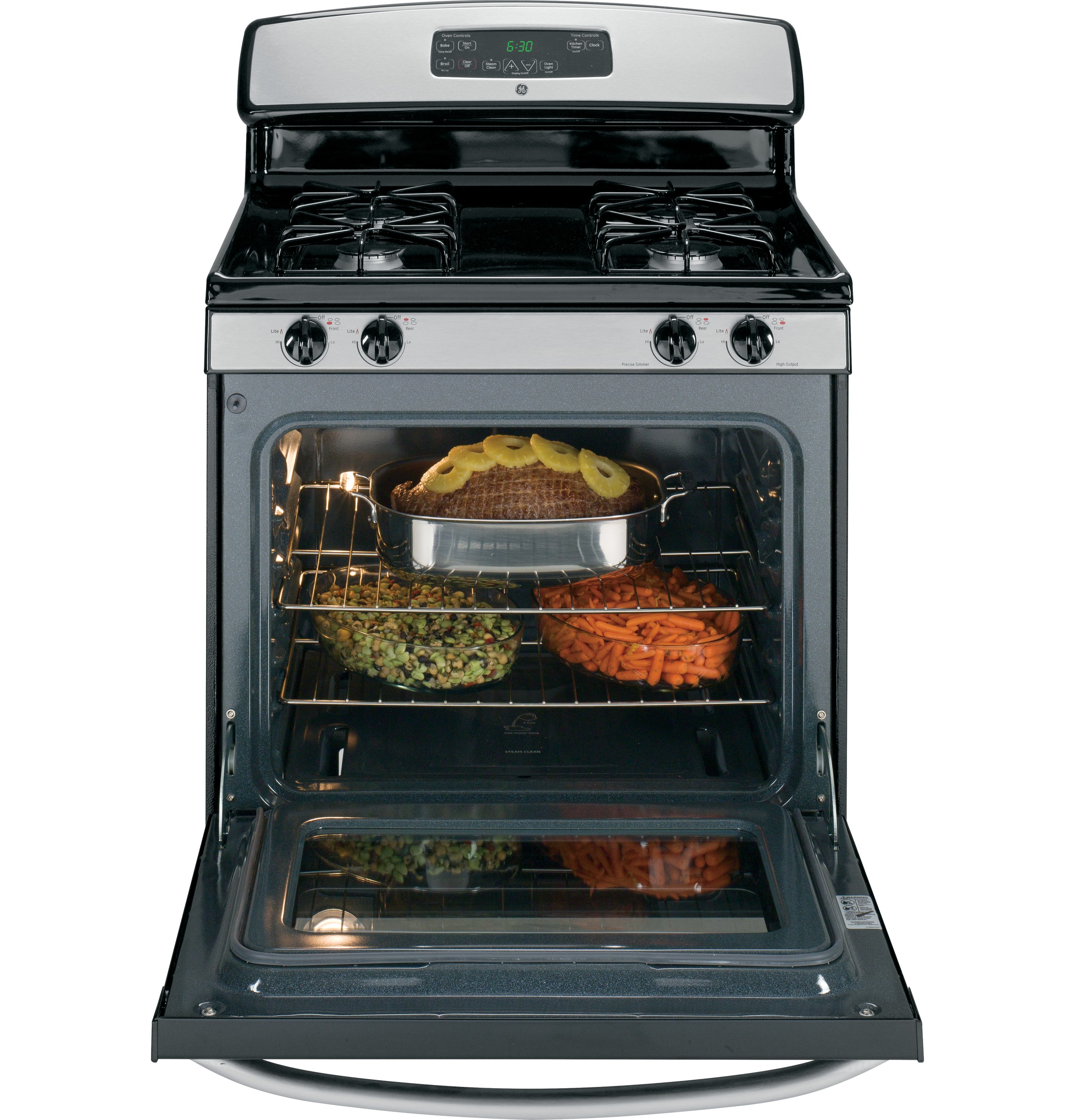

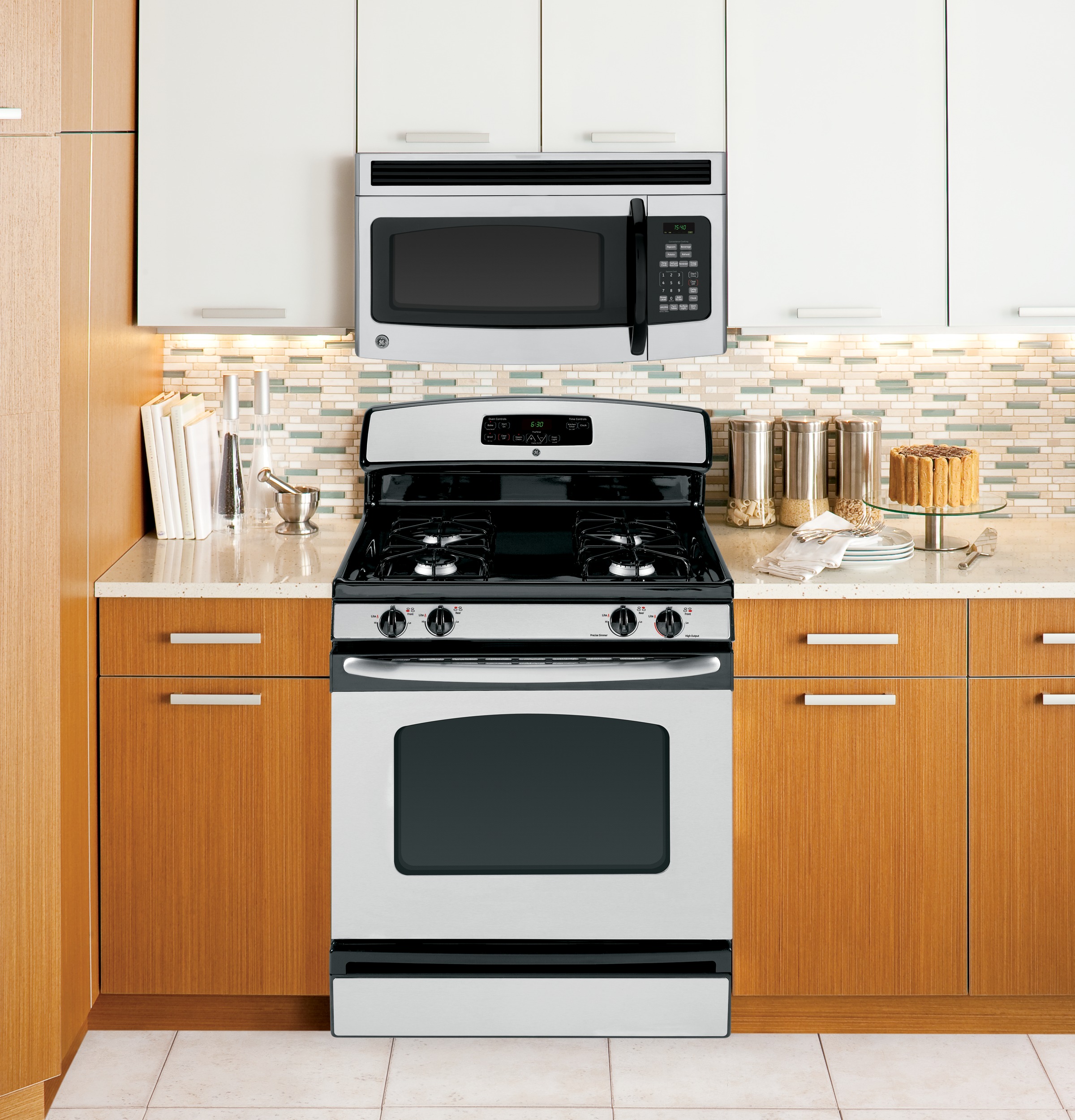

30" Free-Standing Gas Range with Steam Clean
Model: JGBS23SETSS
30" Free-Standing Gas Range with Steam Clean
Model: JGBS23SETSS
Color : Stainless Steel
Key Features
4.8 cu. ft. oven capacity
Steam clean
12,500 BTU high-output burner
Precise Simmer burner
Big hearth window
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
4.8 cu. ft. oven capacity
More room for cooking more dishes at once

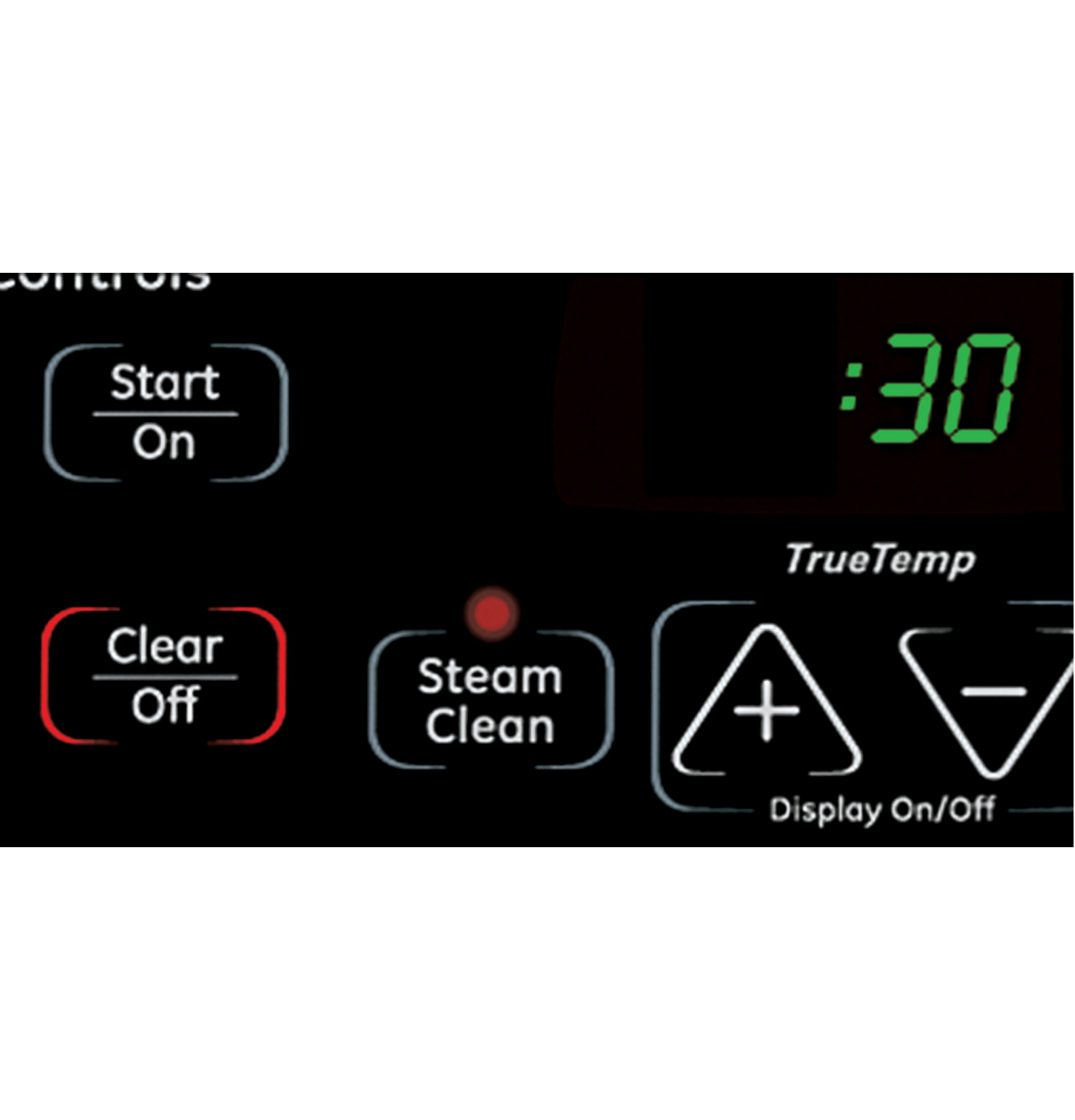

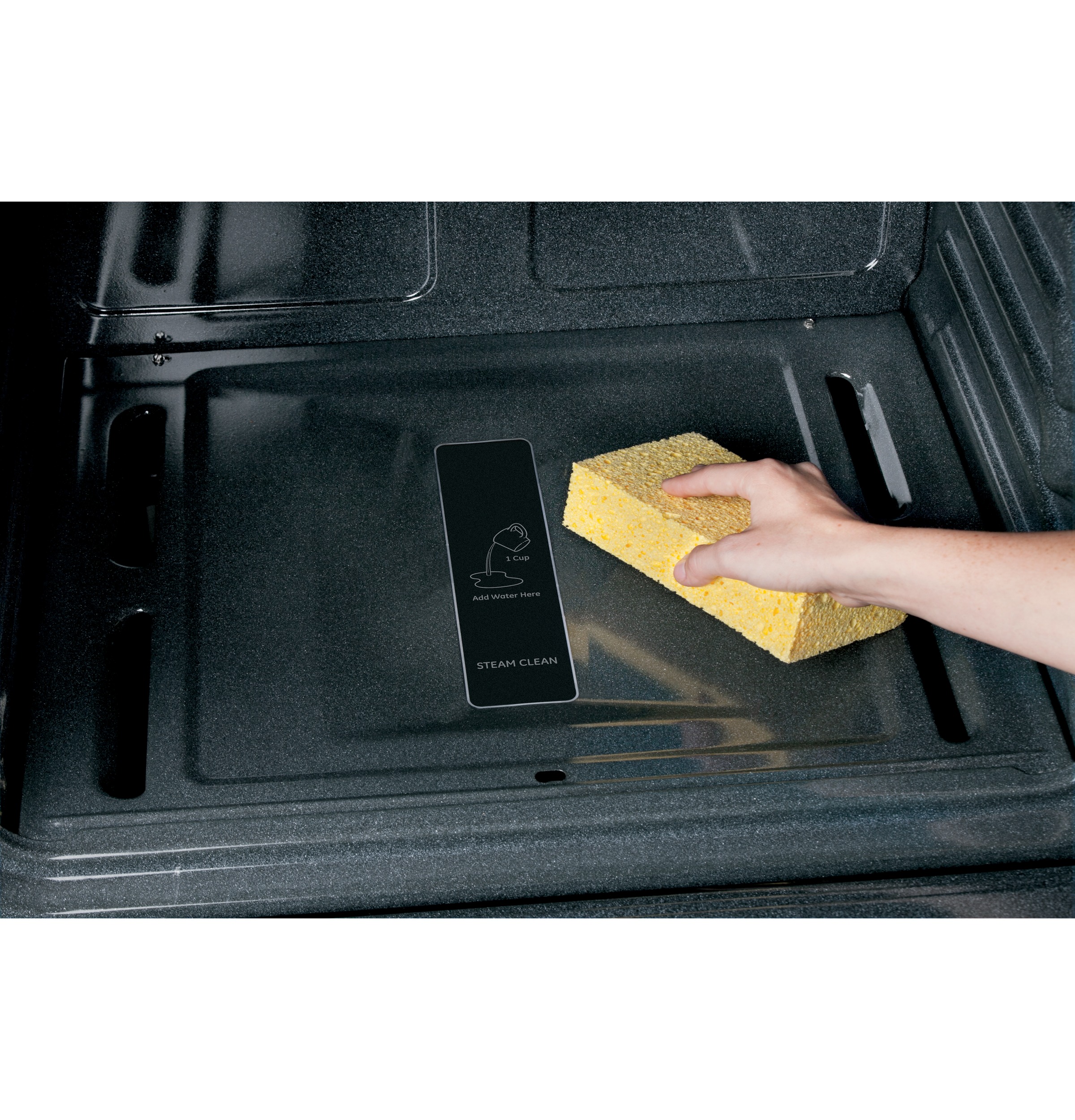

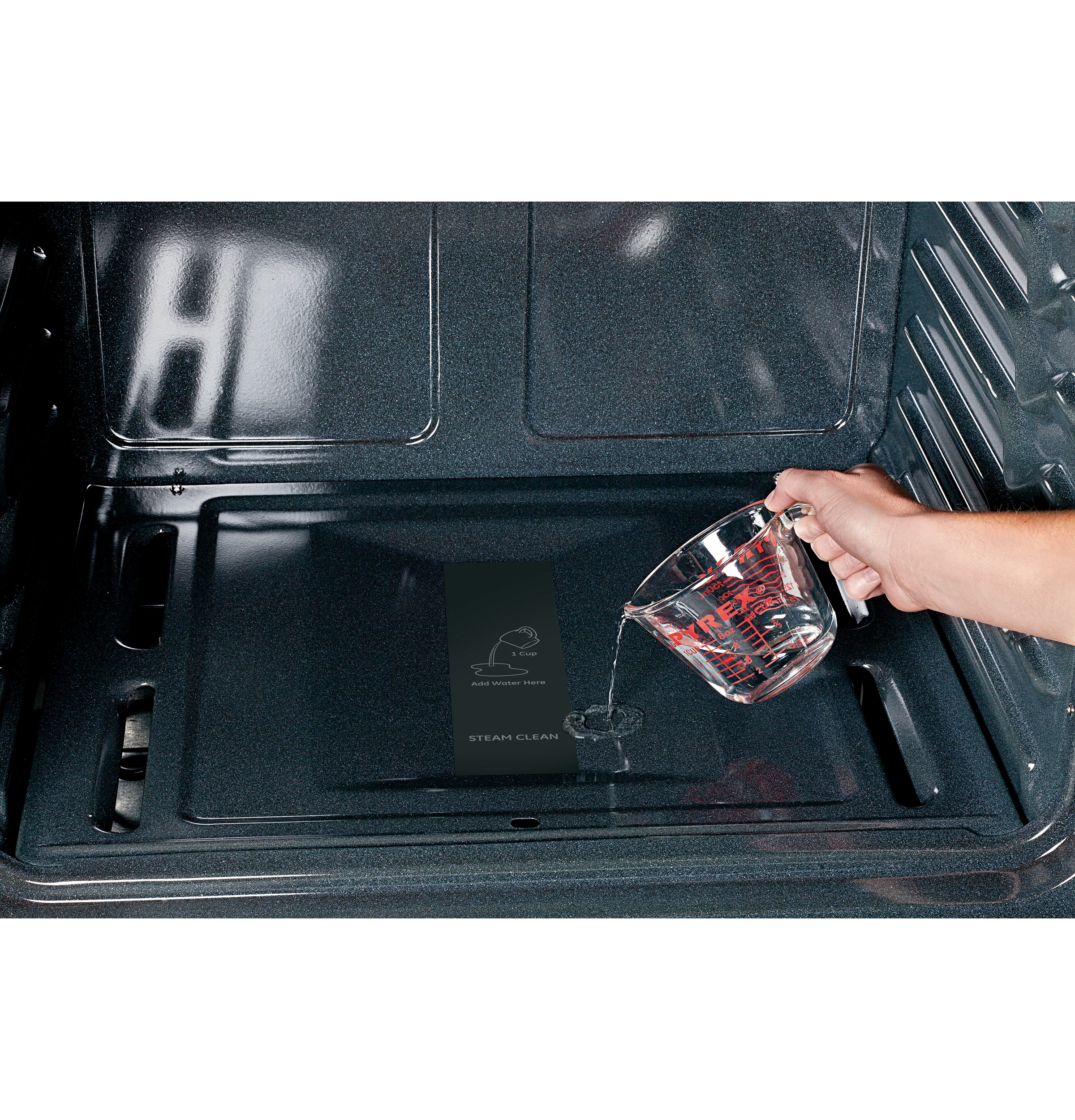

Steam clean
Helps to clean with the power of steam
12,500 BTU high-output burner
Quickly produces high heat
Precise Simmer burner
Delivers a low setting of 140 degrees
Big hearth window
Makes monitoring of foods easy
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

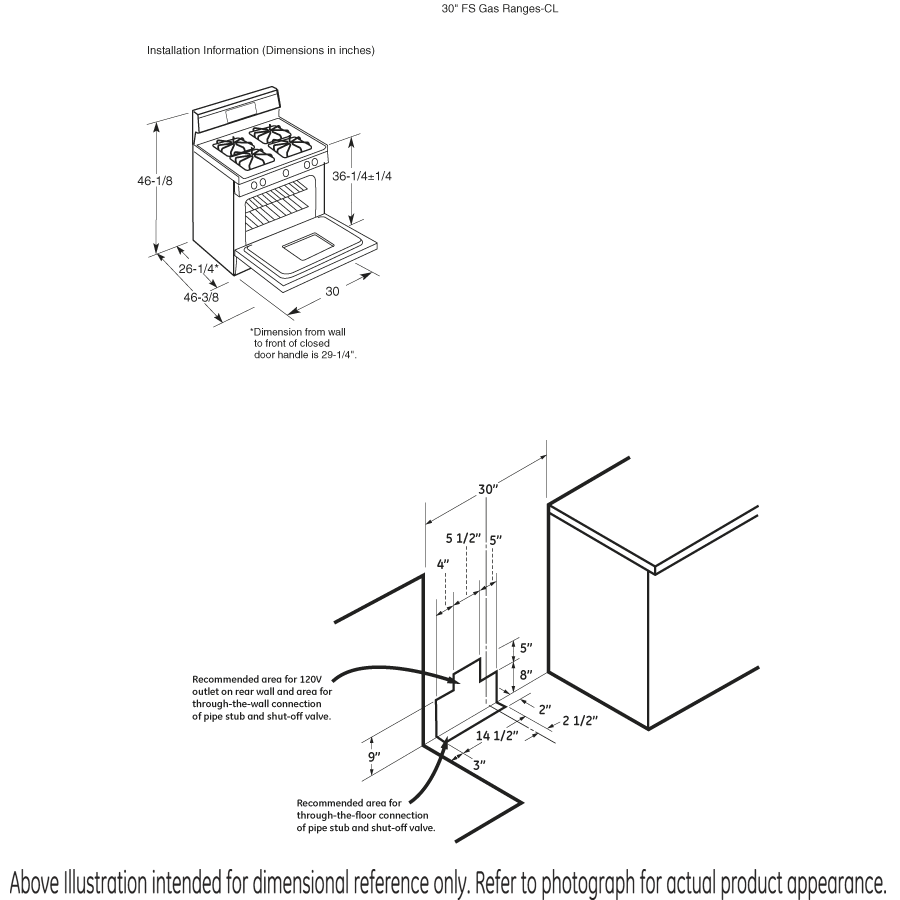

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 165 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Depth with Door Open 90° | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 185 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 1/2 in |
| Height to Cooking Surface (in.) | 36.25 +/- .25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.5 in. |
| Length | 26.25 in. |
| Weight | 165 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.5 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 205 lbs. |
| Total of Shipping Weight | 205 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.19 ft³ |
| Dimensional Weight | 263.44 lbs. |
| Total of Cubes | 21.19 ft³ |
| Total of Dimensional Weight | 263.44 lbs. |
FEATURES

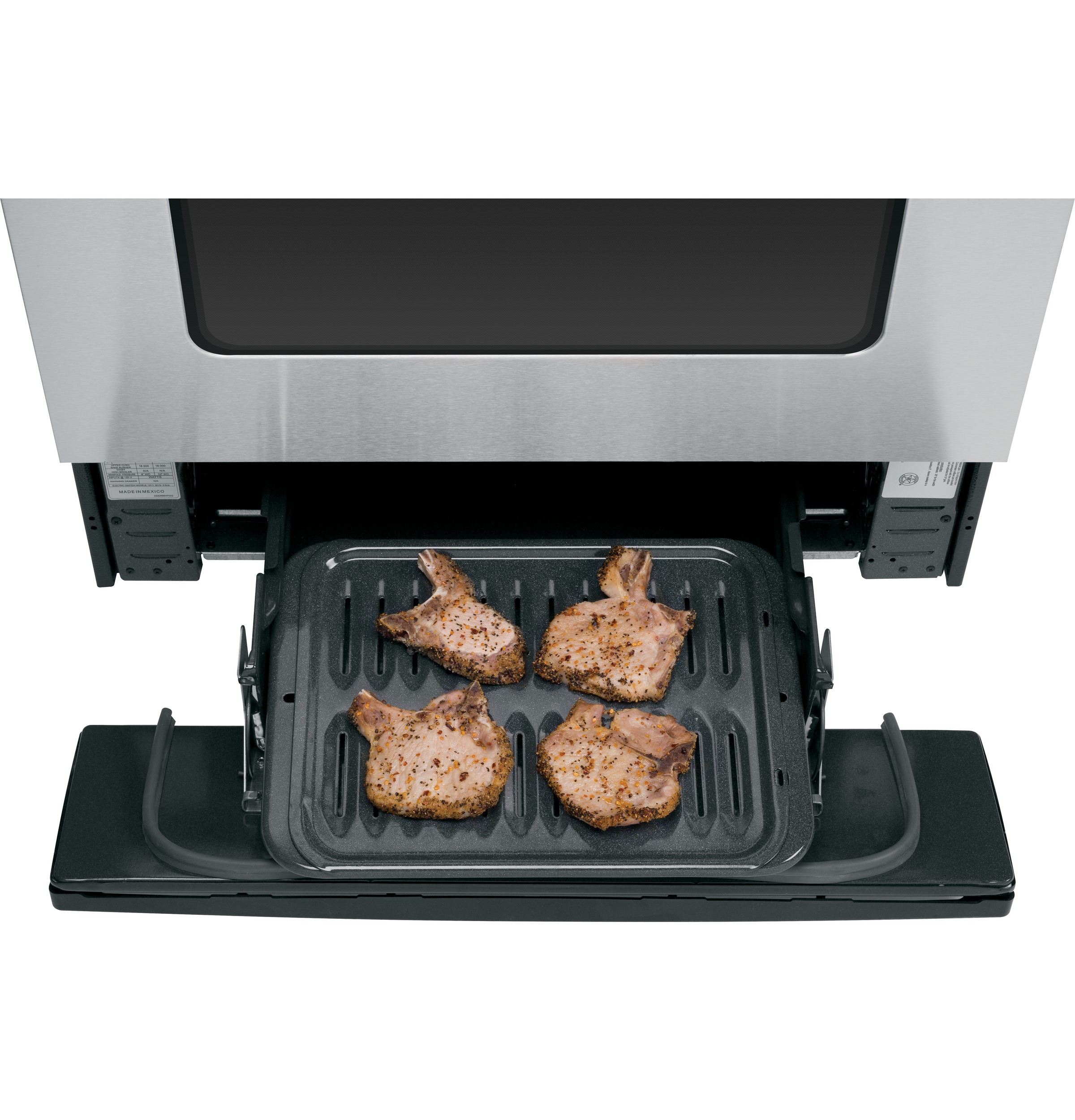

| Slide - Out Broiler Drawer | Yes |
| Configuration | Range with Broiler Drawer |
| Ignition System | Electronic |
| Broiler Pan and Grid | Yes |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Fuel Type | Natural Gas |
| Oven Interior | Interior Oven Light |
| Temperature Management System | True Temp System |
| Burner - Left Rear | 9,500 BTU |

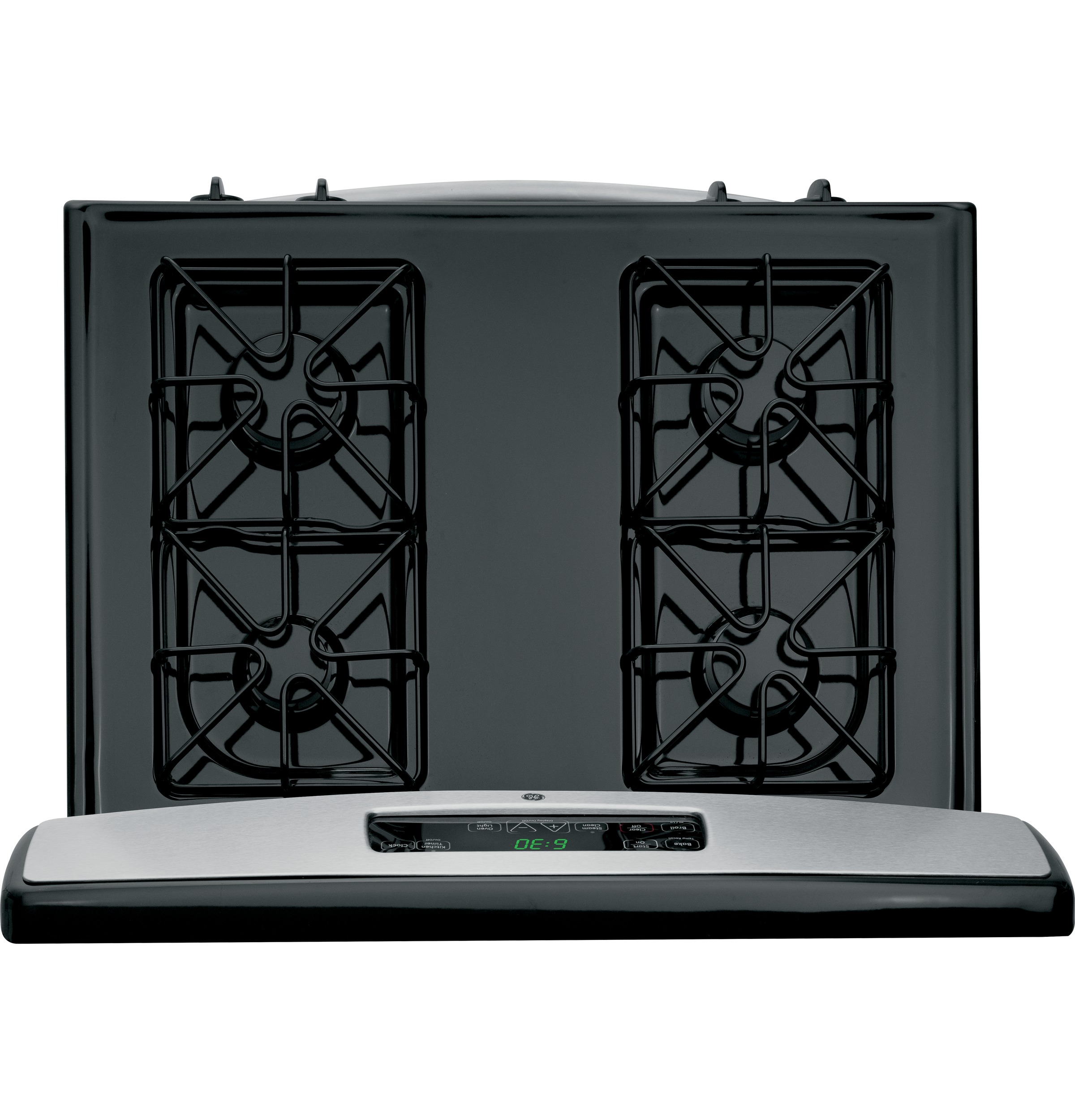

| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Standard Clean with Steam Option |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 270 |
| Backguard | Scratch-Resistant |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Right Front | 12,500 BTU |
| Burner - Left Front | 9,500 BTU |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |

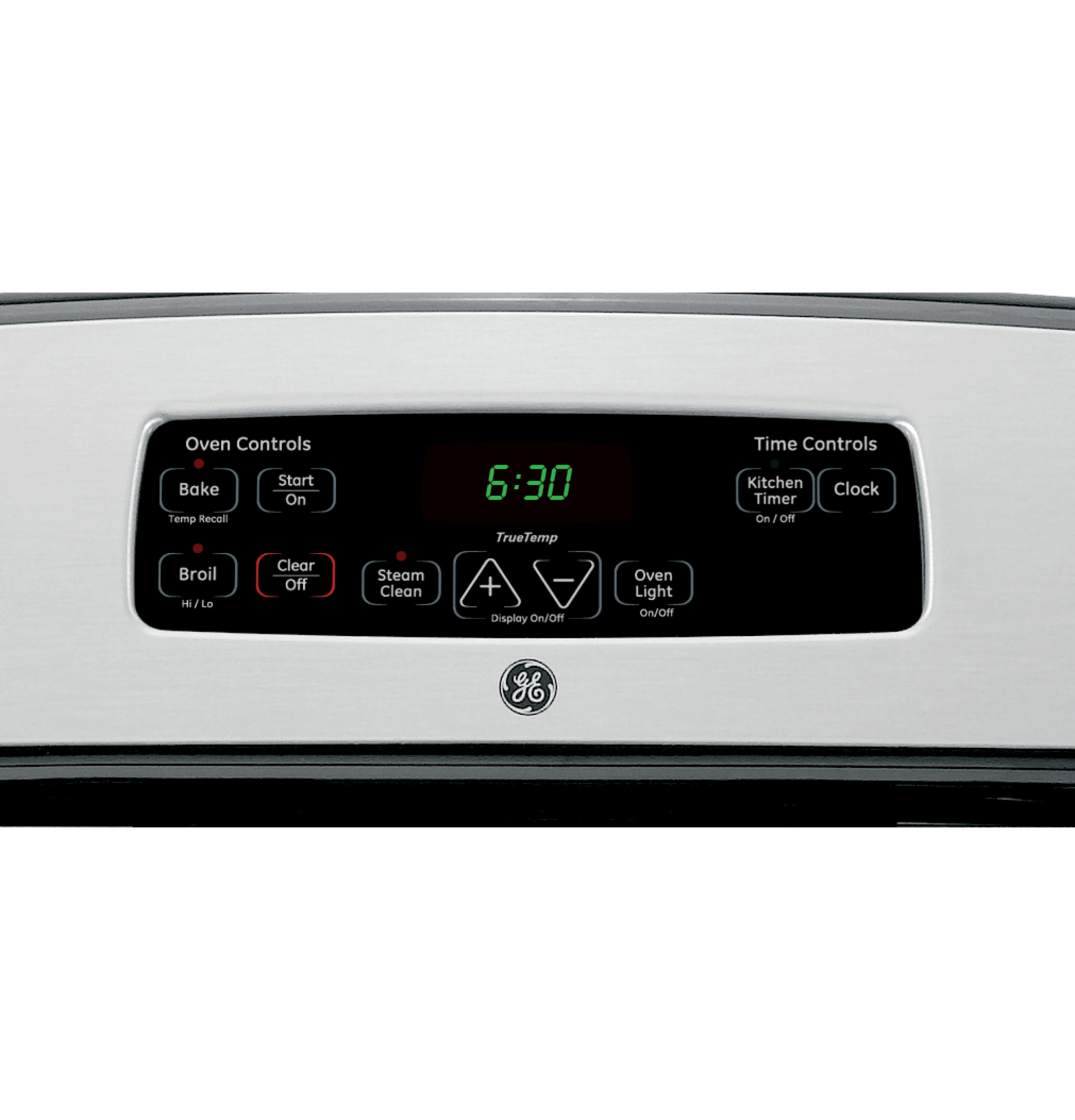

| Control Type | Electronic Oven Controls |
| One-Piece Drip Pans | Optional Accessory |
| Cooking Technology | Traditional |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Sabbath Mode |
| Cooktop Burner Grate Material | Deluxe Porcelain Steel |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Hi / Low Broil |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Big Hearth Oven Window |
| Frameless Oven Door(s) | Stainless Steel |
| Control Knobs | Designer-Style |
| Handle Design | D-shaped |
| Handle Color | Stainless Steel |
| Color Appearance | Stainless Steel on Black |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 4.80 cu ft |
