30" Free-Standing Gas Range - JGBS23BELBB
30" Free-Standing Gas Range
Model: JGBS23BELBB
30" Free-Standing Gas Range
Model: JGBS23BELBB
Color : Black
Key Features
Extra-large oven capacity
12,000 BTU power burner
Precise Simmer burner
Sealed cooktop burners
Electronic clock and timer
Deluxe grates
Big hearth window
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
12,000 BTU power burner
Delivers a wide range of heat output ideal for most cooking requirements
Precise Simmer burner
Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
Electronic clock and timer
Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen
Deluxe grates
Provide a sturdy and durable cookware surface for everyday cooking
Big hearth window
Features an enhanced shape to add an elegant appearance and make viewing trouble-free
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

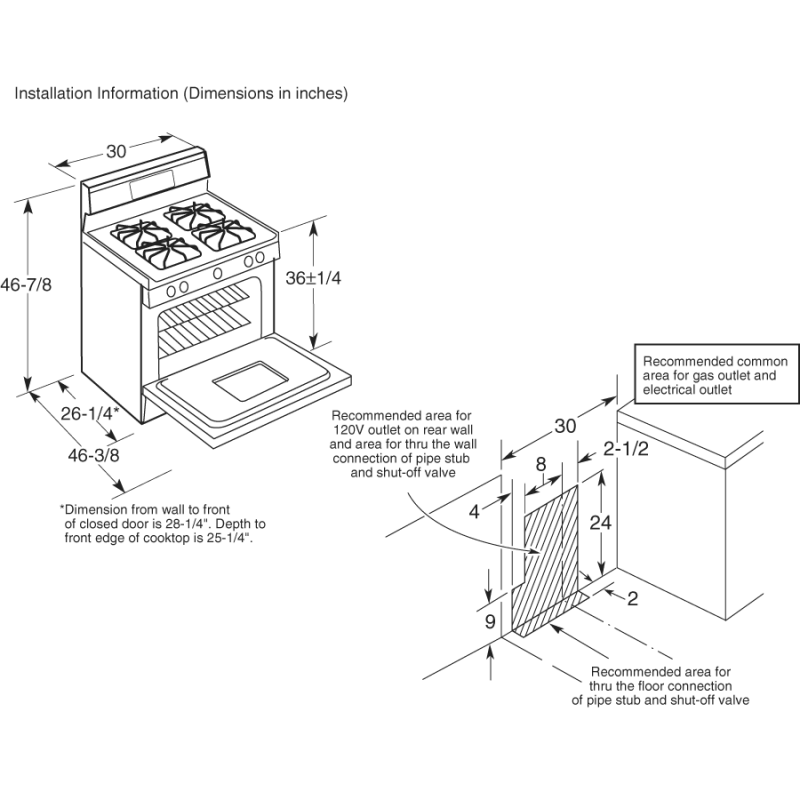

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 160 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 180 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 1/2 in |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.5 in. |
| Length | 26.25 in. |
| Weight | 160 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.5 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 200 lbs. |
| Total of Shipping Weight | 200 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.19 ft³ |
| Dimensional Weight | 263.44 lbs. |
| Total of Cubes | 21.19 ft³ |
| Total of Dimensional Weight | 263.44 lbs. |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Ignition System | Electronic |
| Broiler Pan and Grid | Yes |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Control Features | Electronic Clock and Timer |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Standard Clean |
| High Output Burner | (1) 12,000/1,000 BTU |
| All-Purpose Burners | (2) 9,500/850 BTU |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 270 |
| Backguard | Scratch-Resistant |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| One-Piece Drip Pans | Black Porcelain-Enameled |
| Cooktop Burner Grate Material | Deluxe Porcelain Steel |
| Cooktop Surface | One-Piece Upswept |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Big Hearth Oven Window |
| Handle | Color-Matched Gloss |
| Frameless Oven Door(s) | Black Glass |
| Control Knobs | Designer-Style |
| Color Appearance | Black on Black |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 4.80 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
