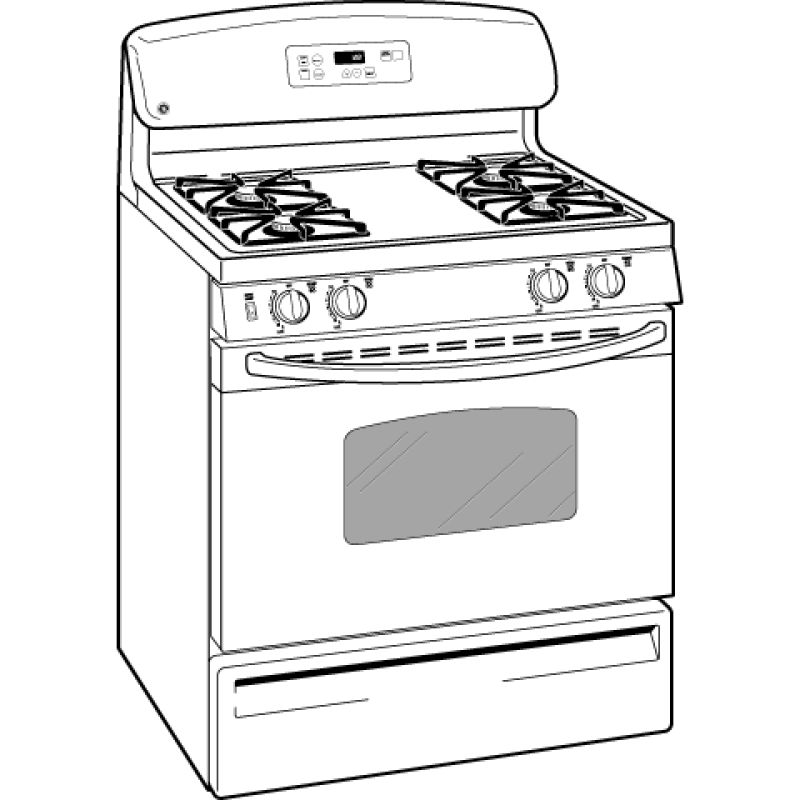

30" Free-Standing Gas Range - JGBS20DEMWW
30" Free-Standing Gas Range
Model: JGBS20DEMWW






30" Free-Standing Gas Range
Model: JGBS20DEMWW
Key Features
Extra-large oven capacity
All purpose burners
Electronic clock and timer
Standard grates
Frameless glass oven door
Big clear view window
Designer-style handle
Extra-large broiler pan with grid
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
Electronic clock and timer
Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen
Standard grates
Provide a sturdy and convenient cookware surface for everyday cooking
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
Big clear view window
Features a convenient viewing area to check the progress of food
Designer-style handle
Exudes a clean style that adds to the modern appearance of the range
Extra-large broiler pan with grid
Easy clean subtop
Porcelain enameled subtop collects spills and messes for easy cleaning
Electronic ignition
Ensures a continuous flame and reignites automatically if accidentally extinguished
Porcelain upswept cooktop
Features raised edges to help contain spills and make clean-up easy
Interior oven light
Supplies light to make viewing the progress of cooking easy and convenient
Six rack positions
Provides flexibility and allows consumers to make the most of available oven capacity
Two oven racks
Feature a durable construction to help accommodate any size or type of cookware
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

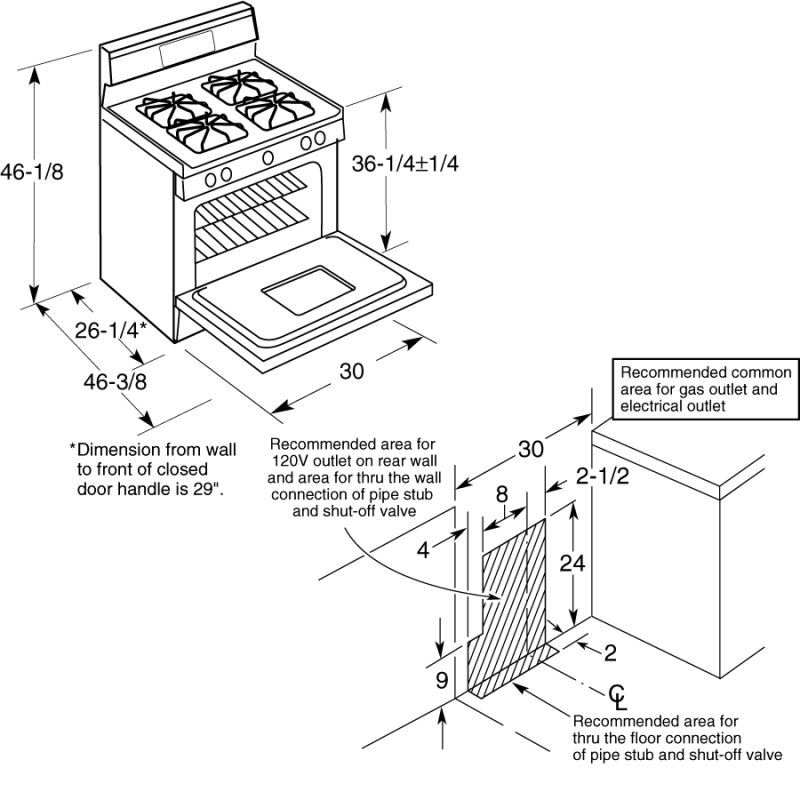

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 159 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 179 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 1/8 in |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.13 in. |
| Length | 26.25 in. |
| Weight | 159 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.13 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 199 lbs. |
| Total of Shipping Weight | 199 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.02 ft³ |
| Dimensional Weight | 261.32 lbs. |
| Total of Cubes | 21.02 ft³ |
| Total of Dimensional Weight | 261.32 lbs. |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Electronic |
| Broiler Pan and Grid | Yes |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Control Features | Electronic Clock and Timer |
| Cooktop Burner Type | Standard |
| Oven Rack Features | Embossed Rack Positions |
| Clock and Minute Timer | Yes |
| Oven Cleaning Type | Standard Clean |
| All-Purpose Burners | (4) 9,100/850 BTU |
| Cooktop Burner Grate Material | Standard Porcelain Steel |
| Valves (Degree of Turn) | 140 |
| Backguard | Scratch-Resistant |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
| Control Type | QuickSet V |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Porcelain-Enamel |
| Control Type | Touchpads |
| Control Type | Digital Temperature Display |
| Cooktop Burner Grate Material | Square |
| Cooktop Surface | Lift-Up |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Gray |
| Oven Door Features | Hearth Oven Window |
| Handle | Color-Matched Sculptured |
| Frameless Oven Door(s) | White Glass |
| Control Knobs | Designer-Style |
| Color Appearance | White |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 4.80 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
| Optional One-Piece Drip Pans | WB35K10001 black; WB35K10002 chrome |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
