30" Free-Standing Gas Range - JGBS17PEKWW

This product has been discontinued by the manufacture and is no longer available.

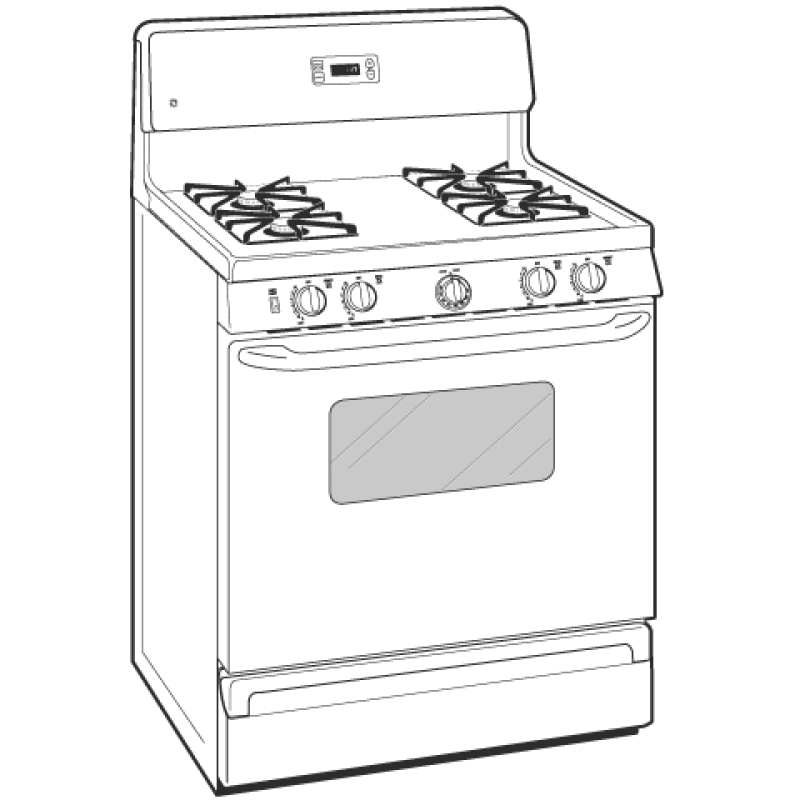

30" Free-Standing Gas Range

Model: JGBS17PEKWW

30" Free-Standing Gas Range JGBS17PEKWW30" Free-Standing Gas Range JGBS17PEKWW30" Free-Standing Gas Range JGBS17PEKWW
30" Free-Standing Gas Range JGBS17PEKWW
30" Free-Standing Gas Range JGBS17PEKWW
30" Free-Standing Gas Range JGBS17PEKWW

Color : White

30" Free-Standing Gas Range JGBS17PEKWW
White

Type : Gas

Key Features

  • Extra-large oven capacity

  • All purpose burners

  • Electronic clock and timer

  • Standard grates

  • Porcelain oven door

  • Big clear view window

  • Designer-style handle

  • Broiler pan with grid

Read More

Description

Deliver a wide range of heat output ideal for most cooking needs.Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen.46 7/8 H x 30 W x 26 1/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Extra-large oven capacity

Provides a large oven interior ideal for cooking more items at once

All purpose burners

Deliver a wide range of heat output ideal for most cooking needs

Electronic clock and timer

Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen

Standard grates

Provide a sturdy and convenient cookware surface for everyday cooking

Porcelain oven door

Offers a scratch-resistant porcelain coating for easy cleaning

Big clear view window

Features a convenient viewing area to check the progress of food

Designer-style handle

Exudes a clean style that adds to the modern appearance of the range

Broiler pan with grid

Convenient broiler pan can be used when broiling for crisping and browning

Easy clean subtop

Porcelain enameled subtop collects spills and messes for easy cleaning

Electronic pilotless ignition

Provides reliable burner ignition operation, eliminating the need for a standing pilot

Interior oven light

Supplies light to make viewing the progress of cooking easy and convenient

Six rack positions

Provides flexibility and allows consumers to make the most of available oven capacity

Two oven racks

Feature a durable construction to help accommodate any size or type of cookware

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

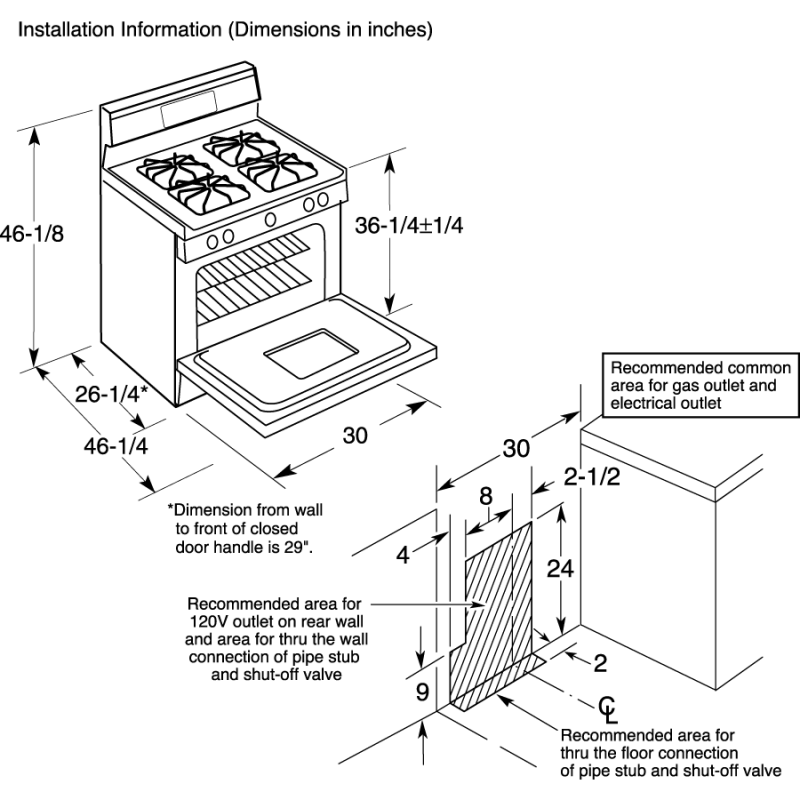

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth26.25 in
Overall Height46.875 in
Net Weight155 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Cabinet Width30 in
Approximate Shipping Weight175 lb

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19

Dimensions & Weight

Width30 in.
Height46.88 in.
Length26.25 in.
Weight155 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height51.88 in.
Shipping Length31.25 in.
Shipping Weight195 lbs.
Total of Shipping Weight195 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.36 ft³
Dimensional Weight265.57 lbs.
Total of Cubes21.36 ft³
Total of Dimensional Weight265.57 lbs.

FEATURES

Slide - Out Broiler DrawerYes
Porcelain-Enameled SubtopYes
Ignition SystemElectronic
Broiler Pan and GridYes
Interior Oven LightYes
Fuel TypeNatural Gas
Oven Control FeaturesElectronic Clock
Cooktop Burner TypeStandard
Oven Rack FeaturesEmbossed Rack Positions
Oven Cleaning TypeStandard Clean
All-Purpose Burners(4) 9,100/850 BTU
Cooktop Burner Grate MaterialStandard Porcelain Steel
Valves (Degree of Turn)140
BackguardPorcelain-Enameled
Cooktop SurfacePorcelain-Enameled Upswept
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
One-Piece Drip PansOptional Accessory

APPEARANCE

Cooktop Burner Grate ColorGray
Oven Door FeaturesClear View Oven Window
HandleDesigner Style
Frameless Oven Door(s)White Porcelain-Enameled
Control KnobsDesigner-Style
Color AppearanceWhite on White

CAPACITY

Unit CapacityExtra Large Oven
Total Capacity (cubic feet)4.8 cu ft

ACCESSORIES

LP Conversion KitIncluded
Optional One-Piece Drip PansWB35K10001 black; WB35K10002 chrome

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(4) 9.1
Volts/Hertz/Amps120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)(4) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)18.0
Bake/Broiler BTU Rating - LP (000's BTU's)16.5

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
