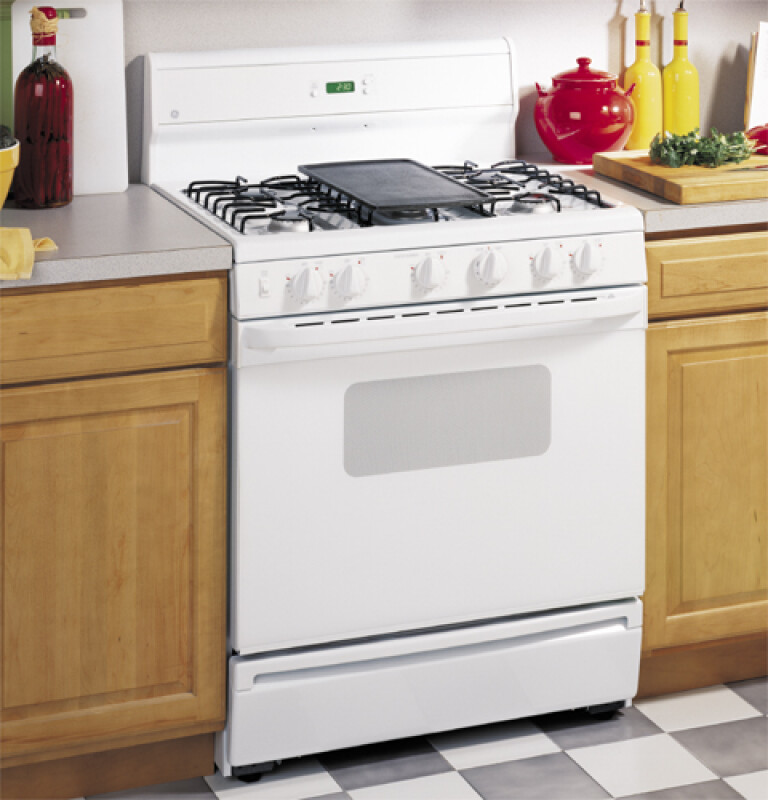

30" Free-Standing Gas Range - JGBS10WEFWW
30" Free-Standing Gas Range
Model: JGBS10WEFWW
30" Free-Standing Gas Range
Model: JGBS10WEFWW
Color : White
Key Features
Center oval burner
Non-stick griddle
Sealed cooktop burners
All purpose burners
Porcelain upswept cooktop
Easy clean subtop
Extra-large oven capacity
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Center oval burner
Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware
Non-stick griddle
Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once
Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
Porcelain upswept cooktop
Features raised edges to help contain spills and make clean-up easy
Easy clean subtop
Porcelain enameled subtop collects spills and messes for easy cleaning
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 45 in |
| Net Weight | 145 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
| Depth with Door Open 90° | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
| Overall Depth | 25 5/16 in |
| Height to Cooking Surface (in.) | 36.25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 45 in. |
| Length | 25.31 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 50 in. |
| Shipping Length | 30.31 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 19.78 ft³ |
| Dimensional Weight | 245.84 lbs. |
| Total of Cubes | 19.78 ft³ |
| Total of Dimensional Weight | 245.84 lbs. |
FEATURES
| Slide - Out Broiler Drawer | Drop Down Door |
| Ignition System | Electronic |
| Broiler Pan and Grid | Extra Large |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Control Features | Electronic Clock |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Standard Clean |
| Griddle | Non-Stick |
| All-Purpose Burners | (1) 8,000 BTU/(3) 7,000 BTU |
| Cooktop Burner Grate Material | Wire |
| Valves (Degree of Turn) | 140 |
| Cooktop Burner Grate Features | Continuous Grates |
| Backguard | Porcelain-Enameled |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Oven Rack Features | 2 Oven Racks |
APPEARANCE
| Oven Door Features | Oven Window |
| Handle | Designer Style |
| Frameless Oven Door(s) | White Glass |
| Color Appearance | White on White |
CAPACITY
| Unit Capacity | Extra Large Oven |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 8.0; (3) 7.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 8.0; (3) 7.0; (1) 6.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
