30" Free-Standing Gas Range - JGBS10DEKBB
30" Free-Standing Gas Range
Model: JGBS10DEKBB
30" Free-Standing Gas Range
Model: JGBS10DEKBB
Color : Black
Key Features
4.8 cu. ft. oven capacity
Standard clean oven
Black gloss steel grates
Flexible broiling
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once
Standard clean oven
Smooth surface makes cleaning by hand easier
Black gloss steel grates
Easily wipe away messes from a smooth, glossy surface
Flexible broiling
Use any sized pan under the broiler for maximum broil flexibility
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

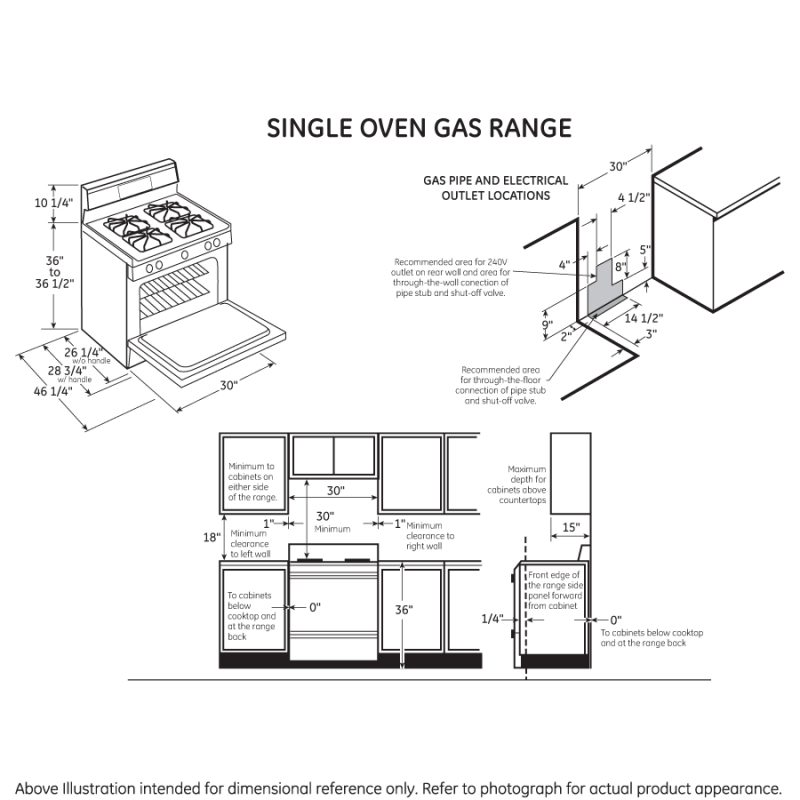

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Depth | 28.75 in |
| Overall Height | 46.25 in |
| Net Weight | 145 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.25 in. |
| Length | 28.75 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.08 ft³ |
| Dimensional Weight | 286.98 lbs. |
| Total of Cubes | 23.08 ft³ |
| Total of Dimensional Weight | 286.98 lbs. |
FEATURES
| Configuration | Range with Broiler Drawer |
| Cooking System | Traditional |
| Ignition System | Electronic |
| Burner - Right Rear | 9,100 BTU |
| Interior Oven Light | 1 Incandescent |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,100 BTU |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Steel |
| Burner - Right Front | 9,100 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 9,100 BTU |
| Control Location | Front |
| Drawer Type | Broiler |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Cooking Technology | Traditional |
FILTER
| App Filter - Cleaning Type | Manual |
| App Filter - Voltage | 120V |
| App Filter - Cooking Technology | Traditional |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Rotary knobs |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Drawer Type | Broiler |
| App Filter - Fuel Type | Gas |
| App Filter - Convection | No |
| App Filter - Cooktop Type | Standard Grates |
APPEARANCE
| Cooktop Burner Grate Color | Black Gloss |
| Oven Door Features | Oven Window |
| Handle | Designer Style |
| Control Knobs | Gloss Black |
| Color Appearance | Black |
ACCESSORIES
| LP Conversion Kit | Included |
| Optional One-Piece Drip Pans | WB35K10001 black; WB35K10002 chrome |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 4.8 cu ft |
