30" Free-Standing Gas Range - JGBS07DEMBB

This product has been discontinued by the manufacture and is no longer available.

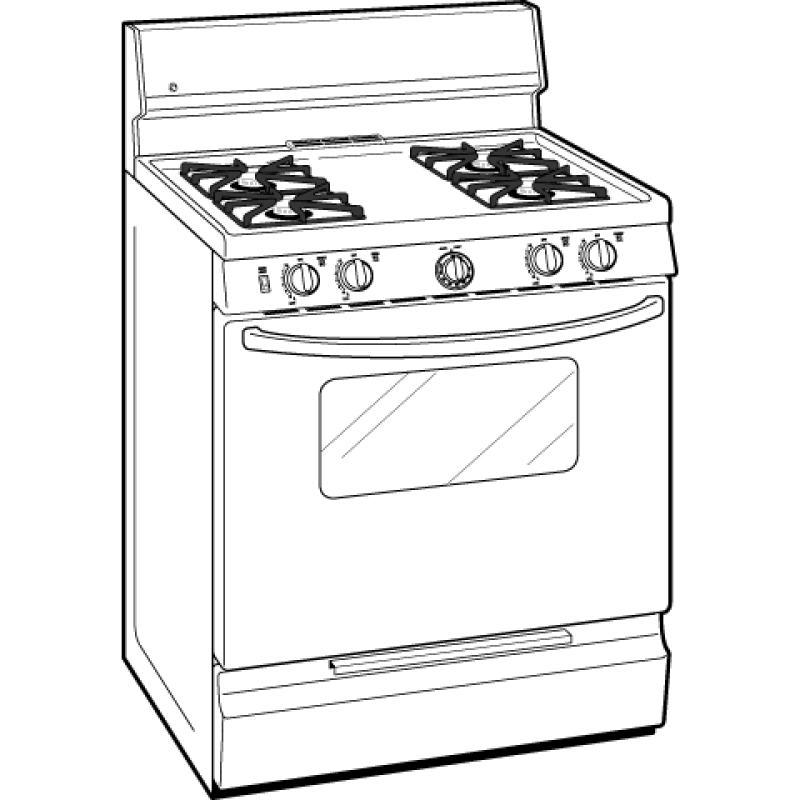

30" Free-Standing Gas Range

Model: JGBS07DEMBB

30" Free-Standing Gas Range JGBS07DEMBB30" Free-Standing Gas Range JGBS07DEMBB30" Free-Standing Gas Range JGBS07DEMBB
30" Free-Standing Gas Range JGBS07DEMBB
30" Free-Standing Gas Range JGBS07DEMBB
30" Free-Standing Gas Range JGBS07DEMBB

Color : Black

30" Free-Standing Gas Range JGBS07DEMBB
Black

Type : Gas

Key Features

  • 4.8 cu. ft. oven capacity

  • All purpose burners

  • Standard clean oven

  • Big clear view window

  • Two oven racks

  • Designer-style handle

  • Broiler pan with grid

  • Broiler drawer

Read More

Description

Deliver a wide range of heat output ideal for most cooking needs.Smooth surface and rounded corners make clean-up quick and easy.45 1/2 H x 30 W x 26 1/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

4.8 cu. ft. oven capacity

More room for cooking more dishes at once

All purpose burners

Deliver a wide range of heat output ideal for most cooking needs

Standard clean oven

Smooth surface and rounded corners make clean-up quick and easy

Big clear view window

No more opening the oven door to check on food. The clear window makes it easy to see inside.

Two oven racks

Includes two oven racks that are sturdy and reliable

Designer-style handle

Sleek lines and a rounded shape that add to the modern appearance

Broiler pan with grid

This convenient pan makes it easy to crisp and brown all your favorite foods

Broiler drawer

Convenient broil drawer delivers excellent crisping and browning results, and acts as a storage drawer when not in use

Easy clean subtop

The subtop is porcelain enameled to make cleaning spills and messes quick and simple

Electronic pilotless ignition

Say farewell to the energy-wasting standing pilot! The electric pilotless ignition provides reliable operation.

Interior oven light(s)

Bright interior light helps you check on the progress of your cooking

Multiple oven rack positions

Several positions allow you to adjust the oven racks to accommodate any size cookware

Clear View window

Clear window makes monitoring food simple

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight145 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Cabinet Width30 in
Approximate Shipping Weight165 lb
Overall Depth26 1/4 in
Overall Height45 1/2 in

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19

Dimensions & Weight

Width30 in.
Height45.5 in.
Length26.25 in.
Weight145 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height50.5 in.
Shipping Length31.25 in.
Shipping Weight185 lbs.
Total of Shipping Weight185 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement20.74 ft³
Dimensional Weight257.78 lbs.
Total of Cubes20.74 ft³
Total of Dimensional Weight257.78 lbs.

FEATURES

Slide - Out Broiler DrawerYes
Porcelain-Enameled SubtopYes
Ignition SystemElectronic
Broiler Pan and GridYes
Interior Oven LightYes
Fuel TypeNatural Gas
Cooktop Burner TypeStandard
Oven Rack FeaturesEmbossed Rack Positions
Oven Cleaning TypeStandard Clean
All-Purpose Burners(4) 9,100/850 BTU
Cooktop Burner Grate MaterialSquare
Valves (Degree of Turn)140
BackguardPorcelain-Enameled
Cooktop SurfacePorcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
One-Piece Drip PansOptional Accessory
Cooktop Burner Grate MaterialPorcelain on Steel
Cooktop SurfaceLift-Up
Oven Rack Features2 Oven Racks

APPEARANCE

Cooktop Burner Grate ColorBlack
Oven Door FeaturesClear View Oven Window
HandleColor-Matched Sculptured
Frameless Oven Door(s)Black Porcelain-Enameled
Control KnobsDesigner-Style
Color AppearanceBlack on Black

CAPACITY

Unit CapacityExtra Large Oven
Total Capacity (cubic feet)4.80 cu ft

ACCESSORIES

LP Conversion KitIncluded
Optional One-Piece Drip PansWB35K10001 black; WB35K10002 chrome

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(4) 9.1
Volts/Hertz/Amps120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)(4) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)18.0
Bake/Broiler BTU Rating - LP (000's BTU's)16.5

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
