30" Free-Standing Gas Range - JGBP89DEMWW

This product has been discontinued by the manufacture and is no longer available.

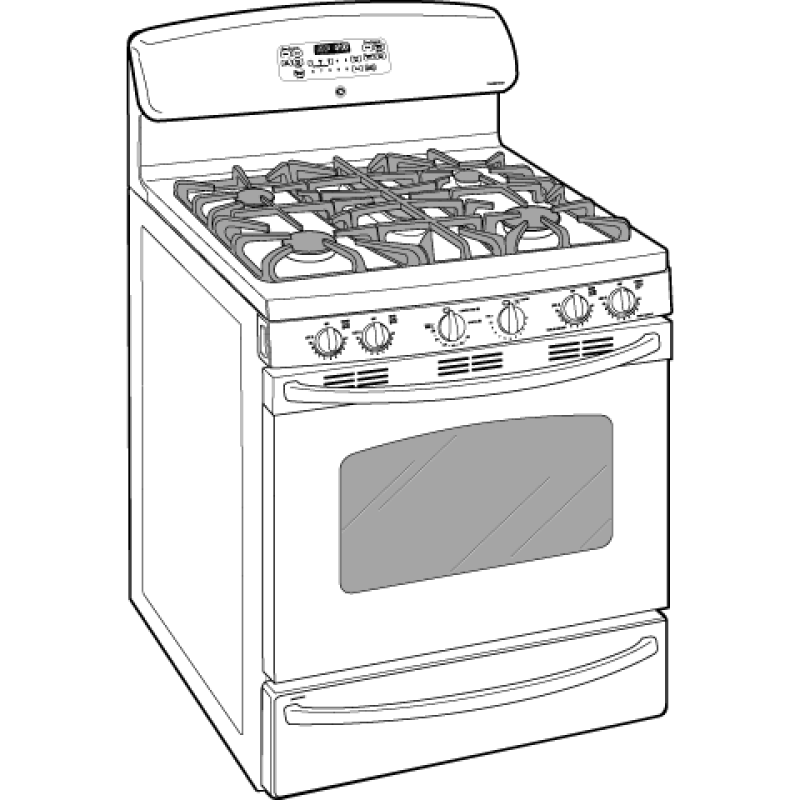

30" Free-Standing Gas Range

Model: JGBP89DEMWW

30" Free-Standing Gas Range JGBP89DEMWW30" Free-Standing Gas Range JGBP89DEMWW30" Free-Standing Gas Range JGBP89DEMWW
30" Free-Standing Gas Range JGBP89DEMWW
30" Free-Standing Gas Range JGBP89DEMWW
30" Free-Standing Gas Range JGBP89DEMWW

Color : White

30" Free-Standing Gas Range JGBP89DEMWW
White

Type : Gas

Key Features

  • Self-clean oven

  • Extra-large oven capacity

  • Deep-recessed cooktop

  • Center oval burner

  • Power Boil 17K burner

  • Continuous grates

  • Precise Simmer burner

  • QuickSet oven controls

Read More

Description

Enough room to cook an entire meal at once.Deep recessed cooktop keeps spills, and everything else, contained in one area that’s easy to wipe clean.47 H x 30 W x 26 1/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Extra-large oven capacity

Enough room to cook an entire meal at once

Deep-recessed cooktop

Deep recessed cooktop keeps spills, and everything else, contained in one area that’s easy to wipe clean

Center oval burner

Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles

Power Boil 17K burner

This powerful element instantly supplies the intense heat needed for boiling, sautéing and stir frying

Continuous grates

Connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily

Precise Simmer burner

Allows for low, even heat distribution that is ideal for delicate foods and sauces

QuickSet oven controls

Electronic touch pads on the control panel make controlling your oven effortless

Baking drawer

Lower oven with heating up 450° offers additional cooking space when you need it most

Non-stick griddle

Ideal for pancakes, bacon, sandwiches and more, the large non-stick griddle is convenient and easy to clean

Certifications

California Prop 65 certification

California Prop 65

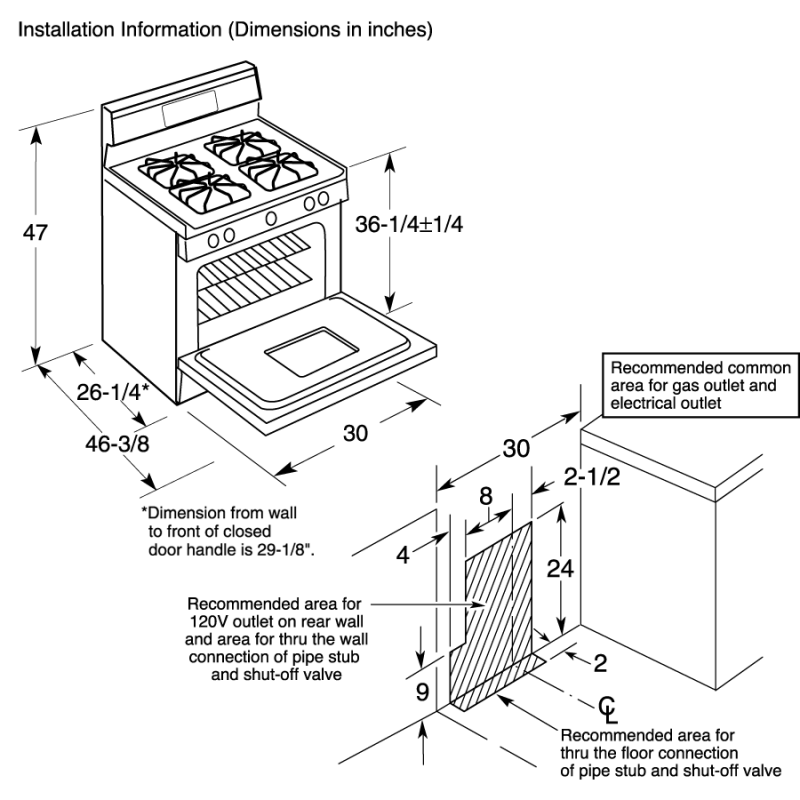

Specifications

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth26.25 in
Overall Height47 in
Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19
Height to Cooking Surface (in.)36 +/- 1/4
Depth with Door Open 90°46.375 in
Cabinet Width30 in

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19

Dimensions & Weight

Width30 in.
Height47 in.
Length26.25 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52 in.
Shipping Length31.25 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.42 ft³
Dimensional Weight266.28 lbs.
Total of Cubes21.42 ft³
Total of Dimensional Weight266.28 lbs.

FEATURES

ConfigurationRange with Baking Drawer
Cleaning TimeVariable
Ignition SystemElectronic
Interior Oven LightYes
Fuel TypeNatural Gas
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Power Boil Burner(1) 17,000 BTU
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
High Output Burner(1) 11,000 BTU/150F degree simmer
GriddleNon-Stick
All-Purpose Burners(1) 9,100 BTU/150F degree simmer
Cooktop Burner Grate MaterialHeavy Cast
Valves (Degree of Turn)270
Cooktop Burner Grate FeaturesDishwasher Safe
BackguardScratch-Resistant
Center Oval Burner(1) 6,000 BTU
Cooktop SurfacePorcelain-Enamel Recessed
Baking Drawer FeaturesElectronic Control
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeQuickSet V
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Oven Control FeaturesAuto Self Clean

APPEARANCE

Cooktop Burner Grate ColorGray
Oven Door FeaturesBig Hearth Oven Window
HandleColor-Matched Sculptured
Frameless Oven Door(s)White Glass
Control KnobsDesigner-Style
Color AppearanceWhite on White

CAPACITY

Unit CapacityExtra Large Oven
Total Capacity (cubic feet)6 cu ft
Capacity (Cu. Ft.)5.0 Upper / 1.0 Lower

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0
Volts/Hertz/Amps120v; 60Hz; 15A
Warming Drawer Wattage450
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0: (1) 9.1; (1) 8.0; (1) 6.0; (1) 4.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
