30" Free-Standing Gas Range with Warming Drawer - JGBP88BELBB

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range with Warming Drawer

Model: JGBP88BELBB

30" Free-Standing Gas Range with Warming Drawer JGBP88BELBB30" Free-Standing Gas Range with Warming Drawer JGBP88BELBB30" Free-Standing Gas Range with Warming Drawer JGBP88BELBB
30" Free-Standing Gas Range with Warming Drawer JGBP88BELBB
30" Free-Standing Gas Range with Warming Drawer JGBP88BELBB
30" Free-Standing Gas Range with Warming Drawer JGBP88BELBB

Color : Black

30" Free-Standing Gas Range with Warming Drawer JGBP88BELBB
Black

Type : Gas

Key Features

  • Self-clean oven

  • Super-large oven capacity

  • Center oval burner

  • Non-stick griddle

  • Power Boil 16,000 BTU Burner

  • Big hearth window

  • Frameless glass oven door

  • TrueTemp system

Read More

Description

Provides an impressively large oven interior for cooking more dishes and large meals at once.Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware.46 7/8 H x 30 W x 26 1/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Conveniently cleans the oven cavity without need of scrubbing

Super-large oven capacity

Provides an impressively large oven interior for cooking more dishes and large meals at once

Center oval burner

Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware

Non-stick griddle

Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once

Power Boil 16,000 BTU Burner

Delivers 16,000 BTUs of forceful heat for rapid boiling

Big hearth window

Features an enhanced shape to add an elegant appearance and make viewing trouble-free

Frameless glass oven door

Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry

TrueTemp system

Delivers even heat distribution and maximum oven control

Sealed cooktop burners

Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

Dishwasher-safe grates

Feature durable construction for worry-free and effortless cleaning and maintenance

Continuous grates

Provide a flat, sturdy surface allowing easy movement of pans between burners

Precise Simmer burner

Delivers a low setting of 140 degrees, ideal for delicate foods and sauces

QuickSet V oven controls

Features an easy to use design that allows you to set precise cooking temperatures

Warming drawer

Convenient drawer keeps breads, desserts or just-cooked foods warm and ready-to-serve

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

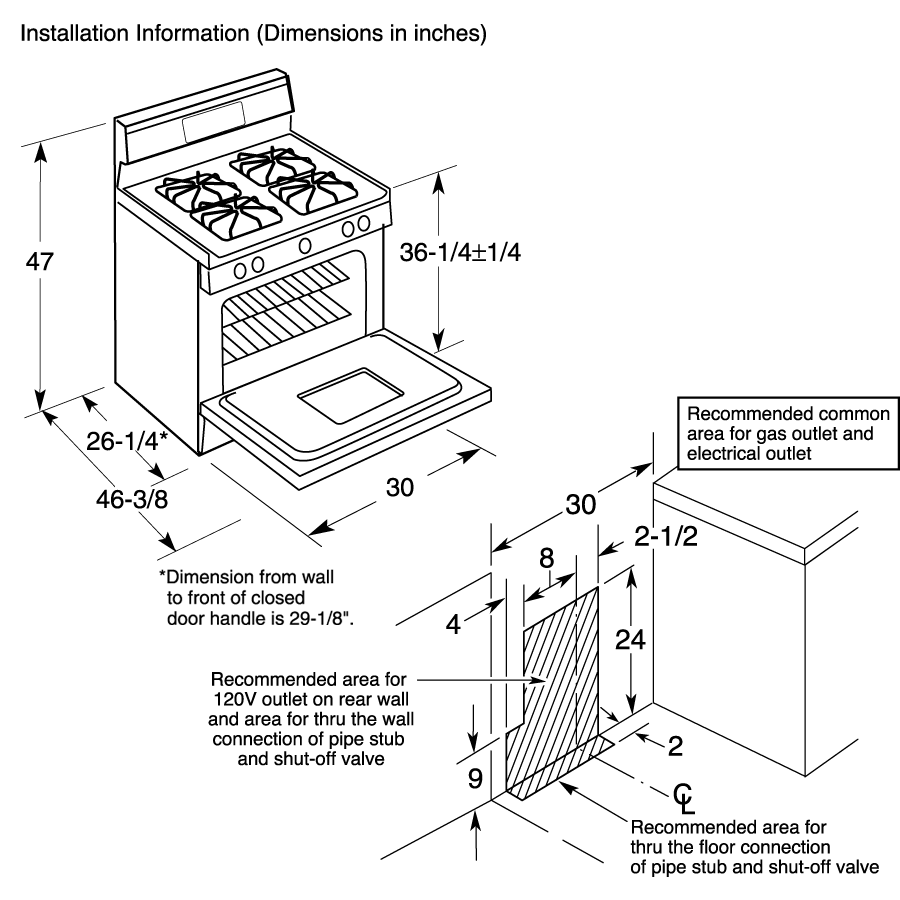

WEIGHTS & DIMENSIONS

Overall Width30 in
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Depth with Door Open 90°46.375 in
Cabinet Width30 in
Overall Depth26 1/4 in
Overall Height46 7/8 in
Height to Cooking Surface (in.)36 +/- .25

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19

Dimensions & Weight

Width30 in.
Height46.88 in.
Length26.25 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height51.88 in.
Shipping Length31.25 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.36 ft³
Dimensional Weight265.57 lbs.
Total of Cubes21.36 ft³
Total of Dimensional Weight265.57 lbs.

FEATURES

ConfigurationRange with Warming Drawer
Cleaning TimeVariable
Ignition SystemElectronic
Interior Oven LightYes
Fuel TypeNatural Gas
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Power Boil Burner(1) 16,000 BTU
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
High Output Burner(1) 11,000 BTU/150F degree simmer
GriddleNon-Stick
All-Purpose Burners(1) 9,100 BTU/150F degree simmer
Cooktop Burner Grate MaterialHeavy Cast
Valves (Degree of Turn)270
Cooktop Burner Grate FeaturesDishwasher Safe
BackguardScratch-Resistant
Center Oval Burner(1) 6,000 BTU
Cooktop SurfacePorcelain-Enamel Recessed
Warming Drawer FeaturesLow, Medium, High Temperature Settings
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeQuickSet V
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Control TypeDigital Temperature Display
Cooktop Burner Grate FeaturesContinuous Grates
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesIn-Oven Broiling
Oven Control FeaturesDigipad Numeric Entry
Oven Rack Features2 Oven Racks
Warming Drawer FeaturesElectronic Control
BackguardPorcelain-Enameled

APPEARANCE

Cooktop Burner Grate ColorBlack
Oven Door FeaturesBig Hearth Oven Window
HandleHigh-Gloss Color-Matched Sculptured
Frameless Oven Door(s)Black Glass
Control KnobsDesigner-Style
Color AppearanceBlack on Black

CAPACITY

Unit CapacityExtra Large Oven
Total Capacity (cubic feet)5.00 cu ft

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 16.0; (1) 11.0; (1) 9.1; (1) 6.0; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 9A
Warming Drawer Wattage450
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 12.5 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006
