30" Free-Standing Gas Range - JGBP86WELWW

This product has been discontinued by the manufacture and is no longer available.

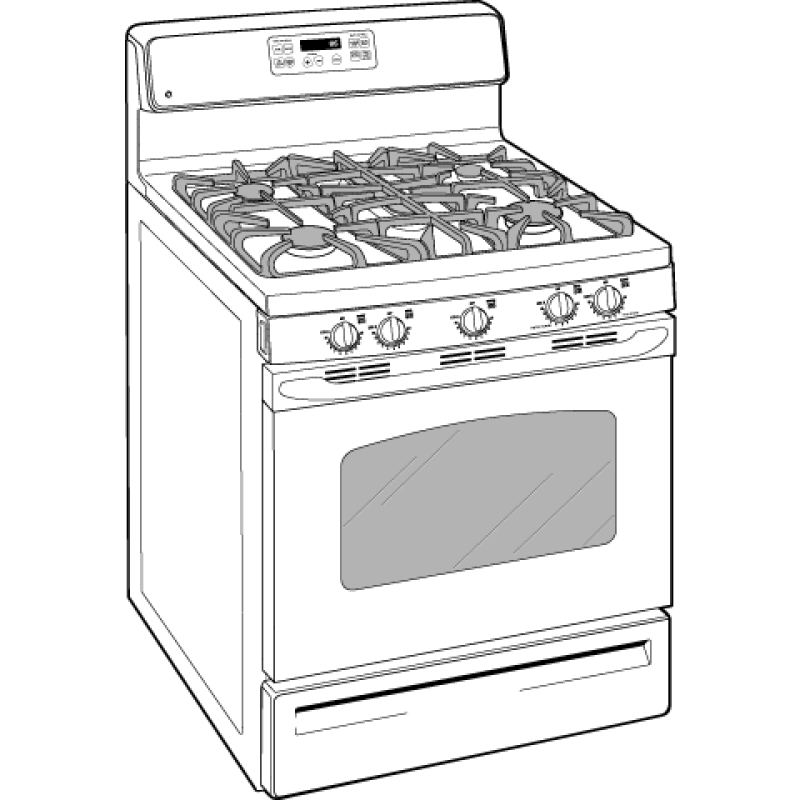

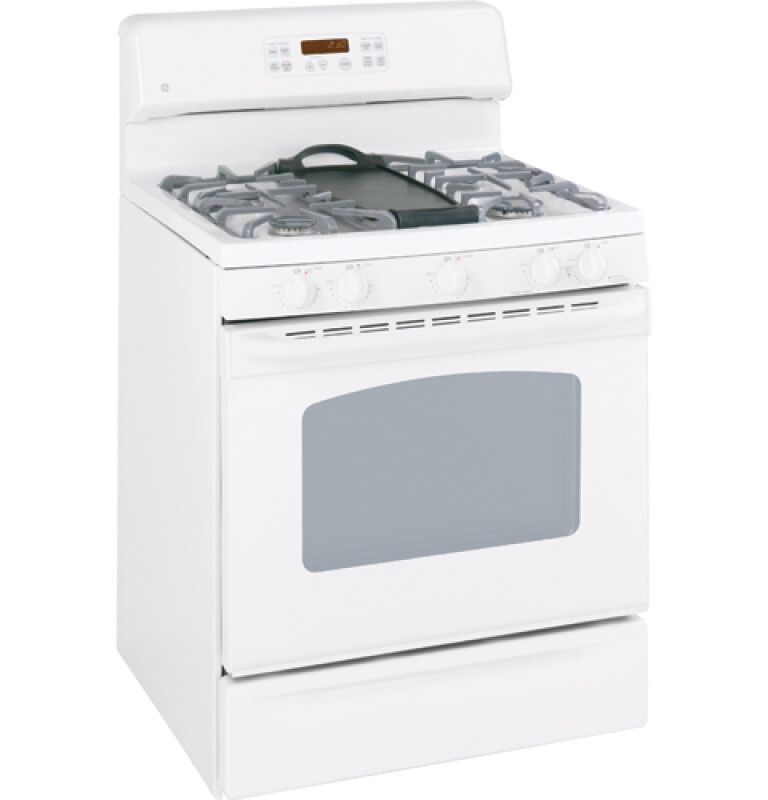

30" Free-Standing Gas Range

Model: JGBP86WELWW

30" Free-Standing Gas Range JGBP86WELWW30" Free-Standing Gas Range JGBP86WELWW30" Free-Standing Gas Range JGBP86WELWW30" Free-Standing Gas Range JGBP86WELWW
30" Free-Standing Gas Range JGBP86WELWW
30" Free-Standing Gas Range JGBP86WELWW
30" Free-Standing Gas Range JGBP86WELWW
30" Free-Standing Gas Range JGBP86WELWW

Color : White

30" Free-Standing Gas Range JGBP86WELWW
White

Type : Gas

Key Features

  • Self-clean oven

  • Extra-large oven capacity

  • Center oval burner

  • Non-stick griddle

  • Power Boil 16,000 BTU Burner

  • Electronic pilotless ignition

  • Audible preheat signal

  • Interior oven light

Read More

Description

Provides a large oven interior ideal for cooking more items at once.Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware.47 1/2 H x 30 W x 26 1/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Conveniently cleans the oven cavity without need of scrubbing

Extra-large oven capacity

Provides a large oven interior ideal for cooking more items at once

Center oval burner

Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware

Non-stick griddle

Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once

Power Boil 16,000 BTU Burner

Delivers 16,000 BTUs of forceful heat for rapid boiling

Electronic pilotless ignition

Provides reliable burner ignition operation, eliminating the need for a standing pilot

Audible preheat signal

Features an audible signal that activates when the oven has reached the desired cooking temperature

Interior oven light

Supplies light to make viewing the progress of cooking easy and convenient

Six rack positions

Provides flexibility and allows consumers to make the most of available oven capacity

Frameless glass oven door

Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry

Big hearth window

Features an enhanced shape to add an elegant appearance and make viewing trouble-free

TrueTemp system

Delivers even heat distribution and maximum oven control

Sealed cooktop burners

Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

Dishwasher-safe grates

Feature durable construction for worry-free and effortless cleaning and maintenance

Continuous grates

Provide a flat, sturdy surface allowing easy movement of pans between burners

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

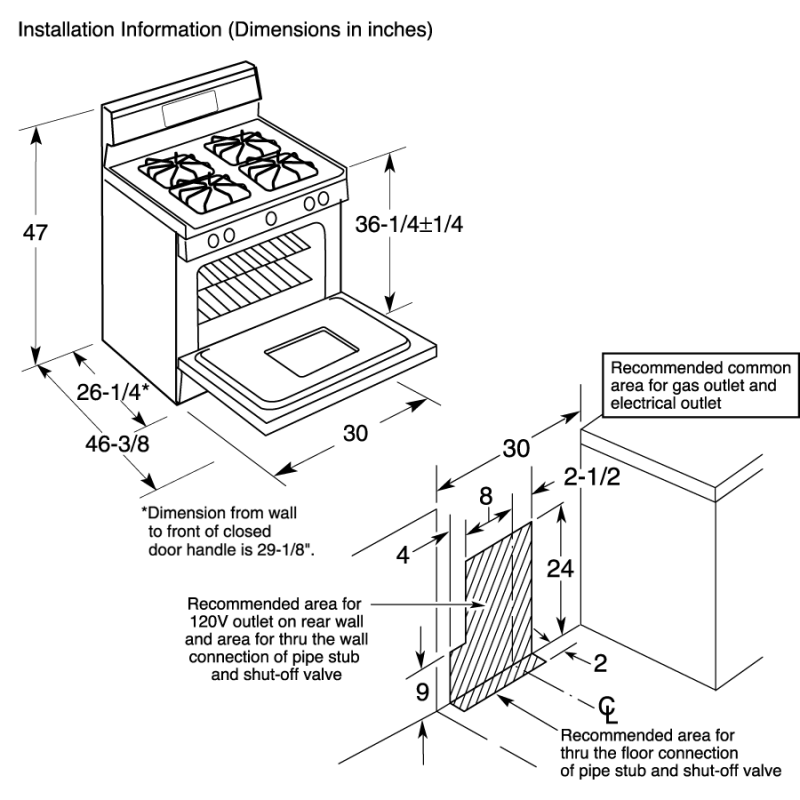

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight200 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19
Depth with Door Open 90°46.375 in
Cabinet Width30 in
Approximate Shipping Weight220 lb
Overall Depth26 1/4 in
Overall Height47 1/2 in
Height to Cooking Surface (in.)36.25 +/- .25

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19

Dimensions & Weight

Width30 in.
Height47.5 in.
Length26.25 in.
Weight200 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52.5 in.
Shipping Length31.25 in.
Shipping Weight240 lbs.
Total of Shipping Weight240 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.65 ft³
Dimensional Weight269.11 lbs.
Total of Cubes21.65 ft³
Total of Dimensional Weight269.11 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Cleaning TimeVariable
Ignition SystemElectronic
Interior Oven LightYes
Fuel TypeNatural Gas
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Power Boil Burner(1) 16,000 BTU
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
High Output Burner(1) 11,000 BTU/150F degree simmer
All-Purpose Burners(1) 9,100 BTU/150F degree simmer
Cooktop Burner Grate MaterialHeavy Cast
Valves (Degree of Turn)270
Cooktop Burner Grate FeaturesDishwasher Safe
BackguardScratch-Resistant
Center Oval Burner(1) 6,000 BTU
Cooktop SurfacePorcelain-Enamel Recessed
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeQuickSet IV
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Self-Clean Oven Door LockManual
Cooking TechnologyTraditional
Oven Control FeaturesAuto Oven Shut-Off
Oven Control FeaturesSelf-Clean Cool Down Time Display
Control TypeDigital Temperature Display
Cooktop Burner Grate FeaturesContinuous Grates
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesIn-Oven Broiling
Oven Rack Features2 Oven Racks
BackguardPorcelain-Enameled

APPEARANCE

Cooktop Burner Grate ColorGray
Oven Door FeaturesBig Hearth Oven Window
HandleHigh-Gloss Color-Matched Sculptured
Frameless Oven Door(s)White Glass
Control KnobsDesigner-Style
Color AppearanceWhite on White

CAPACITY

Unit CapacityExtra Large Oven
Total Capacity (cubic feet)5.00 cu ft

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 16.0; (1) 11.0; (1) 9.1; (1) 6.0; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 12.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006
