30" Free-Standing Gas Range with Warming Drawer - JGBP85WEJWW
30" Free-Standing Gas Range with Warming Drawer
Model: JGBP85WEJWW
30" Free-Standing Gas Range with Warming Drawer
Model: JGBP85WEJWW
Color : White
Key Features
Self-clean oven
Extra-large oven capacity
QuickSet V oven controls
15K Power Boil burner
Warming drawer
Frameless glass oven door
TrueTemp system
Sealed cooktop burners
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Conveniently cleans the oven cavity without need of scrubbing
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
QuickSet V oven controls
Features an easy to use design that allows you to set precise cooking temperatures
15K Power Boil burner
Provides 15,000 BTUs of forceful heat for rapid boiling
Warming drawer
Convenient drawer keeps breads, desserts or just-cooked foods warm and ready-to-serve
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
TrueTemp system
Delivers even heat distribution and maximum oven control
Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
Continuous grates
Provide a flat, sturdy surface allowing easy movement of pans between burners
Certifications
California Prop 65
Specifications

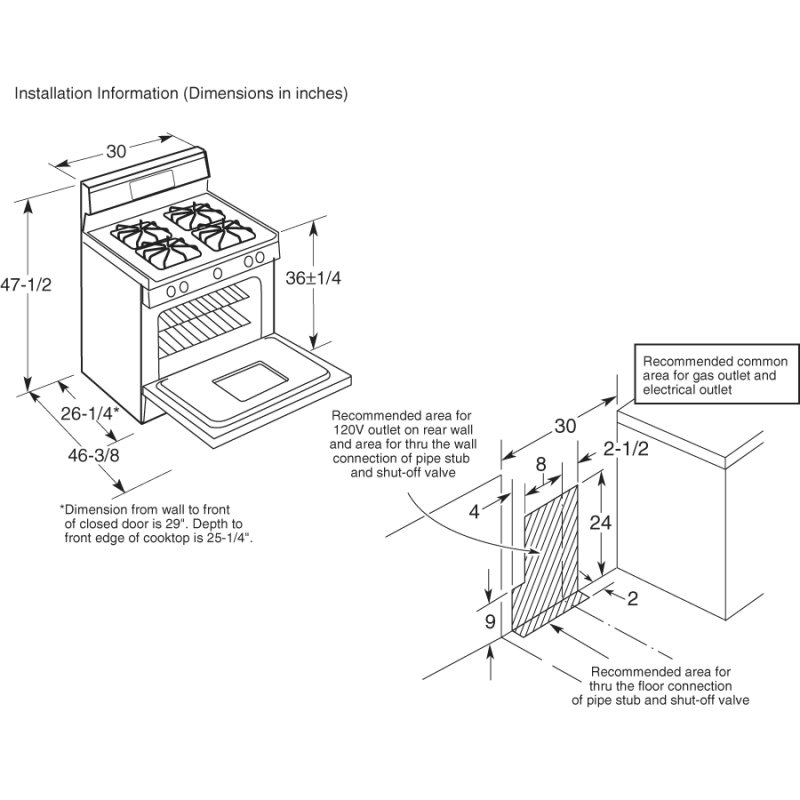

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 200 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 220 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 7/8 in |
| Height to Cooking Surface (in.) | 36 +/- .25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.88 in. |
| Length | 26.25 in. |
| Weight | 200 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 240 lbs. |
| Total of Shipping Weight | 240 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.36 ft³ |
| Dimensional Weight | 265.57 lbs. |
| Total of Cubes | 21.36 ft³ |
| Total of Dimensional Weight | 265.57 lbs. |
FEATURES
| Configuration | Range with Warming Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Power Boil Burner | (1) 15,000 BTU/180F degree simmer |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| All-Purpose Burners | (1) 9,500/850 BTU |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Backguard | Scratch-Resistant |
| Cooktop Surface | Porcelain-Enamel Recessed |
| Warming Drawer Features | Low, Medium, High Temperature Settings |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet V |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Control Type | Digital Temperature Display |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | In-Oven Broiling |
| Oven Control Features | Digipad Numeric Entry |
| Oven Rack Features | 2 Oven Racks |
| Warming Drawer Features | Electronic Control |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Gray |
| Oven Door Features | Big Clear View Oven Window |
| Handle | Designer Style |
| Frameless Oven Door(s) | White Glass |
| Control Knobs | Designer-Style |
| Color Appearance | White on White |
CAPACITY
| Unit Capacity | Extra Large Oven |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 11.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 9A |
| Warming Drawer Wattage | 450 |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 11.0; (1) 9.8; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
