Home/Cooking/Ranges/Freestanding Ranges/JGBP36BELBB

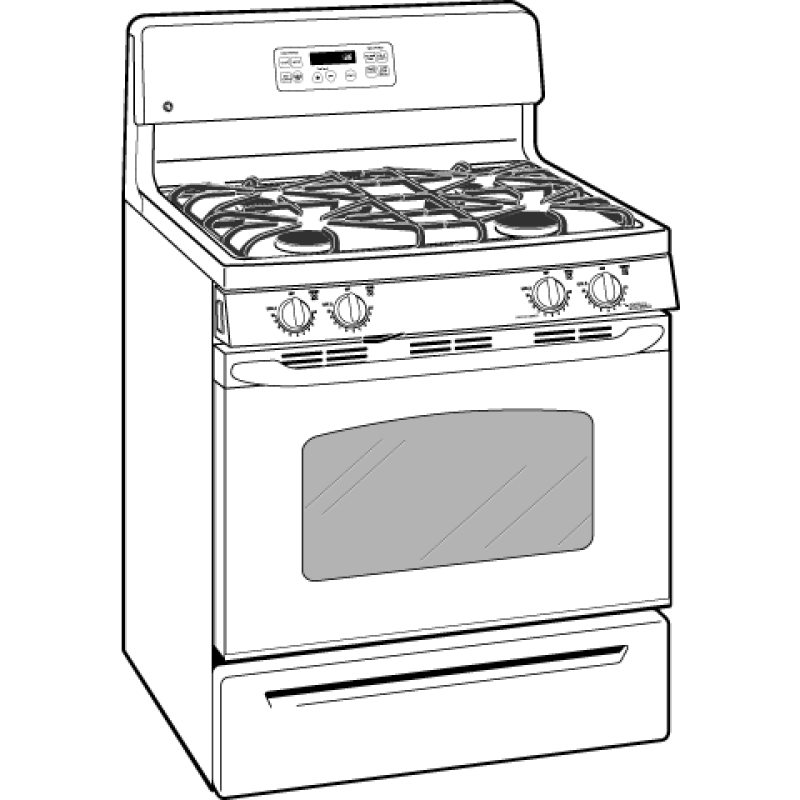

30" Free-Standing Gas Range - JGBP36BELBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range

Model: JGBP36BELBB

30" Free-Standing Gas Range JGBP36BELBB30" Free-Standing Gas Range JGBP36BELBB30" Free-Standing Gas Range JGBP36BELBB
30" Free-Standing Gas Range JGBP36BELBB
30" Free-Standing Gas Range JGBP36BELBB
30" Free-Standing Gas Range JGBP36BELBB

Color : Black

30" Free-Standing Gas Range JGBP36BELBB
Black

Type : Gas

GasElectric

Key Features

  • Self-clean oven

  • Extra-large oven capacity

  • TrueTemp system

  • QuickSet IV oven controls

  • 15K Power Boil burner

  • Big hearth window

  • Medium cast grates

  • Sealed cooktop burners

Read More

Description

Provides a large oven interior ideal for cooking more items at once.Delivers even heat distribution and maximum oven control.46 7/8 H x 30 W x 26 1/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Conveniently cleans the oven cavity without need of scrubbing

Extra-large oven capacity

Provides a large oven interior ideal for cooking more items at once

TrueTemp system

Delivers even heat distribution and maximum oven control

QuickSet IV oven controls

Feature an easy to use design which allows you to set precise cooking temperatures

15K Power Boil burner

Provides 15,000 BTUs of forceful heat for rapid boiling

Big hearth window

Features an enhanced shape to add an elegant appearance and make viewing trouble-free

Medium cast grates

Constructed from a durable cast iron material for long-lasting performance and reliability

Sealed cooktop burners

Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

Dishwasher-safe grates

Feature durable construction for worry-free and effortless cleaning and maintenance

Continuous grates

Provide a flat, sturdy surface allowing easy movement of pans between burners

All purpose burners

Deliver a wide range of heat output ideal for most cooking needs

High output burner

Provides a powerful burner output for efficient heat-up and boiling

Precise Simmer burner

Offers a low setting of 600 BTUs, ensuring more temperature control for simmering

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

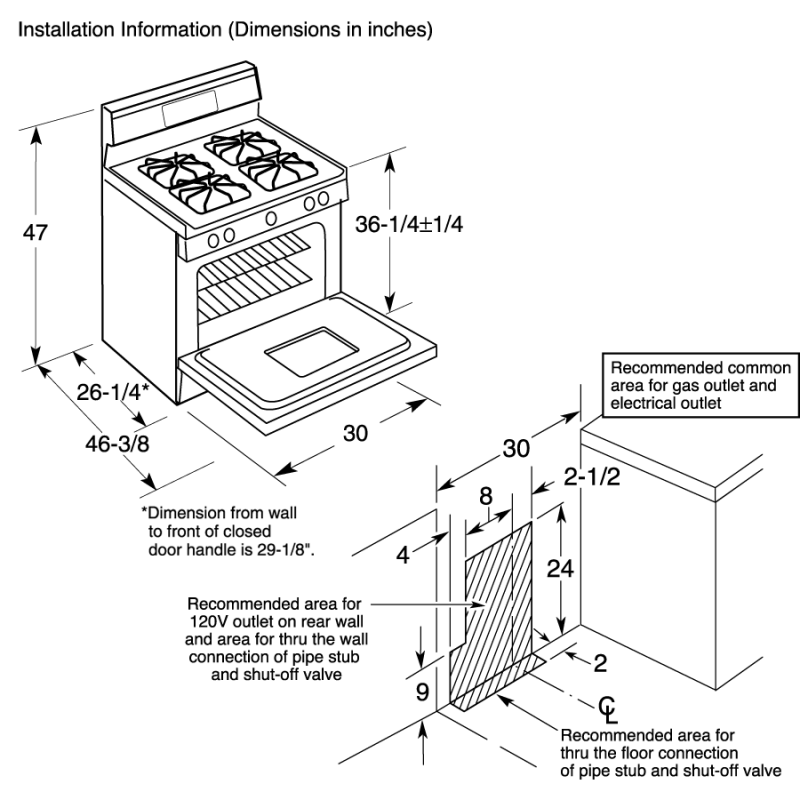

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight205 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Cabinet Width30 in
Approximate Shipping Weight225 lb
Overall Depth26 1/4 in
Overall Height46 7/8 in

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19

Dimensions & Weight

Width30 in.
Height46.88 in.
Length26.25 in.
Weight205 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height51.88 in.
Shipping Length31.25 in.
Shipping Weight245 lbs.
Total of Shipping Weight245 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.36 ft³
Dimensional Weight265.57 lbs.
Total of Cubes21.36 ft³
Total of Dimensional Weight265.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Cleaning TimeVariable
Ignition SystemElectronic
Interior Oven LightYes
Fuel TypeNatural Gas
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Power Boil Burner(1) 15,000 BTU/180F degree simmer
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
High Output Burner(1) 11,000 BTU/150F degree simmer
All-Purpose Burners(1) 9,100 BTU/850 BTU
Cooktop Burner Grate MaterialMedium Cast
Valves (Degree of Turn)270
Cooktop Burner Grate FeaturesContinuous Grates
BackguardScratch-Resistant
Cooktop SurfacePorcelain-Enamel Recessed
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Control TypeQuickSet IV
Precise Simmer Burner(1) 5,000/600 BTU
Cooking TechnologyTraditional
Oven Control FeaturesAuto Oven Shut-Off
Oven Control FeaturesSelf-Clean Cool Down Time Display
Control TypeDigital Temperature Display
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesIn-Oven Broiling
Oven Rack Features3 Oven Racks
BackguardPorcelain-Enameled

APPEARANCE

Cooktop Burner Grate ColorBlack
Oven Door FeaturesBig Hearth Oven Window
HandleHigh-Gloss Color-Matched Sculptured
Frameless Oven Door(s)Black Glass
Control KnobsDesigner-Style
Color AppearanceBlack on Black

CAPACITY

Unit CapacityExtra Large Oven
Total Capacity (cubic feet)5.00 cu ft

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 15.0; (1) 11.0 (1) 9.1; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 12.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
