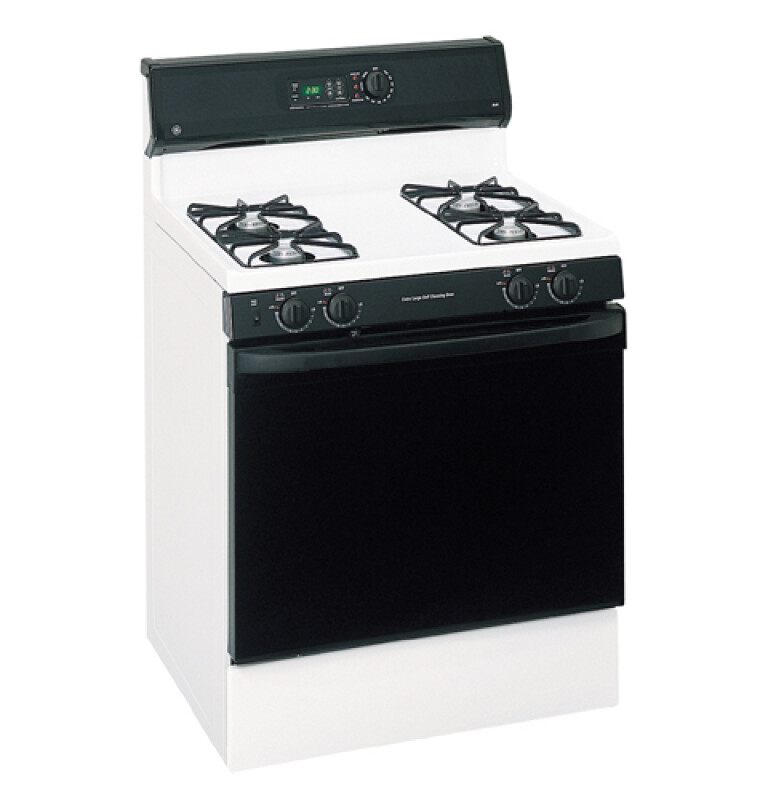

30" Free-Standing XL44 Gas Range - JGBP24BEAAD
30" Free-Standing XL44 Gas Range
Model: JGBP24BEAAD
30" Free-Standing XL44 Gas Range
Model: JGBP24BEAAD
Color : Almond
Key Features
One-piece upswept porcelain-enameled lift-up cooktop
Certified sabbath mode
Electronic pilotless ignition system
Standard / twin cooktop burners
Black standard porcelain-steel square grates
Quick Set II oven controls
Extra-large 4.4 cu. ft. self-cleaning oven
Porcelain-enameled scratch-resistant backguard
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
One-piece upswept porcelain-enameled lift-up cooktop
Certified sabbath mode
Electronic pilotless ignition system
Standard / twin cooktop burners
Black standard porcelain-steel square grates
Quick Set II oven controls
Extra-large 4.4 cu. ft. self-cleaning oven
Porcelain-enameled scratch-resistant backguard
Designer-style handle
Solid frameless black glass oven door
2 oven racks / 6 embossed rack positions
Extra-large broiler pan with grid
In-oven broiling
Electronic clock and timer
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 180 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 200 lb |
| Overall Depth | 28 1/4 in |
| Overall Height | 46 1/2 in |
| Height to Cooking Surface (in.) | 36 +/- .25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.5 in. |
| Length | 28.25 in. |
| Weight | 180 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.5 in. |
| Shipping Length | 33.25 in. |
| Shipping Weight | 220 lbs. |
| Total of Shipping Weight | 220 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.81 ft³ |
| Dimensional Weight | 283.52 lbs. |
| Total of Cubes | 22.81 ft³ |
| Total of Dimensional Weight | 283.52 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Handle | Designer Style |
| Frameless Oven Door(s) | Solid Black Glass |
| Color Appearance | Almond |
FEATURES
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Electronic |
| Broiler Pan and Grid | Extra Large |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Self-Clean |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 270 |
| Backguard | Scratch-Resistant |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet II |
| One-Piece Drip Pans | Optional Accessory |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Sabbath Mode |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Burner Grate Material | Porcelain on Steel |
| Cooktop Surface | Lift-Up |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Oven Cycle Light |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | In-Oven Broiling |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Porcelain-Enameled |
CAPACITY
| Unit Capacity | Extra Large Oven |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.0 |
| Electrical Requirements | 120V; 60Hz; 5A |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
