30" Free-Standing Gas Double Oven Range with Convection - JGB870DEFBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

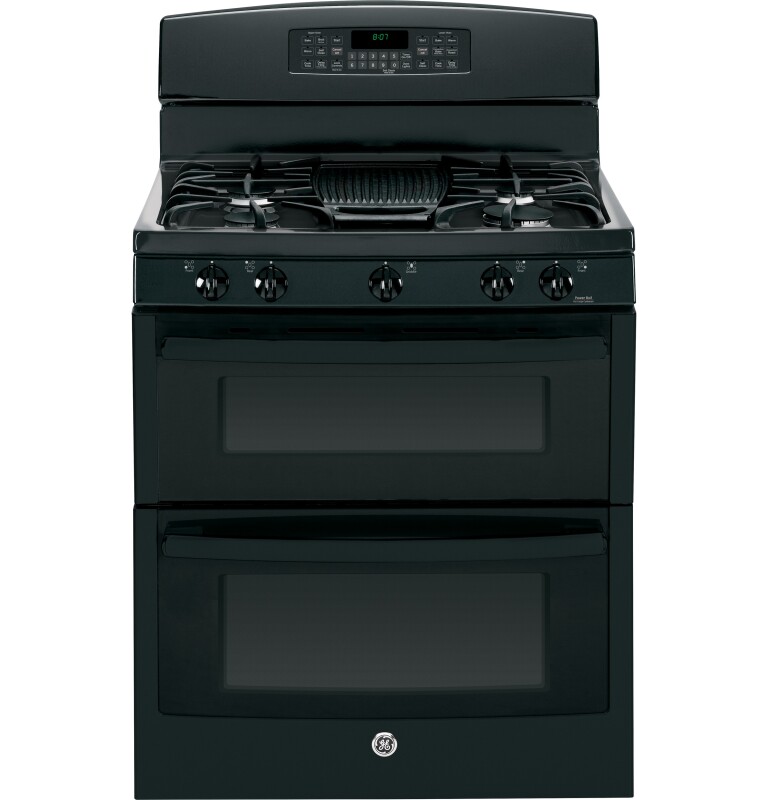

30" Free-Standing Gas Double Oven Range with Convection

Model: JGB870DEFBB

30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB
30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB
30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB
30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB
30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB
30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB
+5more

Product Video

GE 30" Free-Standing Gas Double Oven Range with Convection Black JGB870DEFBB Picture
4 Videos

Color : Black

30" Free-Standing Gas Double Oven Range with Convection JGB870DEFBB
Black

Type : Gas

GasElectric

Key Features

  • Double oven 6.8 cu. ft. total capacity

  • 17,000 BTU Power Boil burner

  • Precise Simmer burner

  • Reversible cast-iron griddle/grill

  • Center oval burner

  • Gas convection oven

  • Heavy-cast, continuous grates

  • Self-clean oven

Read More

Description

Delivers intense heat for fast boiling.Delicate foods don’t burn with low, even heat.47 1/4 H x 30 W x 29 1/2 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

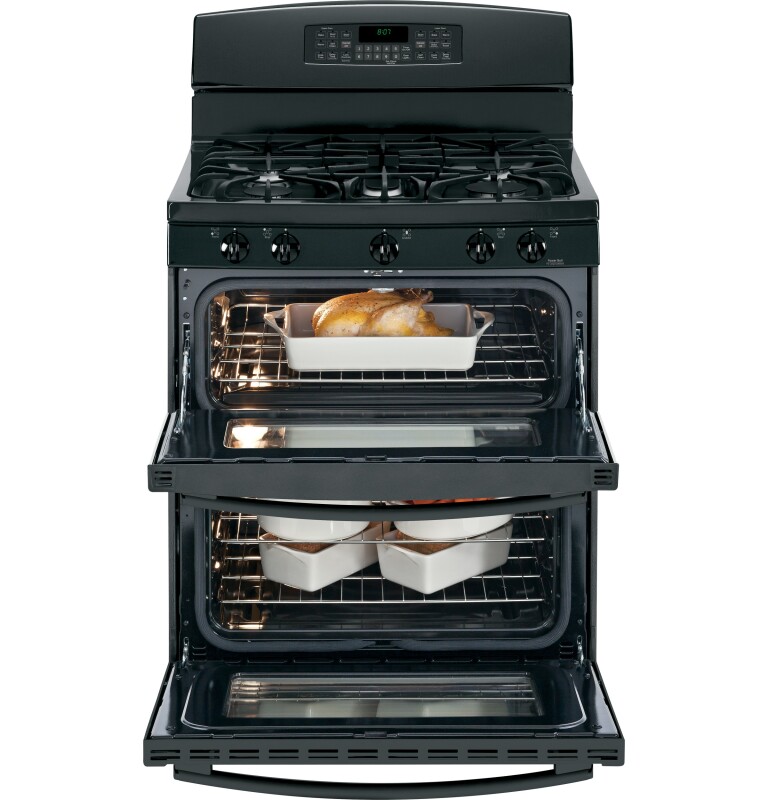

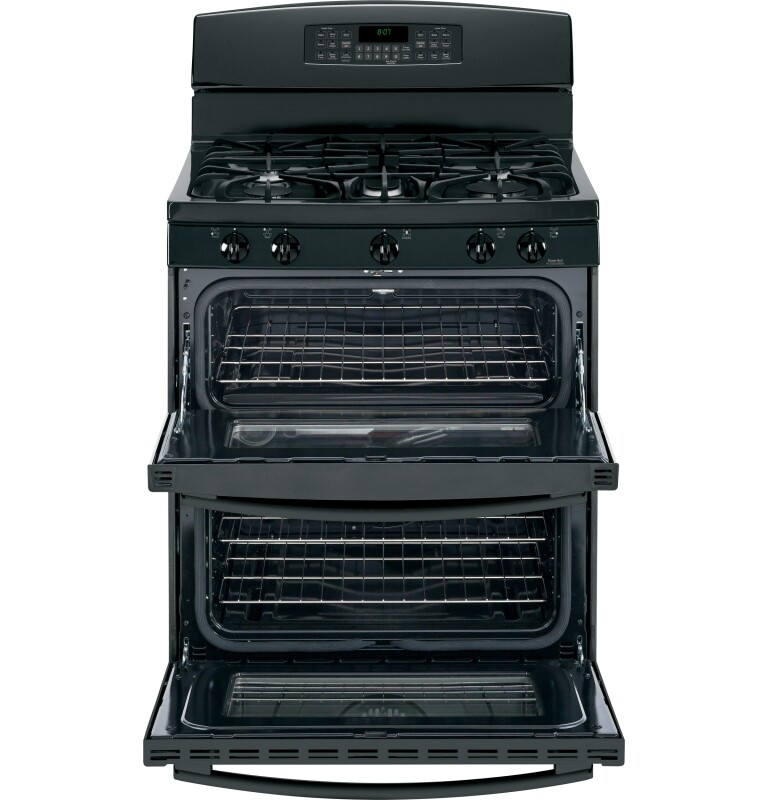

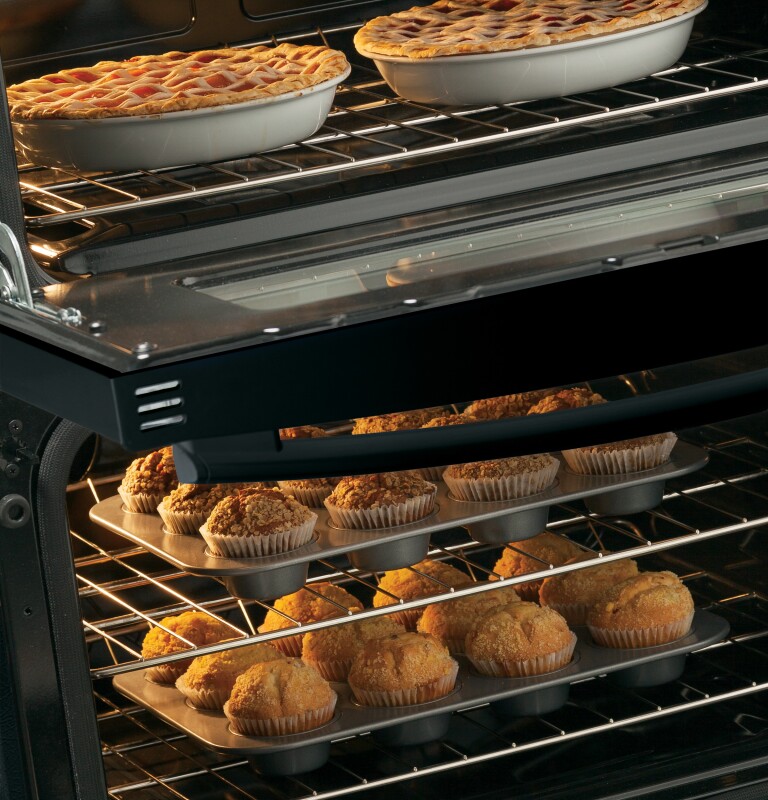

Double oven 6.8 cu. ft. total capacity

Large capacity is ideal for big meals

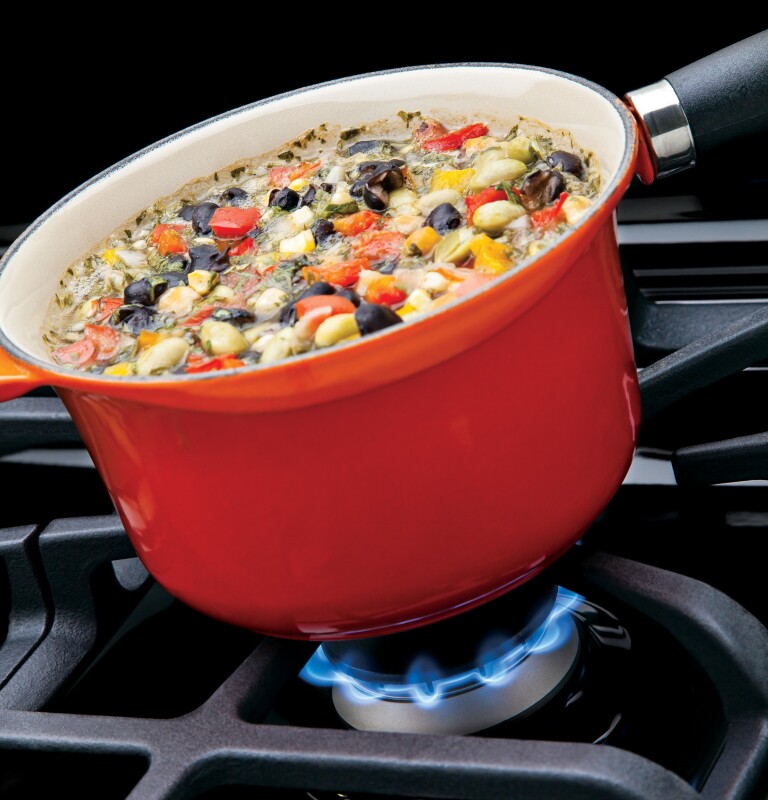

17,000 BTU Power Boil burner

Delivers intense heat for fast boiling

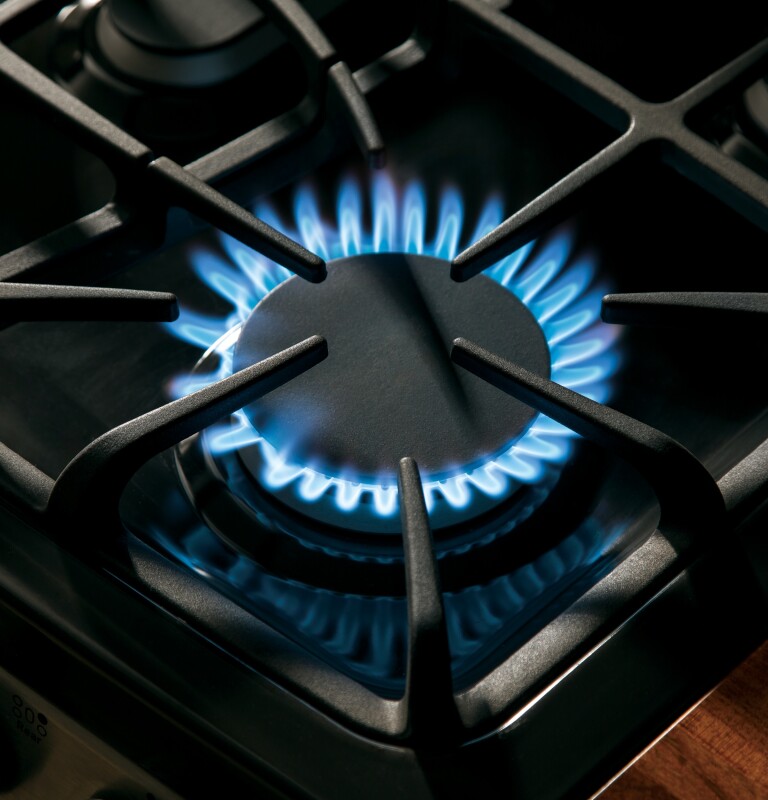

Precise Simmer burner

Delicate foods don’t burn with low, even heat

Reversible cast-iron griddle/grill

Two great ways to cook

Center oval burner

Large oval fifth burner is ideal for griddle or odd-size cookware

Gas convection oven

Circulates heat for high-quality results

Heavy-cast, continuous grates

Allow for easy movement of pans between burners

Self-clean oven

Cleans the oven cavity without the need for scrubbing

Black gloss oven interior

Enjoy a clean and sleek appearance

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

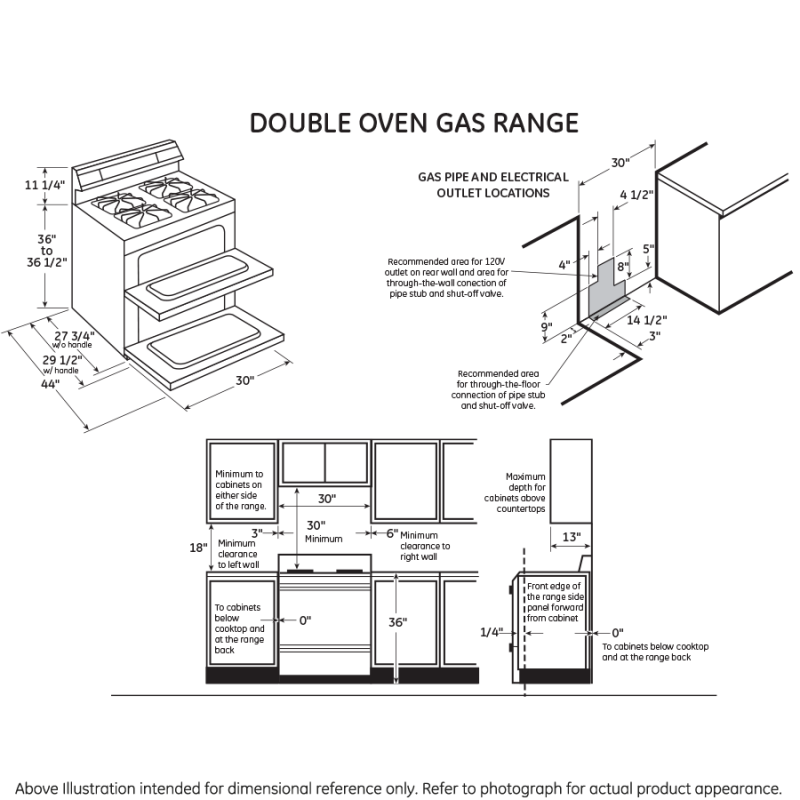

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight200 lb
Depth Without Handle27.75 in
Oven Interior Dimensions (W x H x D) (in.)24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
Depth with Door Open44 in
Cabinet Width30 in
Approximate Shipping Weight220 lb
Overall Depth29 1/2 in
Overall Height47 1/4 in
Height to Cooking Surface (in.)36 - 36.5

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower

Dimensions & Weight

Width30 in.
Height47.25 in.
Length29.5 in.
Weight200 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52.25 in.
Shipping Length34.5 in.
Shipping Weight240 lbs.
Total of Shipping Weight240 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement24.2 ft³
Dimensional Weight300.84 lbs.
Total of Cubes24.2 ft³
Total of Dimensional Weight300.84 lbs.

FEATURES

ConfigurationDouble Oven Range
Ignition SystemElectronic
Burner - Right Rear5,000 BTU Precise Simmer
Interior Oven Light1 Auto Incandescent (Both Ovens)
Fuel TypeNatural Gas
Oven Cooking ModesConvection Roast
Cooktop Burner TypeSealed
Oven Rack Features3 Reinforced Oven Racks
Burner - Left Rear9,500 BTU
Oven Cleaning TypeSelf-Clean (Both Ovens)
GriddleReversible Cast Grill/Griddle
Product TypeFree-Standing Double Oven
Cooktop TypeContinuous Grates with Griddle
Cooktop Burner Grate MaterialHeavy Cast Iron
Cooktop Burner Grate FeaturesContinuous Grates
Burner - Center10,000 BTU Oval
Burner - Right Front17,000 BTU Power Boil
Burner - Left Front11,000 BTU
Control TypeElectronic Touch
Cooking TechnologyTraditional Upper; Convection Lower
Cooktop SurfaceDeep Recessed
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Cooktop SurfacePorcelain-Enamel
Cooktop SurfaceOne-Piece Upswept
Cooktop SurfaceBlack
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesControl Lock Capability
Oven Cooking ModesConvection Bake

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesBig View Oven Window
HandleDesigner Style
Control KnobsWeighted
Color AppearanceBlack on Black
Control KnobsColor-Matched
HandleColor-Matched

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 11.0, (1) 9.5; (1) 10.0; (1) 5.0
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(1) 10.0; (1) 9.5; (1) 15.0; (1) 5.0; (1) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)12.0 / 13.5 - Upper; 14.0 / 0.0 - Lower
Bake/Broiler BTU Rating - LP (000's BTU's)10.0 / 12.0 - Upper; 13.5 / 0.0 - Lower

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Capacity (Cu. Ft.)2.5 Upper / 4.3 Lower
Total Capacity (cubic feet)6.80 cu ft
