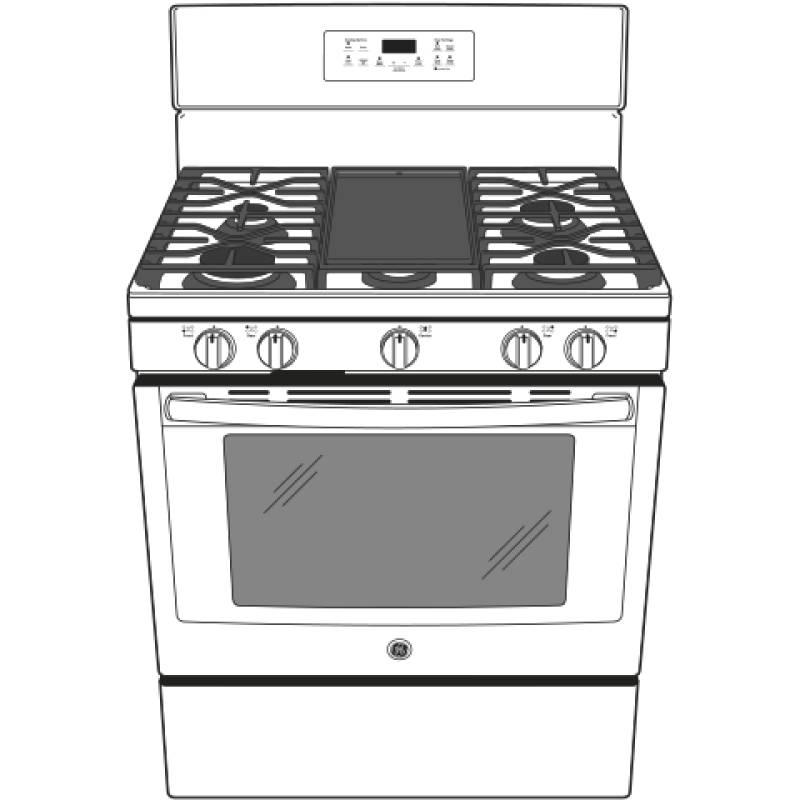

30" Free-Standing Gas Convection Range - JGB700DEJWW
30" Free-Standing Gas Convection Range
Model: JGB700DEJWW
Product Video
30" Free-Standing Gas Convection Range
Model: JGB700DEJWW
Color : White
Key Features
Edge-to-edge cooktop
Extra-large integrated non-stick griddle
18,000 BTU Power Boil burner
Gas convection oven
Self-clean with Steam Clean option
Center oval burner
Heavy duty, dishwasher safe grates
5.0 cu. ft. oven capacity
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features

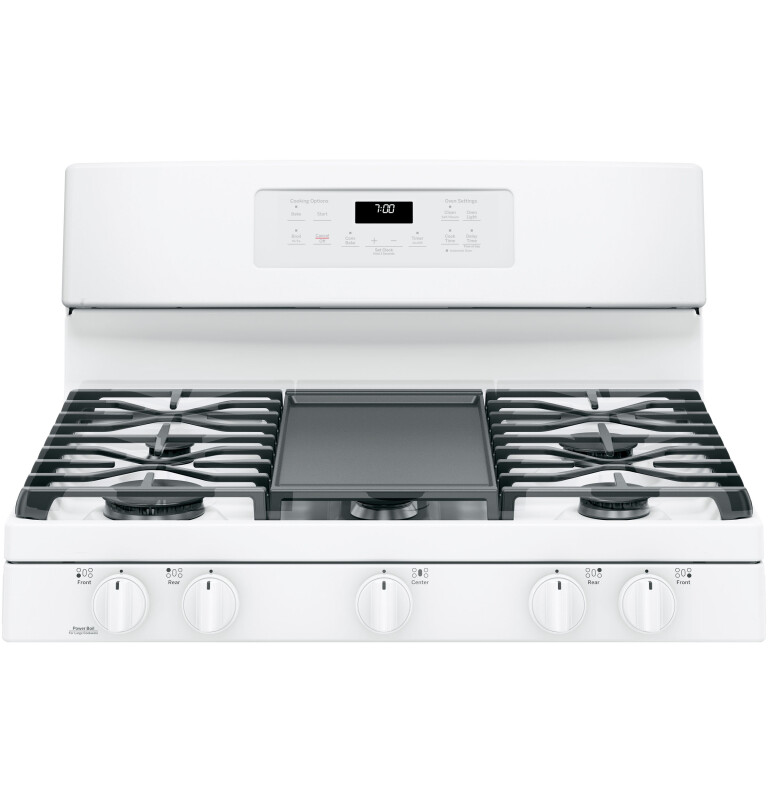

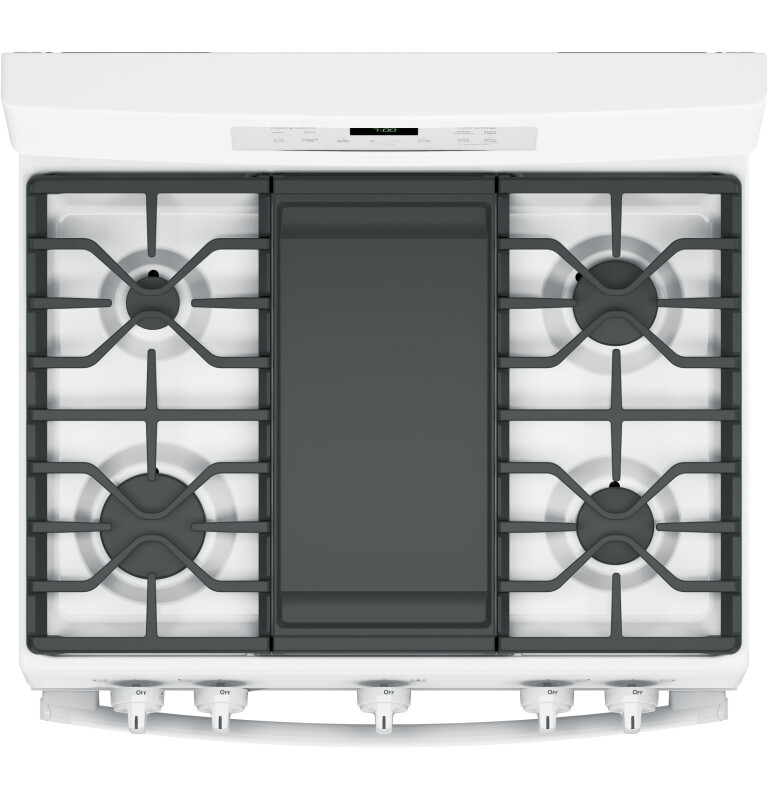

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

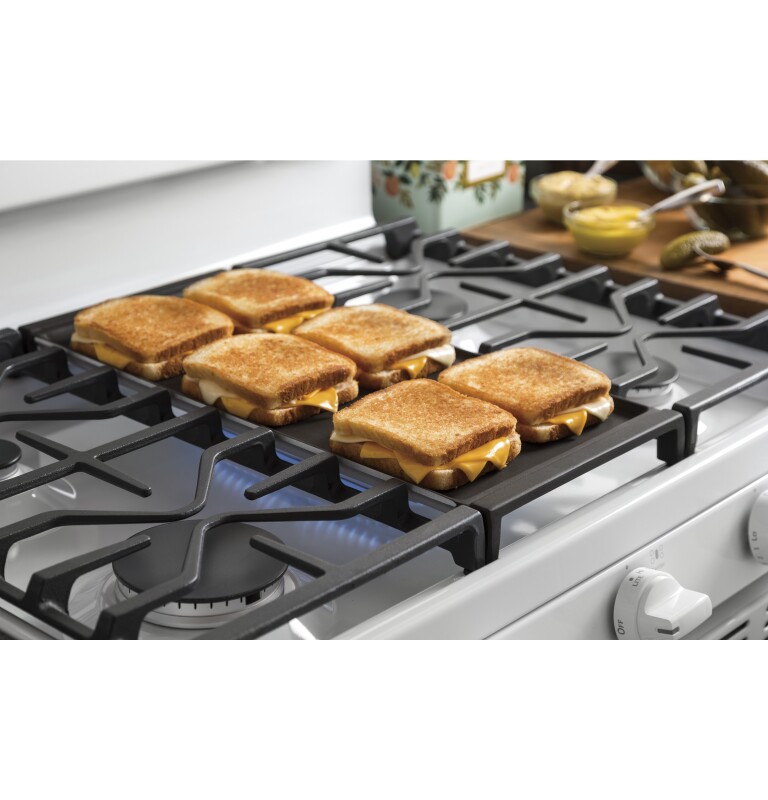

Extra-large integrated non-stick griddle
Cook up to six grilled cheeses at once on the industry's largest integrated griddle

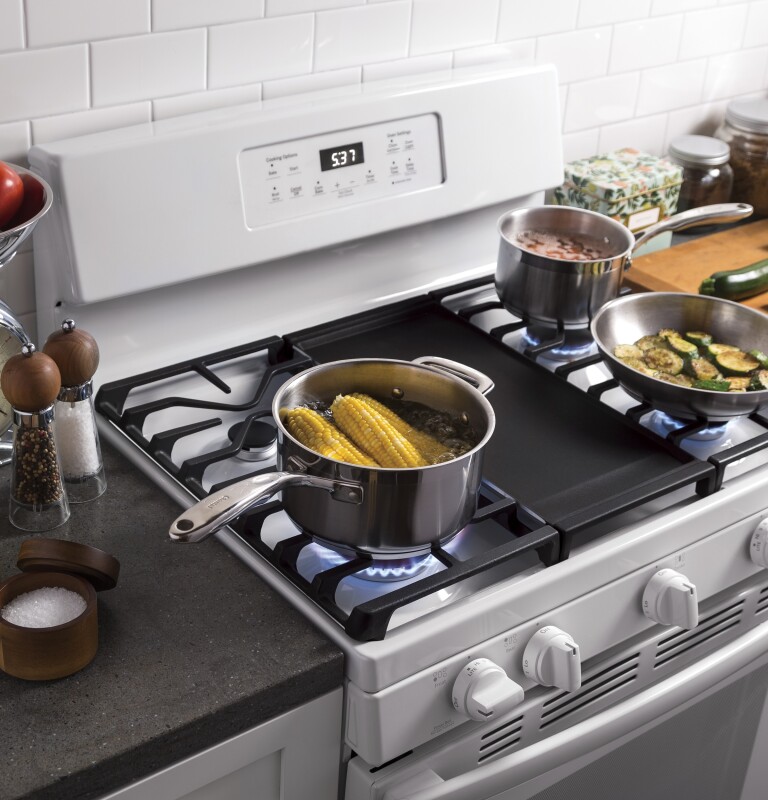

18,000 BTU Power Boil burner
Boil water fast with intense heat from this 18,000 BTU burner

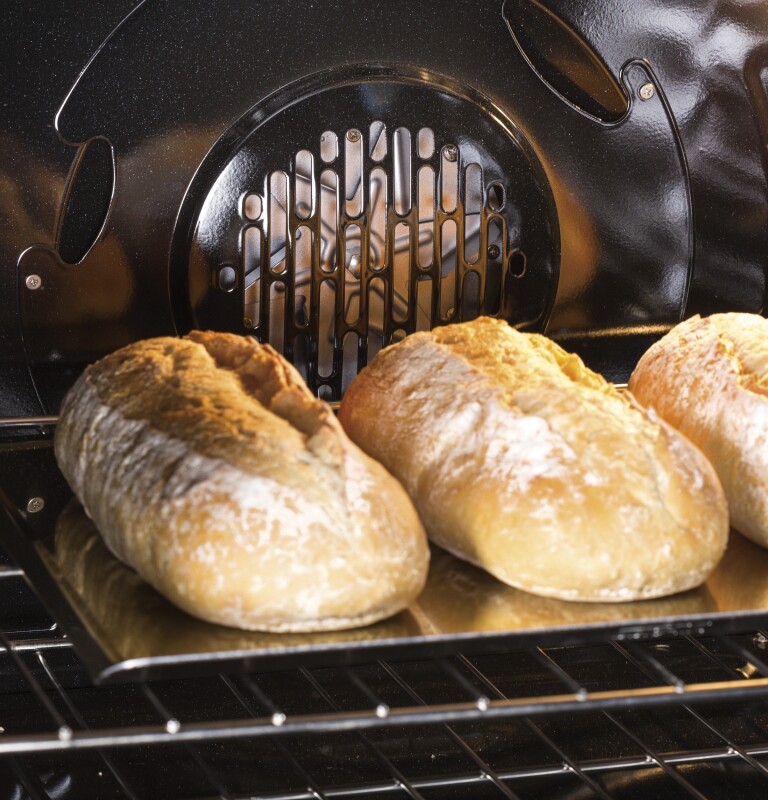

Gas convection oven
Circulates heat for high-quality results

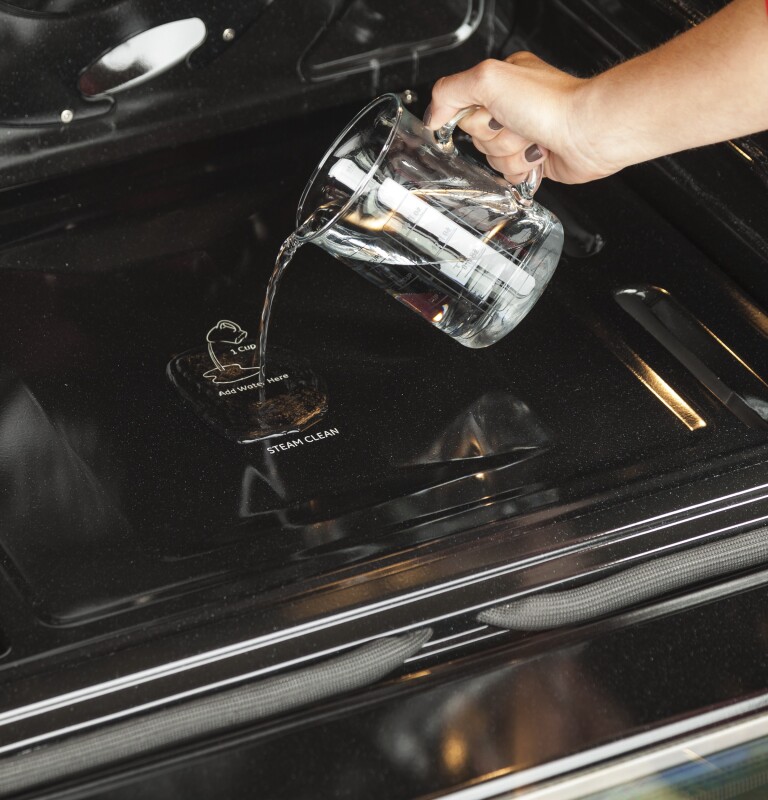

Self-clean with Steam Clean option
Clean your oven the way you want

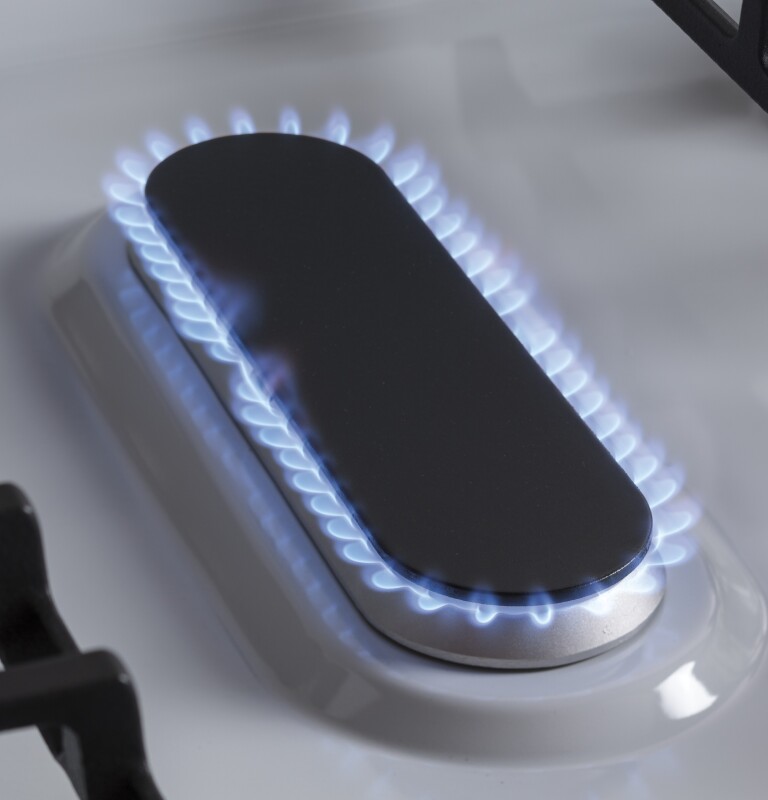

Center oval burner
Large oval fifth burner is ideal for griddle cooking

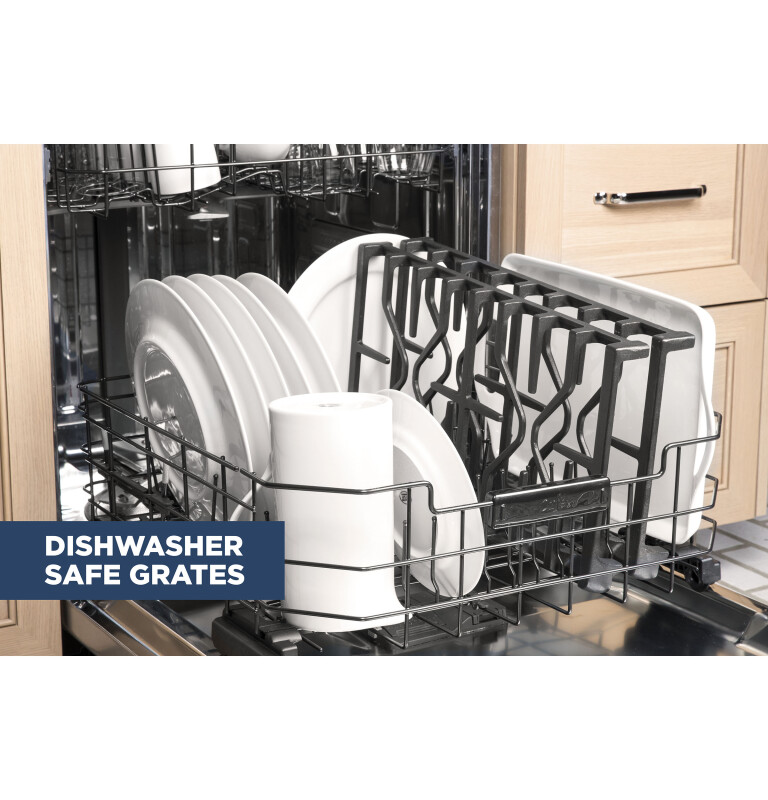

Heavy duty, dishwasher safe grates
Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven

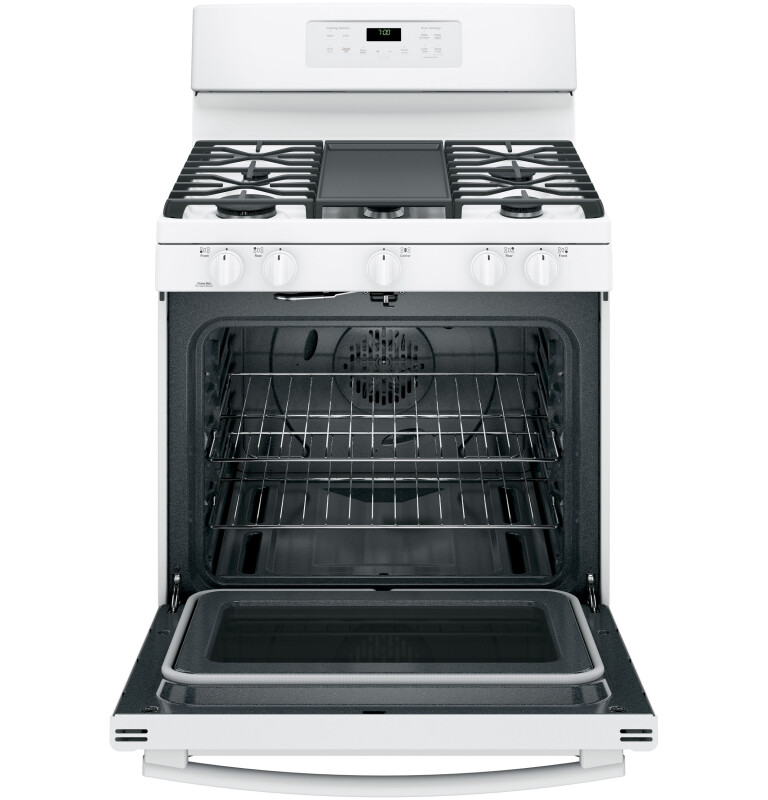

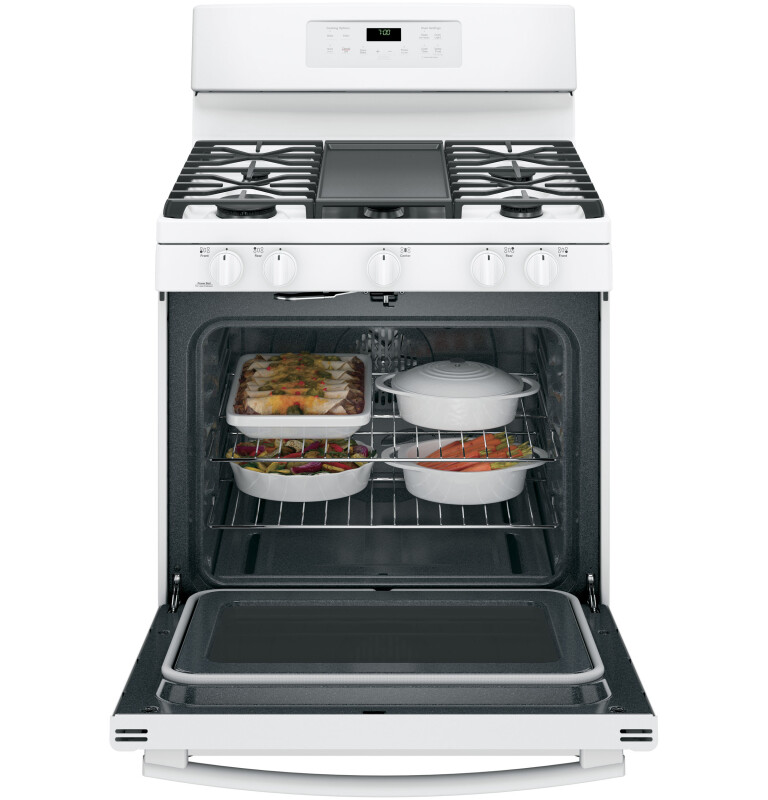

5.0 cu. ft. oven capacity
Cook more dishes at once
Certifications
California Prop 65
Specifications

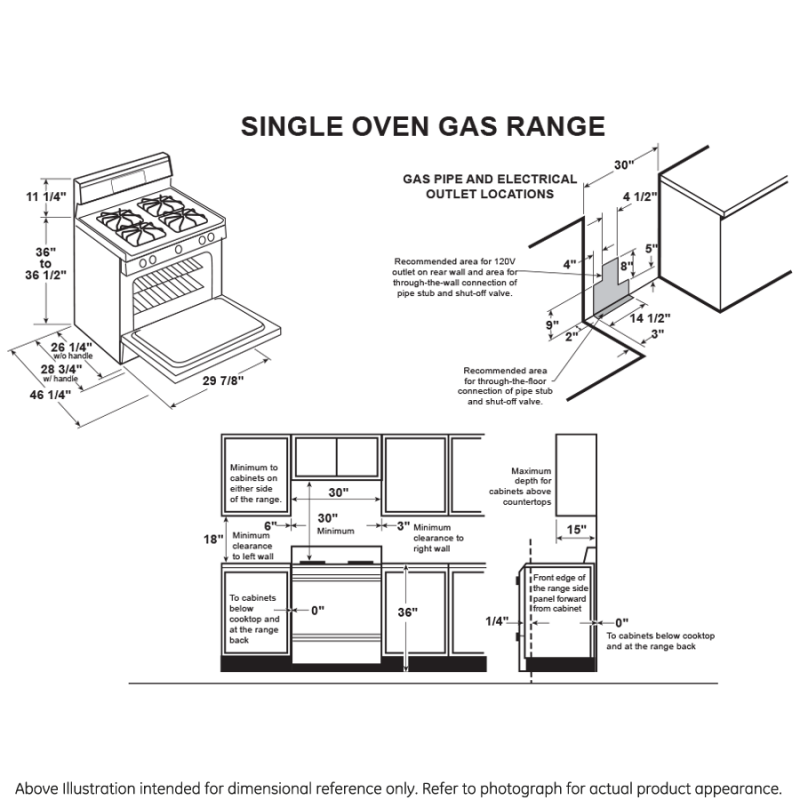

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 47.25 in |
| Overall Depth | 28.75 in |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 28.75 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.58 ft³ |
| Dimensional Weight | 293.19 lbs. |
| Total of Cubes | 23.58 ft³ |
| Total of Dimensional Weight | 293.19 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle Design | Designer Style |
| Handle Color | Color-Matched |
| Control Knobs | Color-Matched |
| Color Appearance | White |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |
| Oven Rack Features | 2 Oven Racks |

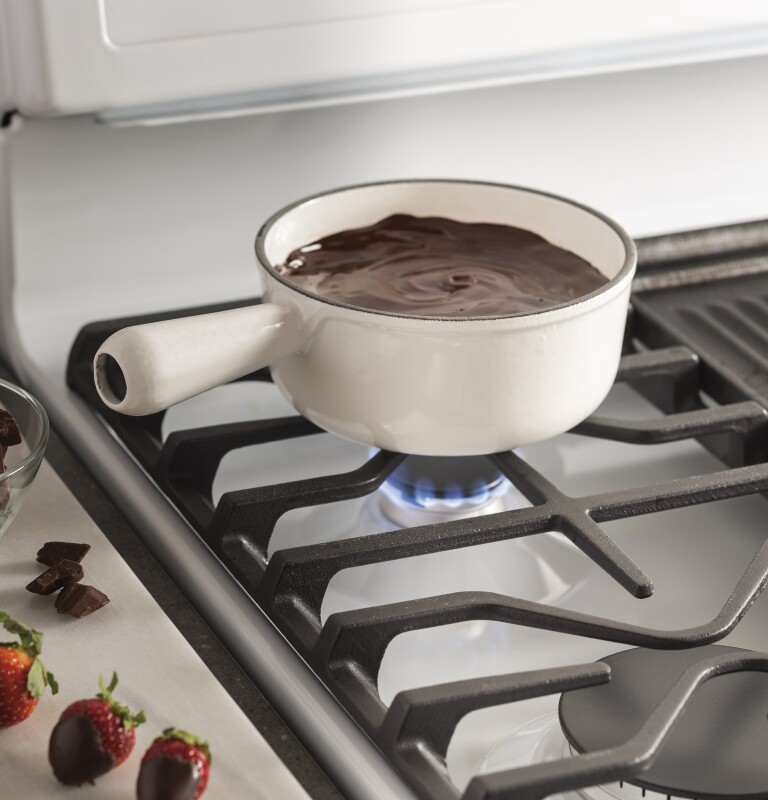

| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Griddle | Integrated Non-Stick (Included) |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 10,000 BTU Oval |
| Interior Oven Light | 1 Auto Incandescent |
| Control Type | Electronic Touch |
| Burner - Left Front | 18,000 BTU Power Boil |
| Drawer Type | Storage |
| Cooking Technology | Convection |
| Configuration | Range with Storage Drawer |
| Oven Cooking Modes | Convection Bake |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Cooktop Surface | Edge-to-Edge |
| Oven Control Features | Auto Self Clean |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (1) 12.0; (1) 8.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
FILTER
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Convection |
| App Filter - Convection | Yes |
| App Filter - Edge-to-Edge Cooktop | Yes |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Steam and Self-Clean |
| App Filter - Cooktop Type | Continuous Grates with Griddle |
ACCESSORIES
| Optional Accessories | WB48X21543 Roller Rack |
| Center Grate | Optional - JXGRATE1 |
| Griddle Accessory | Integrated Non-Stick (Included) |
| LP Conversion Kit | Included |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
