30" Free-Standing Gas Convection Range - JGB697DEHWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

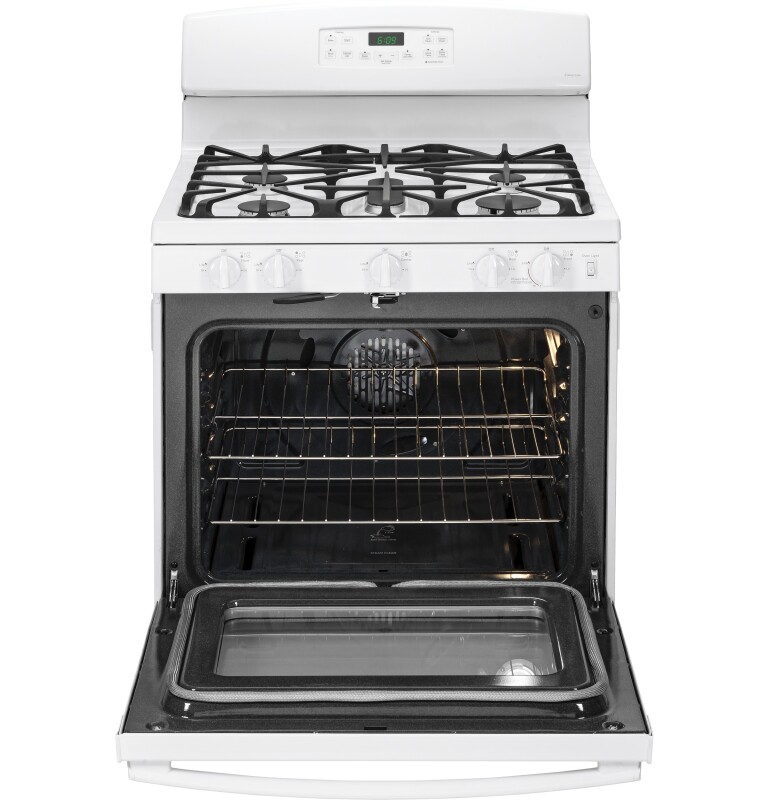

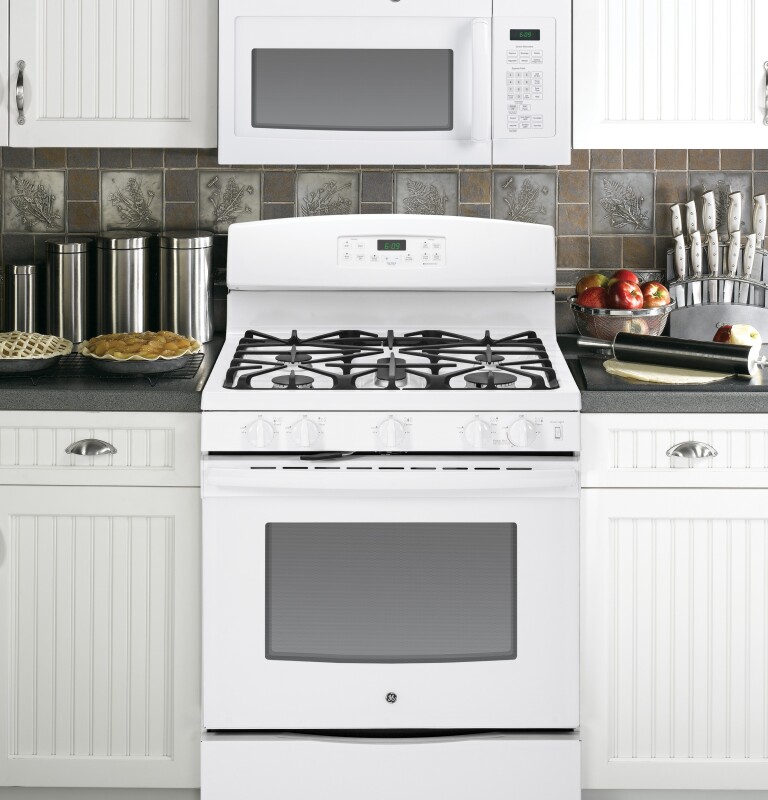

30" Free-Standing Gas Convection Range

Model: JGB697DEHWW

30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW30" Free-Standing Gas Convection Range JGB697DEHWW
30" Free-Standing Gas Convection Range JGB697DEHWW
30" Free-Standing Gas Convection Range JGB697DEHWW
30" Free-Standing Gas Convection Range JGB697DEHWW
30" Free-Standing Gas Convection Range JGB697DEHWW
30" Free-Standing Gas Convection Range JGB697DEHWW
+9more

Product Video

GE 30" Free-Standing Gas Convection Range White JGB697DEHWW Picture
3 Videos

Color : White

30" Free-Standing Gas Convection Range JGB697DEHWW
White

Type : Gas

GasElectric

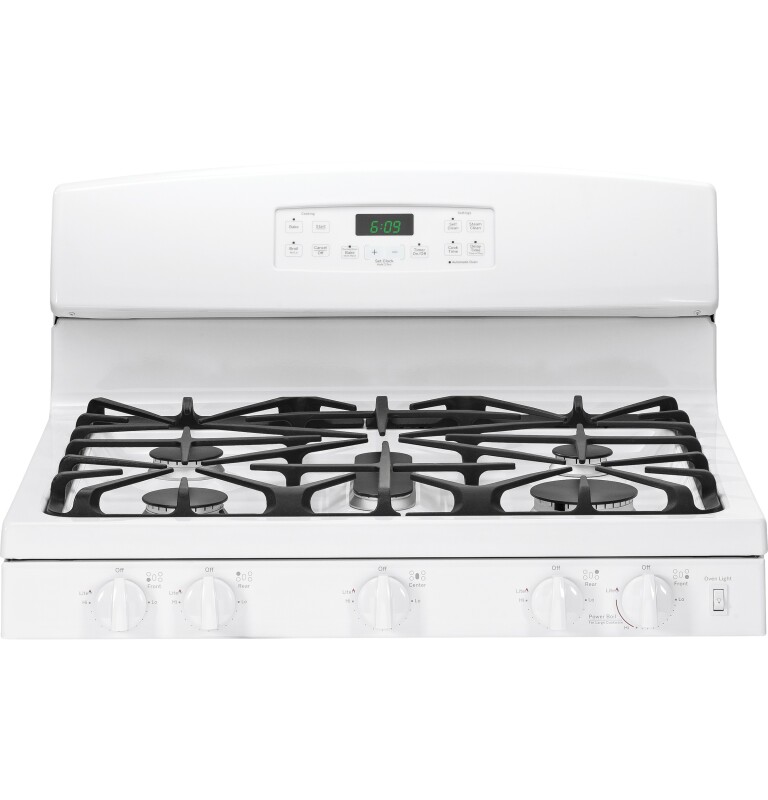

Key Features

  • 17,000 BTU Power Boil burner

  • Center oval burner

  • Precise Simmer burner

  • Non-stick griddle

  • Self-clean with Steam Clean option

  • Gas convection oven

  • Heavy-cast, continuous grates

  • 5.0 cu. ft. oven capacity

Read More

Description

Large oval fifth burner is ideal for griddle or odd-size cookware.Delicate foods don’t burn with low, even heat.47 1/4 H x 30 W x 28 3/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

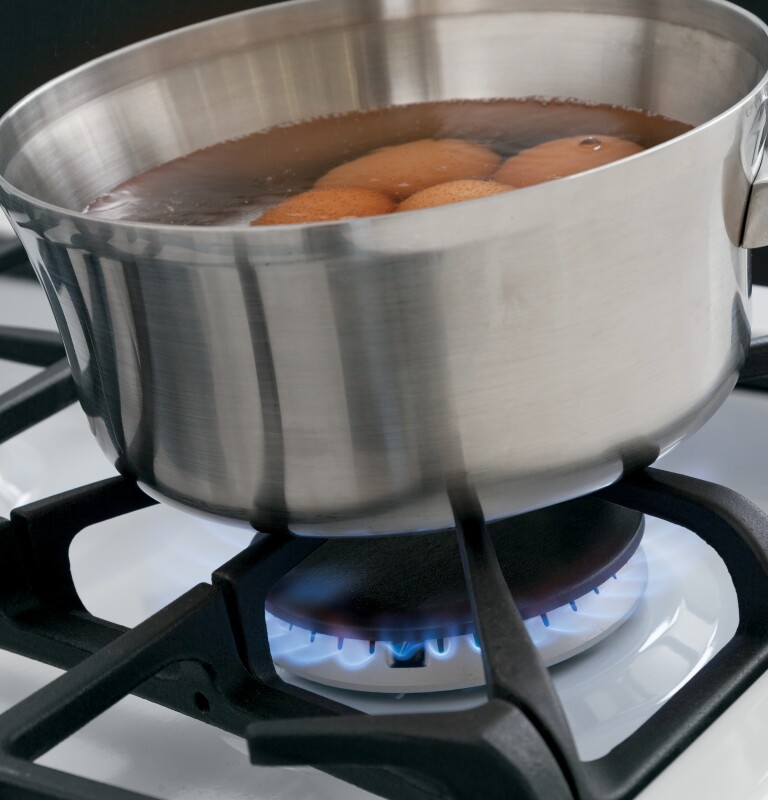

17,000 BTU Power Boil burner

Delivers intense heat for fast boiling

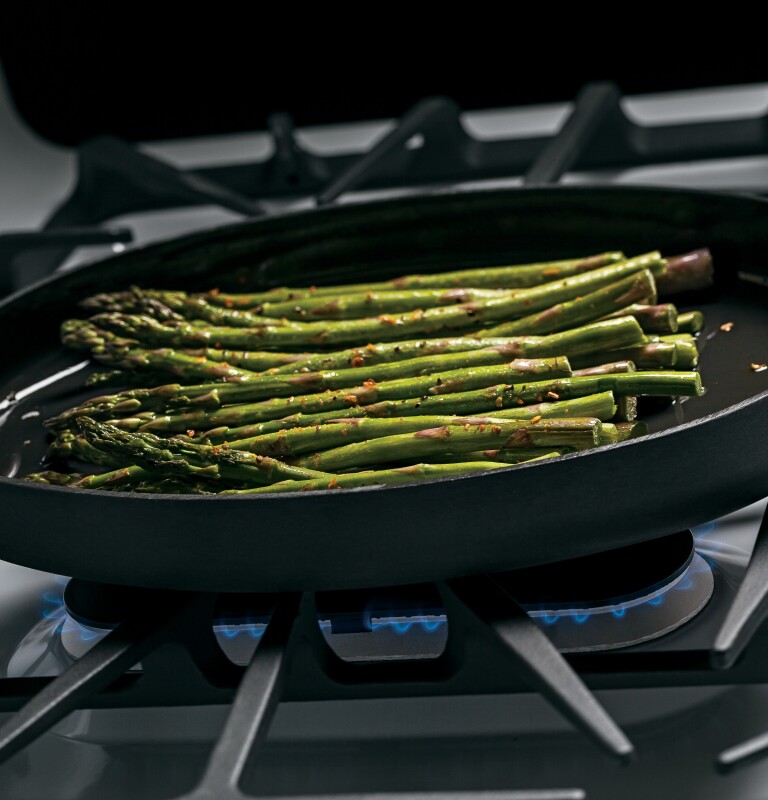

Center oval burner

Large oval fifth burner is ideal for griddle or odd-size cookware

Precise Simmer burner

Delicate foods don’t burn with low, even heat

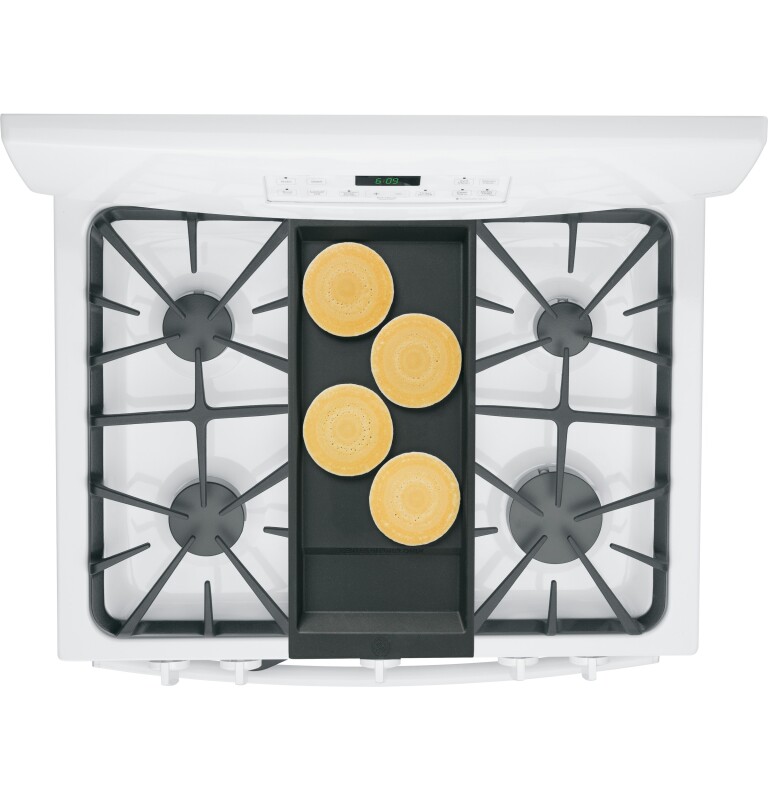

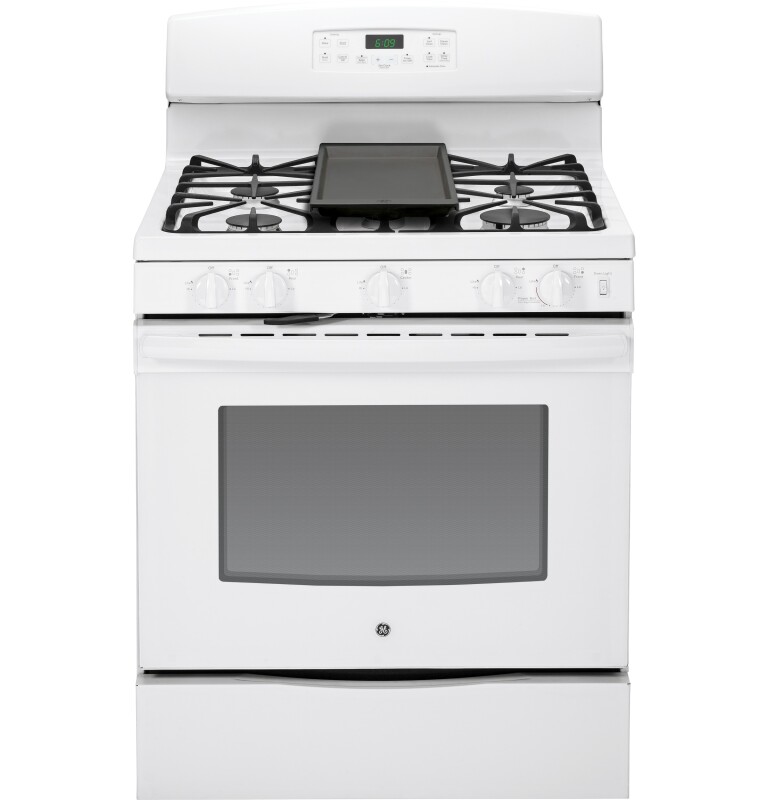

Non-stick griddle

Large non-stick surface perfect for griddle cooking

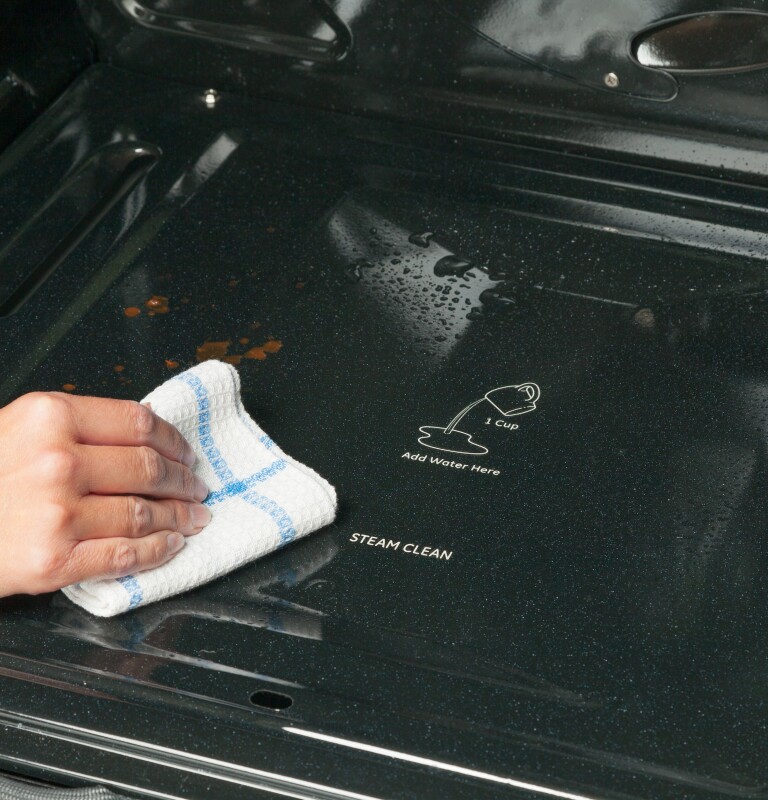

Self-clean with Steam Clean option

Clean your oven the way you want

Gas convection oven

Circulates heat for high-quality results

Heavy-cast, continuous grates

Allow for easy movement of pans between burners

5.0 cu. ft. oven capacity

Cook more dishes at once

Black gloss oven interior

Enjoy a clean and sleek appearance

Certifications

California Prop 65 certification

California Prop 65

Specifications

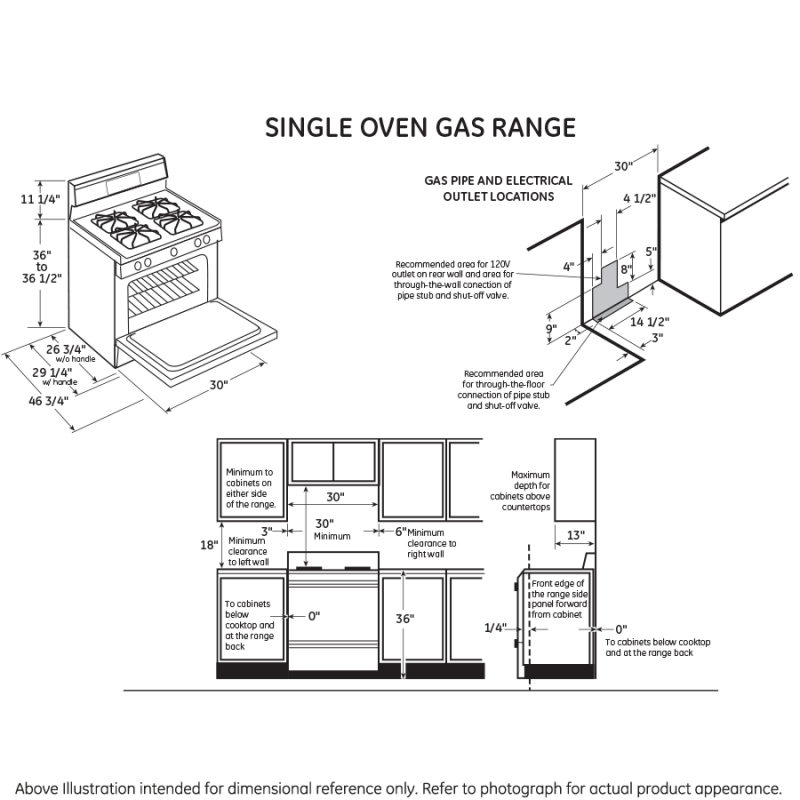

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth28.75 in
Overall Height47.25 in
Net Weight190 lb
Depth Without Handle26.25 in
Height to Cooking Surface (in.)36 - 36 1/2
Cabinet Width30 in
Approximate Shipping Weight210 lb
Depth with Door Open46.25 in
Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19

Dimensions & Weight

Width30 in.
Height47.25 in.
Length28.75 in.
Weight190 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52.25 in.
Shipping Length33.75 in.
Shipping Weight230 lbs.
Total of Shipping Weight230 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.58 ft³
Dimensional Weight293.19 lbs.
Total of Cubes23.58 ft³
Total of Dimensional Weight293.19 lbs.

APPEARANCE

Cooktop Burner Grate ColorMatte Black
HandleDesigner Style
Oven Door FeaturesBig View Oven Window
Control KnobsColor-Matched
Color AppearanceWhite

FEATURES

Ignition SystemElectronic
Burner - Right Rear5,000 BTU Precise Simmer
Oven Rack Features2 Oven Racks
Burner - Left Rear9,500 BTU
Oven Cleaning TypeSelf-Clean with Steam Clean Option
GriddleNon-Stick
Product TypeFree-Standing Single Oven
Cooktop TypeContinuous Grates with Griddle
Cooktop Burner Grate MaterialHeavy Cast Iron
Fuel TypeNatural Gas
Burner - Center8,000 BTU Oval
Interior Oven Light1 Auto Incandescent
Cooktop Burner Grate FeaturesContinuous Grates
Control TypeElectronic Touch
Burner - Left Front11,000 BTU

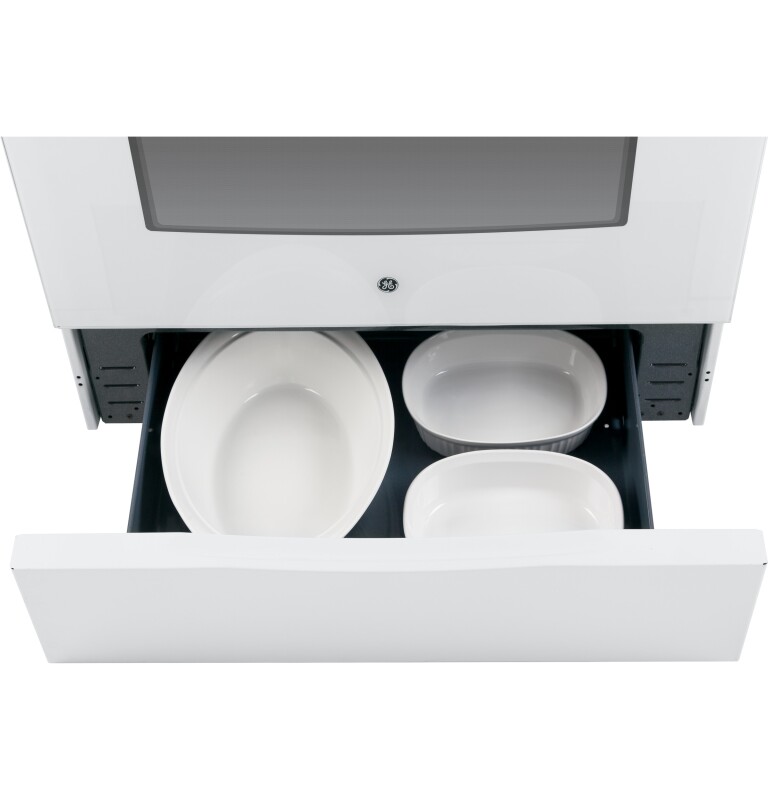

Drawer TypeStorage
Cooking TechnologyConvection
ConfigurationRange with Storage Drawer
Oven Cooking ModesConvection Bake
Cooktop Burner TypeSealed
Burner - Right Front17,000 BTU Power Boil
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAuto Self Clean

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 11.0; (1) 9.5; (1) 5.0; (1) 6.0
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0; (1) 10.0; (1) 9.5; (1) 5.0; (1) 6.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

FILTER

App Filter - Cabinet WidthCooking 30 in. (Standard)
App Filter - Control TypeElectronic touchpad
App Filter - Product TypeRanges Free-Standing Single Oven
App Filter - Fuel TypeGas
App Filter - Cooking TechnologyConvection
App Filter - ConvectionYes
App Filter - Drawer TypeStorage
App Filter - Cleaning TypeSteam and Self-Clean
App Filter - Cooktop TypeContinuous Grates with Griddle

CAPACITY

Total Capacity (cubic feet)5 cu ft

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

ACCESSORIES

LP Conversion KitIncluded
