30" Free-Standing Gas Convection Range - JGB690EEFES
30" Free-Standing Gas Convection Range
Model: JGB690EEFES
Product Video
30" Free-Standing Gas Convection Range
Model: JGB690EEFES
Color : Slate
Key Features
17,000 BTU Power Boil burner
Self-clean with Steam Clean option
Gas convection oven
Heavy-cast, continuous grates
5.0 cu. ft. oven capacity
Black gloss oven interior

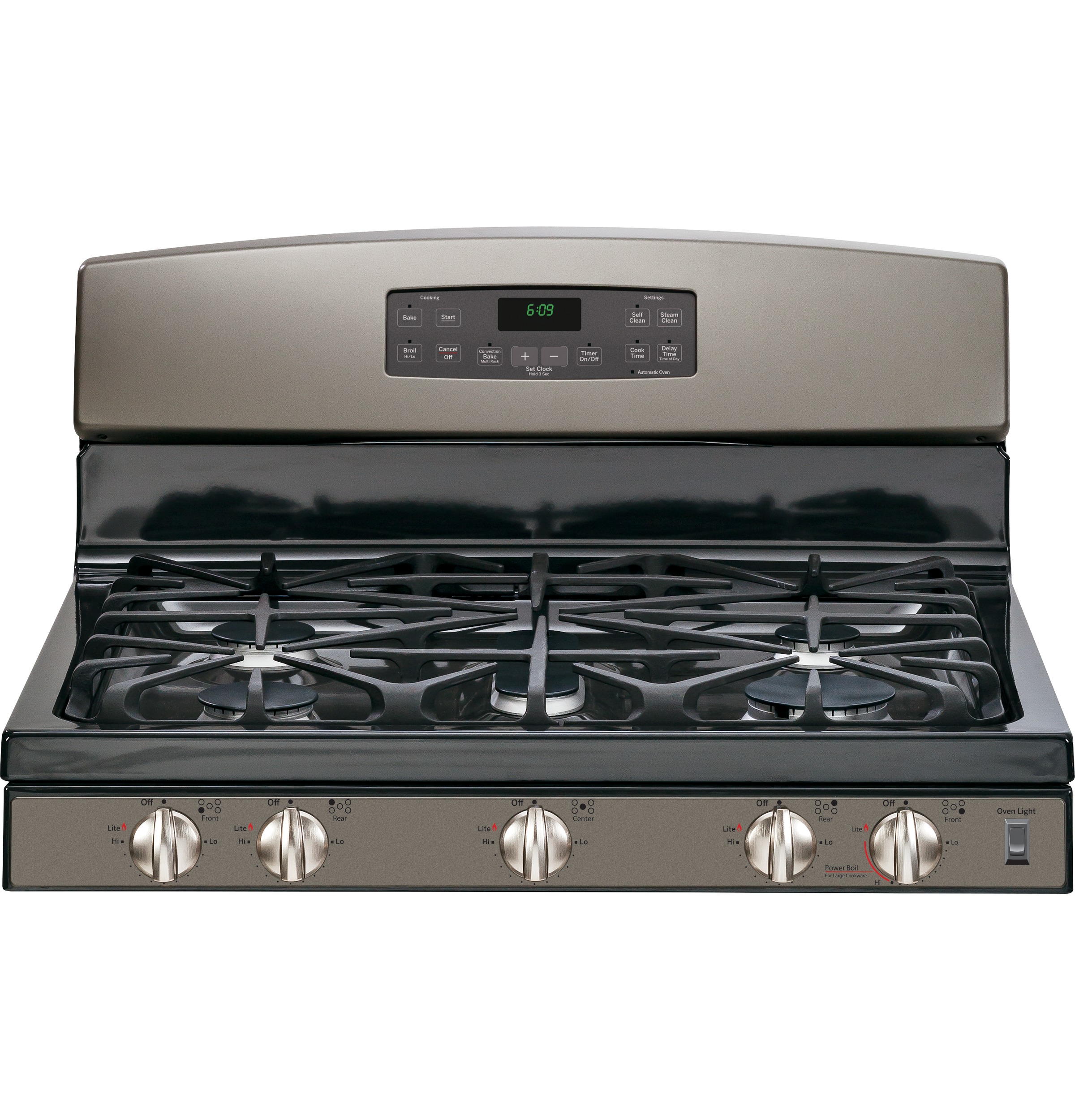

Center oval burner
Precise Simmer burner
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
17,000 BTU Power Boil burner
Delivers intense heat for fast boiling
Self-clean with Steam Clean option
Clean your oven the way you want

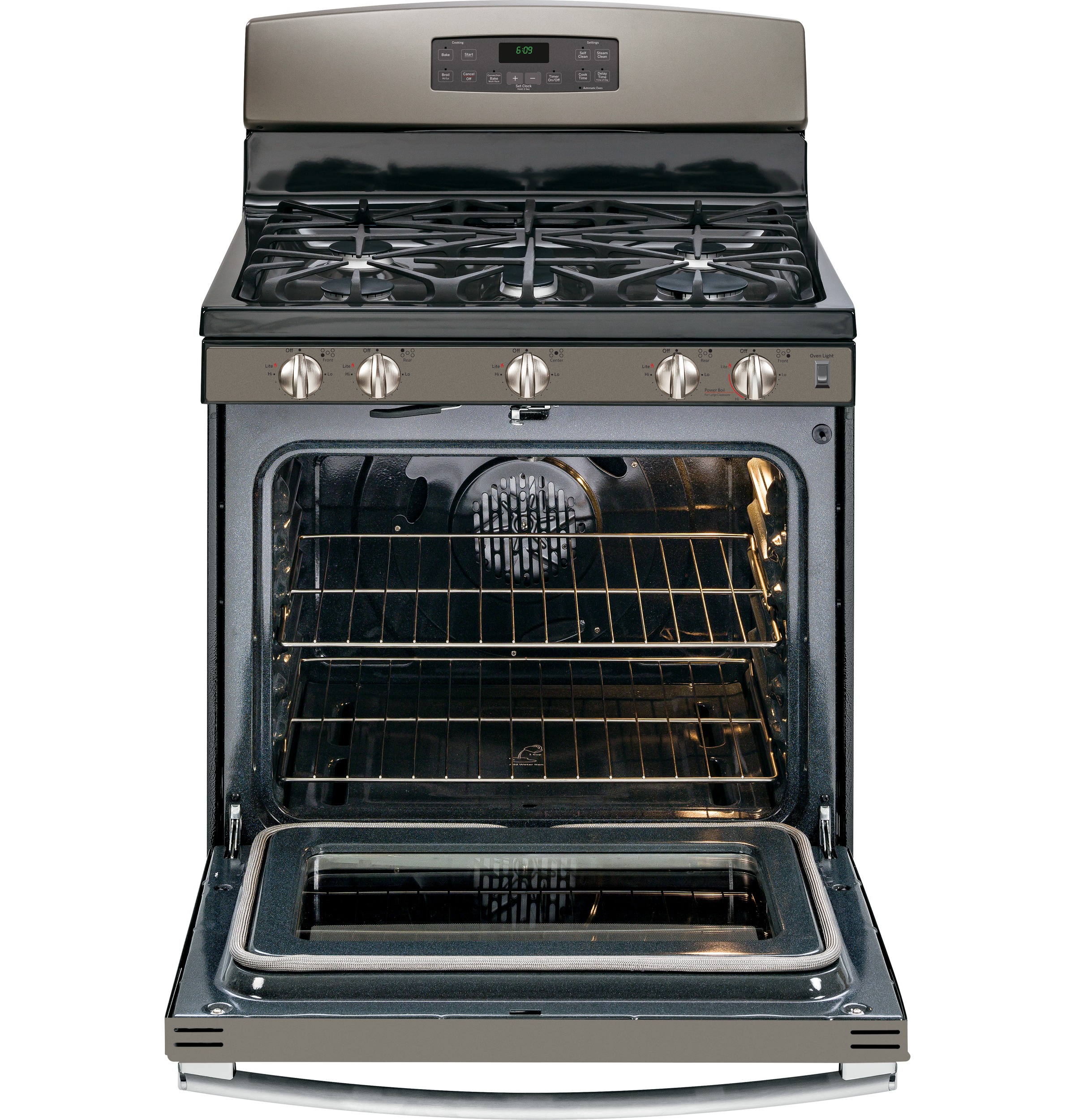

Gas convection oven
Circulates heat for high-quality results

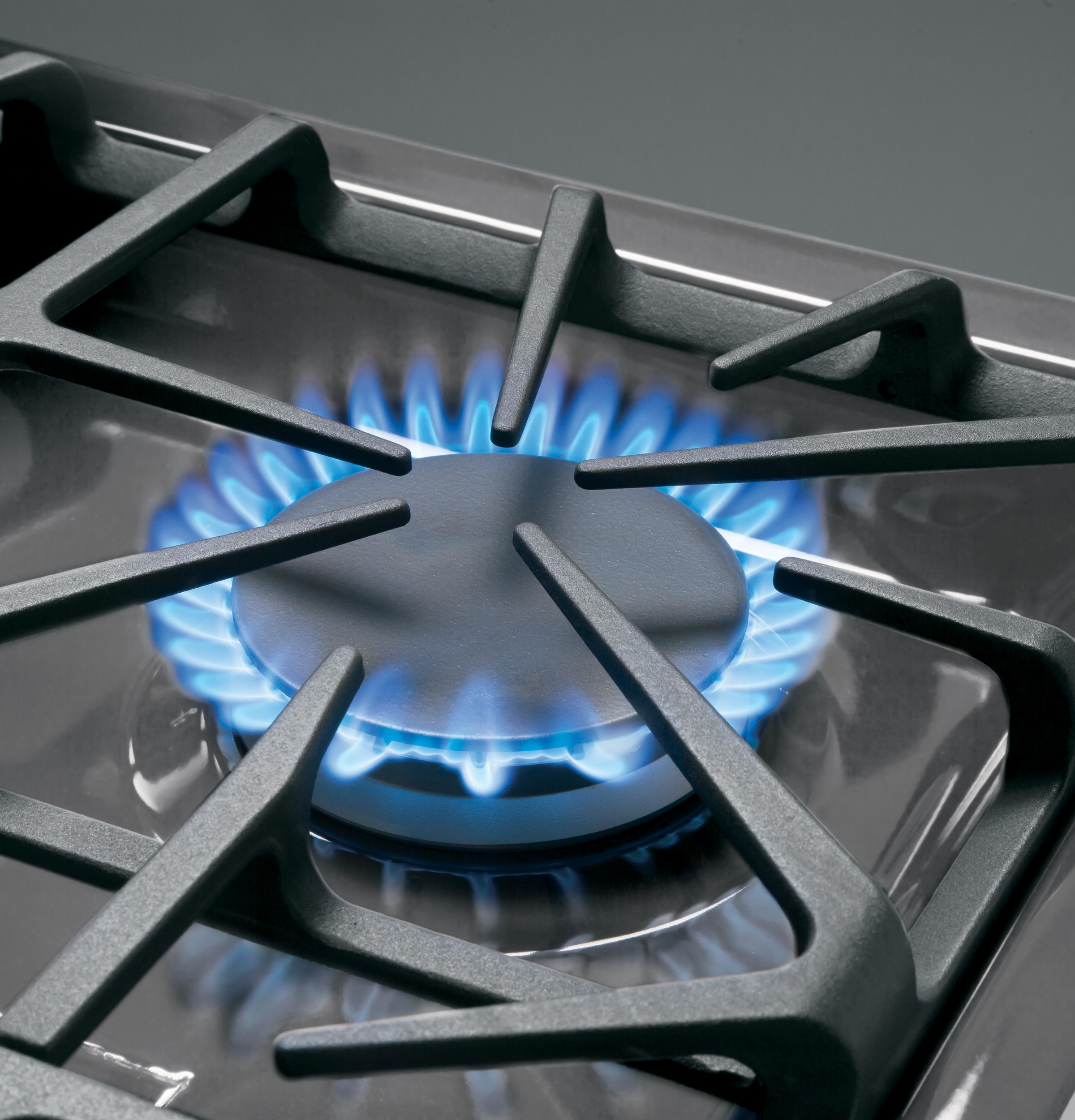

Heavy-cast, continuous grates
Allow for easy movement of pans between burners

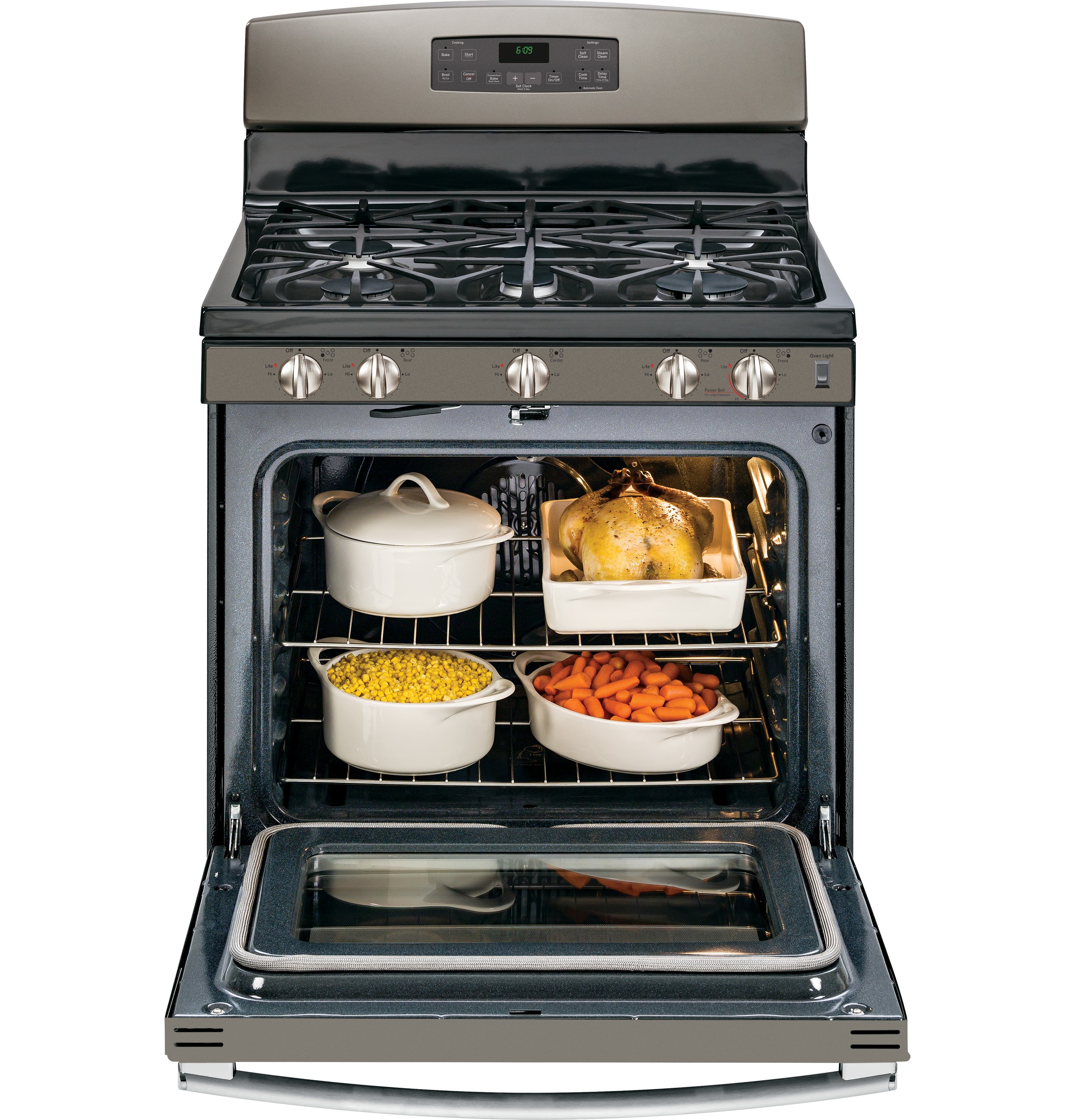

5.0 cu. ft. oven capacity
Cook more dishes at once
Black gloss oven interior
Enjoy a clean and sleek appearance
Center oval burner
Large oval fifth burner is ideal for griddle or odd-size cookware
Precise Simmer burner
Delicate foods don’t burn with low, even heat
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

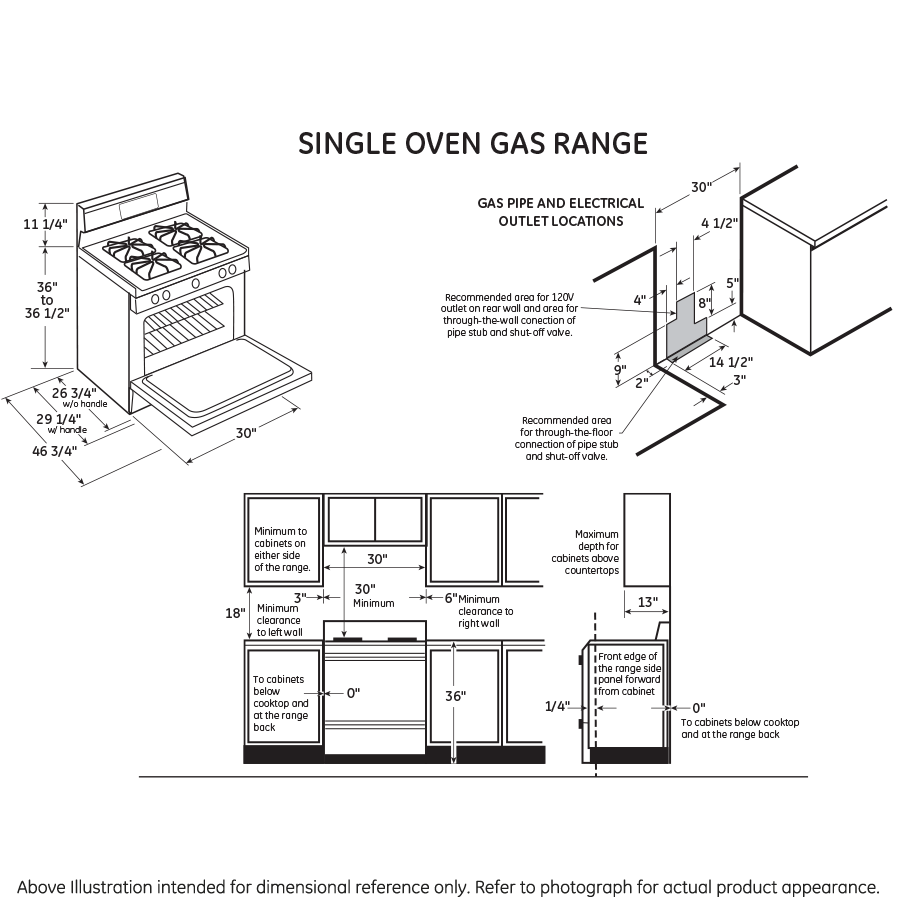

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 190 lb |
| Depth Without Handle | 26.75 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Depth with Door Open | 46.75 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Overall Depth | 29 1/4 in |
| Overall Height | 47 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle | Stainless Steel |
| Control Knobs | Stainless Steel Appearance |
| Color Appearance | Fingerprint Resistant Slate |
| Handle | Designer Style |
FEATURES
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Interior Oven Light | 1 Auto Incandescent |
| Fuel Type | Natural Gas |
| Oven Cooking Modes | Convection Bake |
| Oven Control Features | Delay Bake Option |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Product Type | Free-Standing Single Oven |

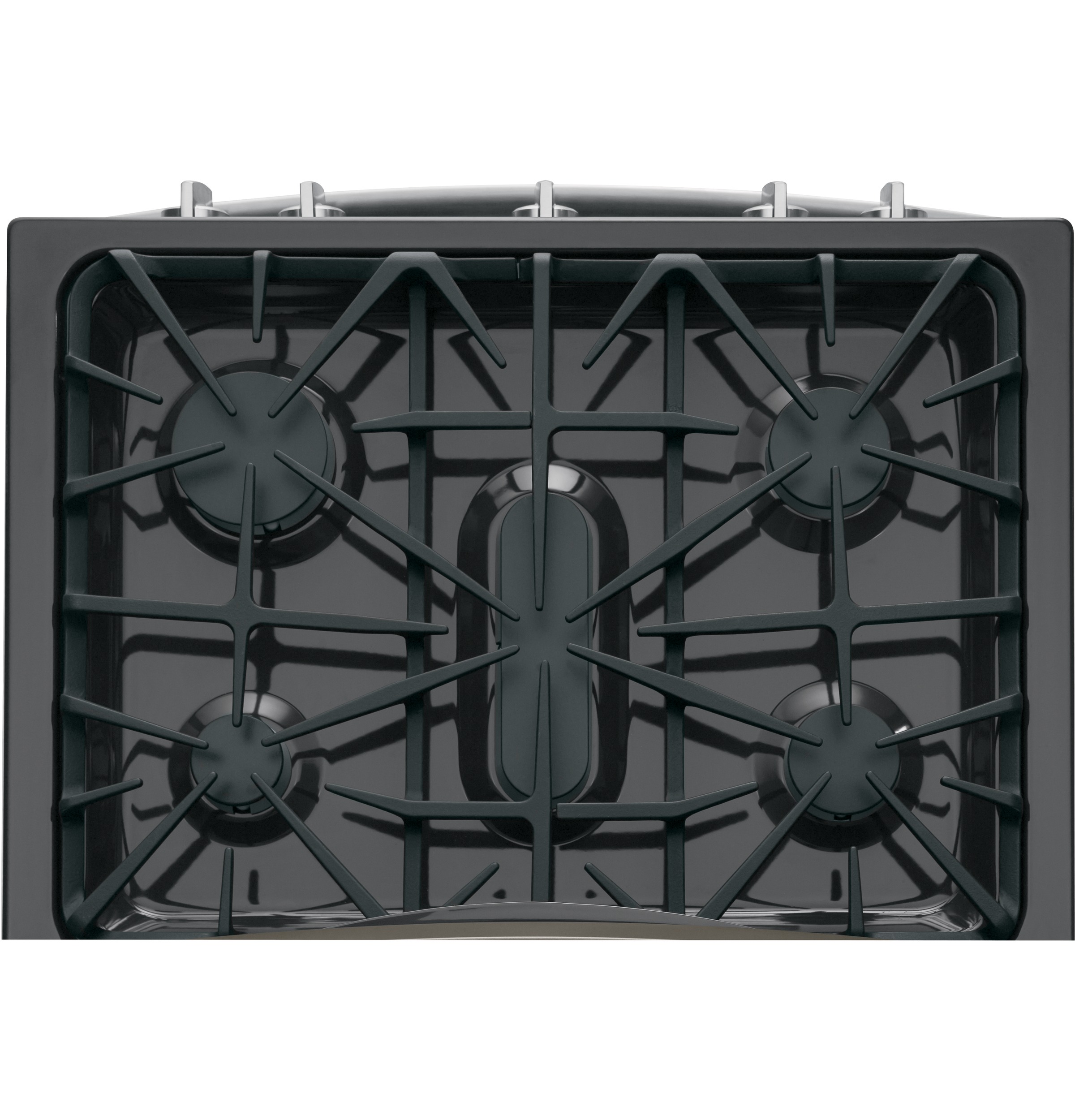

| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Cooktop Burner Grate Features | Continuous Grates |
| Burner - Center | 8,000 BTU Oval |
| Burner - Right Front | 17,000 BTU Power Boil |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 11,000 BTU |
| Drawer Type | Storage |
| Control Type | Electronic Touch |
| Cooking Technology | Convection |
| Oven Control Features | Sabbath Mode |
| Cooktop Surface | Deep Recessed |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Black |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Audible Preheat Signal |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0; (1) 9.5; (1) 5.0; (1) 6.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 10.0; (1) 9.5; (1) 15.0; (1) 5.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 29.25 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 34.25 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.99 ft³ |
| Dimensional Weight | 298.29 lbs. |
| Total of Cubes | 23.99 ft³ |
| Total of Dimensional Weight | 298.29 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
