30" Free-Standing Gas Range - JGB600DETBB
30" Free-Standing Gas Range
Model: JGB600DETBB
Product Video
30" Free-Standing Gas Range
Model: JGB600DETBB
Color : Black
Key Features
Gas convection oven
Self-clean oven
Self-clean, heavy-duty oven racks
5.0 cu. ft. oven capacity
17,000 BTU Power Boil burner
Precise Simmer burner
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Gas convection oven
Circulates heat for high-quality results
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Self-clean, heavy-duty oven racks
Double-coated racks can stay in the oven during the self-clean cycle
5.0 cu. ft. oven capacity
Enough room to cook an entire meal at once
17,000 BTU Power Boil burner
Delivers intense heat for fast boiling
Precise Simmer burner
Delivers a low setting of 140 degrees
Certifications
California Prop 65
Specifications
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |

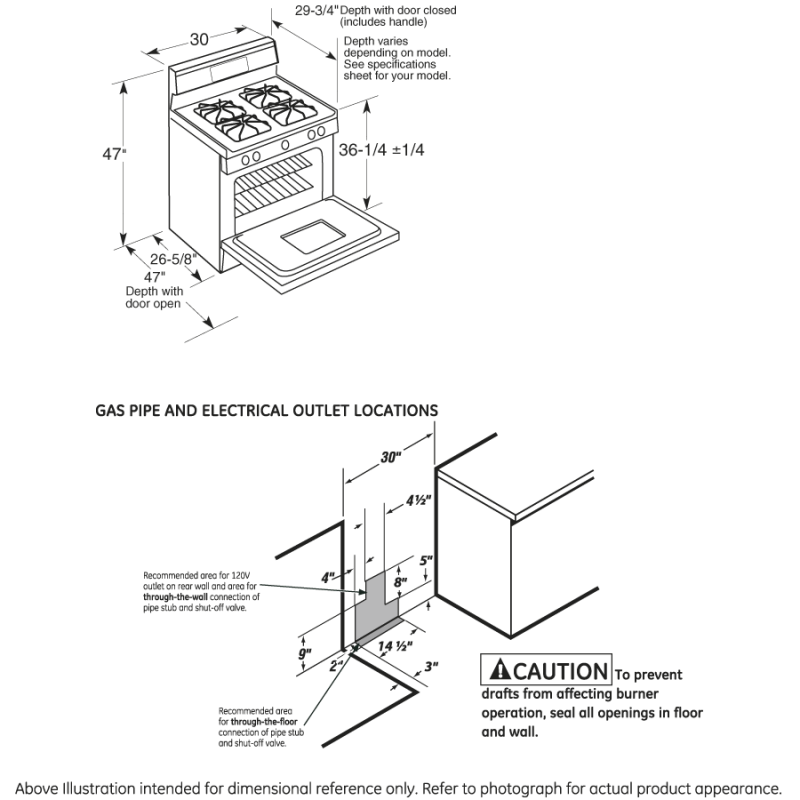

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Depth | 26.625 in |
| Overall Height | 47 in |
| Net Weight | 200 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 220 lb |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47 in. |
| Length | 26.63 in. |
| Weight | 200 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52 in. |
| Shipping Length | 31.63 in. |
| Shipping Weight | 240 lbs. |
| Total of Shipping Weight | 240 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.73 ft³ |
| Dimensional Weight | 270.08 lbs. |
| Total of Cubes | 21.73 ft³ |
| Total of Dimensional Weight | 270.08 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Fuel Type | Natural Gas |
| Oven Interior | Interior Oven Light |
| Oven Cooking Modes | Convection Bake |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Power Boil Burner | (1) 17,000 BTU |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 11,000 BTU |
| All-Purpose Burners | (1) 9,100 BTU |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Continuous Grates |
| Backguard | Scratch-Resistant |
| Center Oval Burner | (1) 6,000 BTU |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | Electronic Oven Controls |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Cooking Technology | Convection |
| Cooktop Surface | Deep Recessed |
| Oven Control Features | Auto Oven Shut-Off |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big Hearth Oven Window |
| Frameless Oven Door(s) | Black Glass |
| Control Knobs | Large |
| Handle Design | D-shaped |
| Handle Color | Color-Matched |
| Color Appearance | Black on Black |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.1; (1) 6.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
