30" Free-Standing Gas Range - JGB300DEPBB
30" Free-Standing Gas Range
Model: JGB300DEPBB










30" Free-Standing Gas Range
Model: JGB300DEPBB
Key Features
Self-clean oven
Super-large 5.0 oven capacity
Heavy-cast, continuous grates
Deep-recessed cooktop
Power Boil 15,000 BTU burner
Precise Simmer burner
TrueTemp oven system
Sealed cooktop burners
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
Super-large 5.0 oven capacity
Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

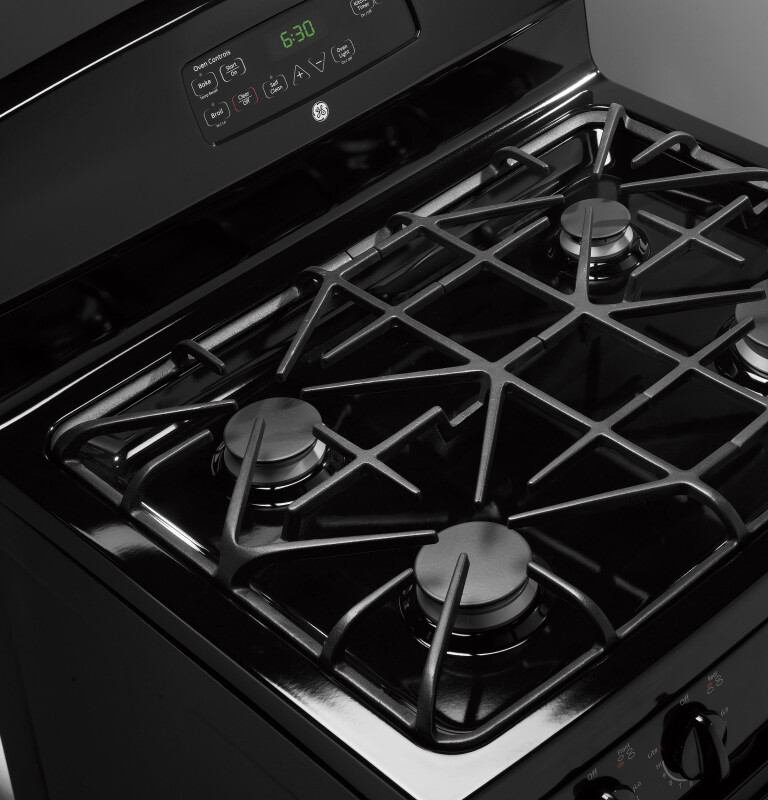

Heavy-cast, continuous grates
Matte-finish, connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily
Deep-recessed cooktop
Deep recessed cooktop keeps spills, and everything else, contained in one area that’s easy to wipe clean
Power Boil 15,000 BTU burner
This powerful element turns up the heat for boiling, sautéing and stir frying
Precise Simmer burner
Allows for low, even heat distribution that is ideal for delicate foods and sauces
TrueTemp oven system
This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

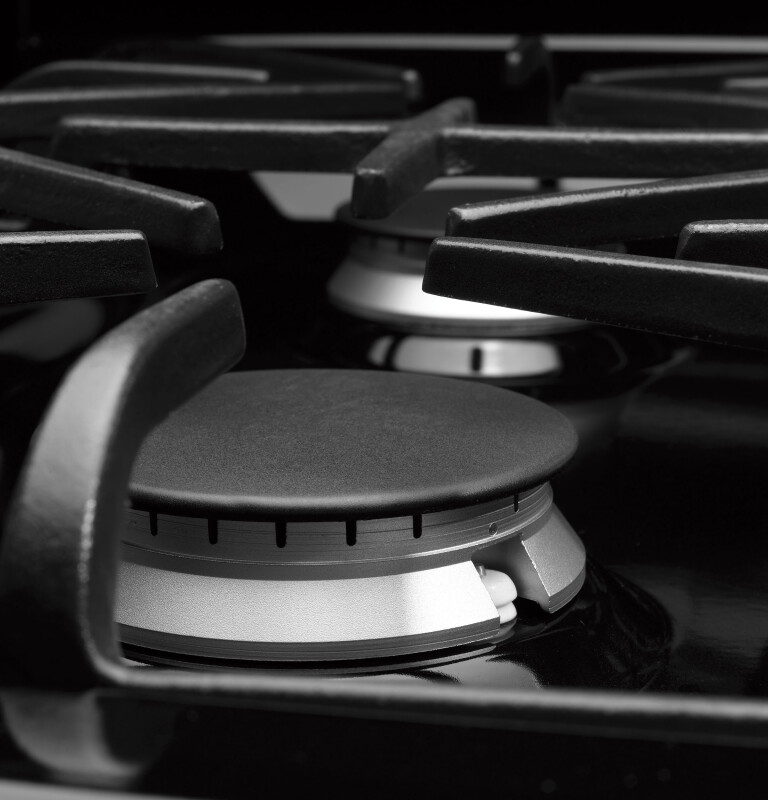

Sealed cooktop burners
Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless
Big hearth window
Elegant shaped window makes it easy to monitor the progress of food
QuickSet V oven controls
Features an easy to use design that allows you to set precise cooking temperatures
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

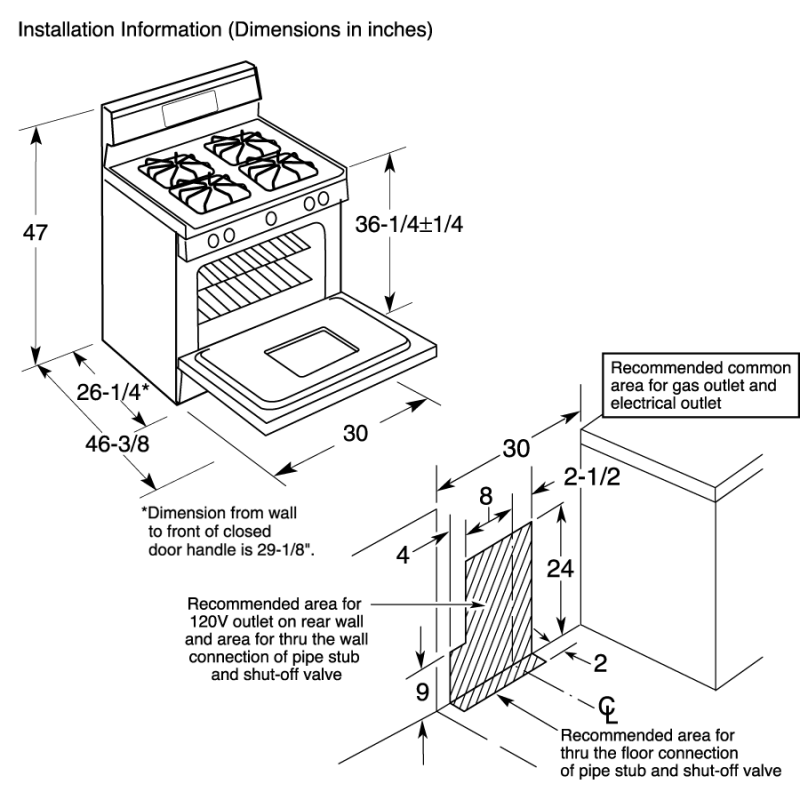

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 47 in |
| Net Weight | 193 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 213 lb |
| Overall Depth | 26 5/8 in |
| Height to Cooking Surface (in.) | 36 +/- .25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47 in. |
| Length | 26.63 in. |
| Weight | 193 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52 in. |
| Shipping Length | 31.63 in. |
| Shipping Weight | 233 lbs. |
| Total of Shipping Weight | 233 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.73 ft³ |
| Dimensional Weight | 270.08 lbs. |
| Total of Cubes | 21.73 ft³ |
| Total of Dimensional Weight | 270.08 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Power Boil Burner | (1) 15,000 BTU |
| Clock and Minute Timer | Electronic |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| All-Purpose Burners | (1) 9,100 BTU/850 BTU |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Backguard | Scratch-Resistant |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Cooking Technology | Traditional |
| Control Type | Electronic Oven Controls |
| Cooktop Surface | Deep Recessed |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Cooktop Surface | Porcelain-Enamel |
| Control Type | SmartLogic™ Controls |
| Control Type | Digital Temperature Display |
| Control Type | QuickSet III |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Surface | Color-Matched |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Oven Cycle Light |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | In-Oven Broiling |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big Hearth Oven Window |
| Handle | Color-Matched Sculptured |
| Frameless Oven Door(s) | Black Glass |
| Control Knobs | Designer-Style |
| Color Appearance | Black |
CAPACITY
| Unit Capacity | Super Large Oven |
| Capacity (Cu. Ft.) | 5.0 |
| Total Capacity (cubic feet) | 5.00 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 11.0 (1) 9.1; (1) 5.0 |
| Electrical Requirements | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.1; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
