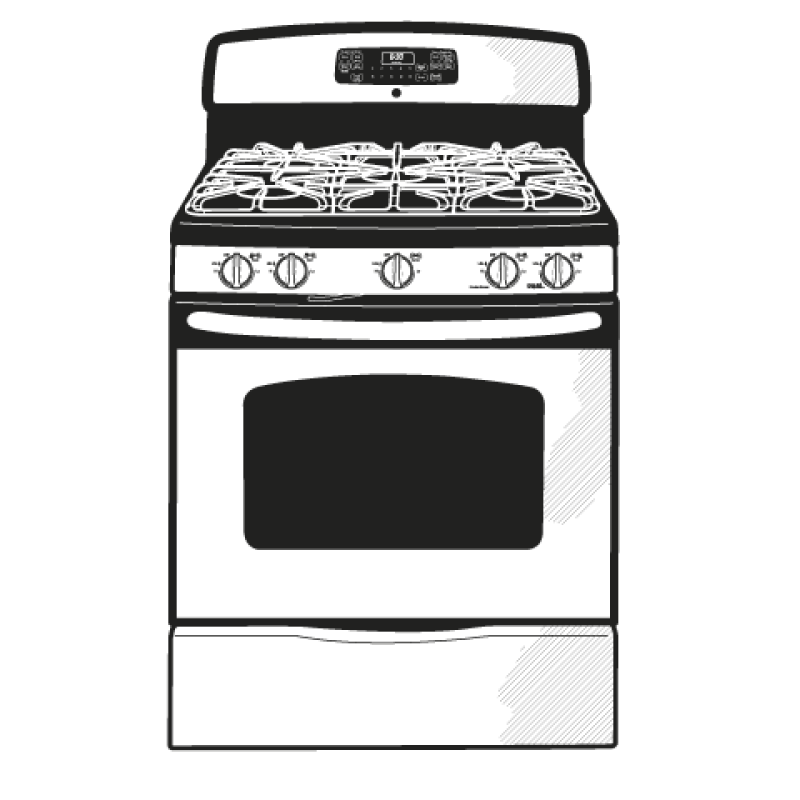

30" Free-Standing Gas Convection Range - JGB296SETSS
30" Free-Standing Gas Convection Range
Model: JGB296SETSS
Product Video
30" Free-Standing Gas Convection Range
Model: JGB296SETSS
Color : Stainless Steel
Key Features
Self-clean oven
5.0 cu. ft. oven capacity
Gas convection oven
16,500 BTU Power Boil burner
Center round burner
Precise Simmer burner
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Cleans the oven cavity without the need for scrubbing
5.0 cu. ft. oven capacity
Enough room to cook an entire meal at once
Gas convection oven
Circulates heat for high-quality results
16,500 BTU Power Boil burner
Delivers intense heat for rapid boiling
Center round burner
Fifth burner provides more cooking flexibility
Precise Simmer burner
Delivers a low setting of 140 degrees
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

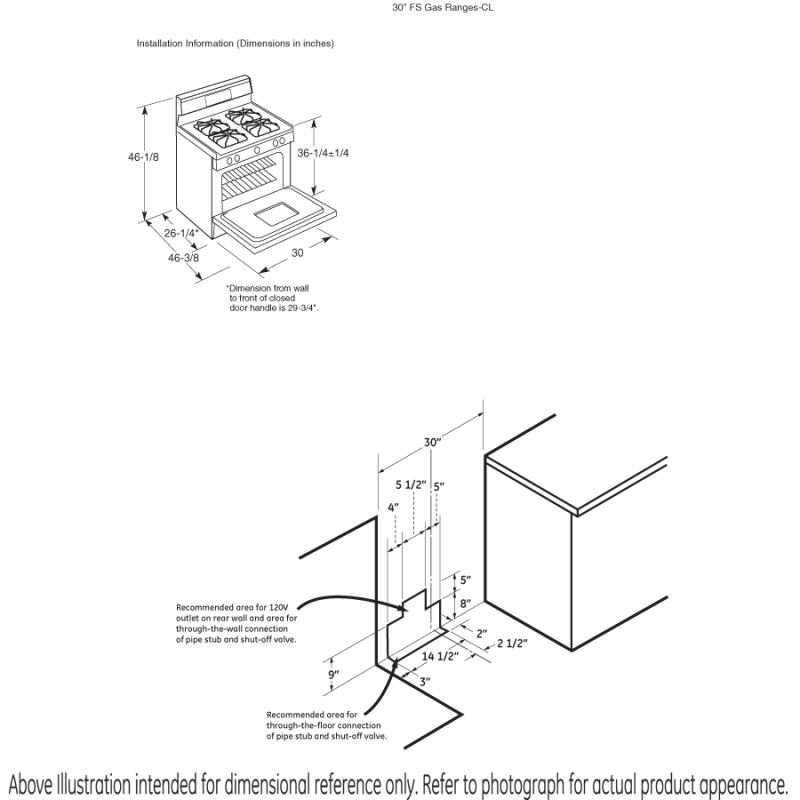

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Depth | 26.625 in |
| Overall Height | 46.125 in |
| Net Weight | 190 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.13 in. |
| Length | 26.63 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.13 in. |
| Shipping Length | 31.63 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.32 ft³ |
| Dimensional Weight | 265.05 lbs. |
| Total of Cubes | 21.32 ft³ |
| Total of Dimensional Weight | 265.05 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Oven Interior | Interior Oven Light |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Power Boil Burner | (1) 16,500 BTU |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 11,000 BTU |
| All-Purpose Burners | (1) 9,500 BTU |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Continuous Grates |
| Backguard | Stainless Steel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | Electronic Oven Controls |
| Center Round Burner | (1) 5,000 BTU |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Cooking Technology | Convection |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Auto Oven Shut-Off |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big Hearth Oven Window |
| Frameless Oven Door(s) | Stainless Steel |
| Control Knobs | Stainless Steel Appearance |
| Handle Design | D-shaped |
| Handle Color | Stainless Steel |
| Color Appearance | Stainless Steel |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 16.5; (1) 11.0; (1) 9.5; (2) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0; (1) 10.0; (1) 9.5; (2) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
