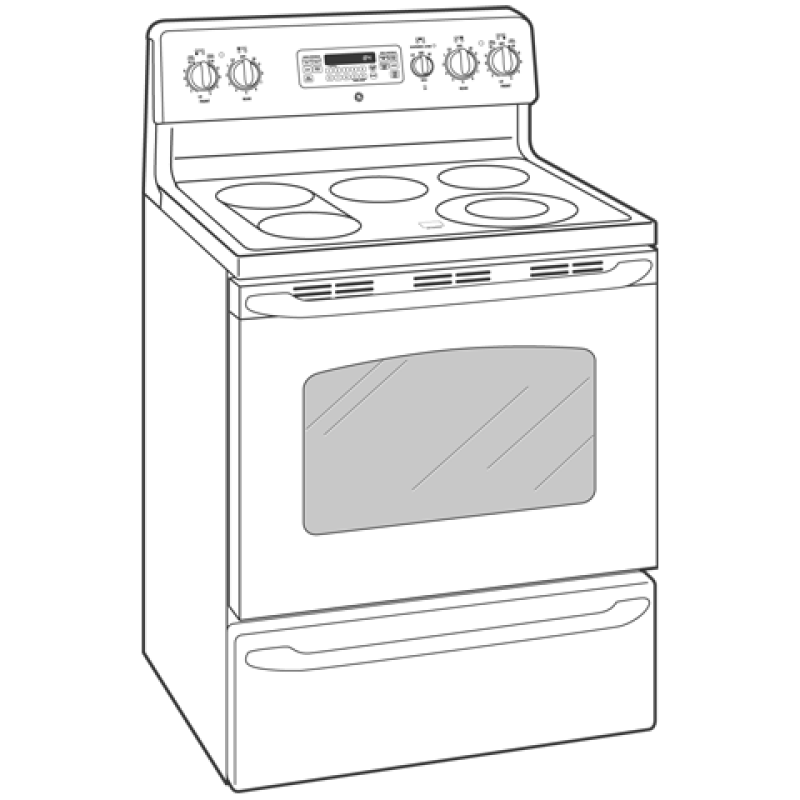

30" Free-Standing Electric Convection Range - JBP84KKCC
30" Free-Standing Electric Convection Range
Model: JBP84KKCC
30" Free-Standing Electric Convection Range
Model: JBP84KKCC
Color : Bisque
Key Features
Self-clean oven
Super-large 5.3 cu. ft. oven capacity
Hidden bake oven interior
Self-clean, heavy-duty oven racks
Dual size ribbon element
Bridge element
True European Convection
QuickSet V oven controls
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Conveniently cleans the oven cavity without the need for scrubbing
Super-large 5.3 cu. ft. oven capacity
Provides an impressively large oven interior to cook more dishes and large meals at once
Hidden bake oven interior
Hides previously exposed bottom element to deliver a clean interior appearance
Self-clean, heavy-duty oven racks
Double coated porcelain-enameled racks no longer require hand cleaning
Dual size ribbon element
Offers a convenient choice of using a 12" or 9" heating element, depending on the size of the pan
Bridge element
Combines three cooktop elements into one large cooking area, ideal for oversized cooking pans
True European Convection
A third dual-loop heating element surrounds the fan to deliver uniform and savory cooking results
QuickSet V oven controls
Features an easy to use design that allows you to set precise cooking temperatures
Warming zone
Provides low heat capability for foods, making meal coordination simple
Warming drawer
Convenient drawer keeps breads, desserts or just-cooked foods warm and ready-to-serve
Certifications
California Prop 65
Specifications
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 177 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 217 lbs. |
| Total of Shipping Weight | 217 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
POWER / RATINGS
| KW Rating at 240V | 13.7 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 10.3 |
| Amp Rating at 240V | 40 |
FEATURES
| Oven Features | Dual-Element Bake |
| Configuration | Range with Warming Drawer |
| Cleaning Time | Variable with Delay Clean Option |
| Cooking System | True European Convection |
| Interior Oven Light | Yes |
| Oven Interior | Hidden Bake |
| Warming Zone | 1-6" Ribbon (120W) |
| Oven Cooking Modes | Convection Roast |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 3 Self-Clean Heavy-Duty Oven Racks |
| Infinite Heat Controls | Yes |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 1 Ribbon (1,500 watt) |
| Oven Cleaning Type | Self-Clean |
| Hot Surface Indicator Lights | 1, Cooktop |
| Heating Element "ON" Indicator Light | Yes |
| 9"/12" Dual Heating Element | 1 Ribbon (3,000W) |
| Cooktop Surface | True Bisque Pattern on True Bisque Glass Ceramic |
| Preheated Oven Light | Display |
| Control Location | Backsplash |
| Warming Drawer Features | Infinite Control Knob |
| Bridge Element | 1 (800W) |
| Dishwasher Safe Knobs | Yes |
| 7" Heating Element(s) | 2 Ribbon (1,800W) |
| Self-Clean Oven Door Lock | Automatic |
| Cooking Technology | Convection |
| Control Type | QuickSet V |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Variable Broil |
| Control Type | Touchpads |
| Control Type | DigiTemp Temperature Display |
| Cooktop Burner Type | Radiant |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Convection Conversion |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Start Pad |
| Oven Control Features | Oven Function Icons |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Digipad Numeric Entry |
| Oven Cooking Modes | Convection Bake |
| Oven Features | 6-Pass Power Bake Element |
WEIGHTS & DIMENSIONS
| Net Weight | 177 lb |

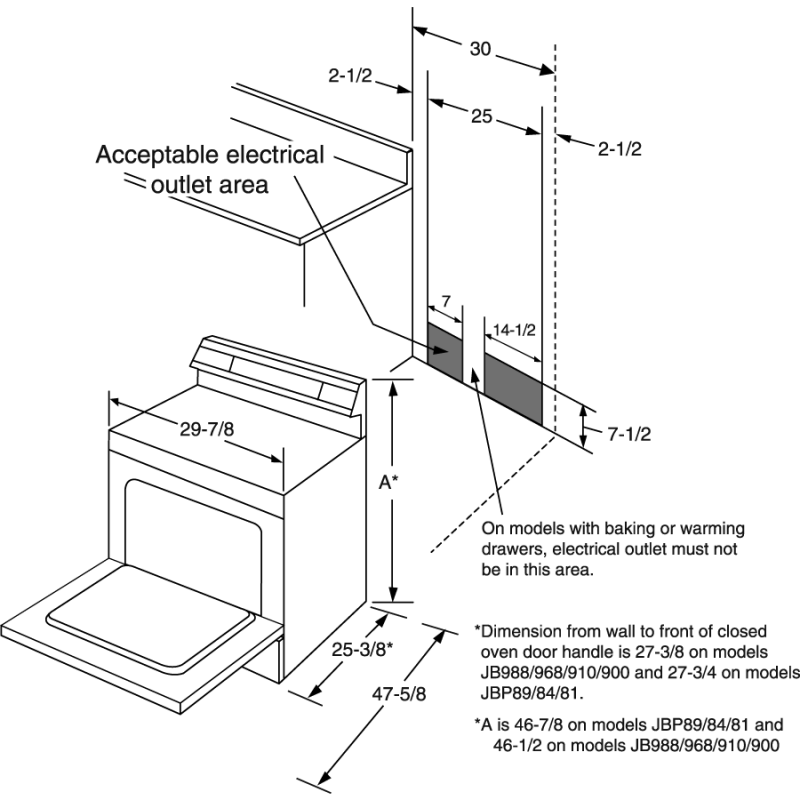

| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 198 lb |
| Overall Depth | 27 3/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.30 cu ft |
APPEARANCE
| Handle | Color-Matched High-Gloss |
| Textured Steel Side Panels | Yes |
| Color Appearance | True Bisque |
| Oven Door Features | Bisque Frameless Glass Door |
| Oven Door Features | Frameless Lift-off Oven Door |
| Oven Door Features | Big Hearth Oven Window |
ACCESSORIES
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Cream |
