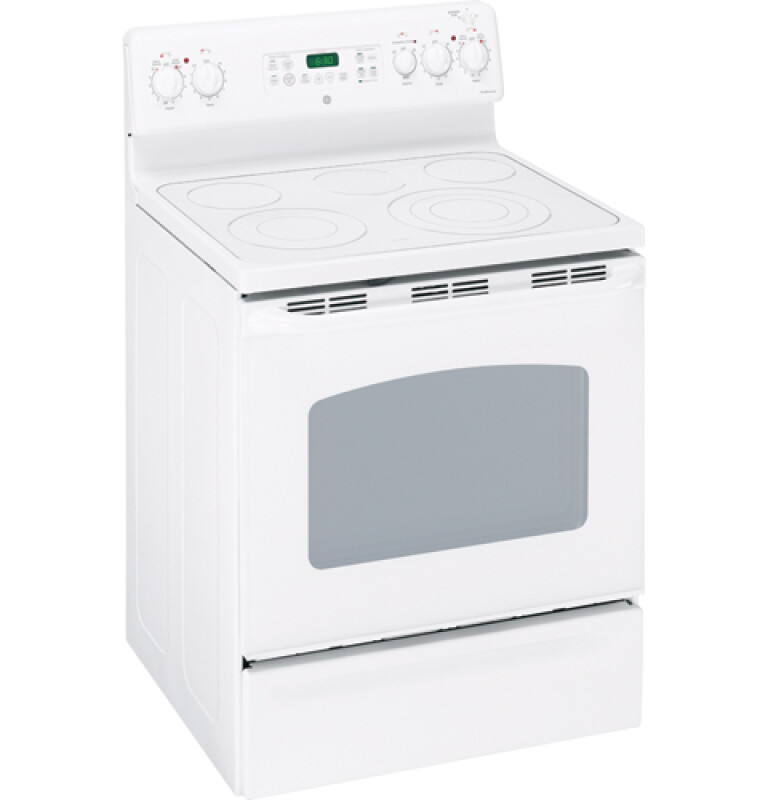

Adora 30" Free-Standing Electric Range - JBP83TKWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

Adora 30" Free-Standing Electric Range

Model: JBP83TKWW

Adora 30" Free-Standing Electric Range JBP83TKWW
Adora 30" Free-Standing Electric Range JBP83TKWW

Color : Other

Adora 30" Free-Standing Electric Range JBP83TKWW
Other

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • Super-large 5.3 cu. ft. oven capacity

  • TrueTemp system

  • 12"/9"/6" tri-ring element

  • Warming zone

  • QuickSet IV oven controls

  • Ceramic glass cooktop

Description

Provides an impressively large oven interior to cook more dishes and large meals at once.Delivers even heat distribution and maximum oven control.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Conveniently cleans the oven cavity without the need for scrubbing

Super-large 5.3 cu. ft. oven capacity

Provides an impressively large oven interior to cook more dishes and large meals at once

TrueTemp system

Delivers even heat distribution and maximum oven control

12"/9"/6" tri-ring element

Provides three cooking areas in one for the ultimate in cooking versatility

Warming zone

Provides low heat capability for foods, making meal coordination simple

QuickSet IV oven controls

Feature an easy to use design which allows you to set precise cooking temperatures

Ceramic glass cooktop

A smooth cooktop surface makes cleaning quick and easy

Certifications

California Prop 65 certification

California Prop 65

Specifications

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.30 cu ft

APPEARANCE

Oven Door FeaturesBig Hearth Oven Window
Oven Door FeaturesFrameless Lift-off Oven Door
Oven Door FeaturesWhite Frameless Glass Door
HandleColor-Matched High-Gloss
Textured Steel Side PanelsYes
Color AppearanceTrue White

POWER / RATINGS

KW Rating at 240V12.1
KW Rating at 208V9.1
Amp Rating at 208V40
Amp Rating at 240V40

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesFor models produced on or after January 1, 2006
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

FEATURES

6"/9" Dual Heating Element1 Ribbon (2,500W)
Warming Zone1-6" Ribbon (120W)
Preheated Oven LightDisplay
Control LocationBacksplash
Oven Rack Features2 Self-Clean Heavy-Duty Oven Racks
Broiler Pan and GridYes
Cooktop SurfaceOne-Piece Upswept
Cooktop SurfacePatterned True White Glass Ceramic
Hot Surface Indicator Lights1, Cooktop
Control TypeDigiTemp Temperature Display
Control TypeQuickSet IV
Control TypeTouchpads
Cleaning TimeVariable with Delay Clean Option
Oven Cleaning TypeSelf-Clean
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesMis-Wire Detection
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesStart Pad
Oven Control FeaturesVariable Broil
Interior Oven LightYes
ConfigurationRange with Storage Drawer
Heating Element "ON" Indicator LightYes
Cooking TechnologyTraditional
Oven Features6-Pass Power Bake Element
Oven FeaturesDual-Element Bake
Temperature Management SystemTrue Temp System
6"/9"/12" Tri-Ring Element1 Ribbon (1,050/1,950/3,000W)
Self-Clean Oven Door LockAutomatic
Storage Drawer FeaturesRemovable Full-Width
6" Heating Element(s)2 Ribbon (1,500W)
Dishwasher Safe KnobsYes
Cooktop Burner TypeRadiant
Cooktop Burner TypeSmoothtop
Infinite Heat ControlsYes
Oven Control FeaturesSabbath Mode

WEIGHTS & DIMENSIONS

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Approximate Shipping Weight188 lb
Cabinet Width30 in
Net Weight168 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in
Depth Without Handle25.375 in
Depth with Door Open47.625 in

ACCESSORIES

Cooktop CleaningCream
Cooktop CleaningIncluded
Cooktop CleaningSponge

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight168 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight208 lbs.
Total of Shipping Weight208 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.
