30" Free-Standing Electric Convection Range - JBP74TMWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

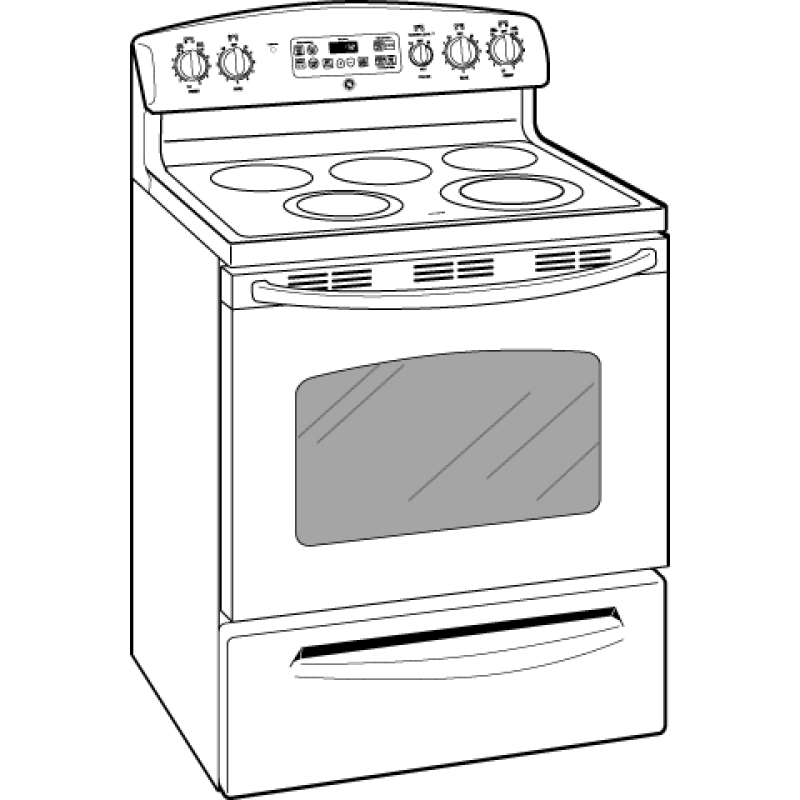

30" Free-Standing Electric Convection Range

Model: JBP74TMWW

30" Free-Standing Electric Convection Range JBP74TMWW30" Free-Standing Electric Convection Range JBP74TMWW30" Free-Standing Electric Convection Range JBP74TMWW
30" Free-Standing Electric Convection Range JBP74TMWW
30" Free-Standing Electric Convection Range JBP74TMWW
30" Free-Standing Electric Convection Range JBP74TMWW

Color : White

30" Free-Standing Electric Convection Range JBP74TMWW
White

Key Features

  • True European Convection with Precise Air

  • Self-clean oven

  • Super-large oven capacity

  • Hidden bake oven interior

  • Self-clean, heavy-duty oven racks

Description

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior.Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

True European Convection with Precise Air

A reversing fan circulates heat and air for evenly browned and baked foods

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Super-large oven capacity

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

Hidden bake oven interior

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

Self-clean, heavy-duty oven racks

Tough, double-coated racks can stay in the oven during the self-clean cycle to eliminate hand cleaning

Certifications

California Prop 65 certification

California Prop 65

Specifications

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight160 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight200 lbs.
Total of Shipping Weight200 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Oven FeaturesDual-Element Bake
Cooking SystemTrue European Convection with Precise Air
Cleaning TimeVariable with Delay Clean Option
Storage Drawer FeaturesRemovable Full-Width
Interior Oven LightYes
Oven InteriorHidden Bake
5"/8" Dual Heating Element1 Ribbon (1,900W)
Warming Zone1-6" Ribbon (120W)
Oven Cooking ModesConvection Roast
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Self-Clean Heavy-Duty Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights1, Cooktop
StyleSmoothtop
Heating Element "ON" Indicator LightYes
9"/12" Dual Heating Element1 Ribbon (3,000W)

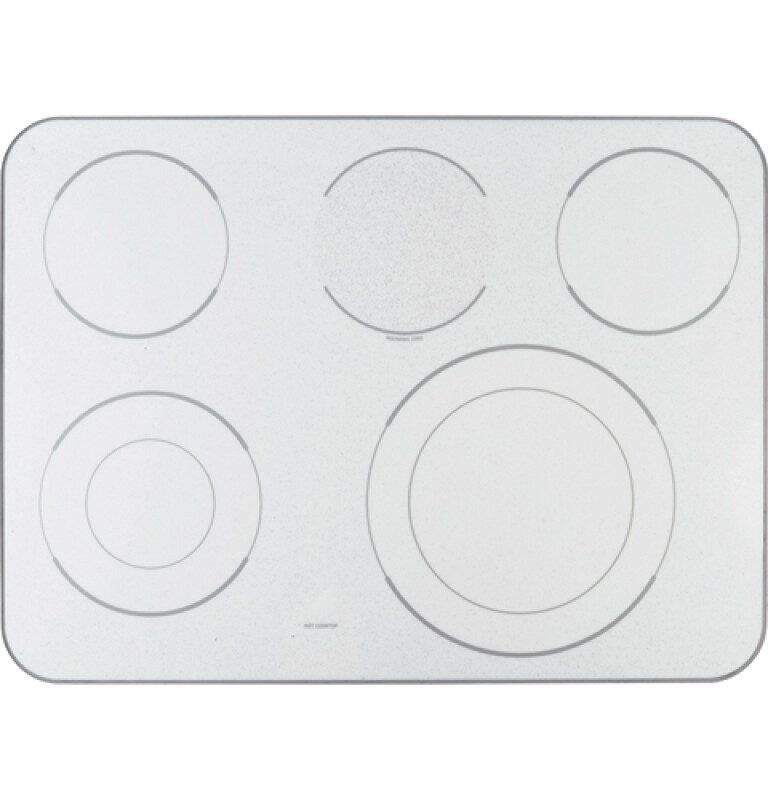

Cooktop SurfacePatterned True White Glass Ceramic
Preheated Oven LightDisplay
Control LocationBacksplash
Dishwasher Safe KnobsYes
Self-Clean Oven Door LockAutomatic
Cooking TechnologyConvection
Control TypeQuickSet V
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesVariable Broil
Control TypeTouchpads
Control TypeDigiTemp Temperature Display
Cooking SystemTrue European Convection
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesConvection Conversion
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesStart Pad
Oven Control FeaturesOven Function Icons
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDigipad Numeric Entry
Oven Cooking ModesConvection Bake
Oven Features6-Pass Power Bake Element

WEIGHTS & DIMENSIONS

Net Weight160 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight180 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V11.9
Amp Rating at 208V40
KW Rating at 208V8.9
Amp Rating at 240V40

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.30 cu ft

APPEARANCE

HandleColor-Matched Sculptured
Textured Steel Side PanelsYes
Color AppearanceTrue White
Oven Door FeaturesFrameless Lift-off Oven Door
Oven Door FeaturesWhite Frameless Glass Door
Oven Door FeaturesBig Hearth Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream
