30" Free-Standing Electric Range - JBP66WHWW
30" Free-Standing Electric Range
Model: JBP66WHWW
30" Free-Standing Electric Range
Model: JBP66WHWW
Color : White
Key Features
Self-clean oven
Super-large oven capacity
TrueTemp system
Ceramic glass cooktop
Ribbon heating elements
QuickSet IV oven controls
Big clear view window
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Conveniently cleans the oven cavity without the need for scrubbing
Super-large oven capacity
Provides an impressively large oven interior for cooking more dishes and large meals at one time
TrueTemp system
Delivers even heat distribution and maximum oven control

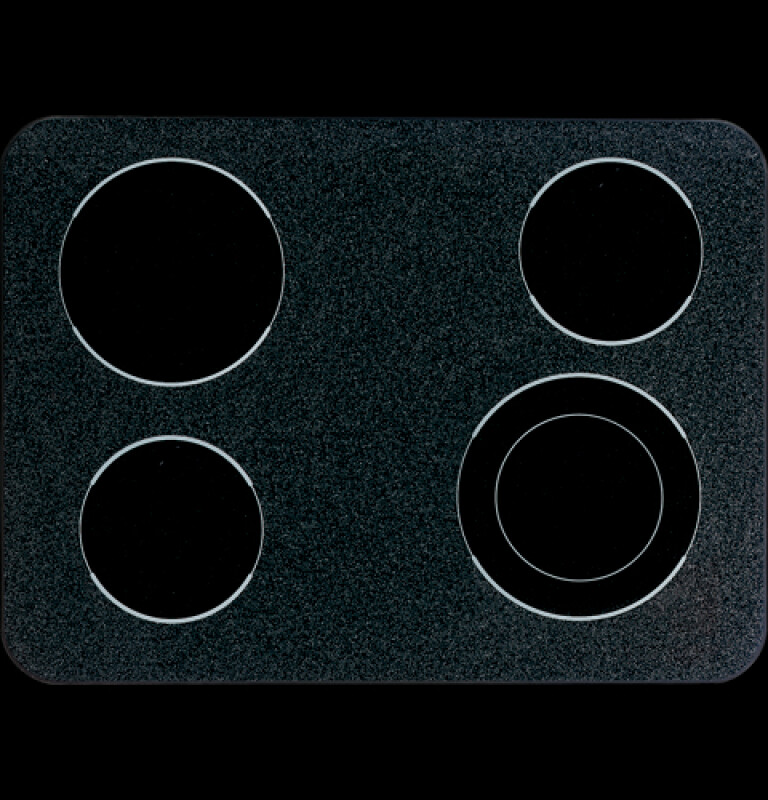

Ceramic glass cooktop
A smooth cooktop surface makes cleaning quick and easy
Ribbon heating elements
Provide powerful heat beneath a smooth glass surface to ensure even heat and fast warm-up times
QuickSet IV oven controls
Feature an easy to use design which allows you to set precise cooking temperatures
Big clear view window
Features a convenient viewing area to check the progress of food
Certifications
California Prop 65
Specifications
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/4 x 19 x 19 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 154 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 194 lbs. |
| Total of Shipping Weight | 194 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Oven Features | 6-Pass Power Bake Element |
| Cleaning Time | Variable with Delay Clean Option |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Yes |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 2 Oven Racks |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 2 Ribbon (1,500W) |
| Oven Cleaning Type | Self-Clean |
| Hot Surface Indicator Lights | 1 |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Patterned White on Black Glass Ceramic |
| 8" Heating Element (s) | 2 Ribbon (2,000W) |
| Control Type | QuickSet IV |
| Cooking Technology | Traditional |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Variable Broil |
| Control Type | DigiTemp Temperature Display |
| Cooktop Burner Type | Radiant |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Delay Clean Option |
WEIGHTS & DIMENSIONS
| Net Weight | 154 lb |
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/4 x 19 x 19 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 175 lb |
| Overall Depth | 27 3/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
POWER / RATINGS
| KW Rating at 240V | 10.5 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 7.9 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Big Clear View Oven Window |
| Handle | Designer Style |
| Color Appearance | White on White |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.00 cu ft |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
ACCESSORIES
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Scraper |
| Cooktop Cleaning | Cream |
