30" Free-Standing Electric Range - JBP66CHCC

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JBP66CHCC

30" Free-Standing Electric Range JBP66CHCC30" Free-Standing Electric Range JBP66CHCC
30" Free-Standing Electric Range JBP66CHCC
30" Free-Standing Electric Range JBP66CHCC

Color : Bisque

30" Free-Standing Electric Range JBP66CHCC
Bisque

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • Super-large oven capacity

  • TrueTemp system

  • Ceramic glass cooktop

  • Ribbon heating elements

  • QuickSet IV oven controls

  • Big clear view window

Description

Provides an impressively large oven interior for cooking more dishes and large meals at one time.Delivers even heat distribution and maximum oven control.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Conveniently cleans the oven cavity without the need for scrubbing

Super-large oven capacity

Provides an impressively large oven interior for cooking more dishes and large meals at one time

TrueTemp system

Delivers even heat distribution and maximum oven control

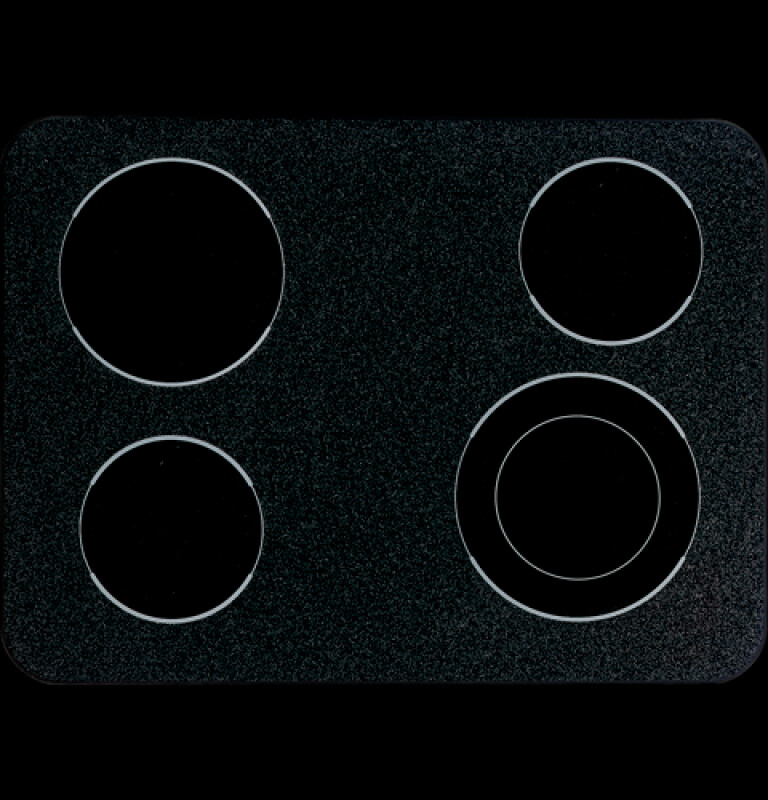

Ceramic glass cooktop

A smooth cooktop surface makes cleaning quick and easy

Ribbon heating elements

Provide powerful heat beneath a smooth glass surface to ensure even heat and fast warm-up times

QuickSet IV oven controls

Feature an easy to use design which allows you to set precise cooking temperatures

Big clear view window

Features a convenient viewing area to check the progress of food

Certifications

California Prop 65 certification

California Prop 65

Specifications

FEATURES

ConfigurationRange with Storage Drawer
Oven Features6-Pass Power Bake Element
Cleaning TimeVariable with Delay Clean Option
Storage Drawer FeaturesRemovable Full-Width
Interior Oven LightYes
Oven Control FeaturesVariable Broil
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
6" Heating Element(s)2 Ribbon (1,500W)
Hot Surface Indicator Lights1
Heating Element "ON" Indicator LightYes
Cooktop SurfacePatterned Bisque on Black Glass Ceramic
8" Heating Element (s)2 Ribbon (2,000W)
Control TypeQuickSet IV
Cooking TechnologyTraditional
Control TypeDigiTemp Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Clean Option

WEIGHTS & DIMENSIONS

Net Weight154 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/4 x 19 x 19
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight175 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V10.5
Amp Rating at 208V40
KW Rating at 208V7.9
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesBig Clear View Oven Window
HandleDesigner Style
Color AppearanceBisque on Bisque

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.00 cu ft

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Warranty NotesFor models produced on or after January 1, 2006

ACCESSORIES

Cooktop CleaningScraper
Cooktop CleaningCream
Cooktop CleaningIncluded

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/4 x 19 x 19

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight154 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight194 lbs.
Total of Shipping Weight194 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.
