30" Free-Standing Electric Range - JBP28DRCC

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

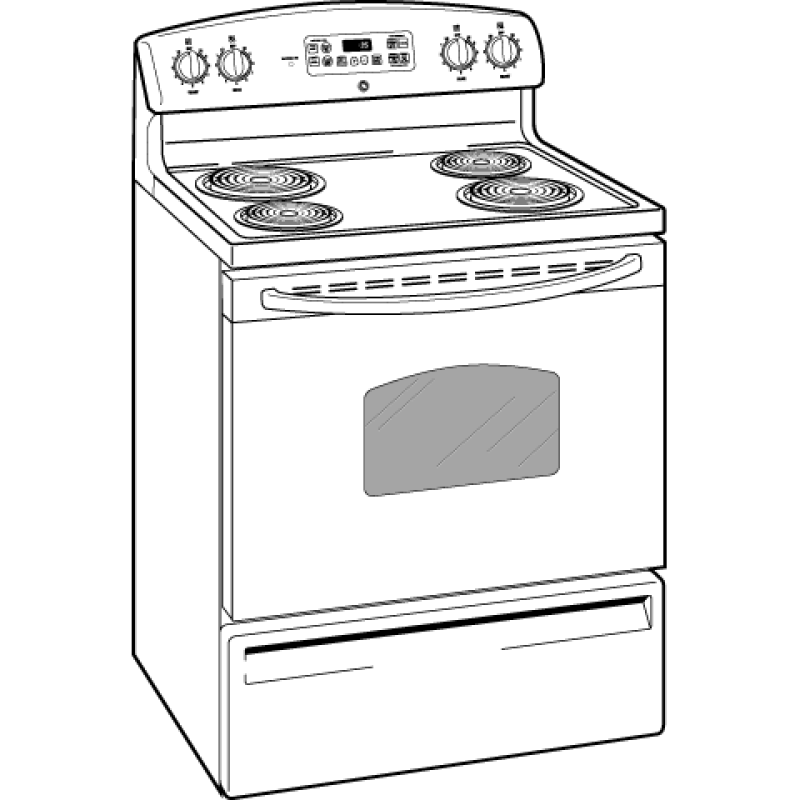

30" Free-Standing Electric Range

Model: JBP28DRCC

30" Free-Standing Electric Range JBP28DRCC30" Free-Standing Electric Range JBP28DRCC30" Free-Standing Electric Range JBP28DRCC
30" Free-Standing Electric Range JBP28DRCC
30" Free-Standing Electric Range JBP28DRCC
30" Free-Standing Electric Range JBP28DRCC

Product Video

GE 30" Free-Standing Electric Range Bisque JBP28DRCC Picture

Color : Bisque

30" Free-Standing Electric Range JBP28DRCC
Bisque

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • 5.3 cu. ft. oven capacity

  • TrueTemp oven system

  • QuickSet IV oven controls

  • Coil heating elements

  • Big hearth window

Description

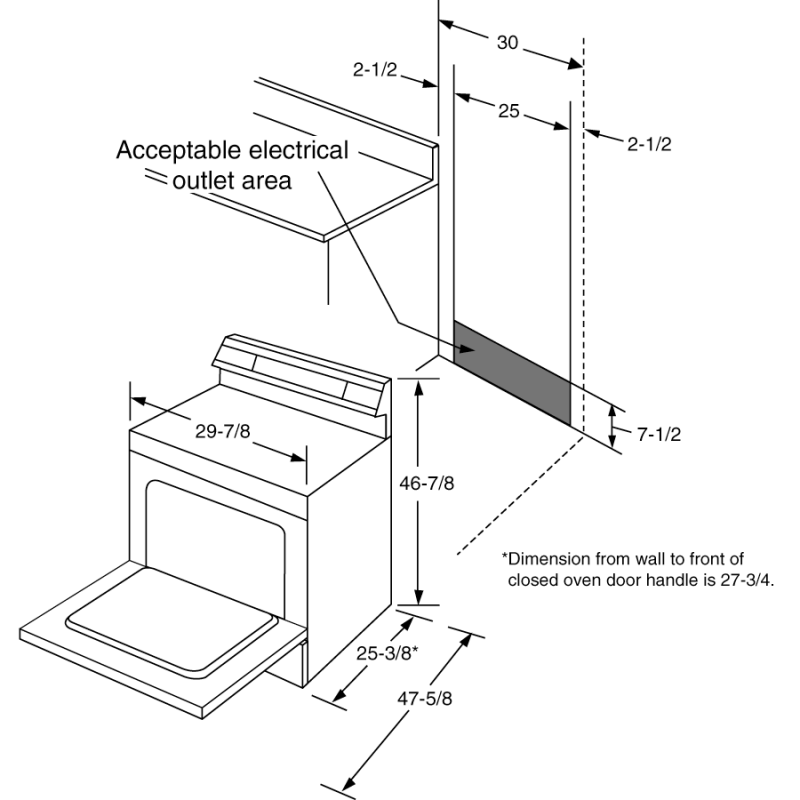

Enough room to cook an entire meal at once.Even heat distribution and maximum oven control.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Cleans the oven cavity without the need for scrubbing

5.3 cu. ft. oven capacity

Enough room to cook an entire meal at once

TrueTemp oven system

Even heat distribution and maximum oven control

QuickSet IV oven controls

Electronic touch pads make operation simple

Coil heating elements

Provide even heat and easy cleanup

Big hearth window

Makes monitoring of foods easy

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight150 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight190 lbs.
Total of Shipping Weight190 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Element - Right Front8" 2600W 5-turn
Oven FeaturesDual-Element Bake
Cleaning TimeVariable with Delay Clean Option
Lift-Up Cooktop With Support RodsYes
Storage Drawer FeaturesRemovable Full-Width
Oven InteriorInterior Oven Light
Cooktop Burner TypeCoil
Oven Rack FeaturesEmbossed Rack Positions
Element - Left Front6" 4-turn 1500W
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
Heating Element "ON" Indicator LightYes
Element - Left Rear8" 2600W 5-turn
Element - Right Rear6" 1500W 4-turn
Cooktop SurfacePorcelain-Enamel
Control LocationBacksplash
Dishwasher Safe KnobsYes
Oven Rack Positions (Single or Upper/Lower)6
Control TypeTouchpads
Cooking TechnologyTraditional
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesVariable Broil
Control TypeDigiTemp Temperature Display
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesPreheat Oven Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesStart Pad
Oven Features6-Pass Power Bake Element
Oven Rack Features2 Oven Racks

WEIGHTS & DIMENSIONS

Net Weight150 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight171 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V12.1
Bake Wattage3410W
Amp Rating at 208V40
Broiler Wattage3800W
KW Rating at 208V9.1
Amp Rating at 240V40

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

APPEARANCE

Textured Steel Side PanelsYes
Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceBisque
Oven Door FeaturesBisque Frameless Glass Door
Oven Door FeaturesFrameless Lift-off Oven Door
Oven Door FeaturesBig Hearth Oven Window

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
