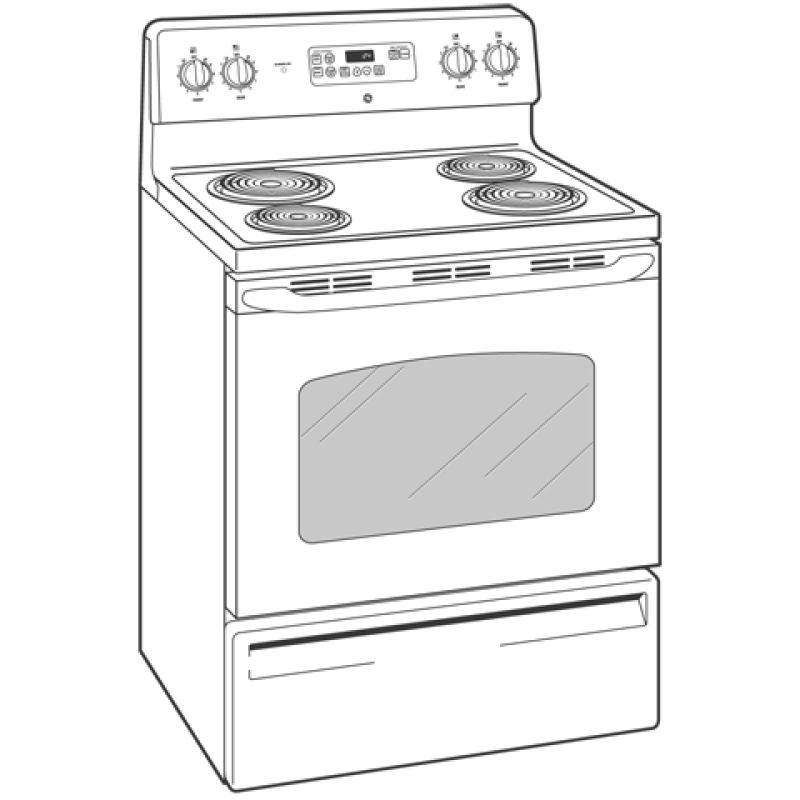

30" Free-Standing Electric Range - JBP24WKWW
30" Free-Standing Electric Range
Model: JBP24WKWW






30" Free-Standing Electric Range
Model: JBP24WKWW
Key Features
Self-clean oven
Super-large oven capacity
QuickSet III oven controls
Coil heating elements
Dual-element bake
Big hearth window
Removable full width storage drawer
Preheat oven light
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Conveniently cleans the oven cavity without the need for scrubbing
Super-large oven capacity
Provides an impressively large oven interior for cooking more dishes and large meals at once
QuickSet III oven controls
Feature an easy to use design that lets you set precise cooking temperatures
Coil heating elements
Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning
Dual-element bake
Alternates the upper broiling element and the lower baking element for even heating and optimal baking results
Big hearth window
Features an enhanced shape to add an elegant appearance and make viewing trouble-free
Removable full width storage drawer
This convenient drawer can be used for storing cookware or kitchen accessories
Preheat oven light
Illuminates to conveniently inform when the oven is preheating
Interior oven light
Supplies light to make viewing the progress of cooking easy and convenient
Audible preheat signal
Features an audible signal that activates when the oven has reached the desired cooking temperature
Porcelain upswept cooktop
Features raised edges to help contain spills and make clean-up easy
Six rack positions
Provides flexibility and allows consumers to make the most of available oven capacity
Chrome drip bowls
Contain spills and remove for easy cleaning
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 149 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 189 lbs. |
| Total of Shipping Weight | 189 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Oven Features | Dual-Element Bake |
| Lift-Up Cooktop With Support Rods | Yes |
| Removable One-Piece Drip Bowls | Chrome |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Yes |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| 6" Heating Element(s) | 2 Plug-In (1,500W) |
| Oven Cleaning Type | Self-Clean |
| Style | Coil |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Porcelain-Enamel |
| Preheated Oven Light | Yes |
| Control Location | Backsplash |
| 8" Heating Element (s) | 2 Plug-In (2,600W) |
| Dishwasher Safe Knobs | Yes |
| Cooking Technology | Traditional |
| Control Type | QuickSet III |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Variable Broil |
| Control Type | Touchpads |
| Control Type | DigiTemp Temperature Display |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Mis-Wire Detection |

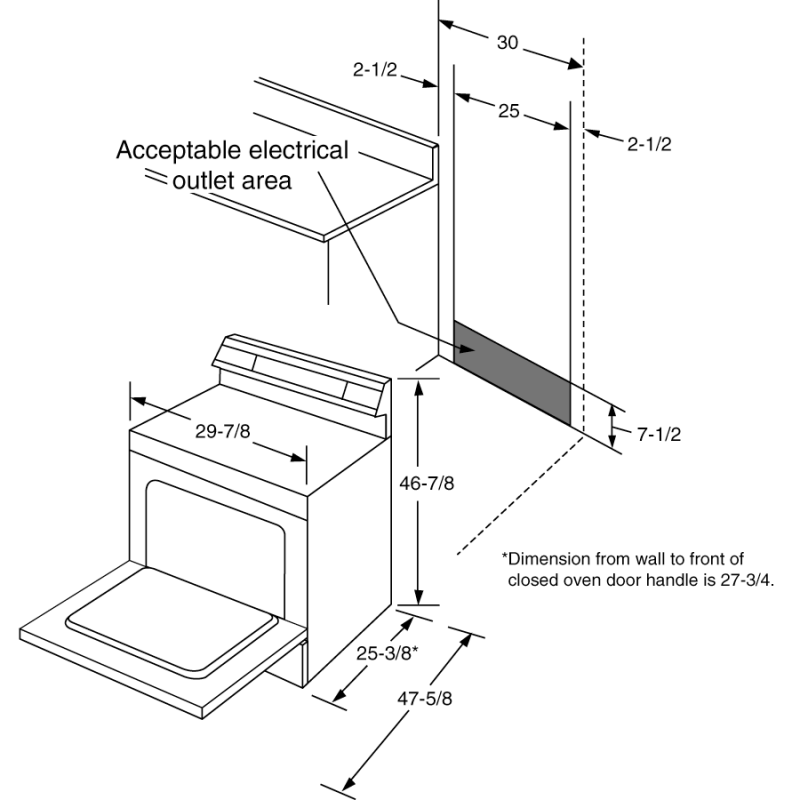

WEIGHTS & DIMENSIONS
| Net Weight | 149 lb |
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 170 lb |
| Overall Depth | 27 3/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
POWER / RATINGS
| KW Rating at 240V | 11.7 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 8.8 |
| Amp Rating at 240V | 40 |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.30 cu ft |
APPEARANCE
| Handle | Color-Matched High-Gloss |
| Textured Steel Side Panels | Yes |
| Color Appearance | White on White |
| Oven Door Features | Frameless Lift-off Oven Door |
| Oven Door Features | White Frameless Glass Door |
| Oven Door Features | Big Hearth Oven Window |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
