30" Free-Standing Electric Range - JBP23GRSA
30" Free-Standing Electric Range
Model: JBP23GRSA
Product Video
30" Free-Standing Electric Range
Model: JBP23GRSA
Color : Silver
Key Features
Self-clean oven
5.3 cu. ft. oven capacity
QuickSet III oven controls
Coil heating elements
Dual-element Bake
Chrome drip bowls
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Self-clean oven
Cleans the oven cavity without the need for scrubbing
5.3 cu. ft. oven capacity
Enough room to cook an entire meal at once
QuickSet III oven controls
Electronic touch pads make operation simple
Coil heating elements
Provide even heat and easy cleanup
Dual-element Bake
Upper and lower elements produce even heat and great results
Chrome drip bowls
Contain spills and remove for easy cleaning
Certifications
California Prop 65
Specifications
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 155 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 195 lbs. |
| Total of Shipping Weight | 195 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Element - Right Front | 8" 2600W 5-turn |
| Removable One-Piece Drip Bowls | Black Porcelain Enameled |
| Lift-Up Cooktop With Support Rods | Yes |
| Storage Drawer Features | Removable Full-Width |
| Oven Interior | Interior Oven Light |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 1500W 4-turn |
| Infinite Heat Controls | Yes |
| Oven Cleaning Type | Self-Clean |
| Heating Element "ON" Indicator Light | Yes |
| Element - Left Rear | 8" 2600W 5-turn |
| Element - Right Rear | 6" 1500W 4-turn |
| Control Location | Backsplash |
| Cooking Technology | Traditional |
| Control Type | Electronic |
| Cooktop Surface | Lift-Up |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Features | 4-Pass Broil Element |
| Oven Features | Oven Interior Light |
| Oven Control Features | Variable Broil |
| Cooktop Surface | Porcelain-Enamel |
| Control Type | Touchpads |
| Control Type | Digital Temperature Display |
| Control Type | Infinite Heat Rotary |
| Cooktop Surface | Dual Support Rods |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Mis-Wire Detection |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Start Pad |
| Oven Features | 4-Pass Bake Element |
| Oven Features | Dishwasher-Safe Knobs |
| Oven Features | Dual-Element Bake |

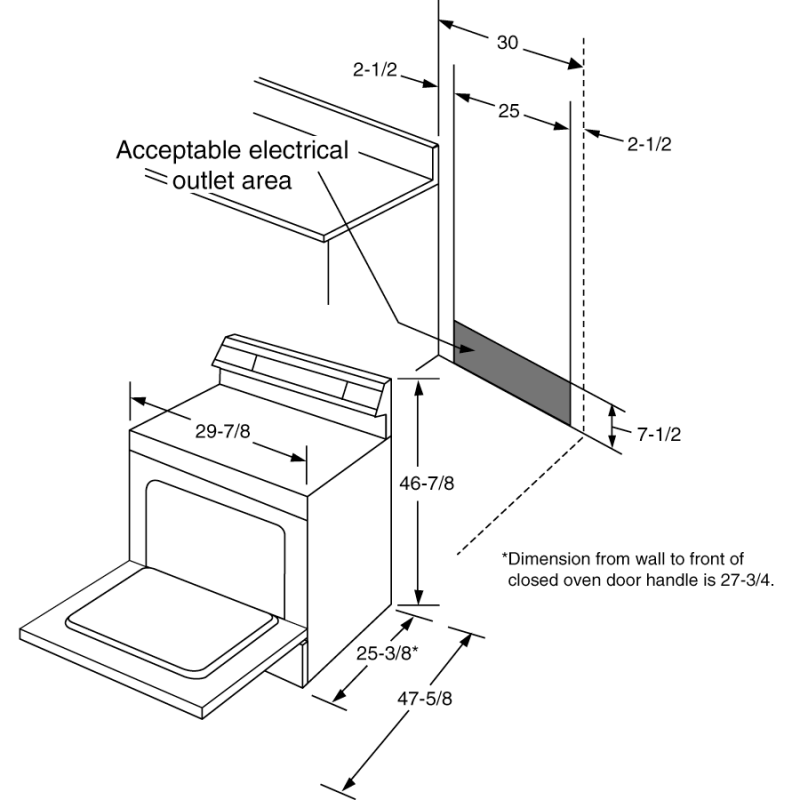

WEIGHTS & DIMENSIONS
| Net Weight | 155 lb |
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 171 lb |
| Overall Depth | 27 3/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
POWER / RATINGS
| KW Rating at 240V | 11.7 |
| Bake Wattage | 2585W |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| KW Rating at 208V | 8.8 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Frameless Lift-off Oven Door |
| Textured Steel Side Panels | Black |
| Handle Design | D-shaped |
| Handle Color | Black with black door |
| Color Appearance | Silver |
| Oven Door Features | Big Hearth Oven Window |
CAPACITY
| Total Capacity (cubic feet) | 5.30 cu ft |
