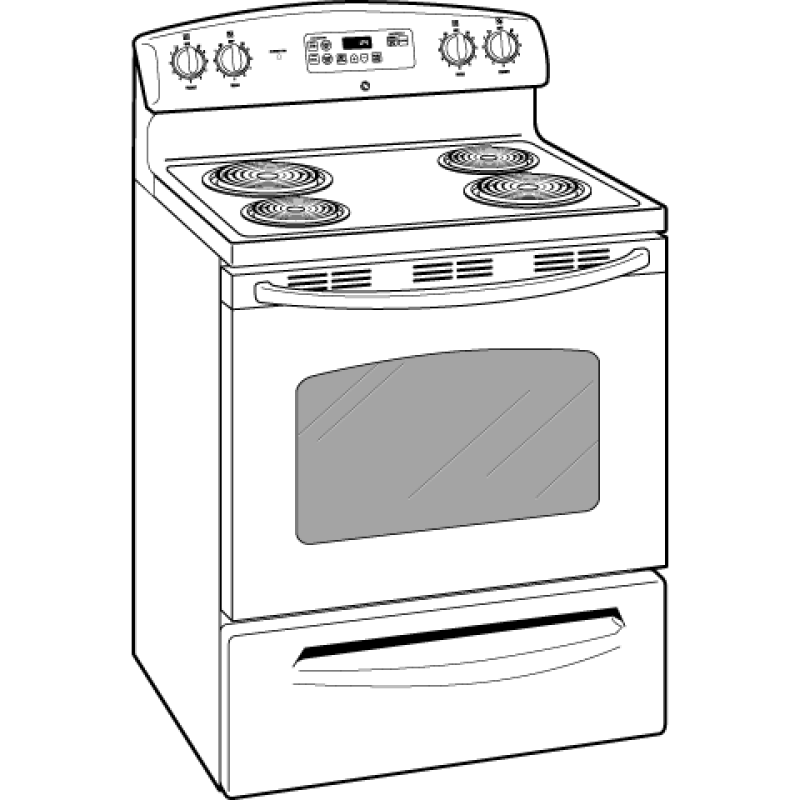

30" Free-Standing Electric Range - JBP23DRBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JBP23DRBB

30" Free-Standing Electric Range JBP23DRBB30" Free-Standing Electric Range JBP23DRBB30" Free-Standing Electric Range JBP23DRBB
30" Free-Standing Electric Range JBP23DRBB
30" Free-Standing Electric Range JBP23DRBB
30" Free-Standing Electric Range JBP23DRBB

Product Video

GE 30" Free-Standing Electric Range Black JBP23DRBB Picture
2 Videos

Color : Black

30" Free-Standing Electric Range JBP23DRBB
Black

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • 5.3 cu. ft. oven capacity

  • QuickSet III oven controls

  • Coil heating elements

  • Dual-element Bake

  • Chrome drip bowls

Description

Enough room to cook an entire meal at once.Electronic touch pads make operation simple.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Cleans the oven cavity without the need for scrubbing

5.3 cu. ft. oven capacity

Enough room to cook an entire meal at once

QuickSet III oven controls

Electronic touch pads make operation simple

Coil heating elements

Provide even heat and easy cleanup

Dual-element Bake

Upper and lower elements produce even heat and great results

Chrome drip bowls

Contain spills and remove for easy cleaning

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight149 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight189 lbs.
Total of Shipping Weight189 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Element - Right Front8" 2600W 5-turn
Removable One-Piece Drip BowlsBlack
Storage Drawer FeaturesRemovable Full-Width
Oven InteriorInterior Oven Light
Cooktop Burner TypeCoil
Oven Rack Features2 Oven Racks
Element - Left Front6" 1500W 4-turn
Oven Cleaning TypeSelf-Clean
Heating Element "ON" Indicator LightYes
Element - Left Rear8" 2600W 5-turn
Element - Right Rear6" 1500W 4-turn
Control LocationBacksplash
Cooking TechnologyTraditional
Control TypeElectronic
Cooktop SurfaceLift-Up
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Features4-Pass Broil Element
Oven FeaturesOven Interior Light
Oven Control FeaturesVariable Broil
Cooktop SurfacePorcelain-Enamel
Control TypeTouchpads
Control TypeDigital Temperature Display
Control TypeInfinite Heat Rotary
Cooktop SurfaceDual Support Rods
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesMis-Wire Detection
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesStart Pad
Oven Features4-Pass Bake Element
Oven FeaturesDishwasher-Safe Knobs
Oven FeaturesDual-Element Bake

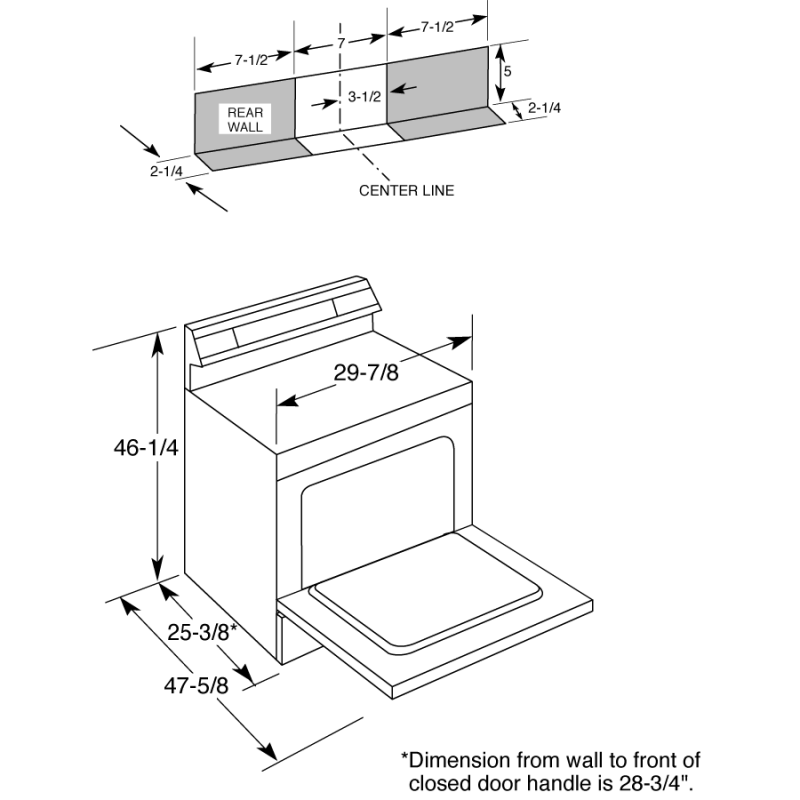

WEIGHTS & DIMENSIONS

Net Weight149 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight170 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V11.7
Bake Wattage2585W
Amp Rating at 208V40
Broiler Wattage3410W
KW Rating at 208V8.8
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesFrameless Lift-off Oven Door
Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceBlack
Oven Door FeaturesBig Hearth Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
