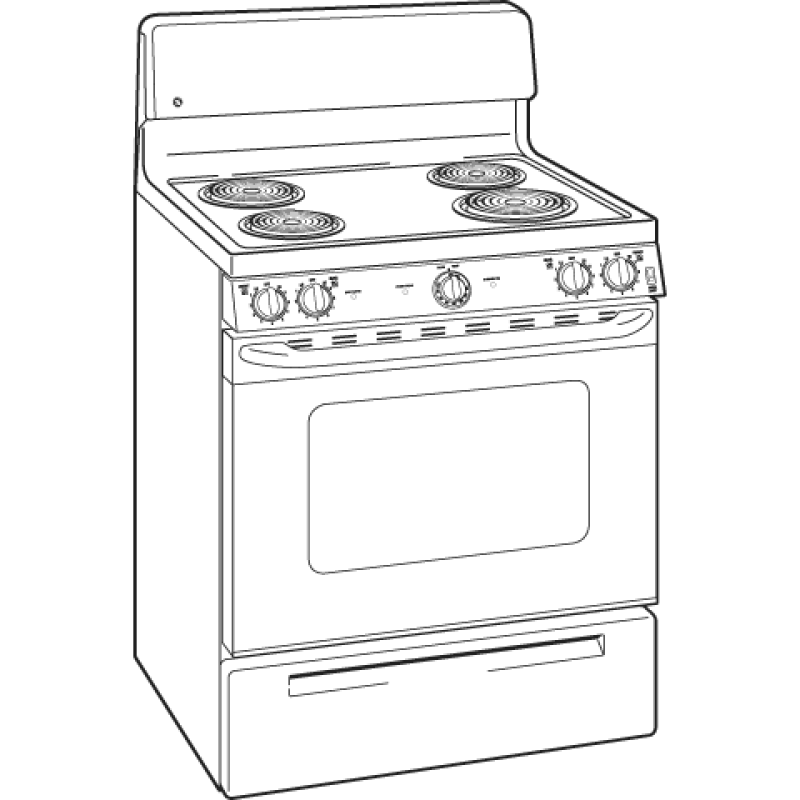

30" Free-Standing Electric Range - JBP15CJCC
30" Free-Standing Electric Range
Model: JBP15CJCC
30" Free-Standing Electric Range
Model: JBP15CJCC
Color : Bisque
Key Features
Upfront controls
Self-clean oven
Super-large oven capacity
Coil heating elements
Dual-element bake
Frameless glass oven door
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Upfront controls
Controls are placed within easy reach at the front center of the cooktop
Self-clean oven
Conveniently cleans the oven cavity without need of scrubbing
Super-large oven capacity
Provides an impressively large oven interior for cooking more dishes and large meals at one time
Coil heating elements
Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning
Dual-element bake
Alternates the upper broiling element and the lower baking element for even heating and optimal baking results
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 22-3/4 x 15-3/4 x 17 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.13 in. |
| Weight | 149 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.13 in. |
| Shipping Weight | 189 lbs. |
| Total of Shipping Weight | 189 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.98 ft³ |
| Dimensional Weight | 273.28 lbs. |
| Total of Cubes | 21.98 ft³ |
| Total of Dimensional Weight | 273.28 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Oven Features | Dual-Element Bake |
| Lift-Up Cooktop With Support Rods | Yes |
| Removable One-Piece Drip Bowls | Black Porcelain Enameled |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Yes |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| 6" Heating Element(s) | 3 Plug-In (1,500W) |
| Oven Cleaning Type | Self-Clean |
| Style | Coil |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Porcelain-Enamel |
| 8" Heating Element (s) | 1 Plug-In (2,600W) |
| Cooking Technology | Traditional |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Variable Broil |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Oven "ON" Light |

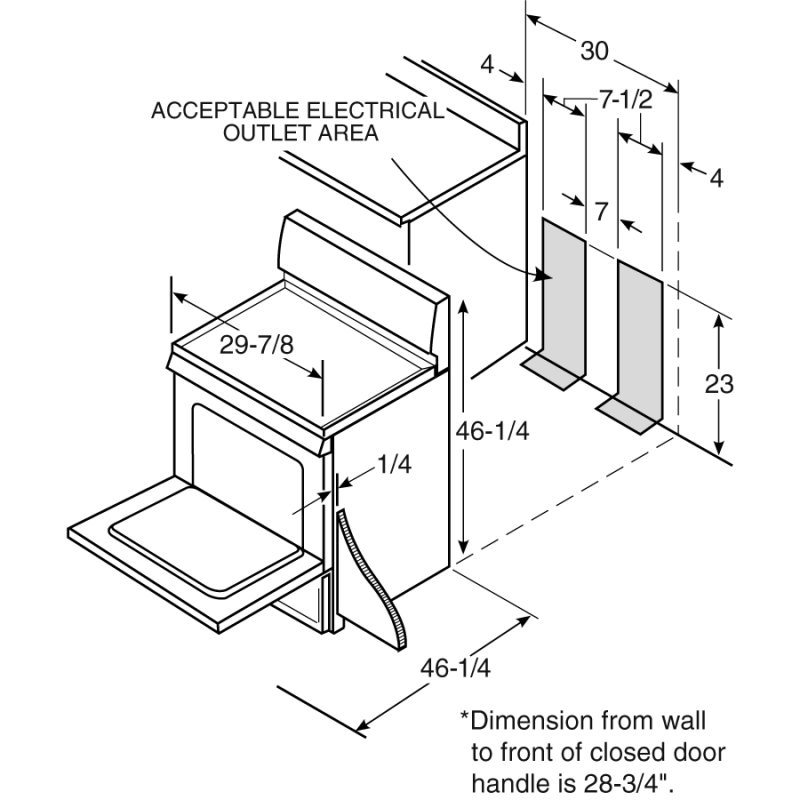

WEIGHTS & DIMENSIONS
| Net Weight | 149 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 22-3/4 x 15-3/4 x 17 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 170 lb |
| Overall Depth | 27 1/8 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
POWER / RATINGS
| KW Rating at 240V | 11.2 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 6.9 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Bisque Glass Frameless Lift-off Oven Door |
| Handle | Color-Matched Sculptured |
| Textured Steel Side Panels | Yes |
| Color Appearance | Bisque on Bisque |
| Oven Door Features | Big Hearth Oven Window |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.00 cu ft |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
