30" Free-Standing Electric Double Oven Convection Range - JB870DRBB
30" Free-Standing Electric Double Oven Convection Range
Model: JB870DRBB













30" Free-Standing Electric Double Oven Convection Range
Model: JB870DRBB
Key Features
6.6 cu. ft. total oven capacity
Self-clean oven
Convection Bake
Warming zone (fifth element warming zone)
Hidden bake oven interior
TrueTemp oven system
Dual-element bake
QuickSet V oven controls
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
6.6 cu. ft. total oven capacity
Large capacity is ideal for big meals
Self-clean oven
Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
Convection Bake
This setting is optimal for baking casseroles or lasagnas, yeast breads, pies and pizzas with no need to turn the pan
Warming zone (fifth element warming zone)
Simplify meals by keeping foods fresh from the oven warm and ready to serve

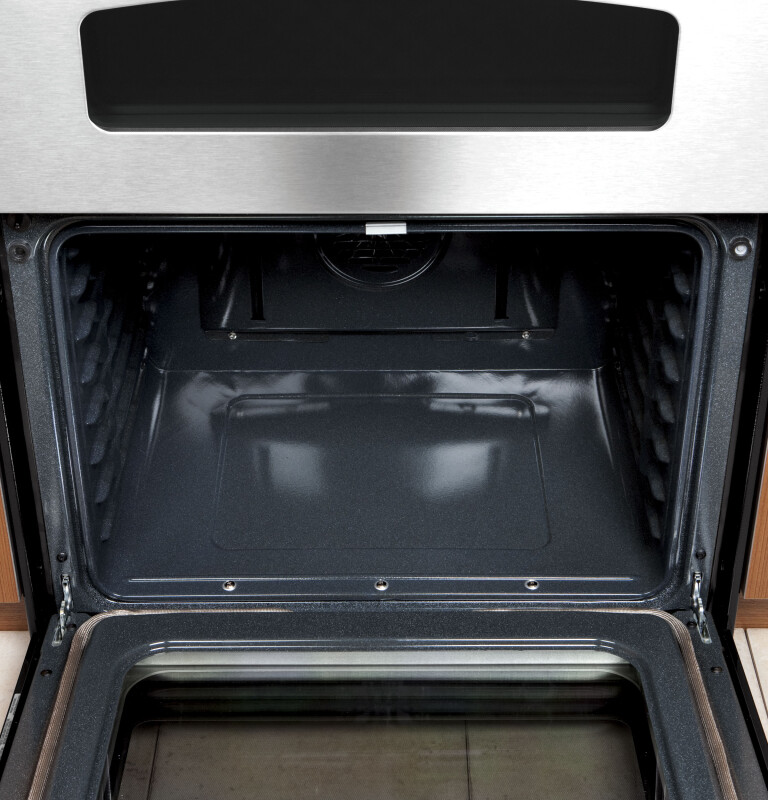

Hidden bake oven interior
Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning
TrueTemp oven system
This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire
Dual-element bake
This top-and-bottom heating produces uniform browning and fast oven preheating
QuickSet V oven controls
Features an easy to use design that allows you to set precise cooking temperatures

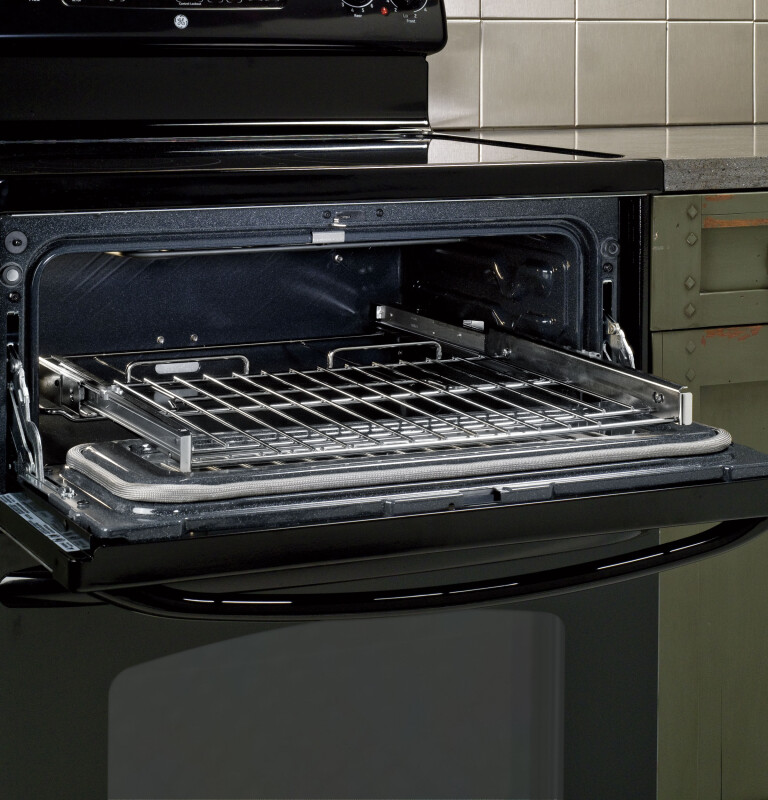

Heavy-duty roller rack
Racks provide easy access to items inside the oven by simplifying loading and unloading
12"/9" dual element
Two heating elements in one allows you to choose either a 12" or 9" element for your cookware
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

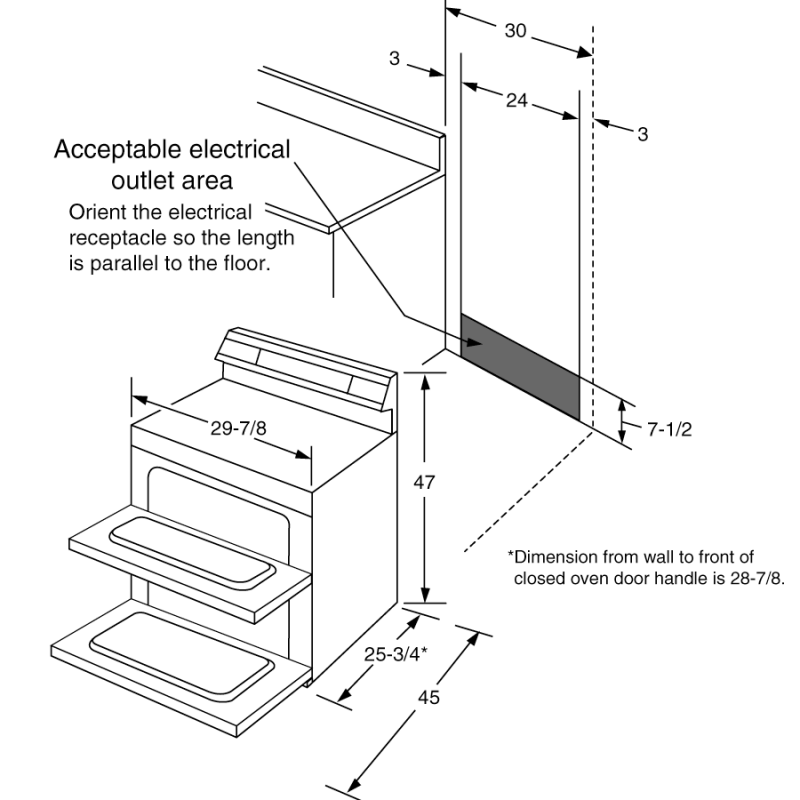

WEIGHTS & DIMENSIONS
| Overall Width | 29.875 in |
| Overall Depth | 28.875 in |
| Overall Height | 47 in |
| Net Weight | 214 lb |
| Approximate Shipping Weight | 235 lb |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 47 in. |
| Length | 28.88 in. |
| Weight | 214 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52 in. |
| Shipping Length | 33.88 in. |
| Shipping Weight | 254 lbs. |
| Total of Shipping Weight | 254 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.46 ft³ |
| Dimensional Weight | 291.68 lbs. |
| Total of Cubes | 23.46 ft³ |
| Total of Dimensional Weight | 291.68 lbs. |
FEATURES
| 6"/9" Dual Heating Element | 1 Ribbon (3,000W Power Boil) |
| Configuration | Double Oven Range |
| Oven Features | Hidden Bake (Both Ovens) |
| Cleaning Time | Variable with Delay Clean Option |
| Melt Setting | Yes |
| Warming Zone | 1 Ribbon (120W) |
| Oven Cooking Modes | Thermal Bake / Thermal Roast |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 1 Upper / 2 Lower Oven Racks |
| Infinite Heat Controls | Yes |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 2 Ribbon (1,500W) |
| Oven Cleaning Type | Self-Clean (Both Ovens) |
| Hot Surface Indicator Lights | 1, Cooktop |
| Heating Element "ON" Indicator Light | 2 |
| 9"/12" Dual Heating Element | 1 Ribbon (3,000W) |
| Cooktop Surface | Patterned Graphite on Black Glass Ceramic |
| Control Location | Backsplash |
| Oven Rack Positions (Single or Upper/Lower) | 2 / 6 |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | Electronic |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Interior | Interior Oven Light |
POWER / RATINGS
| KW Rating at 240V | 14.2 |
| Bake Wattage | 2650W |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3600W |
| KW Rating at 208V | 10.7 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Clear View Oven Window |
| Handle | Color-Matched High-Gloss |
| Color Appearance | Black |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 6.6 cu ft |
| Capacity (Cu. Ft.) | 2.2 Upper / 4.4 Lower |
ACCESSORIES
| Cooktop Cleaning | Included |
