30" Free-Standing Electric Dual Cavity Range - JB850DTWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

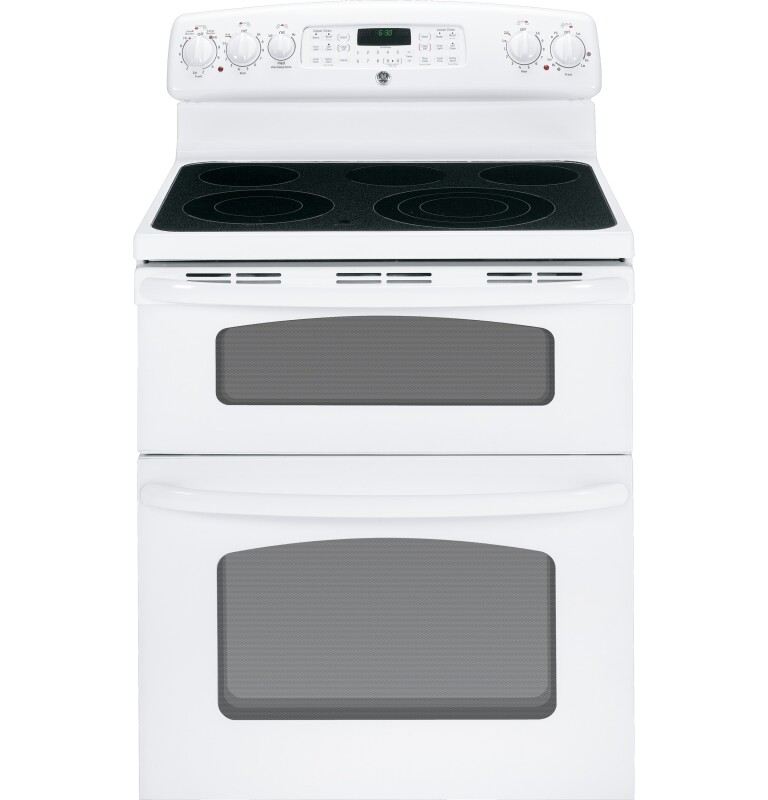

30" Free-Standing Electric Dual Cavity Range

Model: JB850DTWW

30" Free-Standing Electric Dual Cavity Range JB850DTWW30" Free-Standing Electric Dual Cavity Range JB850DTWW30" Free-Standing Electric Dual Cavity Range JB850DTWW
30" Free-Standing Electric Dual Cavity Range JB850DTWW
30" Free-Standing Electric Dual Cavity Range JB850DTWW
30" Free-Standing Electric Dual Cavity Range JB850DTWW

Product Video

GE 30" Free-Standing Electric Dual Cavity Range White JB850DTWW Picture
2 Videos

Color : White

30" Free-Standing Electric Dual Cavity Range JB850DTWW
White

Key Features

  • 6.6 cu. ft. total oven capacity

  • Self-clean oven

  • 12"/9"/6" tri-ring element

  • 9"/6" Power Boil element

  • Fifth element warming zone

  • TrueTemp oven system

  • Dual-element Bake

Description

Cleans the oven cavity without the need for scrubbing.Three heating elements in one offer flexibility.47 H x 29 7/8 W x 28 7/8 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

6.6 cu. ft. total oven capacity

Large capacity is ideal for big meals

Self-clean oven

Cleans the oven cavity without the need for scrubbing

12"/9"/6" tri-ring element

Three heating elements in one offer flexibility

9"/6" Power Boil element

Produces rapid, powerful heat

Fifth element warming zone

Provides low-heat capability for foods

TrueTemp oven system

Even heat distribution and maximum oven control

Dual-element Bake

Upper and lower elements produce even heat and great results

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

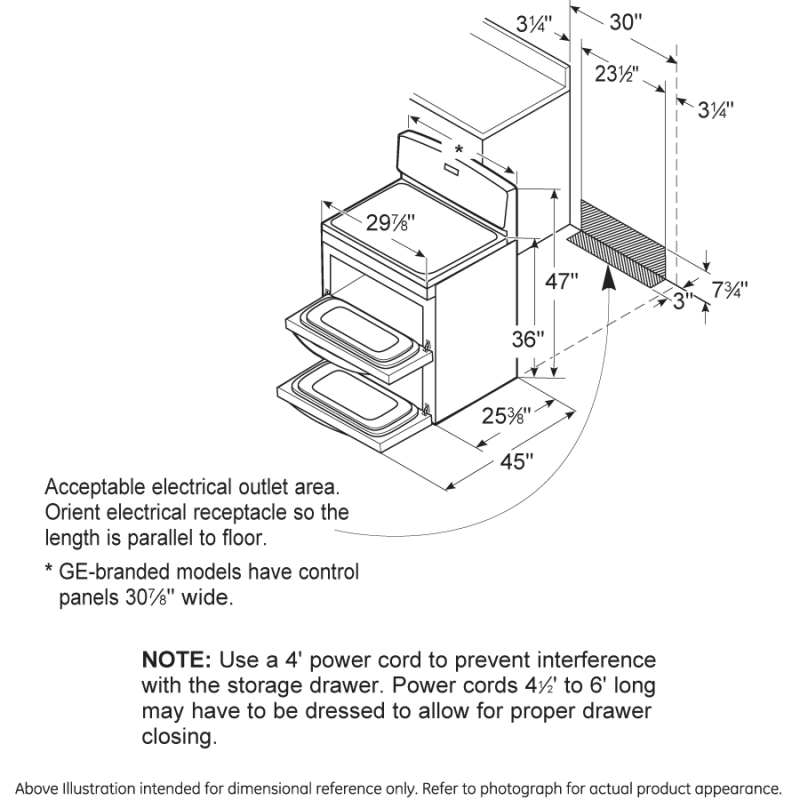

WEIGHTS & DIMENSIONS

Overall Height47 in
Net Weight201 lb
Oven Interior Dimensions (upper)24 x 8-7/8 x 18
Oven Interior Dimensions (lower)24 x 17 1/2 x 18 1/4
Cabinet Width30 in
Approximate Shipping Weight223 lb
Overall Depth28 7/8 in
Overall Width29 7/8 in

Other

Oven Interior Dimensions (upper)24 x 8-7/8 x 18
Oven Interior Dimensions (lower)24 x 17 1/2 x 18 1/4

Dimensions & Weight

Width29.88 in.
Height47 in.
Length28.88 in.
Weight201 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height52 in.
Shipping Length33.88 in.
Shipping Weight241 lbs.
Total of Shipping Weight241 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.46 ft³
Dimensional Weight291.68 lbs.
Total of Cubes23.46 ft³
Total of Dimensional Weight291.68 lbs.

FEATURES

6"/9" Dual Heating Element1 Ribbon (3,000W Power Boil)
ConfigurationDouble Oven Range
Oven FeaturesDual-Element Bake
Cleaning TimeVariable with Delay Clean Option
Oven InteriorInterior Oven Light
Warming Zone1-6" (120W)
Oven Cooking ModesThermal Bake / Thermal Roast
Cooktop Burner TypeSmoothtop
Oven Rack Features3 Heavy-Duty Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean (Both Ovens)
Hot Surface Indicator Lights1, Cooktop
6"/9"/12" Tri-Ring Element1 Ribbon (3,000W)
Heating Element "ON" Indicator Light2
Cooktop SurfaceOne-Piece Upswept
Control LocationBacksplash
Melt/Simmer SettingYes
Dishwasher Safe KnobsYes
Oven Rack Positions (Single or Upper/Lower)2 / 6
Control TypeElectronic
Self-Clean Oven Door LockAutomatic
Cooking TechnologyTraditional
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesTemperature Display in C or F
Control TypeDigiTemp Temperature Display
Cooktop Burner Type5 Ribbon
Cooktop SurfaceGray Patterned on Black Glass Ceramic
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesDigipad Numeric Entry
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesOven Function Icons
Oven Control FeaturesPreheat Oven Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesSlow Cook
Oven Control FeaturesStart Pad
Oven Features6-Pass Power Bake Element

POWER / RATINGS

KW Rating at 240V14.4
Bake Wattage2500W Upper / 2650 Lower
Amp Rating at 208V40
Broiler Wattage2500W Upper / 2650W Lower
KW Rating at 208V10.8
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesWhite Glass Frameless Lift-off Oven Door
Textured Steel Side PanelsYes
Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceWhite on White
Oven Door FeaturesBig Hearth Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Capacity (Cu. Ft.)2.2 Upper / 4.4 Lower
Total Capacity (cubic feet)6.60 cu ft

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream
