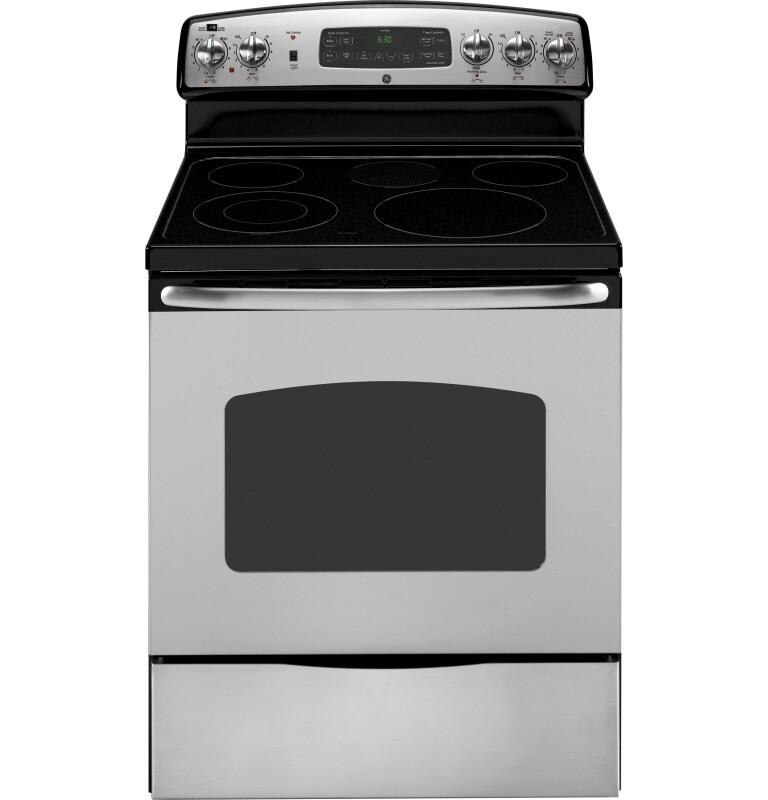

30" Free-Standing Electric Convection Range - JB680SPSS
30" Free-Standing Electric Convection Range
Model: JB680SPSS
30" Free-Standing Electric Convection Range
Model: JB680SPSS
Color : Stainless Steel
Key Features
Convection Bake
Super-large 5.3 cu. ft. oven capacity
Hidden bake oven interior
Self-clean oven
Warming zone (fifth element warming zone)
8"/5" Power Boil element
QuickSet IV oven controls
Big hearth window
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Convection Bake
This setting is optimal for baking casseroles or lasagnas, yeast breads, pies and pizzas with no need to turn the pan
Super-large 5.3 cu. ft. oven capacity
Provides an impressively large oven interior to cook more dishes and large meals at once
Hidden bake oven interior
Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning
Self-clean oven
Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
Warming zone (fifth element warming zone)
Simplify meals by keeping foods fresh from the oven warm and ready to serve
8"/5" Power Boil element
This powerful element supplies the intense heat needed for faster boiling, sautéing and stir frying
QuickSet IV oven controls
Feature an easy to use design which allows you to set precise cooking temperatures
Big hearth window
Elegant shaped window makes it easy to monitor the progress of food
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 161 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 201 lbs. |
| Total of Shipping Weight | 201 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Yes |
| Oven Interior | Hidden Bake |
| 5"/8" Dual Heating Element | 1 Ribbon (2,400W Power Boil) |
| Warming Zone | 1 Ribbon (120W) |
| Oven Cooking Modes | Thermal Bake / Thermal Roast |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 2 Ribbon (1,500W) |
| Oven Cleaning Type | Self-Clean |
| Hot Surface Indicator Lights | 1 |
| Style | Smoothtop |
| Heating Element "ON" Indicator Light | 2 |
| Cooktop Surface | Patterned Black on Black Glass Ceramic |
| Preheated Oven Light | Display |
| Control Location | Backsplash |
| Melt/Simmer Setting | Yes |
| Dishwasher Safe Knobs | Yes |
| 12" Heating Element | 1 Ribbon (2,700W) |
| Cooking Technology | Convection |
| Control Type | Electronic |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Features | Dual-Element Bake |
| Oven Features | Hidden Bake |
| Oven Control Features | Start Pad |
| Control Type | Touchpads |
| Control Type | QuickSet IV |
| Control Type | DigiTemp Temperature Display |
| Cooktop Burner Type | Radiant |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Mis-Wire Detection |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | Convection Cook Pads |
| Oven Cooking Modes | Convection Bake |
| Oven Features | 6-Pass Broil Element |
| Style | Free-Standing |

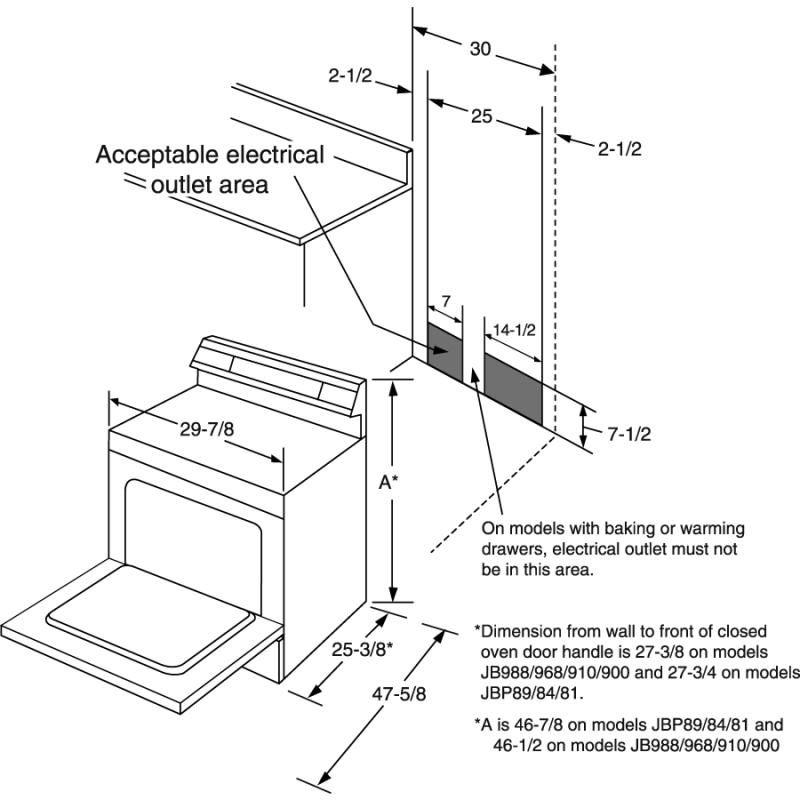

WEIGHTS & DIMENSIONS
| Net Weight | 161 lb |
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 181 lb |
| Overall Depth | 27 3/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
POWER / RATINGS
| KW Rating at 240V | 10.5 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 7.9 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Stainless Frameless Lift-off Oven Door |
| Handle | 2007 SS D-Tube |
| Textured Steel Side Panels | Yes |
| Color Appearance | Stainless Steel |
| Oven Door Features | Clear View Oven Window |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.30 cu ft |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
ACCESSORIES
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Cream |
