30" Free-Standing Electric Convection Range - JB680DPBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Convection Range

Model: JB680DPBB

30" Free-Standing Electric Convection Range JB680DPBB30" Free-Standing Electric Convection Range JB680DPBB30" Free-Standing Electric Convection Range JB680DPBB
30" Free-Standing Electric Convection Range JB680DPBB
30" Free-Standing Electric Convection Range JB680DPBB
30" Free-Standing Electric Convection Range JB680DPBB

Color : Black

30" Free-Standing Electric Convection Range JB680DPBB
Black

Type : Electric

ElectricGas

Key Features

  • Convection Bake

  • Super-large 5.3 cu. ft. oven capacity

  • Hidden bake oven interior

  • Self-clean oven

  • Warming zone (fifth element warming zone)

  • 8"/5" Power Boil element

  • QuickSet IV oven controls

  • Big hearth window

Description

Provides an impressively large oven interior to cook more dishes and large meals at once.Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Convection Bake

This setting is optimal for baking casseroles or lasagnas, yeast breads, pies and pizzas with no need to turn the pan

Super-large 5.3 cu. ft. oven capacity

Provides an impressively large oven interior to cook more dishes and large meals at once

Hidden bake oven interior

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Warming zone (fifth element warming zone)

Simplify meals by keeping foods fresh from the oven warm and ready to serve

8"/5" Power Boil element

This powerful element supplies the intense heat needed for faster boiling, sautéing and stir frying

QuickSet IV oven controls

Feature an easy to use design which allows you to set precise cooking temperatures

Big hearth window

Elegant shaped window makes it easy to monitor the progress of food

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

FEATURES

ConfigurationRange with Storage Drawer
Storage Drawer FeaturesRemovable Full-Width
Interior Oven LightYes
Oven InteriorHidden Bake
5"/8" Dual Heating Element1 Ribbon (2,400W Power Boil)
Warming Zone1 Ribbon (120W)
Oven Cooking ModesThermal Bake / Thermal Roast
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights1
StyleSmoothtop
Heating Element "ON" Indicator Light2
Cooktop SurfacePatterned Black on Black Glass Ceramic
Preheated Oven LightDisplay
Control LocationBacksplash
Melt/Simmer SettingYes
Dishwasher Safe KnobsYes
Cooking TechnologyConvection
12" Heating Element1 Ribbon (2,700W)
Control TypeElectronic
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven FeaturesDual-Element Bake
Oven FeaturesHidden Bake
Oven Control FeaturesStart Pad
Control TypeTouchpads
Control TypeQuickSet IV
Control TypeDigiTemp Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSabbath Mode
Oven Control FeaturesMis-Wire Detection
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesConvection Cook Pads
Oven Cooking ModesConvection Bake
Oven Features6-Pass Broil Element
StyleFree-Standing

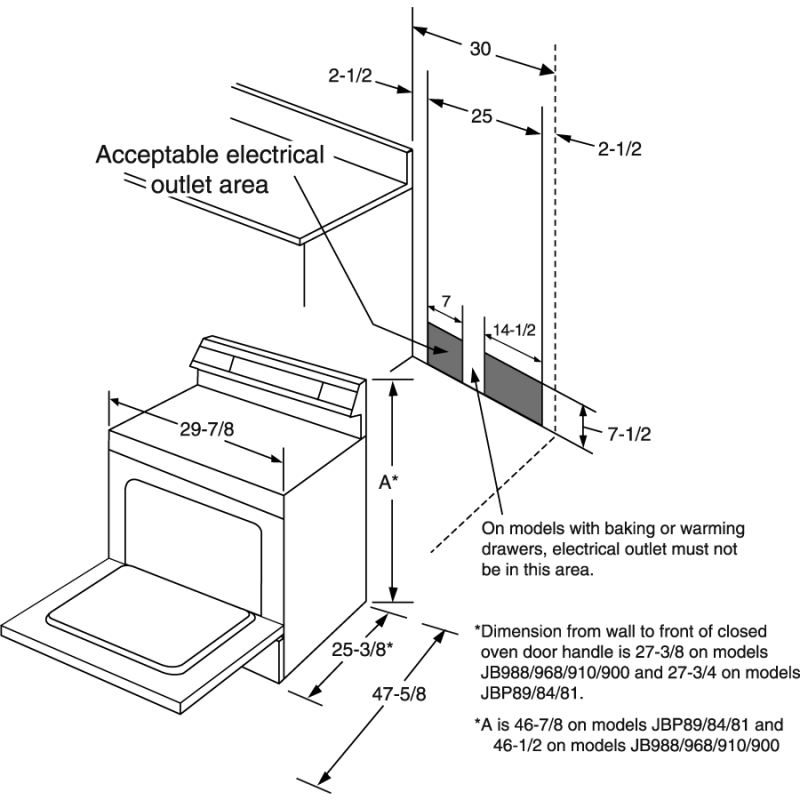

WEIGHTS & DIMENSIONS

Net Weight156 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight176 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V10.5
Amp Rating at 208V40
KW Rating at 208V7.9
Amp Rating at 240V40

CAPACITY

Unit CapacitySuper Large Oven
Total Capacity (cubic feet)5.30 cu ft

APPEARANCE

HandleColor-Matched High-Gloss
Textured Steel Side PanelsYes
Color AppearanceBlack
Oven Door FeaturesClear View Oven Window
Oven Door FeaturesFrameless Lift-off Oven Door
Oven Door FeaturesBlack Frameless Glass Door

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight156 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight196 lbs.
Total of Shipping Weight196 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream
