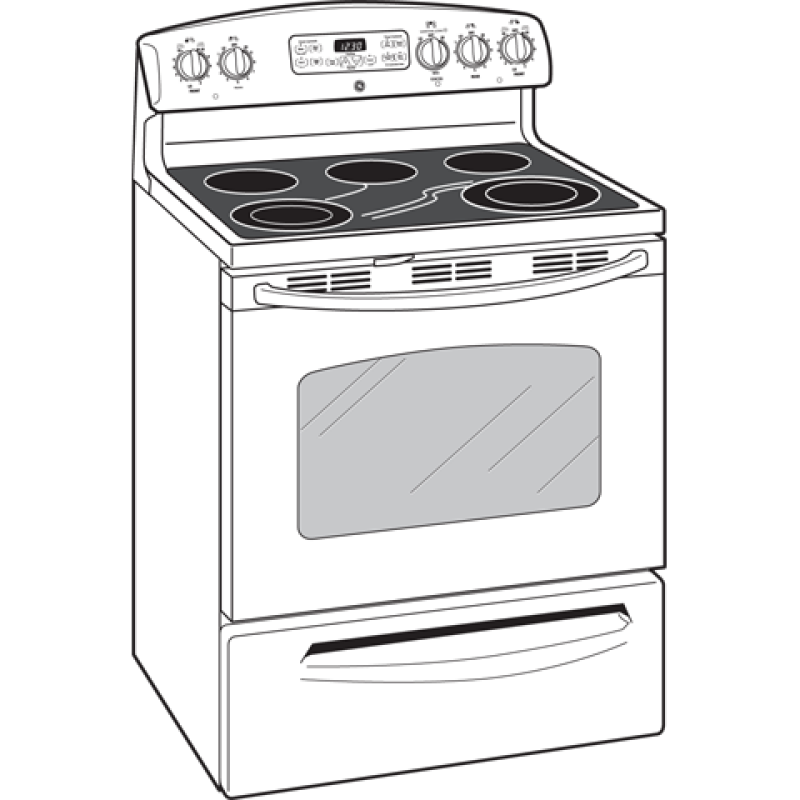

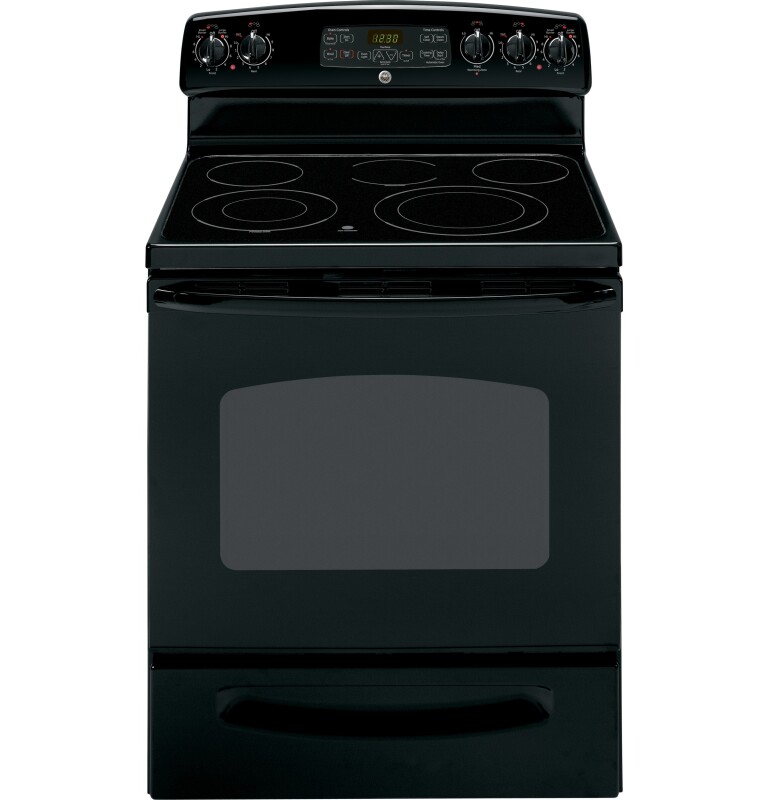

30" Free-Standing Electric Range - JB650DTBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Electric Range

Model: JB650DTBB

30" Free-Standing Electric Range JB650DTBB30" Free-Standing Electric Range JB650DTBB30" Free-Standing Electric Range JB650DTBB
30" Free-Standing Electric Range JB650DTBB
30" Free-Standing Electric Range JB650DTBB
30" Free-Standing Electric Range JB650DTBB

Color : Black

30" Free-Standing Electric Range JB650DTBB
Black

Type : Electric

ElectricGas

Key Features

  • Self-clean with Steam Clean option

  • 5.3 cu. ft. oven capacity

  • 12"/9" dual element

  • 9"/6" Power Boil element

  • Fifth element warming zone

  • Hidden bake oven interior

  • TrueTemp oven system

Description

Enough room to cook an entire meal at once.Choose a 12" or 9" heating element.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean with Steam Clean option

Gives the option of self-cleaning or steam cleaning

5.3 cu. ft. oven capacity

Enough room to cook an entire meal at once

12"/9" dual element

Choose a 12" or 9" heating element

9"/6" Power Boil element

Produces rapid, powerful heat

Fifth element warming zone

Provides low-heat capability for foods

Hidden bake oven interior

Conceals the lower oven element to simplify cleaning

TrueTemp oven system

Even heat distribution and maximum oven control

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight154 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight194 lbs.
Total of Shipping Weight194 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

FEATURES

6"/9" Dual Heating Element1 Ribbon (3,000W Power Boil)
ConfigurationRange with Storage Drawer
Oven FeaturesDual-Element Bake
Cleaning TimeVariable with Delay Clean Option
Storage Drawer FeaturesRemovable Full-Width
Melt SettingYes
Oven InteriorInterior Oven Light
Warming Zone1-6" Ribbon (120W)
Oven Cooking ModesThermal Bake / Thermal Roast
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean with Steam Clean Option
Hot Surface Indicator Lights1, Cooktop
Heating Element "ON" Indicator Light2
9"/12" Dual Heating Element1 Ribbon (3,000W)
Cooktop SurfacePatterned Graphite on Black Glass Ceramic
Control LocationBacksplash
Dishwasher Safe KnobsYes
Oven Rack Positions (Single or Upper/Lower)6
Cooking TechnologyTraditional
Control TypeElectronic
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesStart Pad
Control TypeTouchpads
Control TypeDigiTemp Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Oven Control FeaturesDelay Bake Option
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesHi / Low Broil
Oven Control FeaturesPreheat Oven Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Features6-Pass Broil Element
Oven InteriorHidden Bake

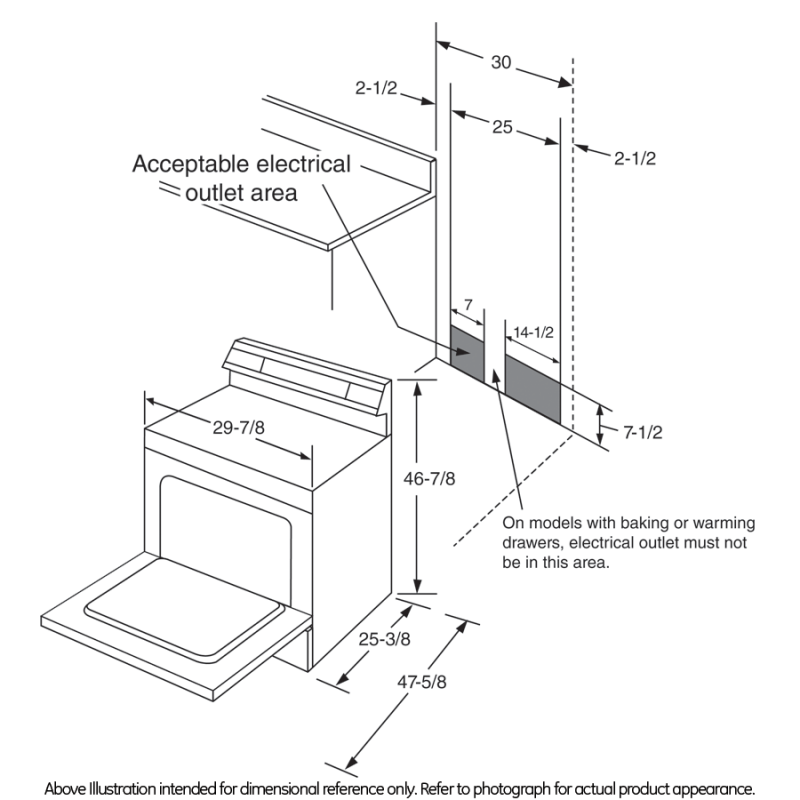

WEIGHTS & DIMENSIONS

Net Weight154 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/2 x 19-3/8
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight175 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V13.0
Bake Wattage2850W
Amp Rating at 208V40
Broiler Wattage3800W
KW Rating at 208V10.8
Amp Rating at 240V40

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

APPEARANCE

Textured Steel Side PanelsYes
Control KnobsColor-Matched
Handle DesignD-shaped
Handle ColorColor-Matched
Color AppearanceBlack on Black
Oven Door FeaturesBlack Frameless Glass Door
Oven Door FeaturesFrameless Lift-off Oven Door
Oven Door FeaturesBig Hearth Oven Window

ACCESSORIES

Cooktop CleaningIncluded
Cooktop CleaningSponge
Cooktop CleaningCream

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
