Home/Cooking/Ranges/Freestanding Ranges/JB640DPCC

30" Free-Standing Electric Range - JB640DPCC

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

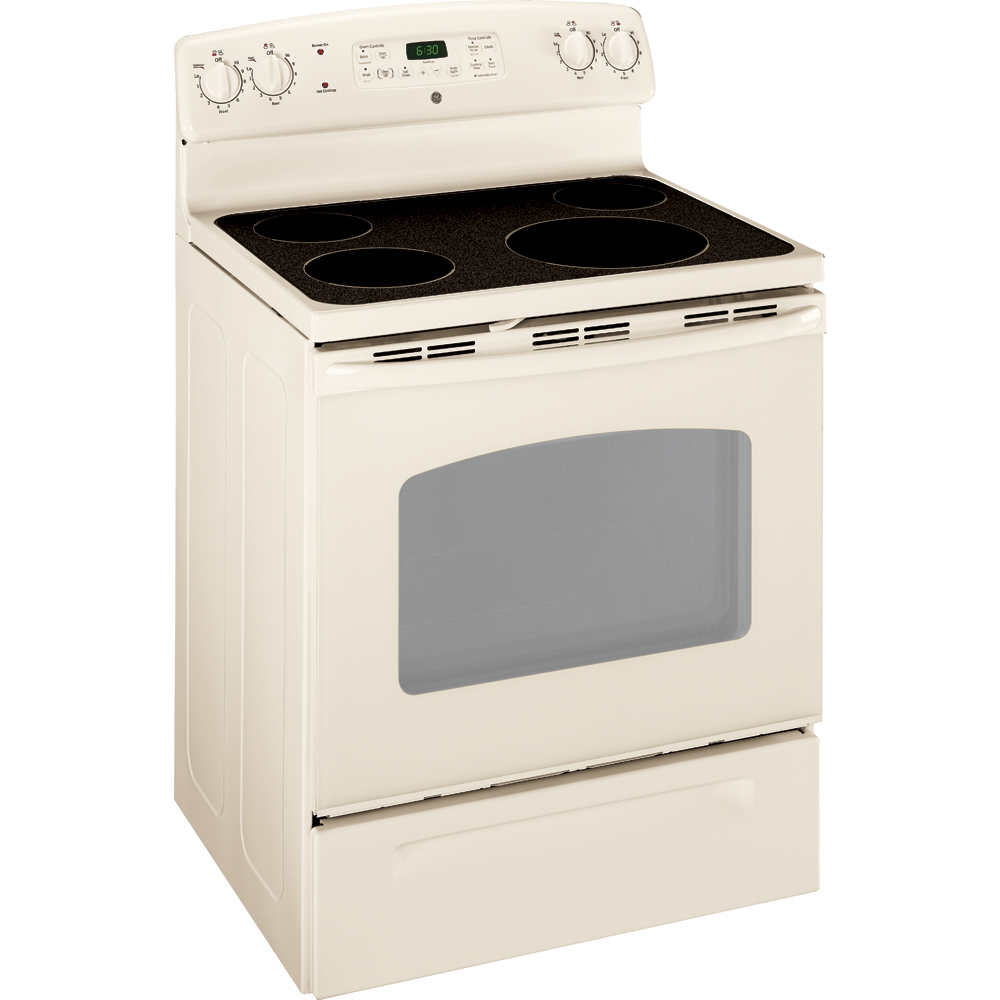

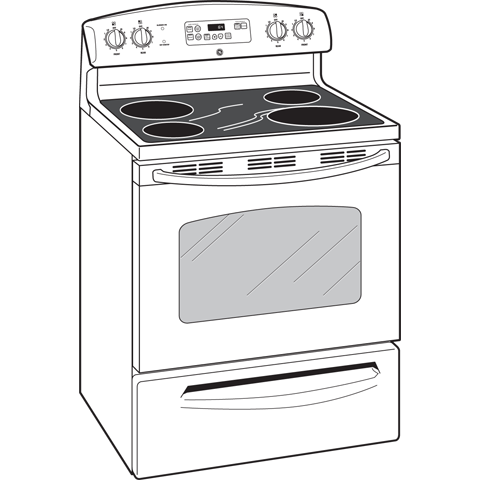

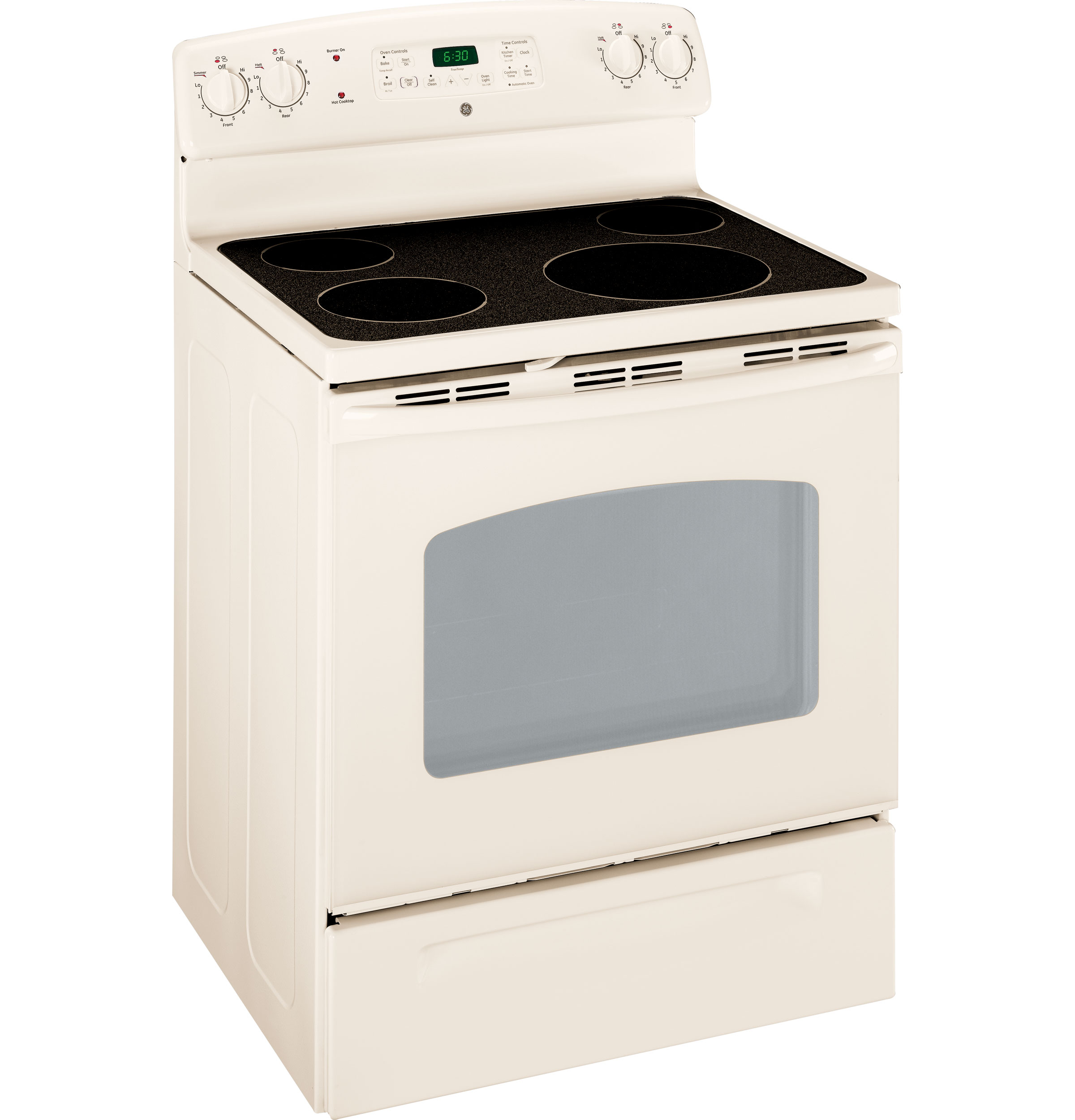

30" Free-Standing Electric Range

Model: JB640DPCC

30" Free-Standing Electric Range JB640DPCC30" Free-Standing Electric Range JB640DPCC30" Free-Standing Electric Range JB640DPCC30" Free-Standing Electric Range JB640DPCC
30" Free-Standing Electric Range JB640DPCC
30" Free-Standing Electric Range JB640DPCC
30" Free-Standing Electric Range JB640DPCC
30" Free-Standing Electric Range JB640DPCC

Color : Bisque

30" Free-Standing Electric Range JB640DPCC
Bisque

Type : Electric

ElectricGas

Key Features

  • Self-clean oven

  • Super-large oven capacity

  • QuickSet oven controls

  • 12" element

  • Big hearth window

  • Dual-element bake

  • Ribbon heating elements

Description

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking.Electronic touch pads on the control panel make controlling your oven effortless.46 7/8 H x 29 7/8 W x 27 3/4 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Super-large oven capacity

Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking

QuickSet oven controls

Electronic touch pads on the control panel make controlling your oven effortless

12" element

Provides exceptional cooking power

Big hearth window

Elegant shaped window makes it easy to monitor the progress of food

Dual-element bake

This top-and-bottom heating produces uniform browning and fast oven preheating

Ribbon heating elements

Powerful heat beneath the smooth surface provides high-speed warm-up and even heating

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

FEATURES

ConfigurationRange with Storage Drawer
Oven FeaturesDual-Element Bake
Storage Drawer FeaturesRemovable Full-Width
Interior Oven LightYes
Oven Control FeaturesVariable Broil
Oven Cooking ModesThermal Bake / Thermal Roast
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
6" Heating Element(s)2 Ribbon (1,500W)
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights1
StyleSmoothtop
Heating Element "ON" Indicator LightYes
Preheated Oven LightDisplay
Cooktop SurfacePatterned Bisque on Black Glass Ceramic
Control LocationBacksplash
8" Heating Element (s)1 Ribbon (2,000 watt)
Dishwasher Safe KnobsYes
Control TypeTouchpads
12" Heating Element1 Ribbon (2,700W)
Cooking TechnologyTraditional
Control TypeQuickSet III
Control TypeDigiTemp Temperature Display
Cooktop Burner TypeRadiant
Cooktop SurfaceOne-Piece Upswept
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesSelf-Cleaning Cycling Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesSabbath Mode
Oven Control FeaturesMis-Wire Detection

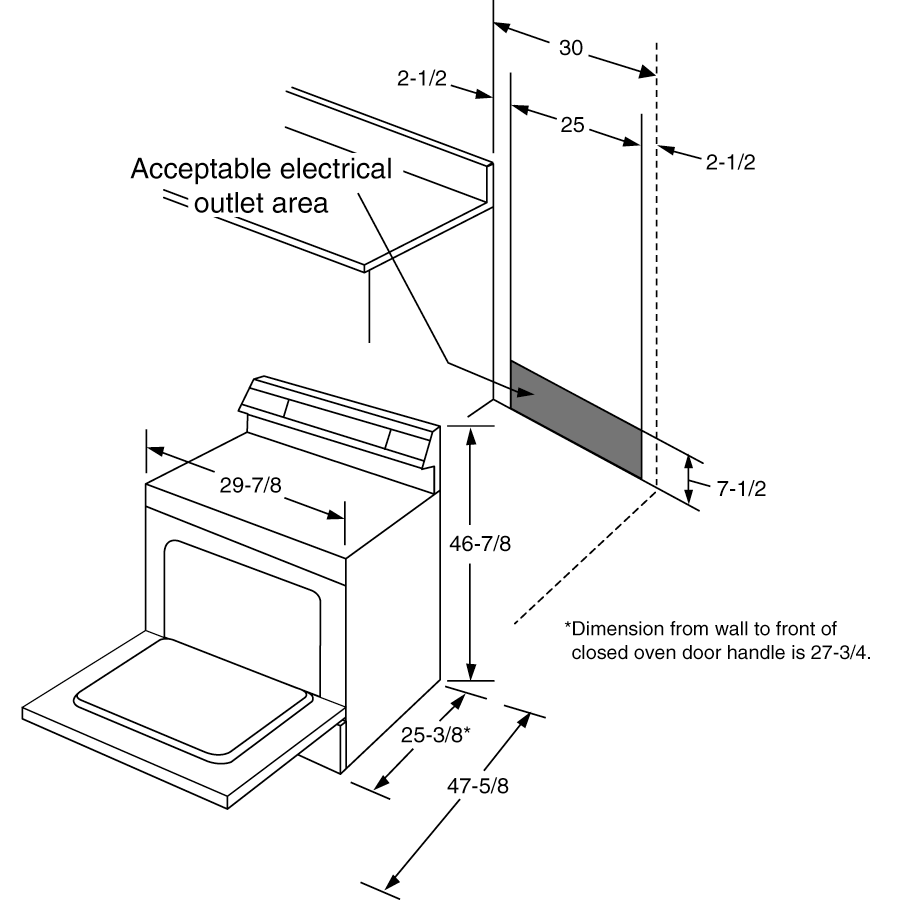

WEIGHTS & DIMENSIONS

Net Weight146 lb
Depth Without Handle25.375 in
Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/4 x 19-1/2
Depth with Door Open47.625 in
Cabinet Width30 in
Approximate Shipping Weight166 lb
Overall Depth27 3/4 in
Overall Height46 7/8 in
Overall Width29 7/8 in

POWER / RATINGS

KW Rating at 240V10.5
Amp Rating at 208V40
KW Rating at 208V7.9
Amp Rating at 240V40

APPEARANCE

Oven Door FeaturesHearth Oven Window
HandleColor-Matched High-Gloss
Color AppearanceBisque on Bisque
Oven Door FeaturesFrameless Lift-off Oven Door

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

ACCESSORIES

Cooktop CleaningSponge
Cooktop CleaningCream
Cooktop CleaningIncluded

Other

Oven Interior Dimensions (W x H x D) (in.)24-1/8 x 19-1/4 x 19-1/2

Dimensions & Weight

Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight146 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.88 in.
Shipping Height51.88 in.
Shipping Length32.75 in.
Shipping Weight186 lbs.
Total of Shipping Weight186 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.49 ft³
Dimensional Weight279.57 lbs.
Total of Cubes22.49 ft³
Total of Dimensional Weight279.57 lbs.

CAPACITY

Total Capacity (cubic feet)5.30 cu ft
