$744.00
Was$832.00Save $88.00 (11%)

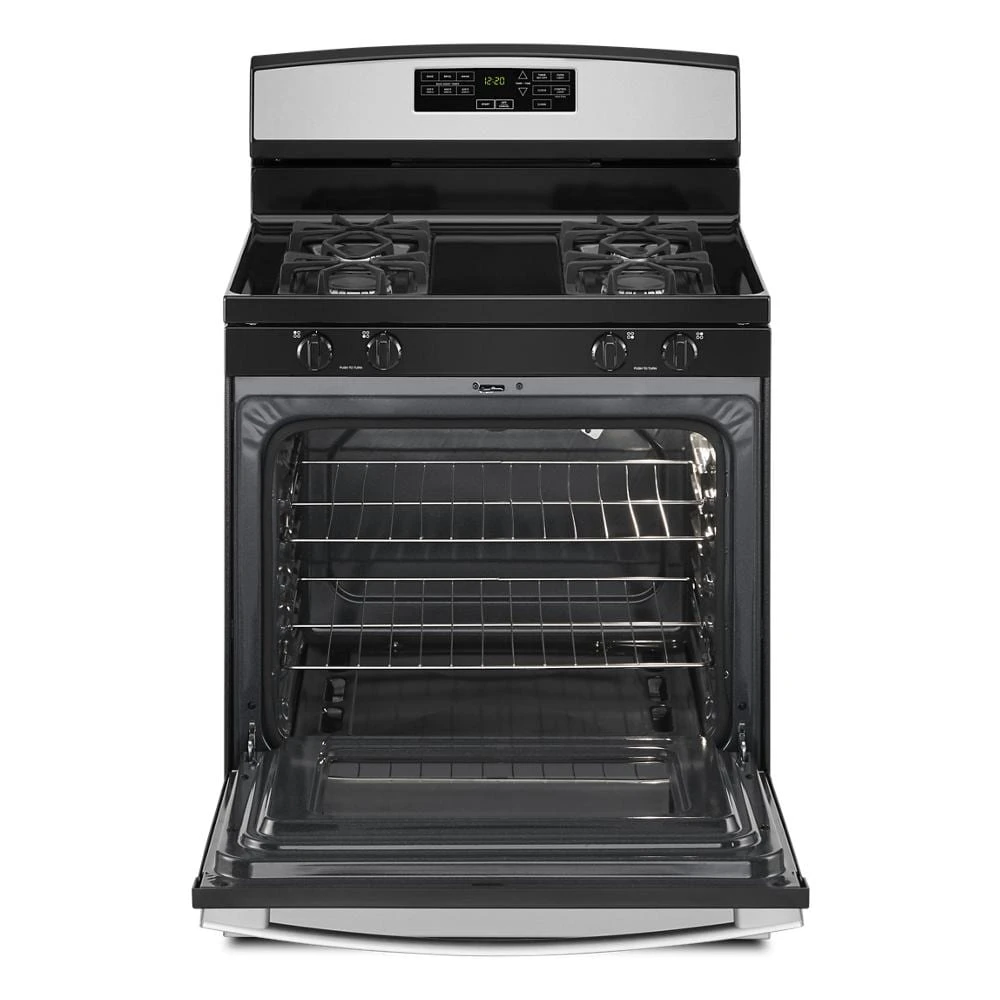

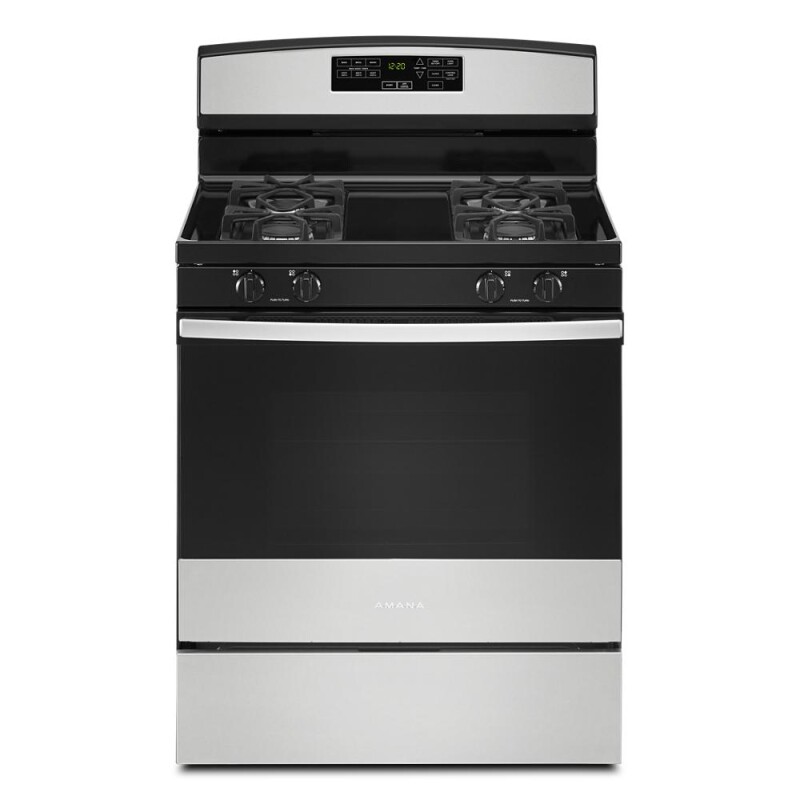

30-inch Gas Range with Self-Clean Option - AGR6603SMS
$744.00
Was$832.00Save $88.00 (11%)
Key Features
Sealed Burners
Bake Assist Temps
Warm Hold
EasyAccess™ Broiler Door
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Sealed Burners
Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
Bake Assist Temps
Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
Warm Hold
Warm Hold delivers low heat to the oven so dishes are ready to serve when you are.
EasyAccess™ Broiler Door
The EasyAccess™ broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.
Specifications

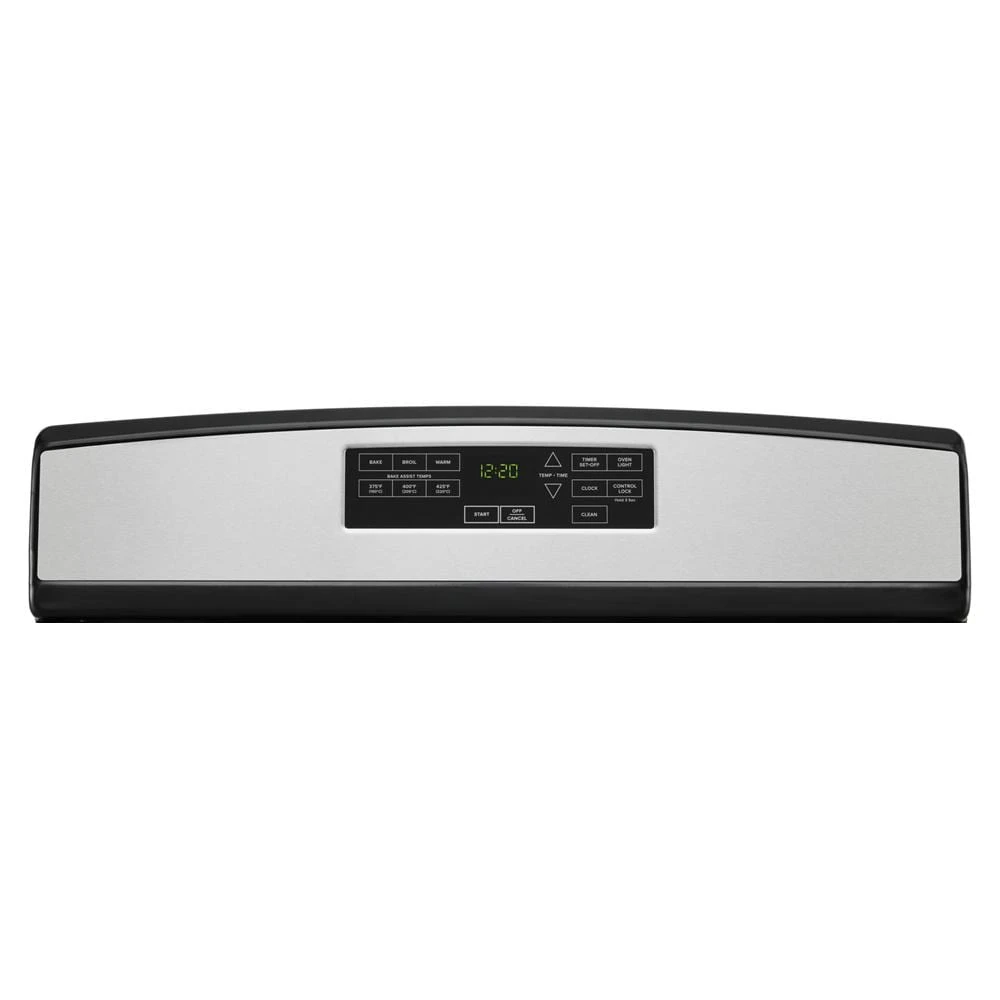

Controls
| Display Color | Green |
| Electronic Display Type | LED |
Cooktop Details
| Auto Re-ignition | No |
| Cooktop Control Knob Color | Black |
| Cooktop Control Knob Type | Plastic |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Ignition Type | Electronic |
| Cooktop Surface Material | Porcelain Coated Steel |
| Griddle Included | N/A |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
Certifications
| ADA Compliant | No |
| UL | Yes |
| Prop 65 | Yes |
Other
| Capacity (Cu Ft) | 5.00 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.25 in. |
| Length | 27.2 in. |
| Weight | 163 lbs. |
| Carton Depth | 30 |
| Carton Height | 49 |
| Carton Width | 32 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 36 |
| Cutout Width (in) | 30 1/8 |
| Depth Closed Excluding Handles | 22.9 |
| Depth Closed Including Handles | 25 1/25 |
| Depth With Door Open 90 Degree | 45.78 |
| Gross Weight | 179 |
| Net Weight | 163.0 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 36.0000 |
| Cutout Width(IN,inches) | 30.1250 |
| Depth Closed Excluding Handles(IN,inches) | 22.9000 |
| Depth Closed Including Handles(IN,inches) | 25.5500 |
| Depth With Door Open 90 Degree(IN,inches) | 45.7800 |
| Maximum Height(IN,inches) | 37.0000 |
| Minimum Height(IN,inches) | 36.0000 |
| Carton Depth(IN,inches) | 30.0000 |
| Carton Height(IN,inches) | 49.0000 |
| Carton Width(IN,inches) | 32.0000 |
| Cutout Height Min(IN,inches) | 36.0000 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 32.2 in. |
| Shipping Weight | 203 lbs. |
| Total of Shipping Weight | 203 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.75 ft³ |
| Dimensional Weight | 270.42 lbs. |
| Total of Cubes | 21.75 ft³ |
| Total of Dimensional Weight | 270.42 lbs. |
Details
| Cooktop Configuration | All Burners |
| Fuel Type | Gas |
| LP Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |
| Range Type | Freestanding |
| Natural Gas Convertible | Yes |
| Oven Selections | Audible Signal, Bake, Bake Assist Temps, Broil, Cancel/Off, Clock, Control Lock, Keep Warm/Warm Hold, Sabbath Mode, Timer |
Element/Burner Details
| Cooktop Element Style | Sealed Burner |
| Left Front Element-Burner Type | Standard |
| Left Rear Element-Burner Type | Standard |
| Number of Cooking Element-Burners | 4 |
| Right Front Element-Burner Type | Standard |
| Right Rear Element-Burner Type | Standard |
| Left Front Element-Burner Power | 11,500 BTU |
| Left Rear Element-Burner Power | 9,500 BTU |
| Number of Grates | 2 |
| Right Front Element-Burner Power | 9,500 BTU |
| Right Rear Element-Burner Power | 5,000 BTU |
Exterior Details
| Door Type | Glass |
| Oven Control Knob Type | Plastic |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
| Handle Color | Black |
| Handle Material | Plastic |
| Handle Type | Reach Through Handle |
| Oven Control Knob Color | Black |
Grate Details
| Number of Grates | 2 |
| Grate Details | Dishwasher Safe, Flower Wire, Gloss Finish, Wire Grates |
Smart Compatibility
| Connectivity | No |
Oven Cavity Details
| Automatic Convection Conversion Temperature Adjust | No |
| Bake Element Power | 16,500 BTU |
| Broiler Element Power | 16,500 BTU |
| Broiler Location | Top of Oven |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Natural Gas Convertible | Yes |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Self-Cleaning |
| Oven Cooking System | Thermal |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard (Both) |
Dimensions
| Capacity | 5 cu. ft. |
| Common Size | 30 in |
| Cutout Depth | 24 in |
| Cutout Height | 36 in |
| Cutout Width | 30-1/8 in |
| Depth | 27-1/5 in |
| Depth Closed Excluding Handles | 22-9/10 in |
| Depth Closed Including Handles | 25-11/20 in |
| Depth With Door Open 90 Degree | 45-39/50 in |
| Gross Weight | 179 lbs |
| Height | 46-1/4 in |
| Maximum Height | 37 in |
| Minimum Height | 36 in |
| Net Weight | 163 lbs |
| Oven Interior Depth | 19 in |
| Oven Interior Height | 18-3/8 in |
| Oven Interior Width | 25 in |
| Width | 29-7/8 in |
