30" Drop-In Electric Range with Self-Cleaning Oven - JDP42STSS

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Drop-In Electric Range with Self-Cleaning Oven

Model: JDP42STSS

30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS
30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS
30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS
30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS
30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS
30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS
+3more

Product Video

GE 30" Drop-In Electric Range with Self-Cleaning Oven Stainless Steel JDP42STSS Picture

Color : Stainless Steel

30" Drop-In Electric Range with Self-Cleaning Oven JDP42STSS
Stainless Steel

Key Features

  • Self-clean oven

  • Electronic oven controls

  • Ribbon heating elements

  • 9"/6" Power Boil element

Description

Electronic touch pads are easy to operate.Consistent heat and glass surface provide fast, even heating.27 H x 31 1/4 W x 28 1/2 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Self-clean oven

Cleans the oven cavity without the need for scrubbing

Electronic oven controls

Electronic touch pads are easy to operate

Ribbon heating elements

Consistent heat and glass surface provide fast, even heating

9"/6" Power Boil element

Produces rapid, powerful heat

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

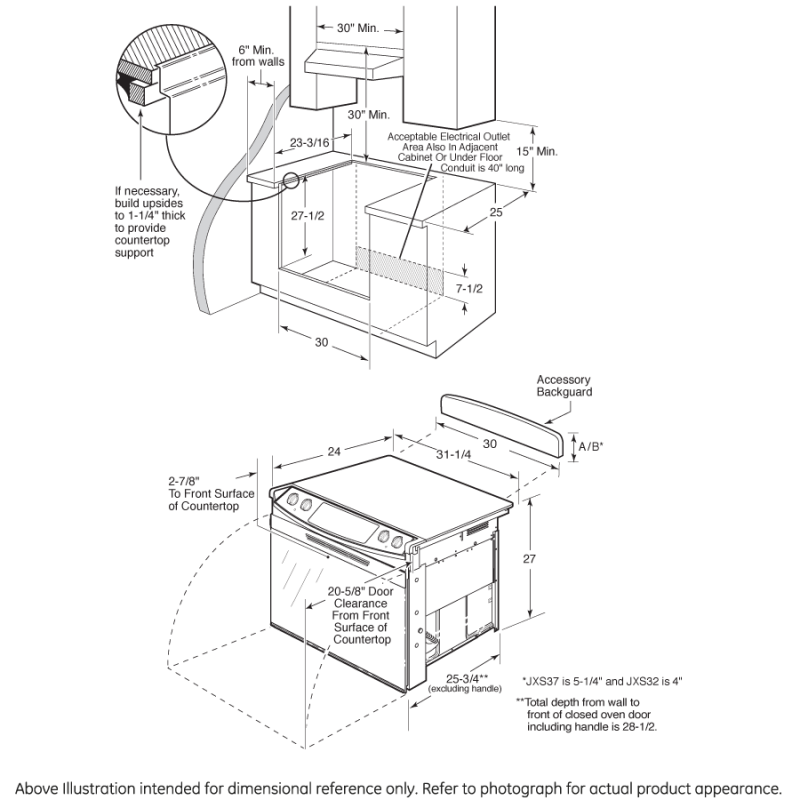

WEIGHTS & DIMENSIONS

Overall Height27 in
Net Weight163 lb
Depth Without Handle25.75 in
Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
Depth with Door Open 90°47 in
Cooktop Width31.25 in
Cabinet Opening30 in
Cabinet Width30 in
Approximate Shipping Weight184 lb
Overall Depth28 1/2 in
Overall Width31 1/4 in

POWER / RATINGS

KW Rating at 240V11.6
Bake Wattage3400W
Amp Rating at 208V40
Broiler Wattage3600W
KW Rating at 208V8.7
Amp Rating at 240V40

FEATURES

Element - Right Front9"/6" 3000W Power Boil
Oven Features6-Pass Broil Element
Cleaning TimeVariable with Delay Clean Option
Oven InteriorAuto Oven Interior Light
Cooktop Burner TypeSmoothtop
Oven Rack Features2 Oven Racks
Element - Left Front8" 2000W
Infinite Heat ControlsYes
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights4
Heating Element "ON" Indicator Light2
Element - Left Rear8" 2000W
Element - Right Rear6" 1500W
Cooktop SurfaceOverhanging Cooktop Patterned Gray
Control LocationUpfront
Dishwasher Safe KnobsYes
Oven Rack Positions (Single or Upper/Lower)7
Control TypeDigital Temperature Display
Self-Clean Oven Door LockAutomatic
Cooking TechnologyTraditional
Oven Control FeaturesAuto Oven Shut-Off with Override
Oven Control FeaturesTemperature Display
Cooktop Burner Type4 Ribbon
Cooktop SurfaceBlack Ceramic Glass
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesC° or F° Programmable
Oven Control FeaturesSabbath Mode
Oven Control FeaturesControl Lock Capability
Oven Control FeaturesDelay Bake Option With Cook & Hold
Oven Control FeaturesElectronic Clock & Kitchen Timer
Oven Control FeaturesStart Pad
Oven Features6-Pass Bake Element

ACCESSORIES

Optional Maintop FillerJXS66BB (Black)
Optional BackguardJXS37BB (Black)
Optional BackguardJXS32SS (Stainless Steel)

APPEARANCE

Oven Door FeaturesFrameless Oven Door
InstallationFlush Appearance
Control KnobsPlastic
Handle DesignD-shaped
Handle ColorStainless Steel
Color AppearanceStainless Steel
Oven Door FeaturesBig Hearth Oven Window

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
Cabinet Opening30 in

Dimensions & Weight

Width31.25 in.
Height27 in.
Length28.5 in.
Weight163 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width36.25 in.
Shipping Height32 in.
Shipping Length33.5 in.
Shipping Weight203 lbs.
Total of Shipping Weight203 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement13.92 ft³
Dimensional Weight173 lbs.
Total of Cubes13.92 ft³
Total of Dimensional Weight173 lbs.

CAPACITY

Total Capacity (cubic feet)4.40 cu ft
