$5,649.00

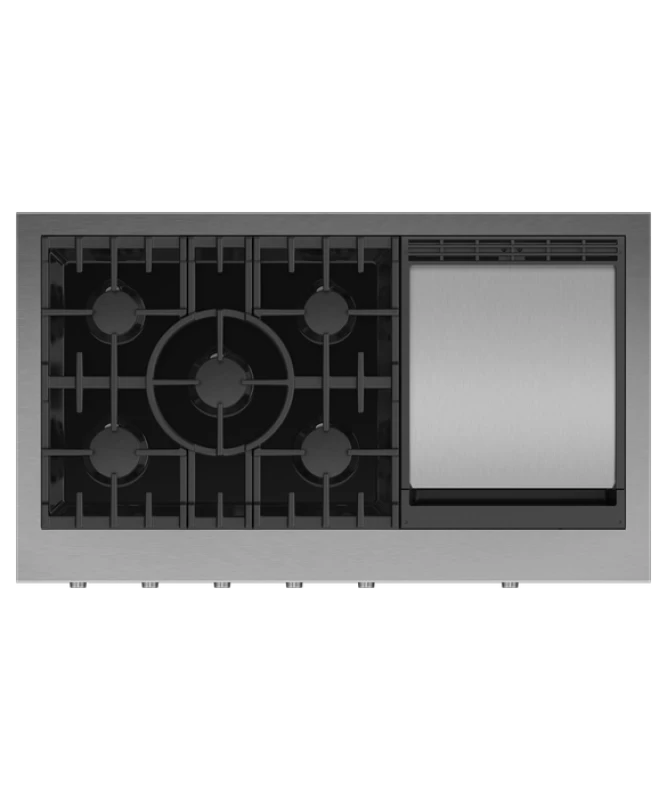

Gas Rangetop, 48", Griddle - CPV3485GDN
$5,649.00
Color : Stainless Steel
Key Features
Cooktop Power
Precise Control
Cooking Flexibility
Easy To Clean
Information At A Glance
Design Quality
Documents
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Specifications
Features
Cooktop Power
Precise Control
Cooking Flexibility
Easy To Clean
Information At A Glance
Design Quality
Specifications
Other
| Yes |
Burner ratings
| Yes | |
| Max burner power | Yes |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
| Power front centre | 23,500 BTU |
| Power front left | 18,500 BTU |
| Power front right | 18,500 BTU |
| Power griddle | 24,000 BTU |
| Total cooktop power | 121,500 BTU |
Cleaning
| Yes | |
| Easy clean porcelain basepan | Yes |
Controls
| Yes | |
| Metal illuminated dials | Yes |
| Star K Certification | Yes |
| Titanium coated, illuminated metal dials | Yes |
Gas Requirements
| Yes | |
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
Performance
| Yes | |
| Sealed Dual Flow Burners™ | 5 |
| Sealed cooking surface | Yes |
| Sealed range top | Yes |
| Simmer on all burners | 140°F |
Power requirements
| Yes | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Recommended Back Guards Ventilation
| Yes | |
| Combustible situation | BGCV2-3048H |
| Non combustible situation | BGCV2-3048 / BGCV2-1248 |
| Pro hood | HCB48-12_N |
Safety
| Yes | |
| ADA compliant | Yes |
Warranty
| Yes | |
| Parts and labor | 2 years |
Zone ratings
| Yes | |
| Front right | 18500 BTU |
Dimensions & Weight
| Width | 47 in. |
| Height | 8 in. |
| Length | 28 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52 in. |
| Shipping Height | 13 in. |
| Shipping Length | 33 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.09 ft³ |
| Dimensional Weight | 75.74 lbs. |
| Total of Cubes | 6.09 ft³ |
| Total of Dimensional Weight | 75.74 lbs. |
