500 Series Gas Cooktop 24" - NGM5456UC
Key Features
Automatic re-ignition
Easy to clean, low-profile design
Slide your pans from burner to burner
11,500 BTU burner for optimal cooking results.
Heavy-duty metal knobs for a premium look and feel.
Electronic re-ignition will automatically re-ignite the burner in case the flame goes out.Close
Seamless, one-piece stainless steel design makes clean-up simple.
Continuous grates make moving heavy pots easier.
Documents
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Automatic re-ignition
The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever
Slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
11,500 BTU burner for optimal cooking results.
Heavy-duty metal knobs for a premium look and feel.
Electronic re-ignition will automatically re-ignite the burner in case the flame goes out.Close
The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
Seamless, one-piece stainless steel design makes clean-up simple.
Continuous grates make moving heavy pots easier.
Electronic re-ignition will automatically re-ignite the burner in case the flame goes out.
Specifications
Safety
| Safety | Without Safety |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

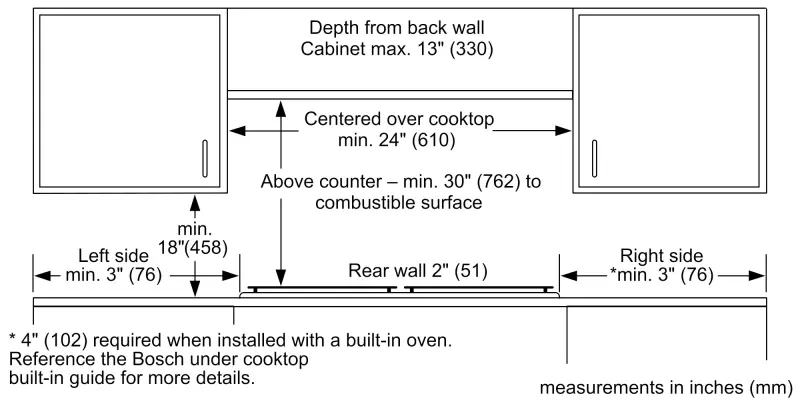

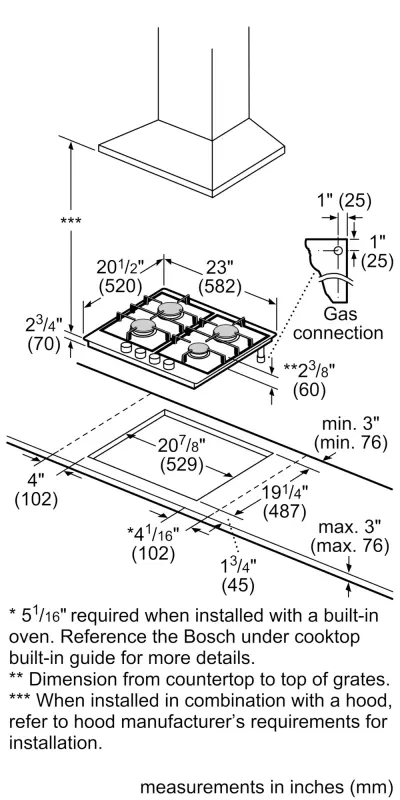

Installation
| Overall Appliance Dimensions (HxWxD) (in) | 2 3/4" x 23" x 20 1/2" |
| Required Cutout Size (HxWxD) (in) | 2 3/4" x 20 7/8" x 19 1/4" |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27,5 mbar (USA) |
| Plug Type | 120V-3 prong |
| Power Cord Length | 60" |
| Fuse protection | 15 A |
| Volts | 120 V |
| Product Packaging Dimensions (HxWxD) | 10.78 x 23.74 x 28.74 |
| Gas type preset | Natural gas 15 mbar (USA) |
General
| Total NG BTUs | 30800 Btu |
| Total LP BTUs | 27000 Btu |
Design
| Surface Materials | Stainless Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Location of Control Panel | Front |
Comfort and Convenience
| Number of Gas Burners | 4 |
| Sealed Burners | yes |
| Special Features | Reignition, Simmer Cap |
| Griddle | no |
| ADA Compliant (When Installed to ADA requirements) | no |
| OptiSim® Burner | no |
Dimensions & Weight
| Width | 23 in. |
| Height | 2.75 in. |
| Length | 20.5 in. |
| Weight | 32 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28 in. |
| Shipping Height | 7.75 in. |
| Shipping Length | 25.5 in. |
| Shipping Weight | 72 lbs. |
| Total of Shipping Weight | 72 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.75 ft³ |
| Dimensional Weight | 7.81 lbs. |
| Total of Cubes | 0.75 ft³ |
| Total of Dimensional Weight | 7.81 lbs. |
