$1,144.00

Was$1,309.00Save $165.00 (13%)

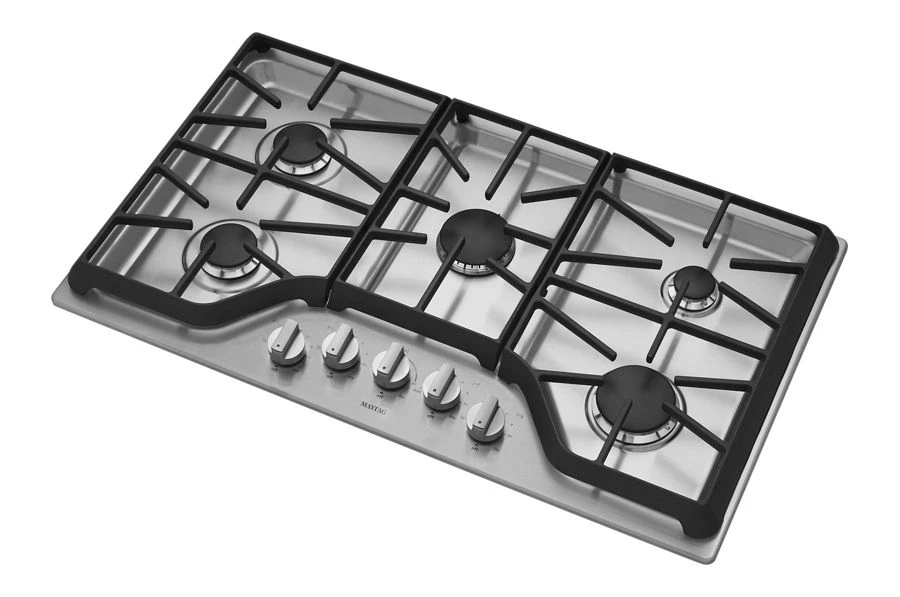

36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish - MGC9536DS

36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish

Model: MGC9536DS

36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS
36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS
36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS
36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS
36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS
36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS
+3more

360 View

360 icon

$1,144.00

Was$1,309.00Save $165.00 (13%)

Color : Stainless Steel

36-inch Wide Gas Cooktop with DuraGuard™ Protective Finish MGC9536DS

$1,144.00

Stainless Steel

Key Features

  • Power Simmer Dual Stack Burner

  • Simmer Burner with Melt Cap

  • Sealed Surface Burners

  • Designed, Engineered, and Assembled in the USA

  • 5 Burners

  • 10 Year Limited Parts Warranty

  • DuraClean™ Continuous Cast Iron Grates

  • DuraGuard™ Protective Finish

Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Power Simmer Dual Stack Burner

The Power simmer dual stacked burner gives you precise control over your cooktop, allowing you to boil water rapidly or gently hold low temperatures to simmer sauces - all with one burner.

Simmer Burner with Melt Cap

The simmer burner allows for adjustable heat control from 800 to 5,000 BTUs. The addition of a melt cap on the burner diffuses the flame for low-heat melting or warming without the need for constant monitoring.

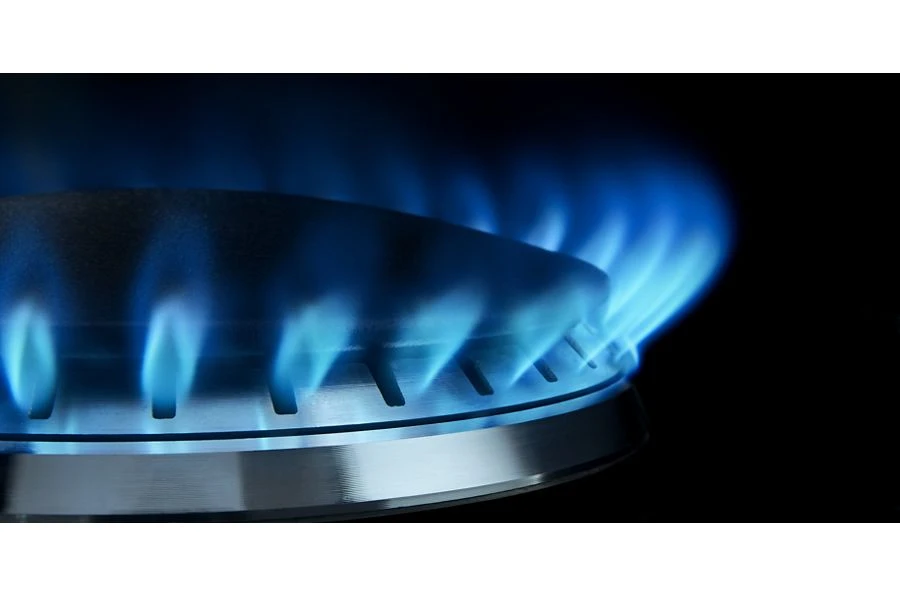

Sealed Surface Burners

These burners are sealed, creating a smooth surface for even heating, easy cleanup and extended grate life. Plus, it helps to keep food from falling below the cooktop.

Designed, Engineered, and Assembled in the USA

From Tennessee to you, these cooktops are designed, engineered and assembled in the U.S.A.

5 Burners

With an extra burner you have the flexibility to prepare all your meals without juggling pots and pans.

10 Year Limited Parts Warranty

With a 10-year limited parts warranty on the cooktop burners and cast-iron metal grates, we built these cooktops tough enough to keep cookin' for years.

DuraClean™ Continuous Cast Iron Grates

Dishwasher safe DuraClean™ cast-iron grates let pots and pans smoothly slide around the cooktop for fewer spills and easier transitions from burner to burner.

DuraGuard™ Protective Finish

The DuraGuard™ protective finish keeps the cooktop surface lookin' like new and cleans with ease year after year.

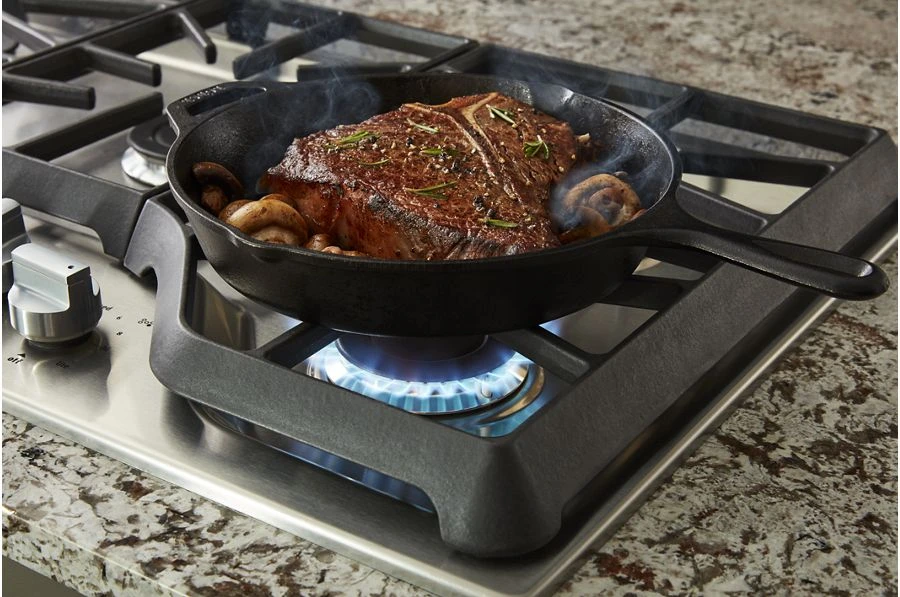

Power™ Burner

The Power™ Burner allows for a slow, even saute and the intense heat for a seared, juicy steak.

Specifications

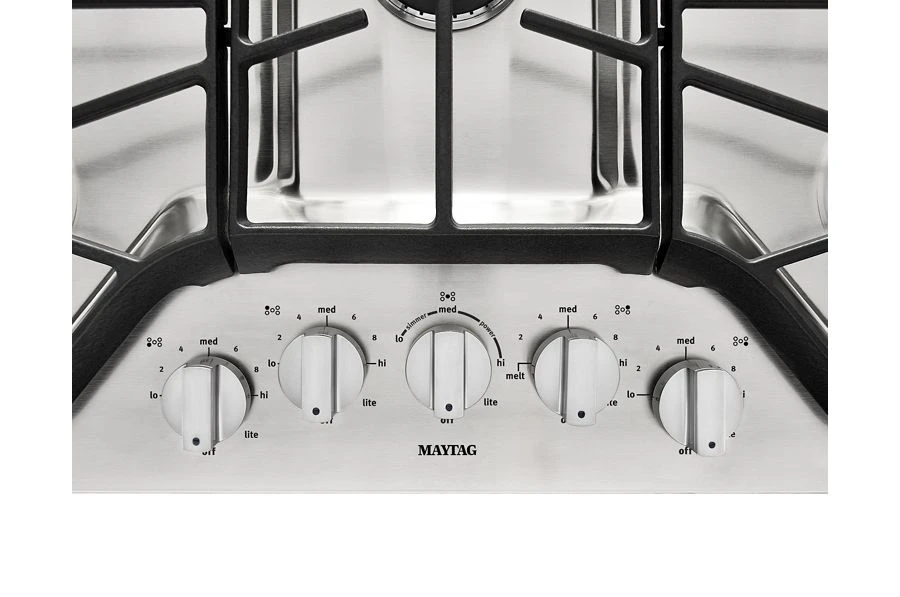

Controls

Control LocationFront
Control TypeKnobs

Cooktop Details

Cooktop Surface ColorColor Coordinated
Ignition TypeDirect Spark Ignition
Cooktop Surface MaterialStainless/Porcelain Coated Steel
Digital DisplayNo
Griddle IncludedN/A
Heating Element On Indicator LightNo
Hot Surface Indicator LightNo
Combination Match with OvenMEW9527, MEW9530
Installs Over Built-In OvenYes

Certifications

ADA CompliantADA Height and Side Reach Compliant
Prop 65Standard
ULYes

Electrical

Amps15
Hz60
Power Cord IncludedYes
Volts120

Dimensions & Weight

Width36 in.
Height3.69 in.
Length21 in.
Weight70 lbs.
Carton Depth25
Carton Height12 1/16
Carton Width44 7/16
Cutout Depth (in)19 15/16
Cutout Height (in)5 1/4
Cutout Width (in)34 1/2
Gross Weight70
Maximum Height4
Net Weight61.6
Cutout Depth Max(IN,inches)20.0000
Cutout Depth Min(IN,inches)19.0000
Cutout Depth(IN,inches)19.9375
Cutout Height(IN,inches)5.2500
Cutout Width Max(IN,inches)35.2500
Cutout Width Min(IN,inches)33.8750
Cutout Width(IN,inches)34.5000
Depth(IN,inches)21.0000
Maximum Height(IN,inches)4.0000
Net Weight(LB,pounds)62
Carton Depth(IN,inches)25.0000
Carton Height(IN,inches)12.0625
Carton Width(IN,inches)44.4375
Cutout Height Min(IN,inches)5.2500
Gross Weight(LB,pounds)70

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width41 in.
Shipping Height8.69 in.
Shipping Length26 in.
Shipping Weight110 lbs.
Total of Shipping Weight110 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.61 ft³
Dimensional Weight20.07 lbs.
Total of Cubes1.61 ft³
Total of Dimensional Weight20.07 lbs.

Details

Fuel TypeGas
Installs Over Built-In OvenYes
LP ConvertibleYes - Kit Included
Power Outage CompatibleYes
Digital DisplayNo

Element/Burner Details

Center Rear Element-Burner TypeDual
Cooktop Element StyleSealed Burner
Cooktop TypeStandard
Left Front Element-Burner TypeSealed Burner
Left Rear Element-Burner TypeSealed Burner
Number of Cooking Element-Burners5
Power BoostNo
Right Front Element-Burner TypeSealed Burner
Right Rear Element-Burner TypeSimmer
Automatic Pan DetectionNo
Center Rear Element-Burner Power18,000 BTU
Left Front Element-Burner Power9,100 BTU
Left Rear Element-Burner Power9,100 BTU
Number of Grates3
Right Front Element-Burner Power12,000 BTU
Right Rear Element-Burner Power5,000 BTU

Grate Details

Number of Grates3
Grate DetailsCast Iron Grates, Continuous, Dishwasher Safe, Matte Finish

Ventilation Details

Downdraft VentNo

Exterior Details

Knob ColorStainless Steel
Knob TypeMetal

Dimensions

Common Size36 in
Cutout Depth19-469/500 in
Cutout Depth Max20 in
Cutout Depth Min19 in
Cutout Height5-1/4 in
Cutout Width34-1/2 in
Cutout Width Max35-1/4 in
Depth21 in
Gross Weight69-3/5 lbs
Height3-11/16 in
Maximum Height4 in
Net Weight61-3/5 lbs
Width36 in

Refinements

FeaturesDuraGuard™ Protective Finish, Power™ Burner, Simmer Burner with Melt Cap, ADA Compliant

Features

Cooktop FeaturesADA Compliant, DuraGuard™ Protective Finish, Power™ Burner, Simmer Burner with Melt Cap
