30" Built-In Gas Cooktop - JGP333DETBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Built-In Gas Cooktop

Model: JGP333DETBB

30" Built-In Gas Cooktop JGP333DETBB30" Built-In Gas Cooktop JGP333DETBB30" Built-In Gas Cooktop JGP333DETBB30" Built-In Gas Cooktop JGP333DETBB30" Built-In Gas Cooktop JGP333DETBB30" Built-In Gas Cooktop JGP333DETBB
30" Built-In Gas Cooktop JGP333DETBB
30" Built-In Gas Cooktop JGP333DETBB
30" Built-In Gas Cooktop JGP333DETBB
30" Built-In Gas Cooktop JGP333DETBB
30" Built-In Gas Cooktop JGP333DETBB
+1more

Product Video

GE 30" Built-In Gas Cooktop Black JGP333DETBB Picture

Color : Black

30" Built-In Gas Cooktop JGP333DETBB
Black

Key Features

  • Fit Guarantee

  • Deep-recessed cooktop

  • Sealed cooktop burners

  • 15,000 BTU Power Boil burner

  • Precise Simmer burner

  • Matte black medium-cast grates

  • Dishwasher-safe grates and knobs

Description

Contains spills for quick and easy cleaning.Keep spillover contained on cooktop, making cleaning quick and easy.3 3/16 H x 30 W x 21 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Fit Guarantee

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

Deep-recessed cooktop

Contains spills for quick and easy cleaning

Sealed cooktop burners

Keep spillover contained on cooktop, making cleaning quick and easy

15,000 BTU Power Boil burner

Produces fast, intense heat

Precise Simmer burner

Delivers a low setting of 140 degrees

Matte black medium-cast grates

Hold cookware securely over burners

Dishwasher-safe grates and knobs

Safe to clean in the dishwasher

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

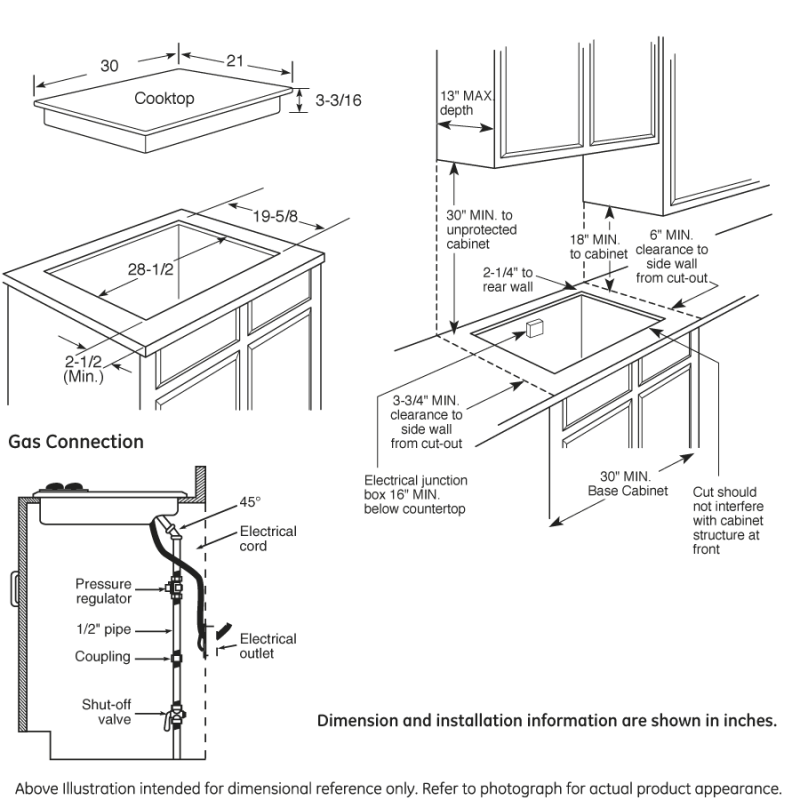

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth21 in
Cabinet Width30 in
Approximate Shipping Weight44 lb
Net Weight39 lb
Overall Height3 3/16 in
Cutout Width (in)28.5
Cutout Depth (in)19.625

Dimensions & Weight

Width30 in.
Height3.19 in.
Length21 in.
Weight39 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height8.19 in.
Shipping Length26 in.
Shipping Weight79 lbs.
Total of Shipping Weight79 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.16 ft³
Dimensional Weight14.45 lbs.
Total of Cubes1.16 ft³
Total of Dimensional Weight14.45 lbs.

FEATURES

Cooktop Burner Type4 Sealed
Valves (Degree of Turn)270
Burner - Right Rear5,000 BTU Precise Simmer
Burner - Right Front15,000 BTU Power Boil
Fuel TypeNatural Gas
Control LocationRight Side
Ignition SystemElectronic
Cooktop SurfaceDeep Porcelain-Enamel
Burner - Left Rear11,000 BTU
Control TypeManual
Cooktop Burner Grate MaterialMedium Cast
Burner - Left Front9,500 BTU
Cooktop Burner Grate FeaturesDishwasher Safe
Cooktop Burner Grate FeaturesMatte Black
Control TypeLo (1-9) Hi
Cooktop Burner Grate FeaturesContinuous Grates

POWER / RATINGS

Burner BTU Ratings (000's/BTU) - LP Gas(1) 15.0; (1) 10.0; (1) 9.1; (1) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas(1) 15.0; (1) 11.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance

ACCESSORIES

LP Conversion KitIncluded

APPEARANCE

Color AppearanceBlack on Black
Control KnobsPlastic
Control KnobsDishwasher Safe
