30" Built-In Gas Cooktop - JGP328CEKCC

This product has been discontinued by the manufacture and is no longer available.

30" Built-In Gas Cooktop

Model: JGP328CEKCC

30" Built-In Gas Cooktop JGP328CEKCC30" Built-In Gas Cooktop JGP328CEKCC30" Built-In Gas Cooktop JGP328CEKCC
30" Built-In Gas Cooktop JGP328CEKCC
30" Built-In Gas Cooktop JGP328CEKCC
30" Built-In Gas Cooktop JGP328CEKCC

Color : Bisque

30" Built-In Gas Cooktop JGP328CEKCC
Bisque

Key Features

  • Deep-recessed cooktop

  • Sealed cooktop burners

  • Precise Simmer burner

  • Continuous grates

  • Dishwasher-safe grates

  • Dishwasher-safe knobs

  • Medium cast grates

  • All purpose burners

Description

Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless.Allows for low, even heat distribution that is ideal for delicate foods and sauces.3 3/16 H x 30 W x 21 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Deep-recessed cooktop

Contains spills for quick and easy cleaning

Sealed cooktop burners

Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless

Precise Simmer burner

Allows for low, even heat distribution that is ideal for delicate foods and sauces

Continuous grates

Cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily

Dishwasher-safe grates

Grates are safe for the dishwasher so cleaning is as easy as ever

Dishwasher-safe knobs

Just place the removable knobs in the dishwasher and you’re done

Medium cast grates

Medium-duty steel grates deliver reliable cooktop performance for years to come

All purpose burners

All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

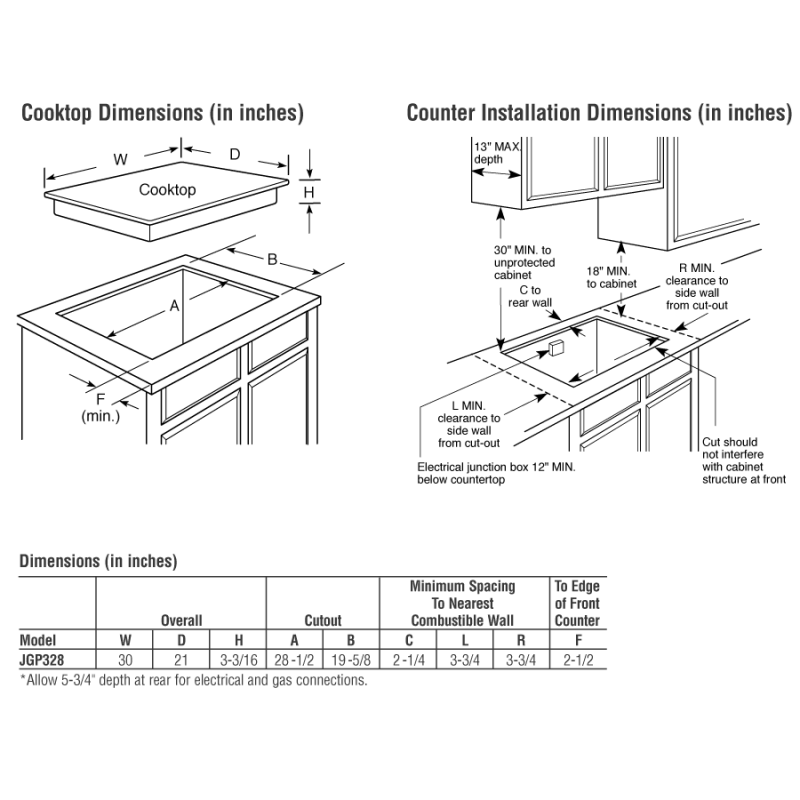

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth21 in
Cabinet Width30 in
Approximate Shipping Weight44 lb
Net Weight39 lb
Overall Height3 3/16 in

Dimensions & Weight

Width30 in.
Height3.19 in.
Length21 in.
Weight39 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height8.19 in.
Shipping Length26 in.
Shipping Weight79 lbs.
Total of Shipping Weight79 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.16 ft³
Dimensional Weight14.45 lbs.
Total of Cubes1.16 ft³
Total of Dimensional Weight14.45 lbs.

FEATURES

Dishwasher Safe KnobsYes
Cooktop Burner Type4 Sealed
All-Purpose Burners(3) 9,500 BTU/150F degree simmer
Valves (Degree of Turn)270
Fuel TypeNatural Gas
Control LocationRight Side
Ignition SystemElectronic
Cooktop SurfaceDeep Porcelain-Enamel
Cooktop Burner Grate FeaturesDishwasher Safe
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Cooktop Burner Grate FeaturesContinuous Grates

POWER / RATINGS

Burner BTU Ratings (000's/BTU) - LP Gas(3) 9.1; (1) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas(3) 9.5; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Warranty NotesFor models produced on or after January 1, 2006

ACCESSORIES

LP Conversion KitIncluded

APPEARANCE

Color AppearanceBisque on Bisque
