$1,899.00

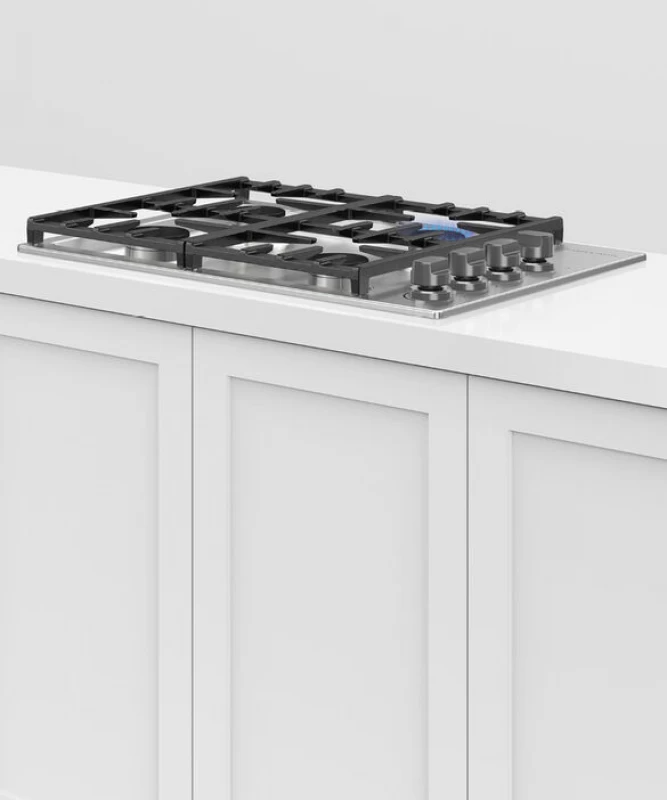

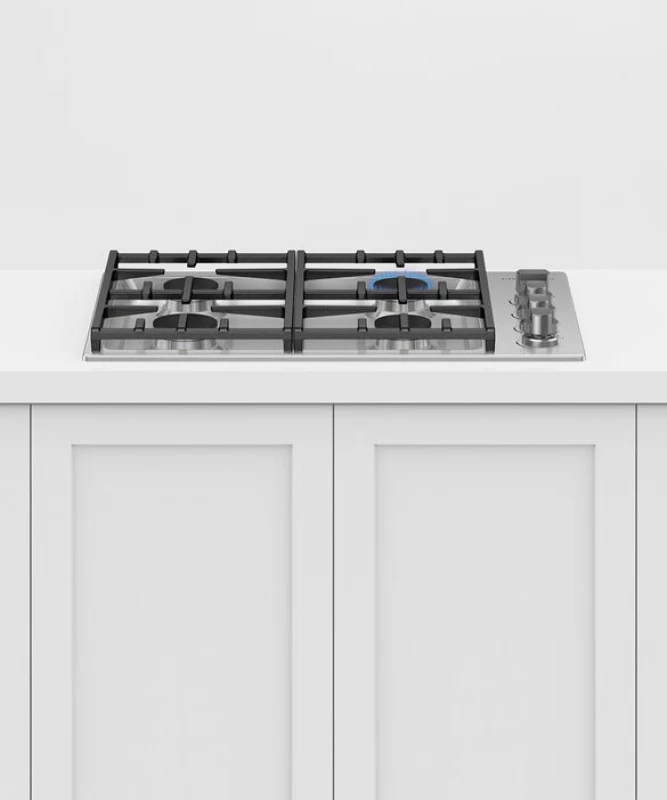

Gas Cooktop, 30", LPG - CDV3304L
$1,899.00
Color : Other
Key Features
Cooktop Power
Precise Control
Cooking Flexibility
Easy To Clean
Complementary Design
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Specifications
Features
Cooktop Power
Precise Control
Cooking Flexibility
Easy To Clean
Complementary Design
Specifications
Burner ratings
| Yes | |
| Max burner power | Yes |
| Power back left | 15,000 BTU |
| Power back right | 15,000 BTU |
| Power front left | 20,000 BTU |
| Power front right | 15,000 BTU |
| Total cooktop power | 65,000 BTU |
Controls
| Yes | |
| Metal dials | Yes |
Gas Requirements
| Yes | |
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
Performance
| Yes | |
| Sealed Dual Flow Burners™ | 4 |
| Sealed cooking surface | Yes |
| Simmer on all burners | 140°F |
Power requirements
| Yes | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Recommended Back Guards Ventilation
| Yes | |
| Downdraft | HD30 |
| Minimum CFM | 600 BTU |
| Pro hood | HCB30-6 N |
| Traditional hood | ES30 |
Safety
| Yes | |
| ADA compliant | Yes |
Warranty
| Yes | |
| Parts and labor | 2 years |
Other
| Yes |
Dimensions & Weight
| Width | 30 in. |
| Height | 5 in. |
| Length | 21 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 10 in. |
| Shipping Length | 26 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.82 ft³ |
| Dimensional Weight | 22.66 lbs. |
| Total of Cubes | 1.82 ft³ |
| Total of Dimensional Weight | 22.66 lbs. |
