36" Built-In Electric Cooktop - JP656DDBB
36" Built-In Electric Cooktop
Model: JP656DDBB
36" Built-In Electric Cooktop
Model: JP656DDBB
Color : Black
Key Features
Ceramic-glass cooktop
Ribbon heating elements
12"/9" dual element
8" Power Boil element
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Ceramic-glass cooktop
Cleanup is quick and easy

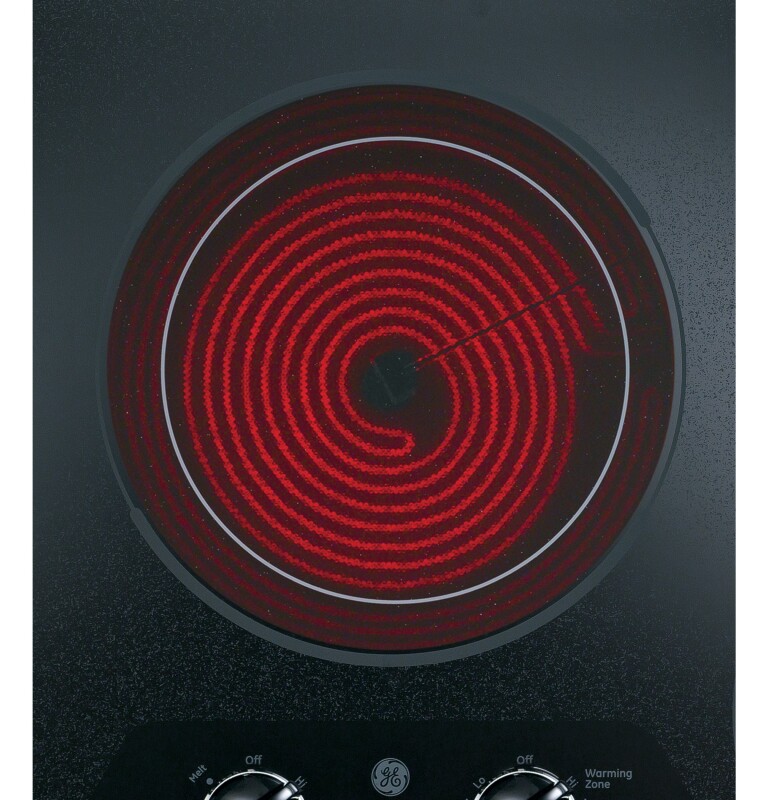

Ribbon heating elements
Consistent heat and glass surface provide fast, even heating
12"/9" dual element
Choose a 12" or 9" heating element
8" Power Boil element
2,500 Watts produce quick, vigorous heat
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

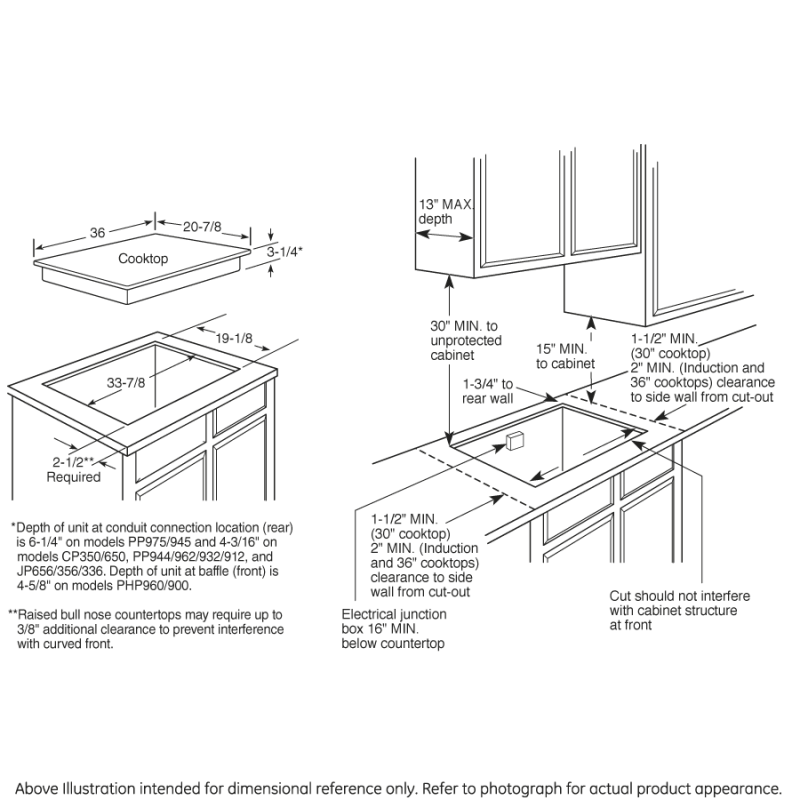

WEIGHTS & DIMENSIONS
| Overall Width | 36 in |
| Cooktop Size | 36 in |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 44 lb |
| Net Weight | 39 lb |
| Overall Depth | 20 7/8 in |
| Overall Height | 3 1/4 in |
| Overall Height at Conduit (rear) | 6 1/4 in |
| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
Other
| Cooktop Size | 36 in |
Dimensions & Weight
| Width | 36 in. |
| Height | 3.25 in. |
| Length | 20.88 in. |
| Weight | 39 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 25.88 in. |
| Shipping Weight | 79 lbs. |
| Total of Shipping Weight | 79 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.41 ft³ |
| Dimensional Weight | 17.57 lbs. |
| Total of Cubes | 1.41 ft³ |
| Total of Dimensional Weight | 17.57 lbs. |
FEATURES
| Dishwasher Safe Knobs | Yes |
| Cooktop Burner Type | Smoothtop |
| 8" Heating Element (s) | 1 Ribbon (Power Boil - 2,500W) |
| 5"/8" Dual Heating Element | 1 Ribbon (2,400W) |
| Indicator Lights | Surface Element "ON" |
| Control Location | Front Center |
| 9"/12" Dual Heating Element | 1 Ribbon (3,000W) |
| Cooktop Surface | Patterned Black on Black Glass Ceramic |
| 6" Heating Element(s) | 1 Ribbon (1,200W) |
| Cooktop Control Features | Child Lock |
| Control Type | Knob (Infinite switch) |
| Warming Zone | 1-6" Ribbon (120W) |
| Cooktop Burner Type | 5 Ribbon |
| Indicator Lights | 5 Hot Surface |
WARRANTY
| Parts Warranty | Limited 5-year glass cooktop/radiant surface units |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
APPEARANCE
| Color Appearance | Black |
| Frameless | Yes |
POWER / RATINGS
| KW Rating at 208V | 5.9 |
| Amp Rating at 240V | 36.3 |
| KW Rating at 240V | 8.7 |
| Amp Rating at 208V | 30 |
