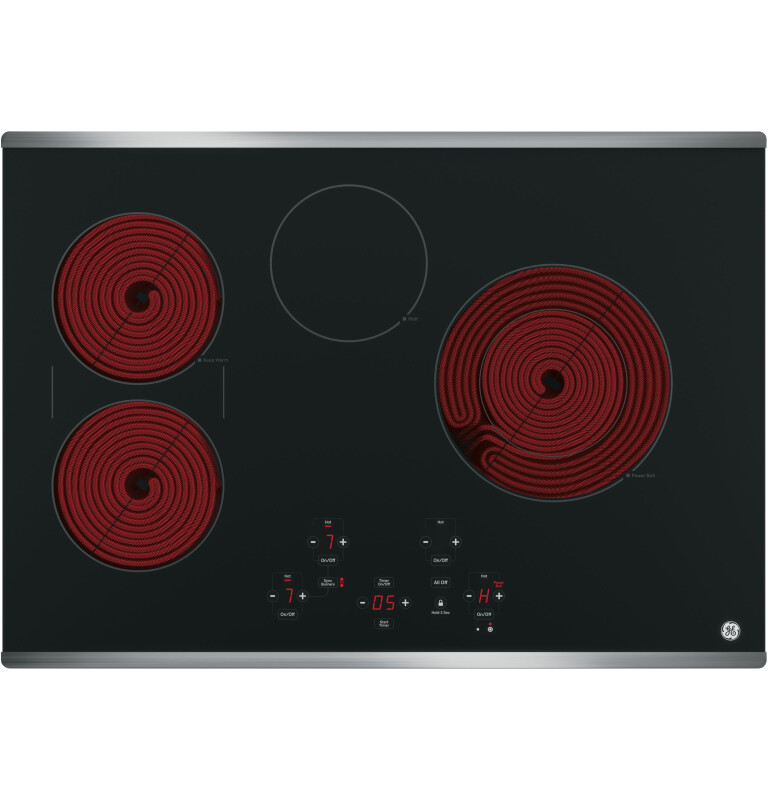

30" Built-In Touch Control Electric Cooktop - JP5030SJSS
Key Features
Four radiant cooking elements
Digital Touch Controls
Power Boil Dual-Ring Element
SyncBurners
Kitchen timer
Keep Warm Setting
Melt Setting
Control lock capability
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Digital Touch Controls
Accurately control your heating on a surface that’s easy to clean
Power Boil Dual-Ring Element
Use different pan sizes on this powerful 3,100-watt flexible element that produces concentrated heat for rapid boiling
SyncBurners
Evenly heat large cookware (griddles) with two 7" synchronized elements you can control with the touch of a button
Kitchen timer
Helps coordinate meal preparation and cooking
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Control lock capability
Protects against unintended activation
Red LED with Black Glass Surface and Stainless Steel Trim
Achieve a modern look that complements the entire kitchen and other stainless steel appliances
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance

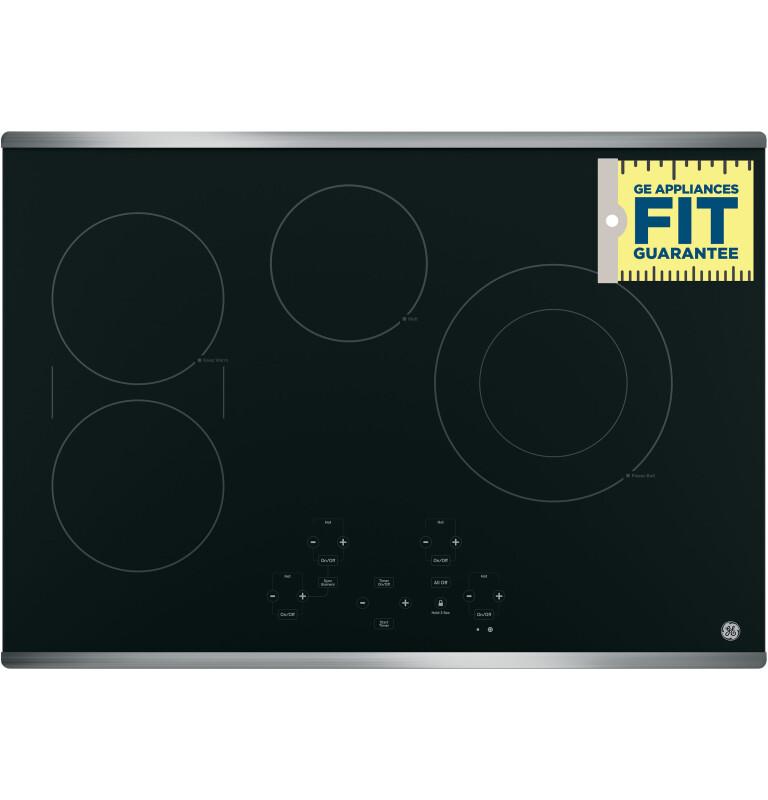

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Certifications
ADA Compliant
California Prop 65
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Height | 5.5625 in |
| Overall Width | 29.875 in |
| Overall Depth | 21 in |
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 44 lb |
| Net Weight | 38 lb |

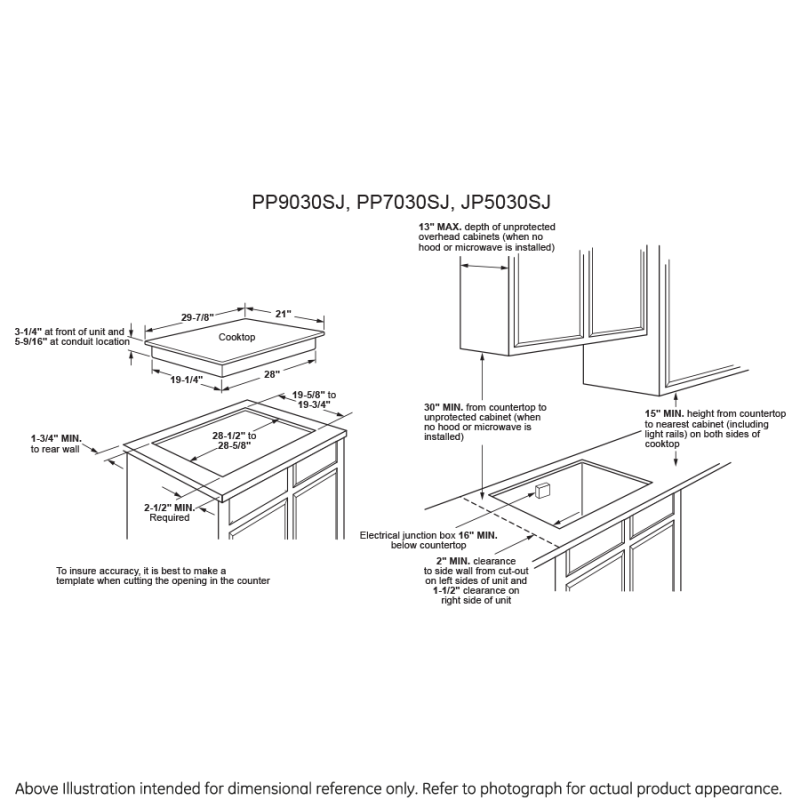

| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
FEATURES
| Filler trim kit | JXTR32B (not included) |
| Cooktop Burner Type | Smoothtop |
| Melt Setting | Yes |
| Element - Left Front | 7" 1500W |
| Fuel Type | Electric |
| Element - Right Front | 9"/6" 3100W Power Boil |
| Control Location | Front Center |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | Black Ceramic Glass with Stainless Steel Trim |
| Timer | Yes |
| Element - Left Rear | 7" 1500W |
| Control Type | Electronic Touch |
| Element - Right Rear | 6" 1200W |
| Product Type | Cooktop |
| Cooktop Control Features | Control Lock Capability |
| Indicator Lights | Red |
| Indicator Lights | Surface Element "ON" |
| Cooktop Control Features | Sync-Burners Capability |
| Cooktop Burner Type | 4 Ribbon |
| Cooktop Control Features | All-Off Control |
| Cooktop Control Features | Keep-Warm Setting |
| Cooktop Control Features | Kitchen timer |
| Cooktop Control Features | Melt Setting |
| Indicator Lights | 4 Hot Surface |
| Indicator Lights | Setting Level Indicators |
APPEARANCE
| Frame Color / Material | Stainless Steel |
| Color Appearance | Stainless Steel on Black |
| Frameless | Yes |
POWER / RATINGS
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 7.3 |
| Max. Current Draw (Amps) at 240V | 30.4 |
| Max. Connected Load (kW) at 208V | 5.5 |
| Recommended Circuit Breaker (Amps) at 208V | 30 |
| Max. Current Draw (Amps) at 208V | 26.4 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 5.56 in. |
| Length | 21 in. |
| Weight | 38 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 10.56 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 78 lbs. |
| Total of Shipping Weight | 78 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2.02 ft³ |
| Dimensional Weight | 25.11 lbs. |
| Total of Cubes | 2.02 ft³ |
| Total of Dimensional Weight | 25.11 lbs. |
